react-lineage-map v1.0.16

react-lineage-map

A powerful React component for visualizing and managing data lineage with field-level mapping, transformations, and interactive features.

Table of Contents

• Features
• Installation
• Usage
• Configuration Options
• Type Definitions
• Special Features
• Contributing
• License

Features

Core Visualization

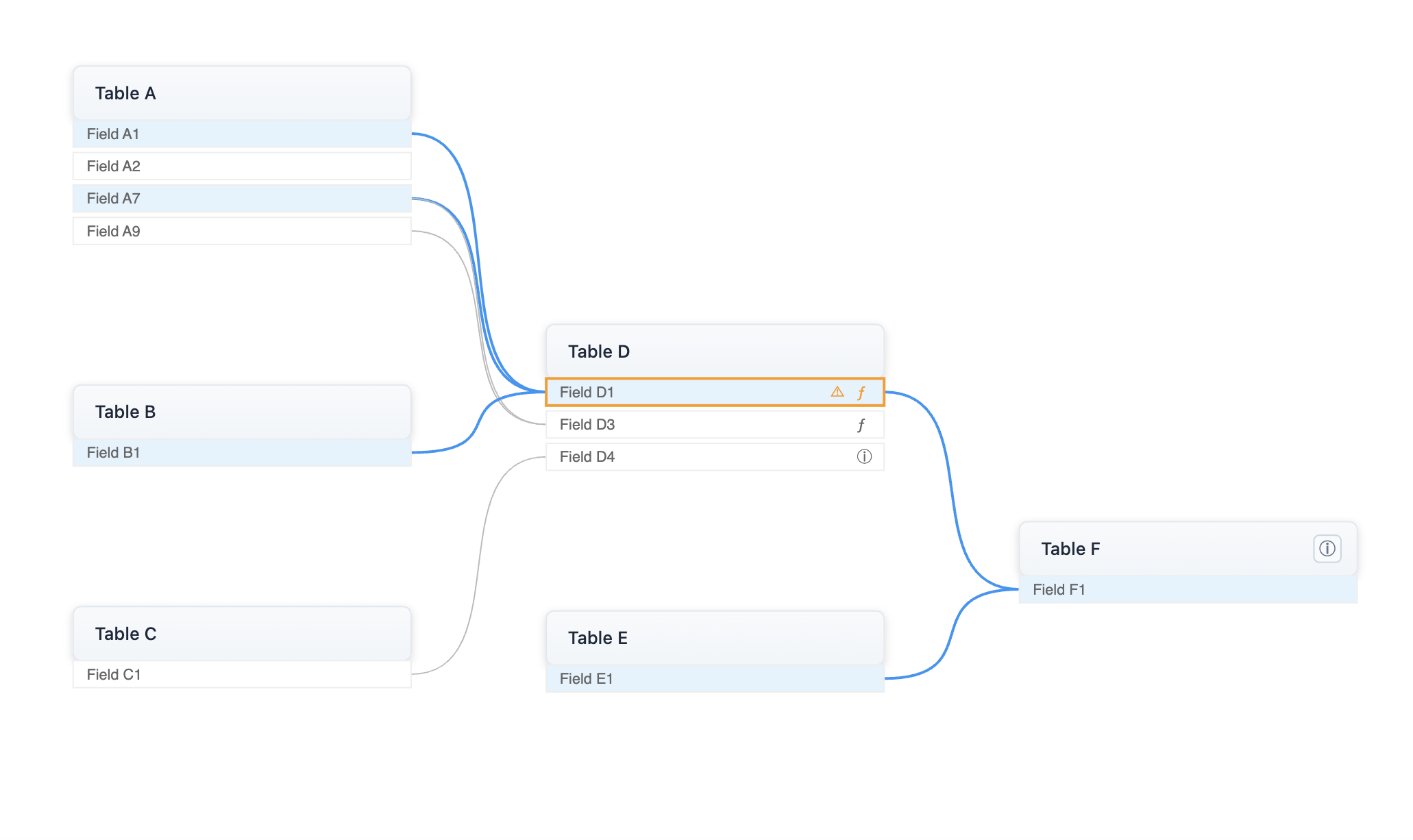

• Interactive SVG-based visualization of data lineage relationships
• Automatic layout calculation with configurable levels and spacing
• Smooth curved edges showing relationships between fields
• Zoom and pan functionality for large lineage maps

Table Features

• Expandable/collapsible tables showing field details
• Table-level notes and documentation support
• Visual indication of table relationships
• Automatic table positioning based on dependencies

Field Features

• Capture field-level transformation and notes
• Interactive field highlighting based on relationships
• Support for SQL blocks in field documentation
• Field validation with error highlighting

Installation

npm install react-lineage-map

Usage

Basic Example

import { GraphProp, LineageMapComponent } from "react-lineage-map";

const graph: GraphProp = {
  nodes: [
    // Tables
    {
      id: 'source_table',
      type: 'table',
      name: 'Source Table',
      note: 'Optional source table documentation'
    },
    {
      id: 'target_table',
      type: 'table',
      name: 'Target Table',
      note: 'Optional target table documentation'
    },
    // Fields
    {
      id: 'source_table:field1',
      type: 'field',
      name: 'Field 1',
      transformation: 'Optional transformation logic',
      note: 'Optional field documentation'
    },
    {
      id: 'target_table:field1',
      type: 'field',
      name: 'Field 1',
      transformation: 'Optional transformation logic',
      note: 'Optional field documentation'
    }
  ],
  edges: [
    {
      source: 'source_table:field1',
      target: 'target_table:field1'
    }
  ]
};

function App() {
  return (
    <div style={{ height: '800px' }}>
      <LineageMapComponent
        data={graph}
        height="100%"
        options={{
          tableWidth: 250,
          tableHeight: 40,
          fieldHeight: 20,
          fieldSpacing: 4,
          levelPadding: 100,
          verticalPadding: 50,
          popUpWidth: 300,
          popUpFloat: "high",
          maxCurveOffset: 80,
        }}
      />
    </div>
  );
}

Configuration Options

Component Options

Type Definitions

User-Facing Types

These are the types you need to work with when using the component:

Graph Props

interface GraphProp {
  nodes: NodeProp[];    // Array of table and field nodes
  edges: EdgeProp[];    // Array of edges connecting nodes
}

Node Props

// Base node properties
interface BaseNode {
  id: string;           // Unique identifier
  name: string;         // Display name
}

// Table node definition
interface TableNode extends BaseNode {
  type: 'table';        // Node type identifier
  note?: string;        // Optional documentation
}

// Field node definition
interface FieldNodeProp extends BaseNode {
  type: 'field';        // Node type identifier
  tableId?: string;     // Optional reference to parent table
  transformation?: string; // Optional transformation logic
  note?: string;        // Optional documentation
}

type NodeProp = TableNode | FieldNodeProp;

Edge Props

interface EdgeProp {
  id?: string;          // Optional unique identifier
  source: string;       // Source node ID
  target: string;       // Target node ID
}

Component Props

interface LineageMapProps {
  data: GraphProp;      // Graph data
  width?: string | number; // Optional width override
  height?: string | number; // Optional height override
  options?: LineageMapOptions; // Optional configuration
  className?: string;   // Optional CSS class
}

interface LineageMapOptions {
  width?: string | number;     // Width of the lineage map
  height?: string | number;    // Height of the lineage map
  tableWidth?: number;         // Width of table nodes
  tableHeight?: number;        // Height of table header
  fieldHeight?: number;        // Height of field rows
  fieldSpacing?: number;       // Vertical spacing between fields
  levelPadding?: number;       // Horizontal spacing between levels
  verticalPadding?: number;    // Vertical spacing between tables
  popUpWidth?: number;         // Width of documentation popups
  popUpFloat?: "high" | "low"; // Whether to float popups above or below their targets
  maxCurveOffset?: number;     // Maximum curve of edge connections
}

Key Differences from Internal Types

When using the component, note these key differences from internal types:

1. FieldNodeProp has an optional tableId, while the internal FieldNode requires it
2. EdgeProp has an optional id, while the internal Edge requires it
3. Edge types (field-field | table-table) are handled internally and don't need to be specified
4. The component will automatically handle type conversions and validations internally

Example Usage

const graph: GraphProp = {
  nodes: [
    // Table node
    {
      id: 'table1',
      type: 'table',
      name: 'Source Table',
      note: 'This is a source table'
    },
    // Field node - minimal
    {
      id: 'table1:field1',
      type: 'field',
      name: 'Field 1'
    },
    // Field node - full
    {
      id: 'table1:field2',
      type: 'field',
      name: 'Field 2',
      tableId: 'table1',
      transformation: 'table1:field1 * 2',
      note: 'This field doubles the value of field1'
    }
  ],
  edges: [
    // Minimal edge
    {
      source: 'table1:field1',
      target: 'table1:field2'
    },
    // Edge with ID
    {
      id: 'edge1',
      source: 'table1:field1',
      target: 'table1:field2'
    }
  ]
};

// Component usage
function App() {
  return (
    <div style={{ height: '800px' }}>
      <LineageMapComponent
        data={graph}
        width="100%"
        height="800px"
        options={{
          tableWidth: 250,
          levelPadding: 100
        }}
        className="my-lineage-map"
      />
    </div>
  );

Special Features

Field and Table Documentation

SQL Notes

• Support for both plain text and SQL blocks in notes
• SQL blocks are formatted and syntax highlighted
• Use ---startsql and ---endsql tags to denote SQL blocks

// SQL blocks in table notes
{
  id: 'customer_table',
  type: 'table',
  name: 'Customer Table',
  note: `This table contains filtered customer data:
          ---startsql
          SELECT * FROM customers
          WHERE status = 'active'
          ---endsql
          Only active customers are included`
}

// SQL blocks in field notes
{
  id: 'table:field1',
  type: 'field',
  name: 'field1',
  note: `This field is calculated using the following SQL:
          ---startsql
          SELECT
            SUM(value) / COUNT(*) as average
          FROM source_table
          ---endsql
          The result is then normalized.`
}

Using \n for Newlines in Notes

When concatenating strings in field notes, use \n to create newlines. This is especially useful for formatting bulleted lists or separating information clearly.

{
  id: 'table:field2',
  type: 'field',
  name: 'field2',
  note: 'Key details:\n' +
        '- This field is calculated monthly.\n' +
        '- Includes only active users.\n' +
        '- Excludes test data.'
}

Transformation Validation

The component automatically validates:

• Field references in transformations
• Existence of referenced fields
• Edge connections matching transformations
• Missing or extra edge connections

Interactive Features

• Click tables to expand/collapse
• Hover over fields to highlight relationships
• Click fields to view transformations
• Click info icons to view documentation
• Zoom and pan for navigation

Best Practices

1. Node IDs:

   • Table IDs should be unique and consistent
   • Field IDs should follow the format table_id:field_name
   • Use underscores instead of spaces in IDs

2. Documentation:

   • Use table notes for high-level context
   • Use field notes for detailed specifications
   • Include SQL blocks for complex transformations

3. Layout:

   • Group related tables in levels
   • Keep transformations clear and documented
   • Use consistent naming conventions

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

MIT
