React-native-declan NPM

Declan is a library that makes it easy to incorporate declarative animations and interactions into your React Native app. It's inspired heavily by the UX language created by Fuse.

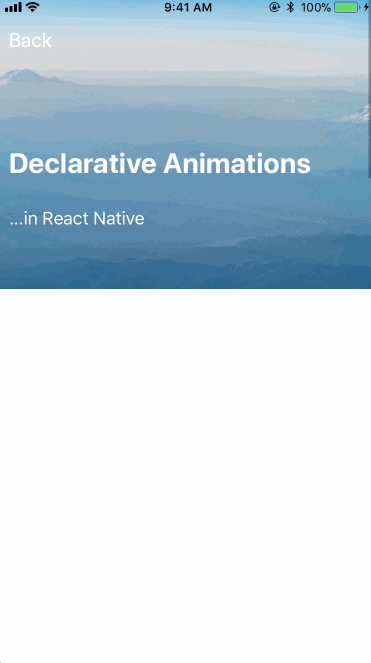

Demos

Run the demo app on Expo

https://expo.io/@akalyan/examples

Build and run the demo app on your computer

Clone the repo and run:

cd examples
yarn
yarn start

...then scan the QR code in the Expo app.

Installation

npm install --save react-native-declan

yarn add react-native-declan

Usage

We suggest reading the Fuse documentation for Animations to get a better sense for what react-native-declan strives to be and how to implement compelling user interactions with a truly declarative API. In lieu of that, here is a summary.

There are several entities that react-native-declan comprises:

Animators - descriptions of how components change
Triggers - stimuli that invoke change, wrap a set of Animators
Higher-Order Animators - like the offspring of Animator and Trigger, wrap and invoke a set of Animators, but also behave like an Animator
Components - what will change
Behaviors - give Components capabilities or detects gestures that are used by Triggers

Animators

Animators describe how components will change. There are a handful of basic animators to use: Move, Rotate, Scale, Fade.

New, more complex, animators can be built by combining those basic animators. For an example of this, see the Shake. These new animators should have the same behavior as the basic animators.

Animators essentially wrap the Animated.timing API twice -- once running forward, and another running backward.

Example:

<Move
  getTargetRef={() => elementToMove}
  x={80}
  duration={1000}
  easing={Easing.bounce}
  durationBack={500}
  easing={Easing.linear}
/>

The above snippet describes a movement of the component referenced by elementToMove, which will move right 80 pixels over 1 second with a bounce easing curve...when triggered.

Supported Animators

Name	Props	Description	Notes
`Move`	`x`: number, `y`: number	Translate by `x` or `y` or both	-
`Scale`	`x`: number, `y`: number, `factor`: number	Scale by `x` or `y` or `factor` (both) from center of `AnimatableView`	-
`Rotate`	`degrees`: number, `degreesX`: number, `degreesY`: number, `degreesZ`: number	Rotate reference `AnimatableView` by props from center	`degrees` is an alias of `degreesZ`
`Fade`	`value`: number	Chance opacity of referenced `AnimatableView` to `value`	-
`Change`	`field`: string, `value`: number	Chance a style property `field` of referenced `AnimatableView` to `value`	(1) Only one of these can apply to an `AnimatableView`, (2) This `Animator` does not use the native driver, so use sparingly!
`DebugAction`	`message`: string	Just prints the message to the console (does nothing in reverse)	-
`Callback`	`action`: () => any	Calls the action (does nothing in reverse)	-

All of the visual Animators above (Move, Scale, Rotate, Fade, Change) also take the following props:

Prop	Type	Description
`getTargetRef`	() => `AnimatableView`	Function that returns the `AnimatableView` the `Animator` should apply to
`initialValue`	number or `{ x: number, y: number }`	Depending on the type of Trigger used, you may need to specify where the `Animator` should return to. Some just take a value (e.g. `Fade`), while others take `x` and `y` (e.g. `Move`)
`onFinish`	() => void	Callback called when `Animator` finishes playing forward
`onFinishBack`	() => void	Callback called when `Animator` finishes playing backward
`duration`	number	Duration of forward animation
`durationBack`	number	Duration of backward animation
`delay`	number	Delay before starting forward animation
`delayBack`	number	Delay before starting backward animation
`easing`	`Easing`	Easing function to apply to forward animation
`easingBack`	`Easing`	Easing function to apply to backward animation
`extrapolate`	`'extend'` or `'clamp'`	Extrapolation setting for driver-based `Animator`
`extrapolateLeft`	`'extend'` or `'clamp'`	Extrapolation setting for driver-based `Animator`
`easingBack`	`'extend'` or `'clamp'`	Extrapolation setting for driver-based `Animator`

Triggers

Triggers actually cause change to happen. This is where we take the user's actions into account. There are three types of triggers:

Pulse triggers - play a set of animators forward
While triggers - play forward while a condition is met, and play backward otherwise
Gesture-responsive triggers - animators that play in response to, and in proportion to, some user gesture

Supported triggers

Name	Props	Description	Notes
`ManualTrigger`	-	A wrapper for a set of `Animator`s that you can trigger by calling `.start()`	-
`Mounted`	-	Triggers its `Animator`s when this trigger is mounted	Put this at the bottom of the component tree to ensure it mounts last
`WhileTrue`	`value`: boolean	Triggers its `Animator`s when `value` evaluates to true, stops the `Animator`s when false	-
`ScrollPositionAnimation`	`from`: number, `to`: number, `driver`: `ScrollDriver`	Gesture-based trigger that plays its `Animator`s forward when `ScrollView` is scrolled from `from` to `to`	See Scroll Position Demo for an example of how to hook it up to the `ScrollView`
`WhileScrolling`	`direction`: `up`, `down`, or `either`, `driver`: `ScrollDriver`	Plays forward when associated `ScrollView` is scrolling in `direction`, otherwise plays backward	See Scroll Direction Demo for an example of how to hook it up to the `ScrollView`
`StateGroup`	`defaultState`: string	This is a sort of wrapper Trigger for `State`	Trigger a specific state by calling `goToState` on this component's ref
`State`	`name`: string	Will trigger its `Animator`s when parent `StateGroup` changes to this state, and play backward when changed away from this state	-

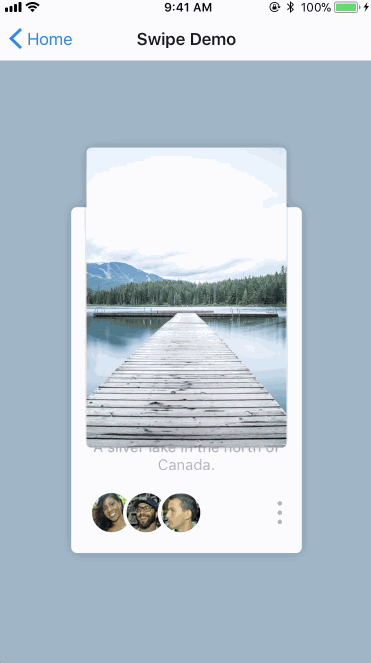

`SwipingAnimation`	`getSourceRef`: () => `SwipeGesture`	Plays forward when associated `SwipeGesture` is swiped forward and returns to resting state when going backward	See Swipe Demo for examples of how to hook it up to a swipe-able view
`Swiped`	`getSourceRef`: () => `SwipeGesture`, `how`: `toActive`, `toInactive`, or `toEither`	Triggered when the associated `SwipeGesture` is swiped	See Swipe Demo for examples of how to hook it up to a swipe-able view

Higher-Order animators

Name	Props	Description
`Parallel`	-	When started, plays all its children forward, when stopped plays them backward
`Cycle`	-	Plays its children `Animator`s playing forward, and restarts them all when the last one finishes playing
`Sequence`	-	Plays each child `Animator` forward one-by-one (when the first finishes, second one beings, etc.)
`Stagger`	`eachDelay`: number	When started, plays each child `Animator` with delay `eachDelay` between then, same behavior on stop

All of the higher-order components also pass onto its children the following properties:

getTargetRef
x
y
initialValue
value
duration
easing
delay
durationBack
easingBack
delayBack

See the Stagger Demo for usage example.

Components

Finally, react-native-declan has a set of components that can be manipulated through animators and triggers. Right now, the only component is a static view, but that will soon change.

Behaviors

Note: this may change in the future as we determine whether the Behavior model or the Driver model is more appropriate for react-native.

Name	Prop	Description
`SwipeGesture`*	`type`: `active`	Only type supported right now
	`direction`: `left`, `right`, `up`, or `down`	Direction to detect the swipe. Will also detect a swipe in the opposite direction to go back to `inActive` state
	`length`: number	How long does the user need to swipe for it be considered "successful" (note, also fast swipes will count as success)
	`edge`: `left`, `right`, `top`, `bottom`	To only enable swipes from the edge of an element
	`hitSize`: number	For `edge`, how far from the edge is in play to start the gesture
		* See Swipe Demo for examples of how to hook it up to a swipe-able view by using the `PanEventEmitter`
