react-native-patternlock-authentication

react-native-patternlock-authentication

A customizable Pattern Lock Security component for Android and iOS built with React Native and SVG.

Create secure pattern authentication flows like:

• Set New Pattern
• Change Pattern
• Confirm Pattern
• General Pattern Validation

---

Features

• Fully customizable UI
• Smooth dot snapping animation
• Wrong pattern delay handling
• Pattern length validation
• Wrong attempt limit support
• Built-in Change Pattern flow
• Optional vibration feedback
• Works on both Android & iOS
• Built using react-native-svg

---

Demo

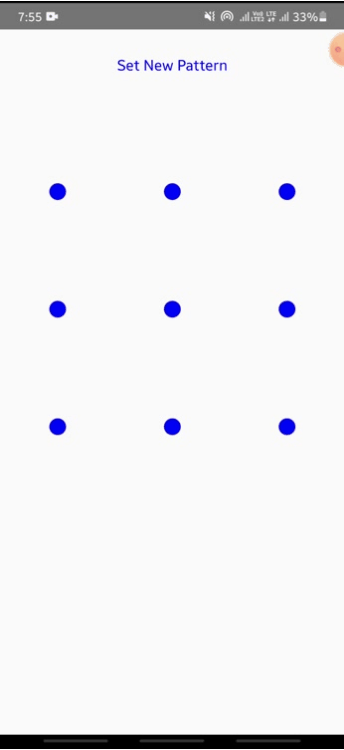

Set New Pattern

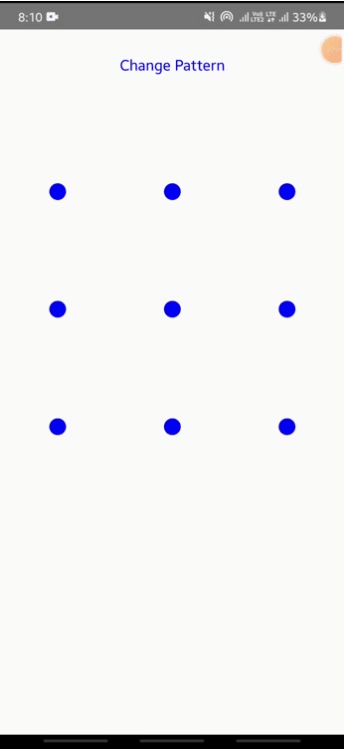

Change Pattern

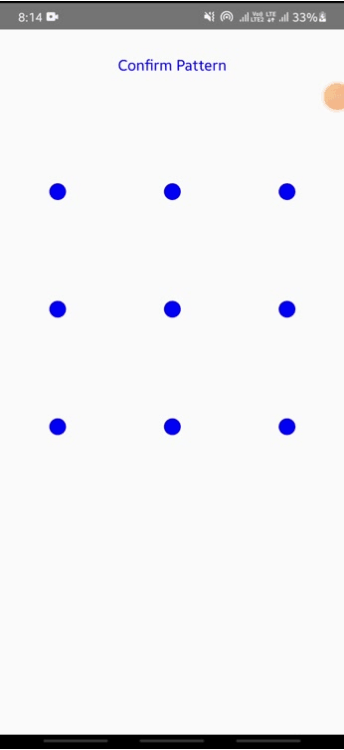

Confirm Pattern

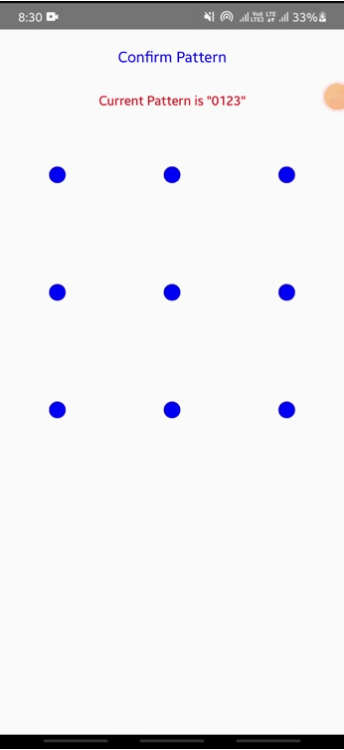

General Pattern

---

Installation

This package requires react-native-svg.

Follow the official installation guide: react-native-svg

Then install:

npm  install  react-native-patternlock-authentication

---

Usage

This package provides two pattern lock components:

1. GeneralPatternLock – Simple pattern validation

2. FeaturedPatternLock – Complete authentication flow (Set / Confirm / Change)

---

1. GeneralPatternLock

Best for simple unlock validation screens.

Example

import { Dimensions } from  'react-native';

// ....

import { GeneralPatternLock } from  'react-native-patternlock-authentication'; // Import Package

const  {  width,  height  }  =  Dimensions.get('window');

const  PATTERN_CONTAINER_HEIGHT  =  height  /  2; //you can change it as per your need

const  PATTERN_CONTAINER_WIDTH  =  width; //you can change it as per your need
const  PATTERN_DIMENSION  =  3; //you can change it as per your need
const  CORRECT_UNLOCK_PATTERN  =  '0123'; //Correct Pattern

// ...

export const  App  =  ()  =>  {

const  onPatternMatch  =  ()  =>  {
	// Do your Functionalities
};

const  onWrongPattern  =  ()  =>  {
	// Do your Functionalities
};

const  onPatternMatchAfterDelay  =  ()  =>  {
	// Do your Functionalities
};

const  onWrongPatternAfterDelay  =  ()  =>  {
	// Do your Functionalities
};

return (
//...
<GeneralPatternLock
	containerDimension={PATTERN_DIMENSION}
	containerWidth={PATTERN_CONTAINER_WIDTH}
	containerHeight={PATTERN_CONTAINER_HEIGHT}
	correctPattern={CORRECT_UNLOCK_PATTERN}
	dotsAndLineColor="blue"
	defaultDotRadius={10}
	snapDotRadius={15}
	snapDuration={100}
	lineStrokeWidth={5}
	wrongPatternColor="red"
	matchedPatternColor="green"
	onPatternMatch={onPatternMatch}
	onWrongPatternAfterDelay={onWrongPatternAfterDelay}
	onPatternMatchAfterDelay={onPatternMatchAfterDelay}
	onWrongPattern={onWrongPattern}
	// ...Use remaining props as per your convenience
/>

//...
)};

---

GeneralPatternLock Props

Props	Type	Required	Default	Description
containerDimension	number	No	3	It refers to the dimensions of the pattern dots array (e.g., 3 × 3, 4 × 4).
containerWidth	number	No	Dimensions.get('window').width	Width of the pattern container
containerHeight	number	No	(Dimensions.get('window').height)/2	Height of the pattern container
correctPattern	string	No	-	The correct pattern string for validation
wrongPatternDelayTime	number (ms)	No	1000	Pattern draw event disable duration after a wrong pattern is entered.
correctPatternDelayTime	number	No	0	Pattern draw event disable duration after the correct pattern is matched.
dotsAndLineColor	ColorValue	No	blue	Color of dots and connecting lines
wrongPatternColor	ColorValue	No	red	Color of dots and line when pattern is wrong
lineStrokeWidth	number	No	5	Thickness of the connecting line
defaultDotRadius	number	No	6	Default radius of pattern dots
snapDotRadius	number	No	10	Snapping radius of dots when connecting them.
snapDuration	number	No	100	Snapping duration of dots when connecting them.
enableHint	boolean	No	false	Enable or disable hint display
hint	string	No	-	Hint text to display to the user
hintContainerStyle	ViewStyle	No	-	Custom style for the hint container
hintTextStyle	TextStyle	No	{ color: '#000000' }	Custom style for the hint text
matchedPatternColor	ColorValue	No	green	Color of dots and line when pattern matches

---

GeneralPatternLock Callbacks

Callback	Returns	Description
onPatternMatch	(pattern)	Called when pattern matches
onWrongPattern	(pattern)	Called when pattern is wrong
onPatternMatchAfterDelay	(pattern)	Called after correctPatternDelayTime
onWrongPatternAfterDelay	(pattern)	Called after wrongPatternDelayTime

---

2. FeaturedPatternLock

Complete pattern authentication workflow including:

• Set New Pattern
• Confirm Pattern
• Change Pattern
• Wrong Attempt Limiting
• Optional Vibration Feedback

---

Example

import { Dimensions } from  'react-native';

// ....

import { FeaturedPatternLock,PatternProcess} from  'react-native-patternlock-authentication'; // Import Package

const  {  width,  height  }  =  Dimensions.get('window');

const  PATTERN_CONTAINER_HEIGHT  =  height  /  2; //you can change it as per your need
const  PATTERN_CONTAINER_WIDTH  =  width; //you can change it as per your need
const  PATTERN_DIMENSION  =  3; //you can change it as per your need

// ...

export const  App  =  ()  =>  {

const  onPatternMatch  =  ()  =>  {
// Do your Functionalities
};

const  onWrongPattern  =  ()  =>  {
// Do your Functionalities
};

const  onPatternMatchAfterDelay  =  ()  =>  {
// Do your Functionalities
};

const  onWrongPatternAfterDelay  =  ()  =>  {
// Do your Functionalities
};
return (
//...
<FeaturedPatternLock
	onPatternMatch={onPatternMatch}
	onWrongPattern={onWrongPattern}
	isChangePattern={false}
	processName={PatternProcess.NEW_PATTERN}
	// ...Use remaining props as per your convenience
/>

 //...
)};



---

PatternProcess Options

PatternProcess.NEW_PATTERN;
PatternProcess.CONFIRM_PATTERN;

For Change Pattern:

• Set processName={PatternProcess.CONFIRM_PATTERN}
• Set isChangePattern={true}

---

FeaturedPatternLock Props

Props	Type	Required	Default	Description
containerDimension	number	No	3	It refers to the dimensions of the pattern dots array (e.g., 3 × 3, 4 × 4).
containerWidth	number	No	Dimensions.get('window').width	Width of the pattern container
containerHeight	number	No	(Dimensions.get('window').height)/2	Height of the pattern container
correctPattern	string	No	-	The correct pattern string for validation
processName	PatternProcess	No	PatternProcess.NEW_PATTERN	PatternProcess contains: NEW_PATTERN and CONFIRM_PATTERN. For Change Pattern, set to CONFIRM_PATTERN.
isChangePattern	boolean	No	false	If the pattern is being used as a Change Pattern, set this to true.
showHintMessage	boolean	No	false	Show/hide hint messages during pattern entry
dotRadius	number	No	10	Radius of pattern dots
dotsColor	ColorValue	No	red	Color of the pattern dots
movingLineColor	ColorValue	No	blue	Color of the line while drawing pattern
snapDotRadius	number	No	15	The snapping radius of dots while connecting them.
lineStrokeWidth	number	No	6	Width/thickness of the connecting line
activeLineColor	ColorValue	No	blue	Color of the active connecting line
wrongPatternColor	ColorValue	No	red	Color when pattern is wrong
snapDuration	number	No	100 (ms)	The snapping duration of dots while connecting them.
connectedDotsColor	ColorValue	No	blue	Color of dots that have been connected
correctPatternColor	ColorValue	No	green	Color when pattern is correct
minPatternLength	number	No	3	Minimum number of dots required in pattern
wrongPatternDelayTime	number	No	1000 (ms)	Delay time after wrong pattern before allowing new input
correctPatternDelayTime	number	No	1000 (ms)	Delay time after correct pattern match
changePatternDelayTime	number	No	1000 (ms)	Delay time when confirming old pattern during change pattern flow
newPatternDelayTime	number	No	1000 (ms)	Delay time after setting new pattern before confirmation
isWrongPatternCountLimited	boolean	No	false	Set this to true if there is a maximum limit for wrong pattern attempts.
totalWrongPatternCount	number	No	0	If isWrongPatternCountLimited is true, specify the maximum limit for wrong pattern attempts.
isEnableHeadingText	boolean	No	false	Show/hide heading text
enableDotsJoinVibration	boolean	No	false	If set to true, the mobile will vibrate whenever pattern dots are connected (ensure vibration permissions are granted).
vibrationPattern	number[]	No	[0, 200]	Pattern of vibration when connecting dots. Refer React Native Vibration
headingText	string	No	-	Custom heading text for the pattern lock screen
enablePatternNotSameCondition	boolean	No	true	If true, previous pattern cannot be used as new pattern during Change Pattern flow.
hintMessages	HintMessages	No	{}	Object containing context-specific hint messages for each pattern flow stage
hintTextStyle	TextStyle	No	{ color: 'blue' }	Style for hint text

| headingTextStyle | TextStyle | No | { color: 'blue' } | Style for heading text |

| hintTextContainerStyle | ViewStyle | No | { alignItems: 'center' } | Style for hint text container |

---

HintMessages Reference

The hintMessages prop is an object containing flow-specific hint messages. Each message is optional and will use a default if not provided:

hintMessages={{
// Confirm Pattern Flow
confirmPatternMismatchImmediate: 'Pattern Incorrect',
confirmPatternMismatchAfterDelay: 'Try Again',
confirmPatternMatchedImmediate: 'Pattern Matched',
confirmPatternMatchedAfterDelay: 'Successfully Confirmed',
confirmPatternTooShortError: 'Pattern Too Short',
confirmPatternAttemptsExhausted: 'Too Many Attempts',
confirmPatternLimitedWarningImmediate: '${remainingCount} attempt(s) left',
confirmPatternLimitedWarningAfterDelay: '${remainingCount} attempt(s) left',
// Set New Pattern Flow
setPatternTooShortError: 'Pattern Too Short',
setPatternTooShortAfterDelay: 'Try Again',
setPatternSuccessImmediate: 'Pattern Set',
// Confirm New Pattern Flow
confirmNewPatternInstruction: 'Confirm Pattern',
// Change Pattern - Confirm Current
changeConfirmCurrentMismatchImmediate: 'Pattern Incorrect',
changeConfirmCurrentMismatchAfterDelay: 'Try Again',
changeConfirmCurrentMatchedImmediate: 'Pattern Matched',
changeConfirmCurrentTooShortError: 'Pattern Too Short',
// Change Pattern - Set New
changeSetNewPatternInstruction: 'Set New Pattern',
changeSetNewPatternSameAsOldError: 'Same as Current Pattern',
changeSetNewPatternSameAsOldAfterDelay: 'Try Different Pattern',
changeSetNewPatternSuccessImmediate: 'Pattern Changed',
// Change Pattern - Confirm New
changeConfirmNewPatternInstruction: 'Confirm New Pattern',
}}



Message Key	Flow Context	Trigger Event
confirmPatternMismatchImmediate	Confirm Pattern	Wrong pattern entered
confirmPatternMismatchAfterDelay	Confirm Pattern	After delay on wrong entry
confirmPatternMatchedImmediate	Confirm Pattern	Correct pattern matched
confirmPatternMatchedAfterDelay	Confirm Pattern	After delay on match
confirmPatternTooShortError	Confirm Pattern	Pattern length too short
confirmPatternAttemptsExhausted	Confirm Pattern	Max attempts reached
confirmPatternLimitedWarningImmediate	Confirm Pattern	Limited attempts remain
confirmPatternLimitedWarningAfterDelay	Confirm Pattern	After delay limited attempts remain
setPatternTooShortError	Set New Pattern	Pattern length too short
setPatternTooShortAfterDelay	Set New Pattern	After delay on short entry
setPatternSuccessImmediate	Set New Pattern	Pattern set successfully
confirmNewPatternInstruction	Confirm New Pattern	Ready to confirm new
changeConfirmCurrentMismatchImmediate	Change - Confirm Current	Wrong current pattern
changeConfirmCurrentMismatchAfterDelay	Change - Confirm Current	After delay on wrong entry
changeConfirmCurrentMatchedImmediate	Change - Confirm Current	Current pattern confirmed
changeConfirmCurrentTooShortError	Change - Confirm Current	Pattern length too short
changeSetNewPatternInstruction	Change - Set New	Ready to set new pattern
changeSetNewPatternSameAsOldError	Change - Set New	New pattern same as old
changeSetNewPatternSameAsOldAfterDelay	Change - Set New	After delay on same error
changeSetNewPatternSuccessImmediate	Change - Set New	New pattern set success
changeConfirmNewPatternInstruction	Change - Confirm New	Ready to confirm new

---

FeaturedPatternLock Callbacks

Callback	Returns	Description
onPatternMatch	(pattern)	Called when pattern matches
onWrongPattern	(pattern, remainingCount?)	Called when pattern is wrong
onPatternMatchAfterDelay	(pattern)	Called after correctPatternDelayTime
onWrongPatternAfterDelay	(pattern, remainingCount?)	Called after wrongPatternDelayTime

---

Best Practices

• Store patterns securely (e.g., encrypted storage)
• Combine with biometric authentication for better UX
• Use wrong attempt limits to prevent brute-force attacks
• Adjust snap radius for better touch experience on tablets

---
