React-native-range-chart NPM

react-native-range-chart

Description

react-native-range-chart is a versatile and customizable range slider component for React Native, which includes a range slider with one or two handles and an integrated column chart. The column heights represent the frequency of occurrences, making it easy to visualize data distribution within a defined range.

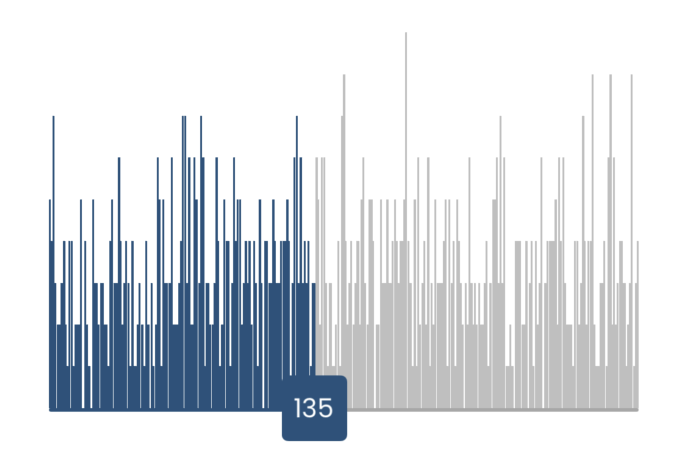

App Screenshot

Installation

To install the package, run:

npm i react-native-range-chart

Usage

Here’s a basic example of how to use the RangeChart component:

import RangeChart from 'react-native-range-chart';

const YourComponent = () => {
  const dataArray = [
    { value: 10, count: 2 },
    { value: 15, count: 5 },
    { value: 20, count: 3 },
    // More data points
  ];

  const handleRangeChange = (newRange) => {
    console.log('Selected Range:', newRange);
  };

  return (
    <RangeChart
      dataArray={dataArray}
      minRange={0}
      maxRange={30}
      maxHeight={200}
      containerWidth={350}
      compareWith="value"
      initialValues=[30,70]
      onRangeChange={handleRangeChange}
    />
  );
};

For a single-handle slider, set initialValues as e.g. [5]. For a double-handle slider, set initialValues as [4,7].

Props

Prop	Type	Description
dataArray	`Array`	Array of objects with data points, each containing a value to display on the chart and an occurrence count.
minRange	`Number`	Minimum value for the range slider.
maxRange	`Number`	Maximum value for the range slider.
maxHeight	`Number`	Maximum height for the column chart, adjusting based on occurrence frequency.
containerWidth	`Number`	Width of the chart container.
compareWith	`String`	Key in the data array to compare values with.
initialValues	`Array`	Initial values for the range slider; specify `[5]` for one handle, `[5,10]` for two handles.
onRangeChange	`Function`	Callback function that returns the selected range.
activeChartColor	`String`	Color used for active chart elements. default is `#23527C`
inactiveChartColor	`String`	Color used for inactive chart elements. default is `#BFBFBF`
sliderHandleBackgroundColor	`String`	Background color of the slider handle. default is `#22527C`
sliderHandleTextColor	`String`	Text color on the slider handle. default is `white`
activeBarColor	`String`	Color used for the active state of the bar. default is `#22527C`
inActiveBarColor	`String`	Color used for the inactive state of the bar. default is `#A7A7A7`
