react-native-super-grid-mbullington v4.1.0

React Native Super Grid

Responsive Grid View for React Native.

Getting Started

This library export two components - FlatGrid (similar to FlatList) and SectionGrid (similar to SectionList). Both components render a Grid layout that adapts itself to various screen resolutions.

Instead of passing an itemPerRow argument, you pass itemDimension and each item will be rendered with a dimension size equal to or more than (to fill the screen) the given dimension.

Internally, these components use the native FlatList and SectionList.

Demo Snack

Version 3.x, please refer v3 branch for documentation

Version 2.x and older, please refer v2 branch for documentation

v3 to v4 Migration

• Rename FlatList's items prop to data.
• v4 is based on React hooks, and requires React Native version > 0.59.
• Methods called on SectionList/FlatList refs can be called directly now (because of forwardRef). i.e Instead of ref.current.sectionList.scrollToLocation, use ref.current.scrollToLocation.

Installing

You can install the package via npm.

npm install react-native-super-grid

Usage (FlatGrid)

import { FlatGrid } from 'react-native-super-grid';

<FlatGrid
  itemDimension={130}
  data={[1,2,3,4,5,6]}
  renderItem={({ item }) => (<Text>{item}</Text>)}
/>

Usage (SectionGrid)

import { SectionGrid } from 'react-native-super-grid';

<SectionGrid
  itemDimension={130}
  sections={[
    {
      title: 'Numbers',
      data: [1,2,3,4,5,6],
    },
    {
      title: 'Alphabets',
      data: ['A', 'B', 'C', 'D', 'E'],
    },
  ]}
  renderItem={({ item }) => (<Text>{item}</Text>)}
  renderSectionHeader={({ section }) => (
    <Text style={{ fontSize: 20 }}>{section.title}</Text>
  )}
/>

Properties

All additional props you pass will be passed on to the internal FlatList/SectionList. This means you can make use of various props and methods like ListHeaderComponent, onEndReached, onRefresh...etc. While these are not tested for compatibility, most of them should work as expected.

In SectionGrid, section argument in methods like renderSectionHeader, renderSectionFooter, ItemSeparatorComponent will slightly different from the actual section you passed. The data key in the section will be the grouped versions of items (items that go in one row), and the original list of items can be found in originalData key. All other keys will remain intact.

FlatGrid Example

import React from 'react';
import { StyleSheet, View, Text } from 'react-native';
import { FlatGrid } from 'react-native-super-grid';

export default function Example() {
  const [items, setItems] = React.useState([
    { name: 'TURQUOISE', code: '#1abc9c' },
    { name: 'EMERALD', code: '#2ecc71' },
    { name: 'PETER RIVER', code: '#3498db' },
    { name: 'AMETHYST', code: '#9b59b6' },
    { name: 'WET ASPHALT', code: '#34495e' },
    { name: 'GREEN SEA', code: '#16a085' },
    { name: 'NEPHRITIS', code: '#27ae60' },
    { name: 'BELIZE HOLE', code: '#2980b9' },
    { name: 'WISTERIA', code: '#8e44ad' },
    { name: 'MIDNIGHT BLUE', code: '#2c3e50' },
    { name: 'SUN FLOWER', code: '#f1c40f' },
    { name: 'CARROT', code: '#e67e22' },
    { name: 'ALIZARIN', code: '#e74c3c' },
    { name: 'CLOUDS', code: '#ecf0f1' },
    { name: 'CONCRETE', code: '#95a5a6' },
    { name: 'ORANGE', code: '#f39c12' },
    { name: 'PUMPKIN', code: '#d35400' },
    { name: 'POMEGRANATE', code: '#c0392b' },
    { name: 'SILVER', code: '#bdc3c7' },
    { name: 'ASBESTOS', code: '#7f8c8d' },
  ]);

  return (
    <FlatGrid
      itemDimension={130}
      data={items}
      style={styles.gridView}
      // staticDimension={300}
      // fixed
      spacing={10}
      renderItem={({ item }) => (
        <View style={[styles.itemContainer, { backgroundColor: item.code }]}>
          <Text style={styles.itemName}>{item.name}</Text>
          <Text style={styles.itemCode}>{item.code}</Text>
        </View>
      )}
    />
  );
}

const styles = StyleSheet.create({
  gridView: {
    marginTop: 10,
    flex: 1,
  },
  itemContainer: {
    justifyContent: 'flex-end',
    borderRadius: 5,
    padding: 10,
    height: 150,
  },
  itemName: {
    fontSize: 16,
    color: '#fff',
    fontWeight: '600',
  },
  itemCode: {
    fontWeight: '600',
    fontSize: 12,
    color: '#fff',
  },
});

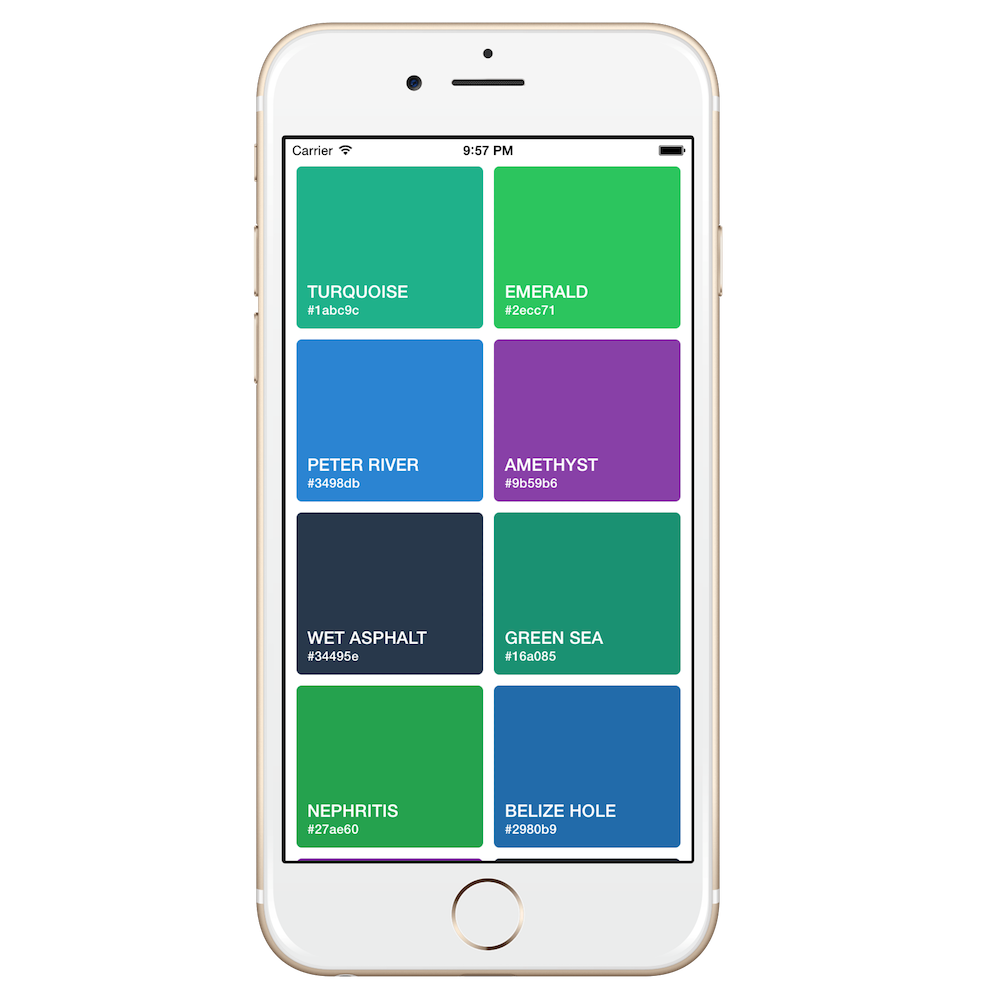

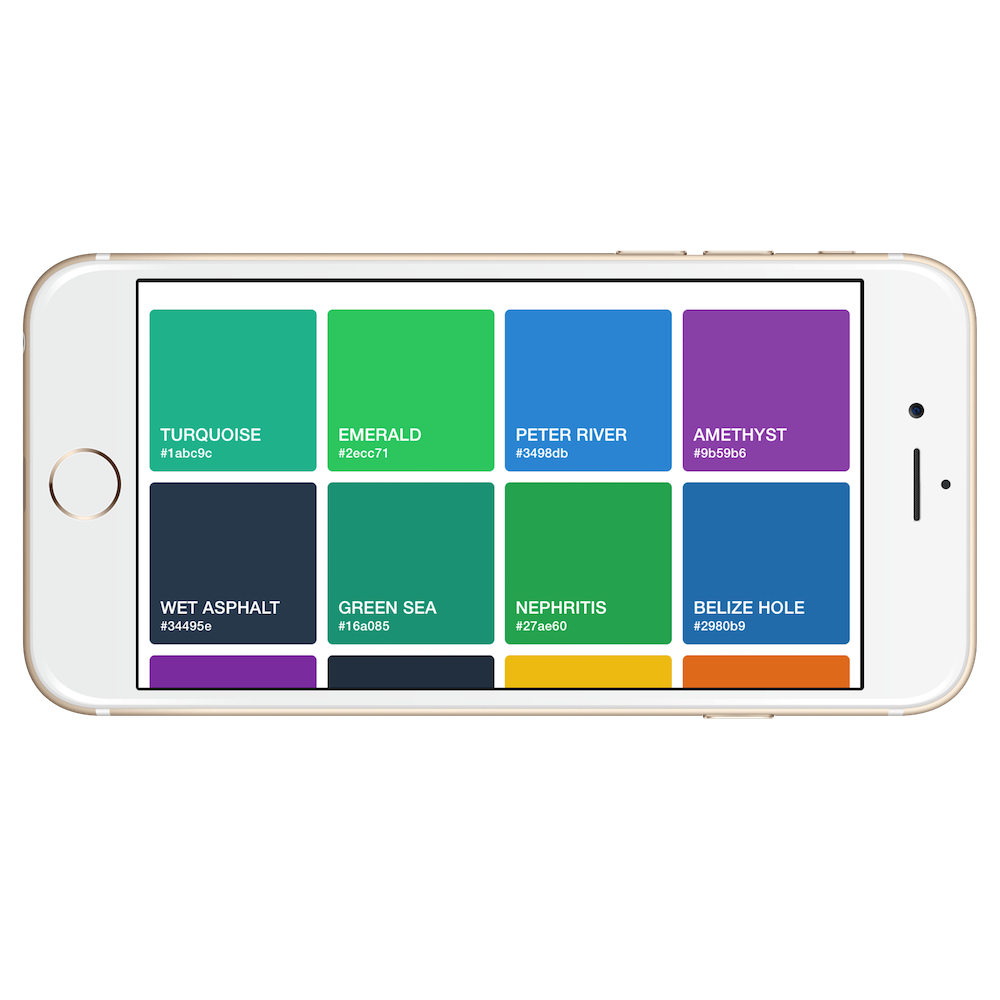

iPhone6 Portrait	iPhone6 Landscape

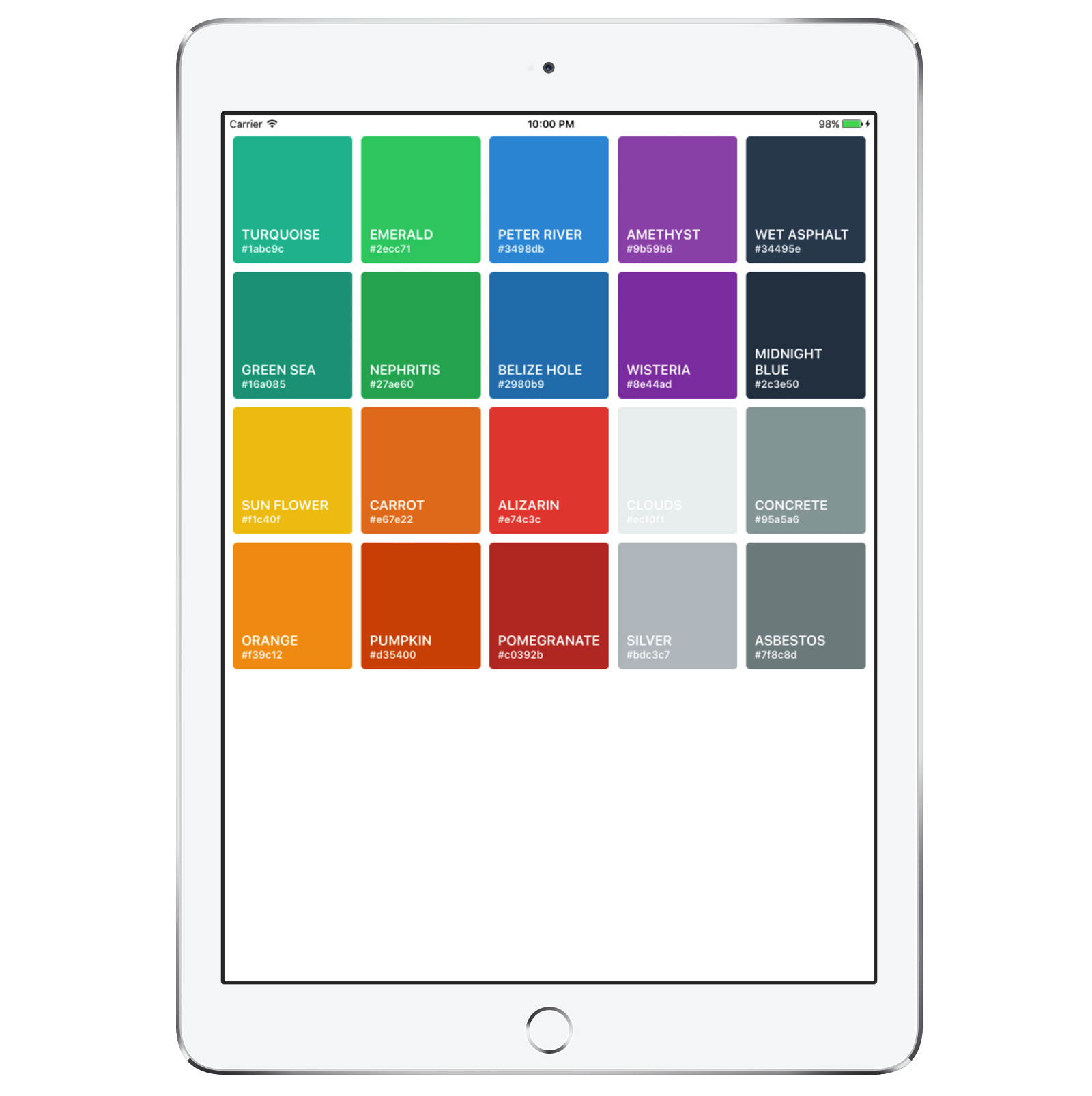

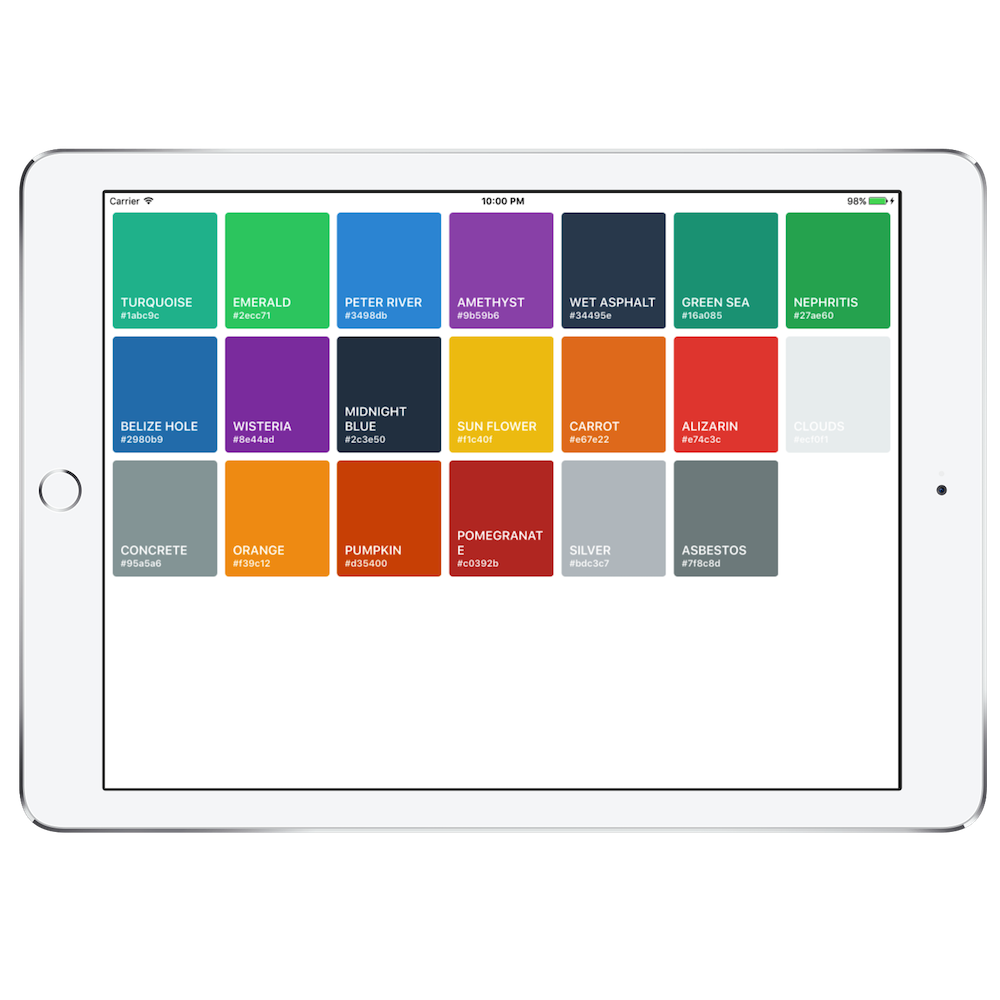

iPad Air 2 Portrait	iPad Air 2 Landscape

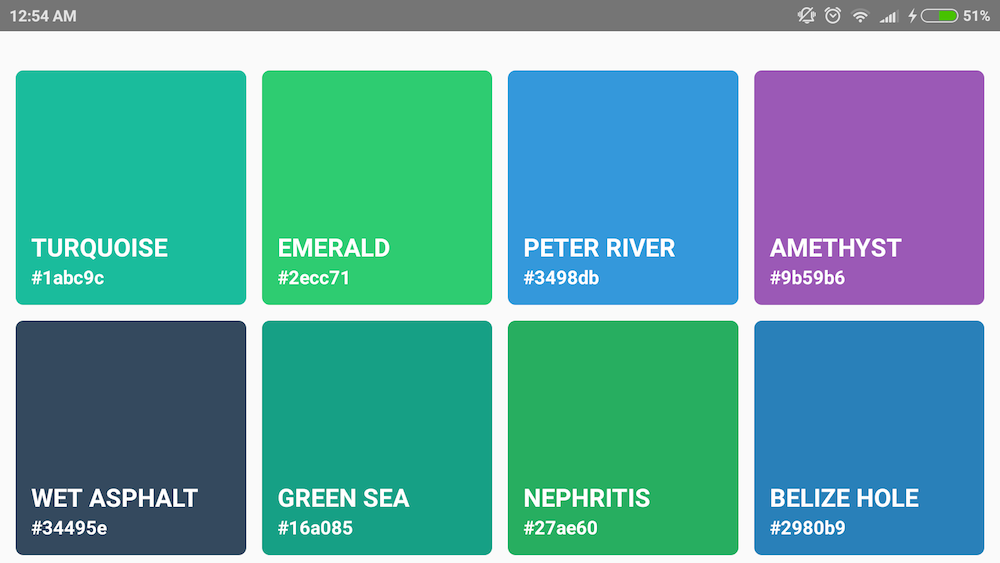

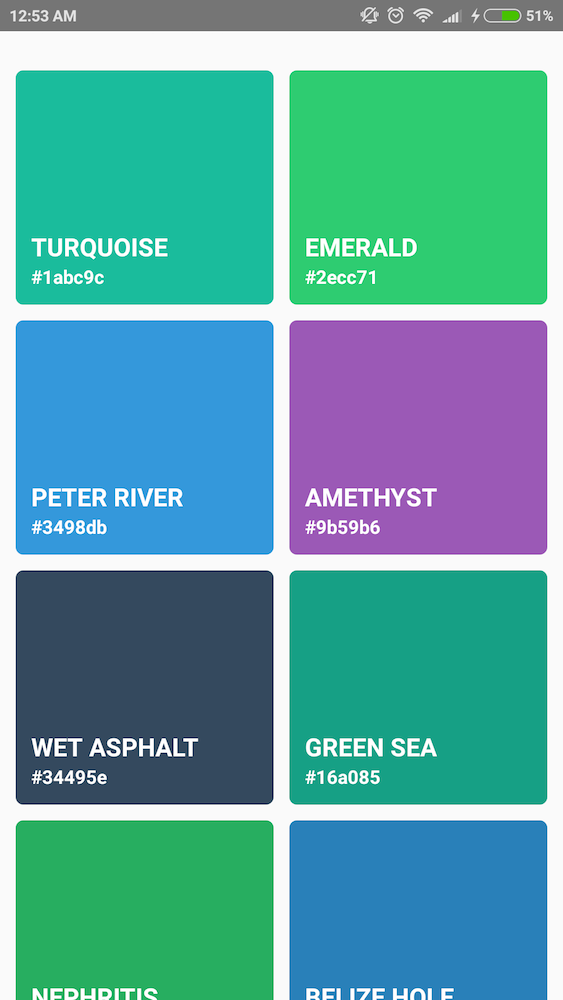

Android Portrait	Android Landscape

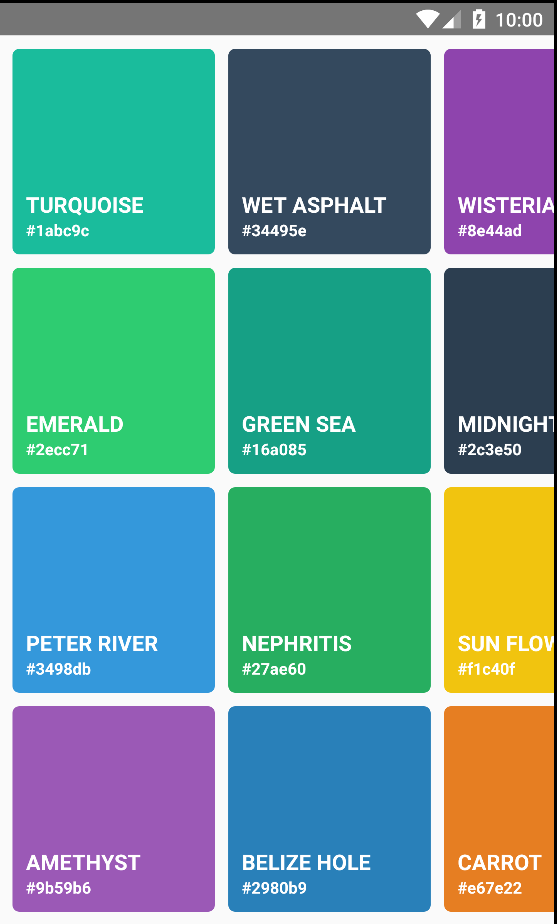

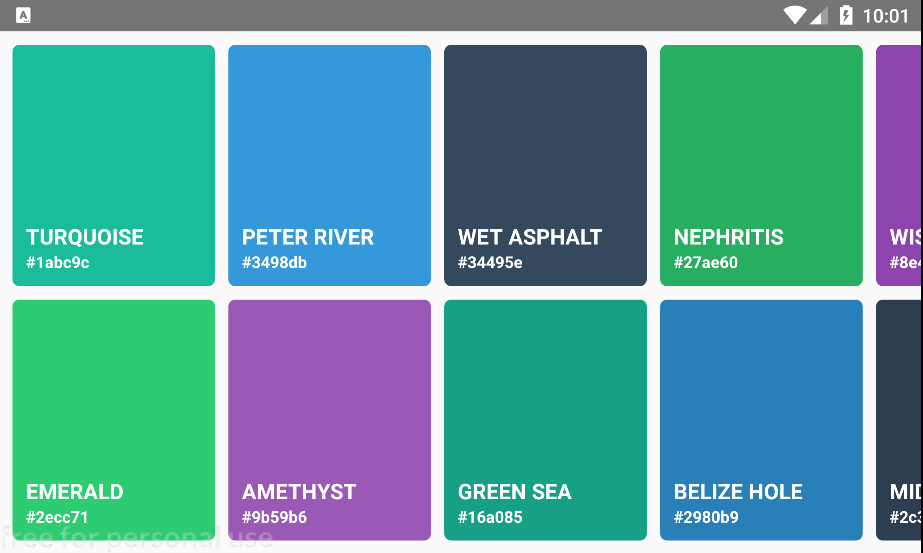

Android Horizontal Portrait	Android Horizontal Landscape

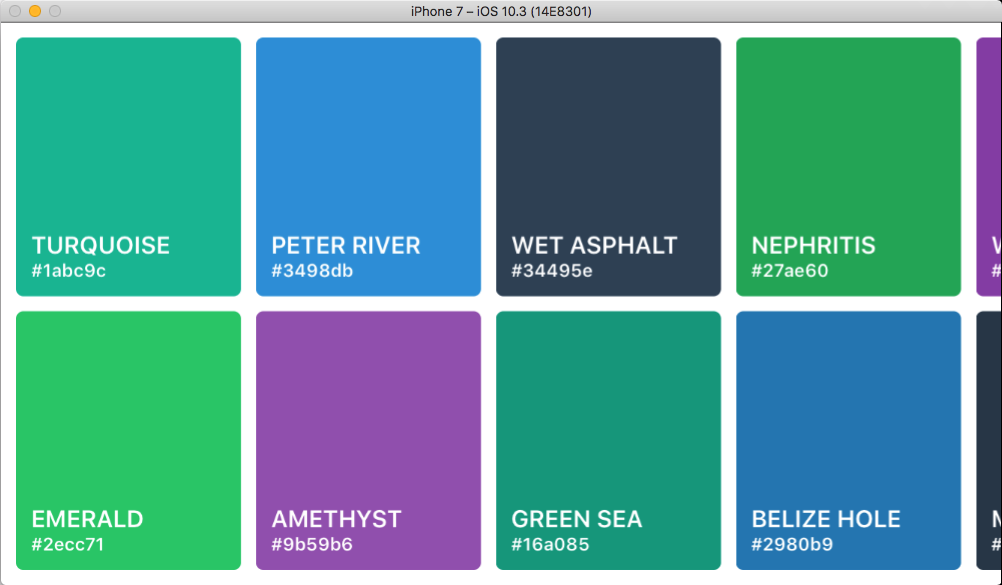

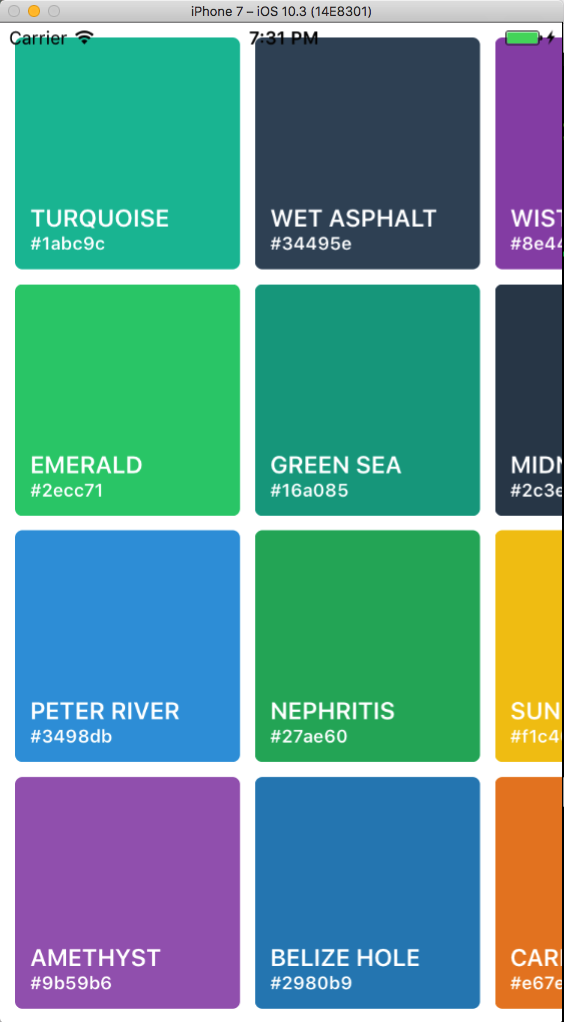

iPhone Horizontal Portrait	iPhone Horizontal Landscape

SectionGrid Example

import React, { Component } from 'react';
import { StyleSheet, View, Text } from 'react-native';
import { SectionGrid } from 'react-native-super-grid';

export default function Example() {
  const [items, setItems] = React.useState([
    { name: 'TURQUOISE', code: '#1abc9c' },
    { name: 'EMERALD', code: '#2ecc71' },
    { name: 'PETER RIVER', code: '#3498db' },
    { name: 'AMETHYST', code: '#9b59b6' },
    { name: 'WET ASPHALT', code: '#34495e' },
    { name: 'GREEN SEA', code: '#16a085' },
    { name: 'NEPHRITIS', code: '#27ae60' },
    { name: 'BELIZE HOLE', code: '#2980b9' },
    { name: 'WISTERIA', code: '#8e44ad' },
    { name: 'MIDNIGHT BLUE', code: '#2c3e50' },
    { name: 'SUN FLOWER', code: '#f1c40f' },
    { name: 'CARROT', code: '#e67e22' },
    { name: 'ALIZARIN', code: '#e74c3c' },
    { name: 'CLOUDS', code: '#ecf0f1' },
    { name: 'CONCRETE', code: '#95a5a6' },
    { name: 'ORANGE', code: '#f39c12' },
    { name: 'PUMPKIN', code: '#d35400' },
    { name: 'POMEGRANATE', code: '#c0392b' },
    { name: 'SILVER', code: '#bdc3c7' },
    { name: 'ASBESTOS', code: '#7f8c8d' },
  ]);

  return (
    <SectionGrid
      itemDimension={90}
      // staticDimension={300}
      // fixed
      // spacing={20}
      sections={[
        {
          title: 'Title1',
          data: items.slice(0, 6),
        },
        {
          title: 'Title2',
          data: items.slice(6, 12),
        },
        {
          title: 'Title3',
          data: items.slice(12, 20),
        },
      ]}
      style={styles.gridView}
      renderItem={({ item, section, index }) => (
        <View style={[styles.itemContainer, { backgroundColor: item.code }]}>
          <Text style={styles.itemName}>{item.name}</Text>
          <Text style={styles.itemCode}>{item.code}</Text>
        </View>
      )}
      renderSectionHeader={({ section }) => (
        <Text style={styles.sectionHeader}>{section.title}</Text>
      )}
    />
  );
}

const styles = StyleSheet.create({
  gridView: {
    marginTop: 20,
    flex: 1,
  },
  itemContainer: {
    justifyContent: 'flex-end',
    borderRadius: 5,
    padding: 10,
    height: 150,
  },
  itemName: {
    fontSize: 16,
    color: '#fff',
    fontWeight: '600',
  },
  itemCode: {
    fontWeight: '600',
    fontSize: 12,
    color: '#fff',
  },
  sectionHeader: {
    flex: 1,
    fontSize: 15,
    fontWeight: '600',
    alignItems: 'center',
    backgroundColor: '#636e72',
    color: 'white',
    padding: 10,
  },
});

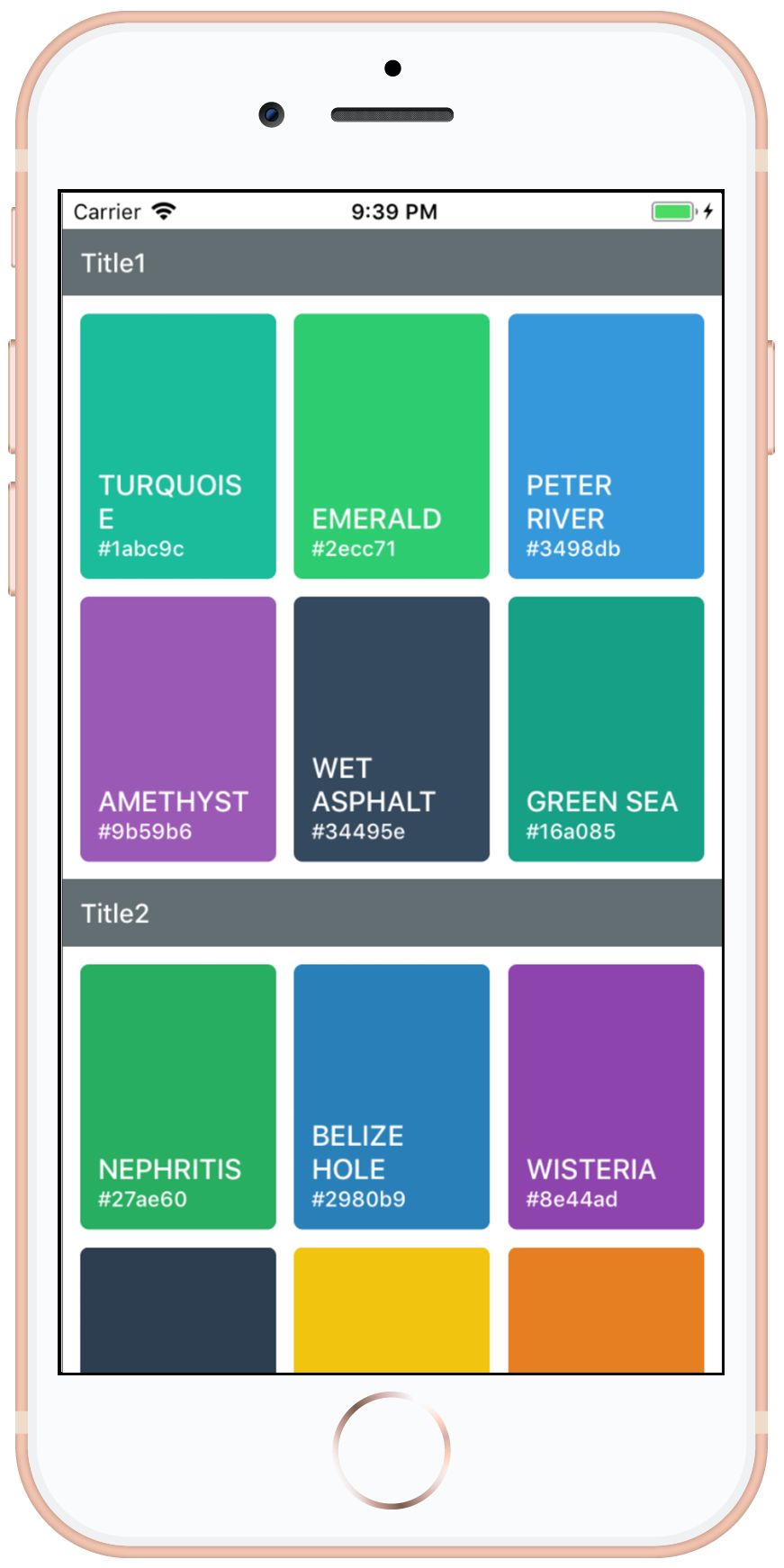

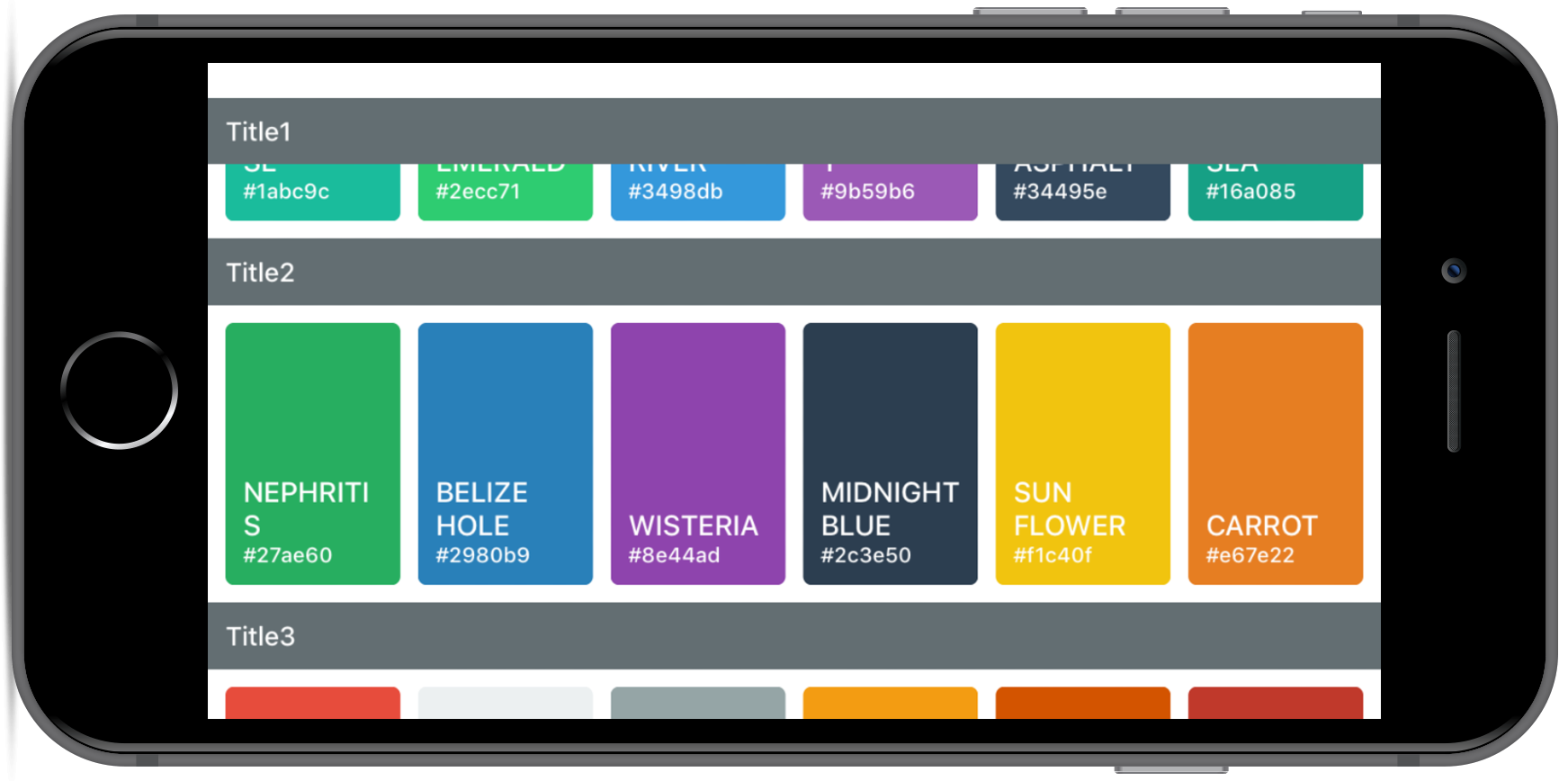

iPhone SectionGrid Portrait	iPhone6 Landscape

License

This project is licensed under the MIT License - see the LICENSE.md file for details.

Changelog

4.0.2 - 2020-06-05

• Fix type definition of v4 FlatList

4.0.1 - 2020-06-05

• Remove accidental console.log @ianmartorell

4.0.0 - 2020-05-23

• Improve SectionList performance by using hooks @IsaaX
• Improve FlatList performance by using hooks
• Add maxDimension prop @ianmartorell

3.2.0 - 2020-04-03

• Add keyExtractor prop @sammarks

3.1.2 - 2019-09-27

• Security updates in packages @dependabot

3.1.1 - 2019-09-27

• Fix type definitions @JulienKode

3.1.0 - 2019-09-16

• Support overriding of renderItem in SectionList @paldepind

3.0.9 - 2019-08-16

• Improve type definitions @Grohden

3.0.8 - 2019-07-16

• Fix type definitions @Grohden

3.0.7 - 2019-06-29

• Add listKey prop @josemiguelo

3.0.6 - 2019-05-18

• Fix type definitions @zhigang1992

3.0.5 - 2019-05-04

• Fix type definitions @zhigang1992

3.0.4 - 2019-04-16

• Fix type definitions @hisankaran

3.0.3 - 2019-02-25

• Fix type definitions @jgbernalp

3.0.2 - 2019-02-20

• Fix calculation bug where itemsPerRow became zero (#81).

3.0.1 - 2019-02-02

• Fix in section key passed to various SectionGrid props.

3.0.0 - 2019-01-20

• Rename components, FlatList renderItem signature, Performance improvements.

2.4.3 - 2018-07-22

• Fix deep copying issue in SectionGrid @andersonaddo

2.4.2 - 2018-07-21

• Add itemContainerStyle prop @KseniaSecurity

2.4.1 - 2018-07-07

• Add onLayout prop @ataillefer

2.4 - 2018-05-11

• renderItem index fix @andersonaddo

2.3.2 - 2018-05-23

• Typescript support for SuperGridSectionList @Anccerson

2.3.0 - 2018-03-17

Added

• Add SuperGridSectionList @andersonaddo

2.1.0 - 2018-03-17

Added

• Use FlatList instead of ListView
• Fix spacing issues

2.0.2 - 2018-01-11

Added

• Allow dynamic update of itemDimension

2.0.1 - 2017-12-13

Added

• Fixed render empty section headers Warning. @mannycolon

2.0.0 - 2017-12-02

Added

• Add ability to have a horizontal grid. @Sh3rawi

1.1.0 - 2017-11-03 (Target React Native 0.49+)

Added

• Replace view.propTypes to ViewPropTypes for 0.49+. @caudaganesh

1.0.4 - 2017-10-09

Added

• Optional staticWidth prop @thejettdurham.
• Use prop-types package instead of deprecated react's PropTypes.

1.0.3 - 2017-06-06

Added

• Pass row index to renderItem @heaversm.

Acknowledgments

Colors in the example from https://flatuicolors.com/.

Screenshot Mockup generated from https://mockuphone.com.
