React-thermostat NPM

React Thermostat

version

A react thermostat which can be easily plugged into any smart home application, I've used this with Home Assistant connecting to websockets for a standalone smart home application and it's working great.

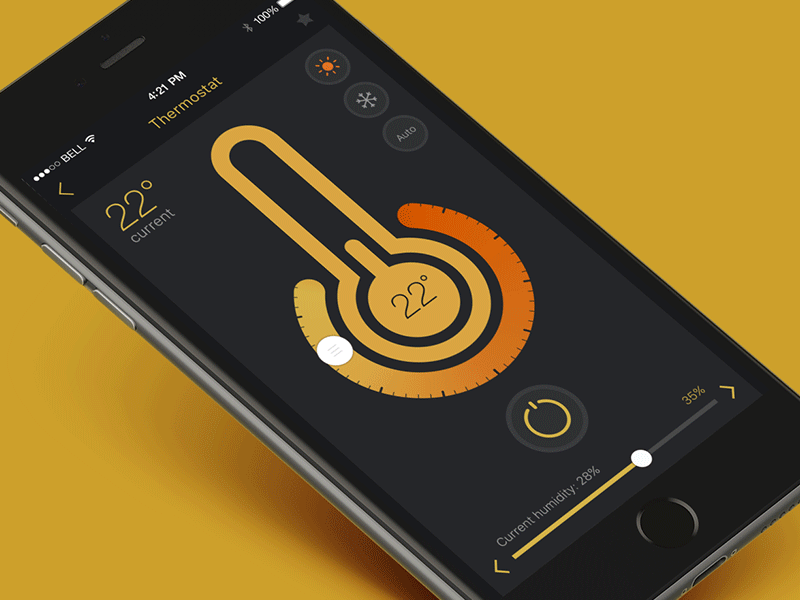

Online Demo

npm.io

Help me out?

I've spent a lot of time on this, you're free to use it but would appreciate a small donation if you're feeling generous! Buy me a beer!

Buy me a beer!

Install

  npm i react-thermostat

Example

The size of the thermostat is relative to it's parent and automatically will adjust on resize, you can also set the size of the thermostat by setting the width of the parent container.

import React, { useState } from 'react';
import styled from '@emotion/styled';
import { Thermostat } from 'react-thermostat';
const Container = styled.div`
  width: 100%;
  max-width: 300px;
`;
const App = () => {
    const [value, setValue] = useState(50);
    return (
      <Container>
        <Thermostat
          value={value}
          onChange={ newValue => setValue(Number(newValue.toFixed(0))) }
        />
      </Container>
    )
};
export default App;

Main Props

prop	type	required	default	description
value	number	yes		The value for the thermostat
onChange	(value: number) => void	yes		Called when a user interacts with the handle, you should update your value with this callback, this value is NOT rounded intentionally.
valueSuffix	string	no	°	The suffix for the value, use '' if you don't want a suffix
min	number	no	0	The minimum value for the thermostat
max	number	no	100	The maximum value for the thermostat
handle	HandleProps	no	HandleProps	The props for the dragging handle
disabled	boolean	no	false	If the thermostat should be disabled
track	TrackProps	no	TrackProps	The props for the track

Handle Props

prop	type	required	default	description
size	number	no	size / 15	The size of the handle
colors	HandleColors	no	HandleColors	The colours for the handle

Handle Colors

prop	type	required	default	description
handle	string	no	#fff	The background color of the handle
icon	string	no	#111	The color of the icon in the handle
pulse	string	no	rgba(0,0,0,0.3)	The color of the pulse effect behind the handle

Track Props

prop	type	required	default	description
colors	string[]	no	'#cfac48', '#cd5401'	The colours of the track gradient, from left to right, this can be one or many colours and will apply in a conical gradient effect
thickness	number	no	size / 10	The thickness of the main arc track, the inner thermometer will divide it's track size by 1.4
markers	Markers	no	Markers	The options for the markers on the arc track, this is really only for advanced control

Markers Props

prop	type	required	default	description
enabled	boolean	no	true	If the markers on the arc track should be enabled
every	number	no	5	Every 5 ticks will be the "main" mark
count		no	60	The number of marks to include on the arc
main.color	string	no	black	The colour of the main mark
main.length	number	no	track.thickness / 4	The length of the mark
main.thickness	number	no	2	The thickness of the mark
sub.color	string	no	rgba(0,0,0,0.8)	The colour of the sub mark
sub.length	number	no	track.thickness / 8	The length of the sub mark
sub.thickness	number	no	1	The thickness of the sub mark

Developer

Once the repository has been checked out, simply run npm run dev which will spawn a local webserver.

Any changes made in the src direction will appear in the demo page created.

Publishing

This is a very simple package setup, no tagging in place for now, increment the package version, npm run build and push all your changes then run npm publish
