react-treemap v0.0.1

React TreeMap

React TreeMap is a highly customizable and interactive TreeMap component for React applications. It allows you to visualize hierarchical data in a nested rectangle format, where each rectangle represents a node in the tree structure. Perfect for data visualization, dashboards, and analytics applications.

Features

• Interactive TreeMap: Supports left-click, right-click, and hover interactions.
• Customizable Colors: Define colors for each node using hex codes.
• Tooltips: Display custom HTML tooltips on hover.
• Responsive Design: Automatically adjusts to the container size.
• Lightweight: Minimal dependencies and easy to integrate.
• TypeScript Support: Includes TypeScript definitions for better developer experience.

Installation

Install the package via npm or yarn:

npm install react-treemap

or

yarn add react-treemap

Usage

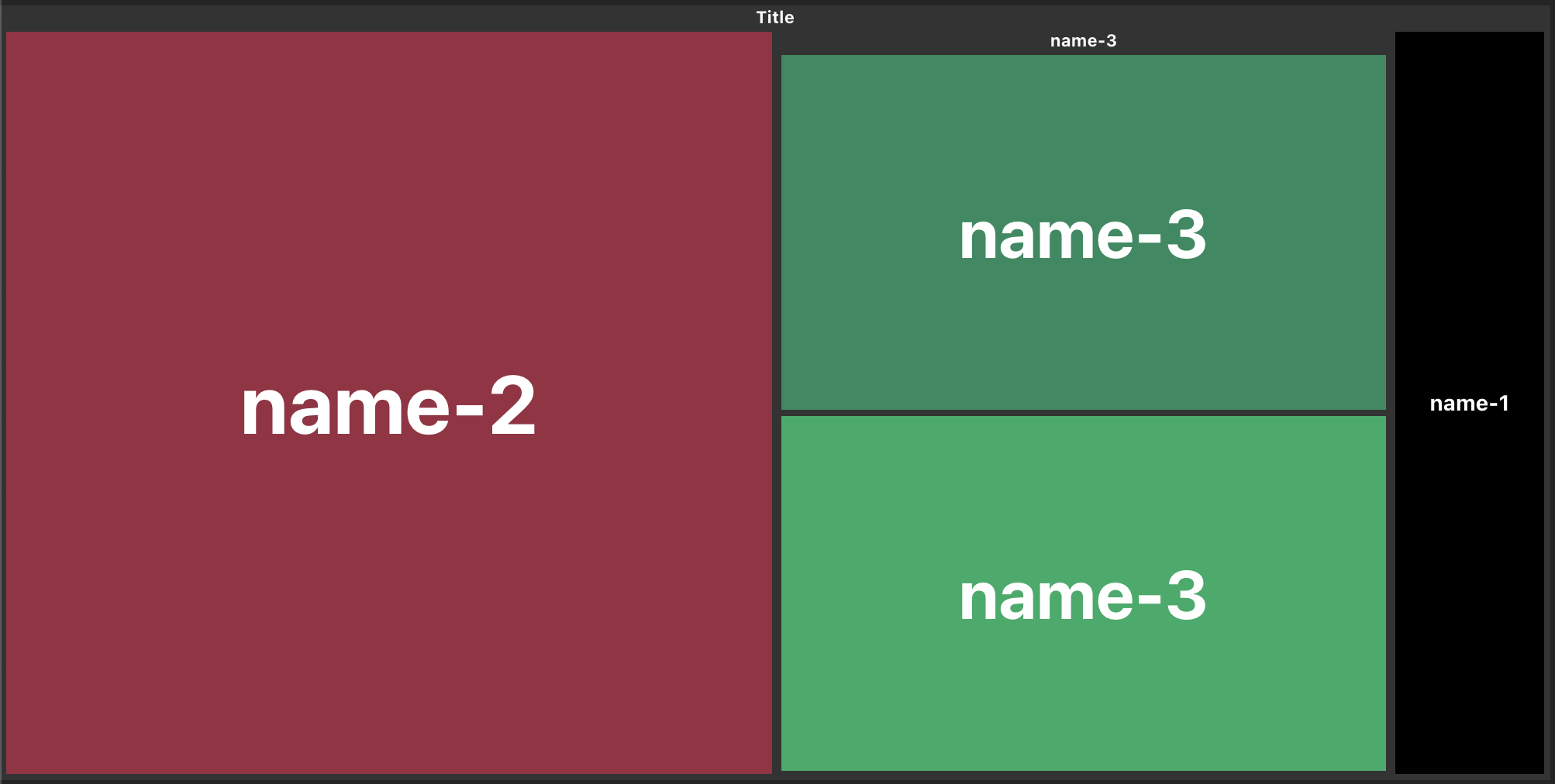

Basic Example

Here’s a simple example to get you started:

import React from "react";
import TreeMap from "react-treemap";

function App() {
    const treeData = {
        children: [
            {
                children: [],
                data: {
                    $area: 10,
                    $color: 1,
                    $hex: "#000000",
                },
                id: "a",
                name: "name-1",
                tooltip: '<div class="mm-tooltip">Tooltip 1</div>',
            },
            {
                children: [],
                data: {
                    $area: 50,
                    $color: 2,
                    $hex: "#9A2C42",
                },
                id: "b",
                name: "name-2",
                tooltip: '<div class="mm-tooltip">Tooltip 2</div>',
            },
            {
                children: [
                    {
                        children: [],
                        data: {
                            $area: 20,
                            $color: 3,
                            $hex: "#1B8B5F",
                        },
                        id: "c1",
                        name: "name-3",
                        tooltip: '<div class="mm-tooltip">Tooltip 3</div>',
                    },
                    {
                        children: [],
                        data: {
                            $area: 20,
                            $color: 3,
                            $hex: "#02AD65",
                        },
                        id: "c2",
                        name: "name-3",
                        tooltip: '<div class="mm-tooltip">Tooltip 3</div>',
                    },
                ],
                data: {
                    $area: 40,
                },
                id: "c",
                name: "name-3",
            },
        ],
        data: { $area: 100 },
        id: "id-0",
        name: "Title",
        tooltip: '<div class="mm-tooltip">Tooltip</div>',
    };

    return (
        <div style={{ width: "800px", height: "400px" }}>
            <TreeMap treeData={treeData} />
        </div>
    );
}

export default App;

Props

API Documentation

TreeMap Component

The TreeMap component accepts the following props:

treeData (Required)

• Type: Object
• Description: The hierarchical data to be visualized. Each node should have:
  • children: Array of child nodes.
  • data: Object containing $area, $color, and $hex properties.
  • id: Unique identifier for the node.
  • name: Display name for the node.
  • tooltip: HTML string to display as a tooltip on hover.

Acknowledgments

• Built with ❤️ by MirMohammad Musavi.
