redoc-project-generator v1.0.3

Redoc project generator

This is simple tool for generating a Redoc project and can work smoothly with Redocly.

The idea is very basic:

• Create an API documentation page based on OpenAPI specification.
• Run, manage project with Redocly.
• Track changes from OpenAPI then update the project.

Versions tested:

• Redocly CE (community edition) version 1.12.2
• OpenAPI version 3

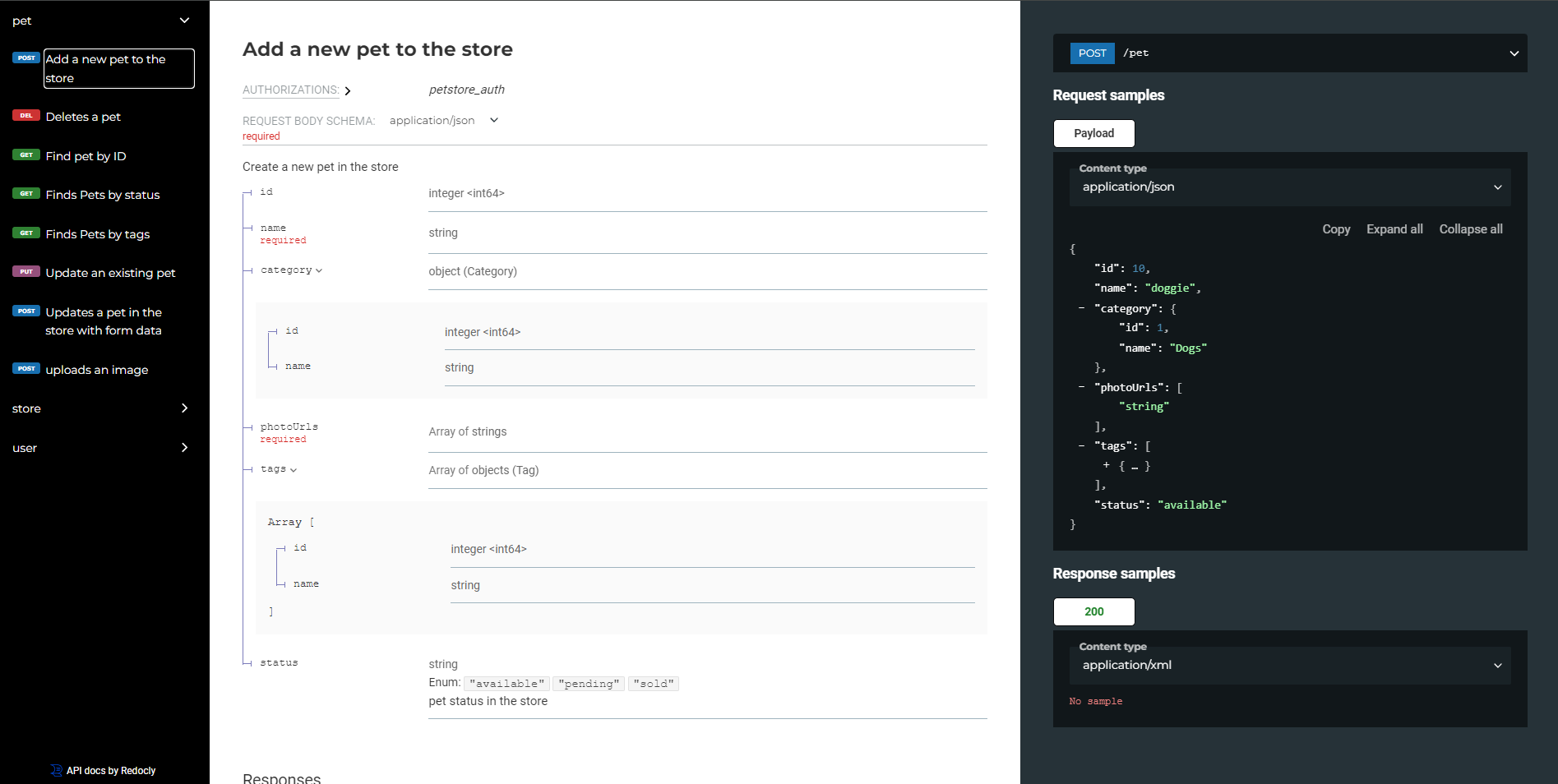

Sample API doc page generated by this tool

Install

npm i -g redoc-project-generator

Check with docgen command:

docgen version

Or clone project if you wanna customize: https://github.com/chenhuang511/redoc-generator

Install Redocly CLI

Redocly is needed for running our project. We can use some another ways to manage, run a Redoc project, but in my context, I use Redocly.

Install:

npm i -g @redocly/cli@latest

Or checkout the official document from Redocly here.

Usage commands

Initialize new project

At the empty folder run following command to init project:

docgen init <url>

where url is the OpenAPI specification URL you want to check out.

For example, with a typical OpenAPI specs Petstore:

docgen init https://petstore3.swagger.io/api/v3/openapi.json

the result will be:

D:\14-APIDOC-GENERATOR\test>docgen init https://petstore3.swagger.io/api/v3/openapi.json
Generating redoc project for url: https://petstore3.swagger.io/api/v3/openapi.json ...
Created folder: assets
Created folder: assets/img
Created folder: info
Created folder: info/api
Created folder: samples
Created folder: samples/request
Created folder: samples/response
Created file: D:\14-APIDOC-GENERATOR\test\info\home.md
Created file: D:\14-APIDOC-GENERATOR\test\README.md
Created file: D:\14-APIDOC-GENERATOR\test\redocly.yml
Generated standard folders and files
Generating standard contents ...
Generated sample request, response, info files
Modified redocly config file
Write log...
Init process is done

About the project structure, please see Structure part for more details.

Run project

Use redocly to run the project, at the root directory of the project (where we run the init command):

redocly preview-docs

The document website will be served on port 8080 (default of redocly), and we can access with URL http://localhost:8080.

You may want to change the port because 8080 is too easily conflict with another application.

redocly preview-docs --port=8041

More commands and information can be referred from Redocly website.

Update project

When some API(s) are added, or removed, or just changed the request/response, we can automatically change our API documents as well.

At the root directory of the project, run:

docgen update

By default, the tool backups all files that will be removed in the update process (files related to removed APIs from specs).

We also can run docgen update --no-backup (without backup process), but it's not safe.

Project structure

When we init new project, the following structure will be auto generated:

project_root
│   README.md
│   redocly.yml
│   runLog.json
│
└───assets
│   └───img
│
└───backup
|
└───info
|    | home.md
|    └───api
|
└───samples
|   └───request
|   └───response

• assets: contains images you may add into description files on info/ and sample/
• backup: for backup files that are removed in the update process.
• info: descriptions of all APIs, use markdown for writing. home.md is just the description of main documentation webpage.
• samples: sample requests, responses of each API, use yml for writing.
• redocly.yml: main config file of redocly project.
• runLog.json: init, update logs will be logged here. The update process also need this log file for detecting changes between OpenAPI specs and project generated resources.

Sample request content

Imagine you want to add sample application/json request body for API addPet, like that:

{
   "id": 10,
   "name": "doggie",
   "category": {
      "id": 1,
      "name": "Dogs"
   },
   "photoUrls": [
      "string"
   ],
   "tags": [
      {
         "id": 0,
         "name": "string"
      }
   ],
   "status": "available"
}

then you just add bellow yml content into samples/request/addPet.yml file:

Add pet sample request:
summary: 'add pet request body sample'
value:
   id: 10
   name: doggie
   category:
      id: 1
      name: Dogs
   photoUrls:
      - string
   tags:
      - id: 0
        name: string
   status: available

Sample request will be displayed on right panel of the documentation webpage.

3 first lines are required for each sample yml file. All things under value key are the same with above json message.

License

MIT
