SVG-3D-TAG-CLOUD

Create Stunning 3D Tag Clouds with SVG

Svg3dTagCloud is a lightweight and user-friendly JavaScript library that empowers you to generate visually appealing 3D tag clouds using SVG (Scalable Vector Graphics). It offers effortless integration into your web projects, delivering an engaging way to present keyword lists or other textual data.

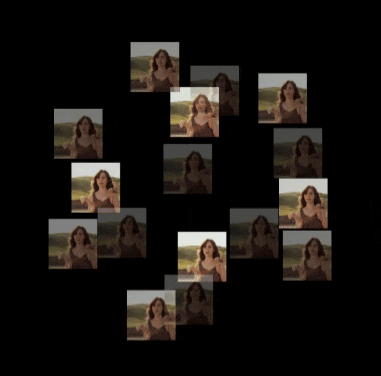

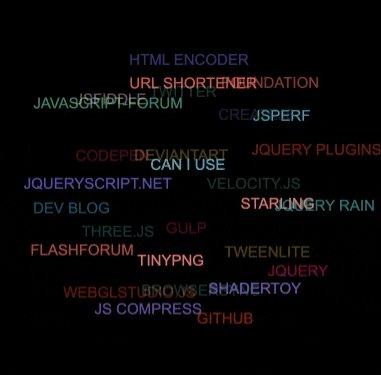

Demo

Demo Demo

Features:

Simple & Effective: Effortlessly create tag clouds through a well-designed API.
Versatile Rendering: Supports both ES modules (ESM) and pure JavaScript script formats for broad compatibility.
Customizable Appearance: Tailor the visual style of your tag cloud with a range of configuration options.

Installation:

Npm Url: https://www.npmjs.com/package/svg-3d-tag-cloud
Install via NPM:
- npm i svg-3d-tag-cloud
Download Svg3dTagCloud:
- Clone the repository from GitHub.
- Alternatively, download the library files manually.

Use CDN resource

<script src="https://unpkg.com/svg-3d-tag-cloud/dist/SVG3DTagCloud.global.js"></script>

Usage (HTML + JavaScript):

Version
- window.SVG3DTagCloud.__VERSION

ESM Import

settings -> see #3

import SVG3DTagCloud from 'svg-3d-tag-cloud';
// other code

// settings _> #2
new SVG3DTagCloud(document.getElementById('container'), settings).build();

Create HTML Structure:

<!DOCTYPE html>
<html lang="en">
  <head>
    <title>SVG3DTagCloud Demo</title>
  </head>
  <body>
    <div id="container"></div>
    <script src="https://unpkg.com/svg-3d-tag-cloud/dist/SVG3DTagCloud.global.js"></script>
    <script>
      // ... your JavaScript code to create the tag cloud ...
    </script>
  </body>
</html>

Create the Tag Cloud:

const childrenForText = [
  {
    label: 'JavaScript',
    url: 'https://developer.mozilla.org/en-US/docs/Web/JavaScript',
    target: '_blank',
  },
  {
    label: 'HTML',
    url: 'https://developer.mozilla.org/en-US/docs/Web/HTML',
    target: '_blank',
  },
  // ... add more tag objects
];

const childrenForImage = [
  {
    image: '/public/logo.svg', // Replace with your image path
    width: '50',
    height: '50',
    url: 'http://www.google.com',
    target: '_top',
    tooltip: 'Lorem ipsum',
  },
  // ... add more image objects
];

let settings = {
  children: childrenForText || childrenForImage, // Choose between text or image tags
  width: 400, // default size
  height: 400,
  radius: '65%', // tag cloud radius percentage
  radiusMin: 75, // tag cloud min-radius px
  isDrawSvgBg: true,
  svgBgColor: 'black', // background color
  opacityOver: 1.0,
  opacityOut: 0.3,
  opacitySpeed: 6,
  fov: 800,
  speed: 0.1,
  fontFamily: 'Oswald, Arial, sans-serif',
  fontSize: '15',
  fontColor: '#fff',
  fontWeight: 'normal', // Customize font properties
  fontStyle: 'normal',
  fontStretch: 'narrower',
  fontToUpperCase: true,
  tooltipFontFamily: 'Oswald, Arial, sans-serif',
  tooltipFontSize: '12',
  tooltipFontColor: '#fff',
  tooltipFontWeight: 'normal',
  tooltipFontStyle: 'italic',
  tooltipFontStretch: 'normal',
  tooltipFontToUpperCase: false,
  tooltipTextAnchor: 'left',
  tooltipDiffX: 10,
  tooltipDiffY: 10,
  animatingSpeed: 0.01,
  animatingRadiusLimit: 1.3,
};

// Create and initialize the tag cloud
new SVG3dTagCloud(document.getElementById('container'), settings).build();

Configuration Options (Attribute Table):

Attribute	Type	Default	Description
`children`	Array of `SVG3DTagCloudChild`	[]	An array of objects representing the tags to be displayed.
`width`	Number	400	The width of the tag cloud in pixels.
`height`	Number	400	The height of the tag cloud in pixels.
`radius`	Number or string	'65%'	The radius of the tag cloud. Can be a pixel value or a percentage of the container size.
`radiusMin`	Number	75	The minimum radius of the tag cloud in pixels.
`isDrawSvgBg`	Boolean	false	Whether to draw an SVG background.
`svgBgColor`	String	'#fff'	The color of the SVG background.
`opacityOver`	Number	1.0	The opacity of the tag cloud when hovered over.
`opacityOut`	Number	0.3	The opacity of the tag cloud when not hovered over.
`opacitySpeed`	Number	6	The speed of opacity transition.
`fov`	Number	800	The field of view of the camera.
`speed`	Number	0.1	The rotation speed of the tag cloud.
`fontFamily`	String	'Oswald, Arial, sans-serif'	The font family to use for the tags.
`fontSize`	String	'15'	The font size of the tags.
`fontColor`	String	'#fff'	The color of the tags.
`fontWeight`	String	'normal'	The font weight of the tags.
`fontStyle`	String	'normal'	The font style of the tags.
`fontStretch`	String	'narrower'	The font stretch of the tags.
`fontToUpperCase`	Boolean	true	Whether to convert tag text to uppercase.
`tooltipFontFamily`	String	'Oswald, Arial, sans-serif'	The font family for the tooltips.
`tooltipFontSize`	String	'12'	The font size for the tooltips.
`tooltipFontColor`	String	'#fff'	The color of the tooltips.
`tooltipFontWeight`	String	'normal'	The font weight for the tooltips.
`tooltipFontStyle`	String	'italic'	The font style for the tooltips.
`tooltipFontStretch`	String	'normal'	The font stretch for the tooltips.
`tooltipFontToUpperCase`	Boolean	false	Whether to convert tooltip text to uppercase.
`tooltipTextAnchor`	String	'left'	The text anchor for the tooltips.
`tooltipDiffX`	Number	10	The horizontal offset for the tooltips.
`tooltipDiffY`	Number	10	The vertical offset for the tooltips.
`animatingSpeed`	Number	0.01	The animation speed.
`animatingRadiusLimit`	Number	1.3	The maximum radius for the animation.

Project running

  git clone https://github.com/Appigle/svg3dtagcloud.git
  npm install
  npm run dev
  npm run build_cp
  npm login
  npm run lib-publish  # publish to npm
