svg-path-sdf v1.1.3
svg-path-sdf

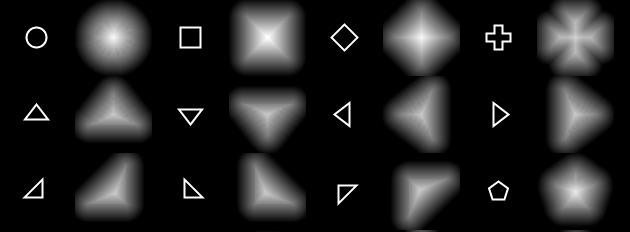

Create signed distance field for an svg path data.
Usage
let pathSdf = require('svg-path-sdf')
let arr = pathSdf('M40,0A40,40 0 1,1 0,-40A40,40 0 0,1 40,0Z', {
width: 200,
height: 200
})arr has 200×200 elements with value from 0..1 range, corresponding to distance. The path is drawn at the center of the sdf fitting to the minimum side.
distances = pathSdf(path, options|shape?)
| Option | Meaning |
|---|---|
width,w, height,h or shape | Output sdf size in px, defaults to 200×200. |
cutoff, radius | SDF parameters for bitmap-sdf, by default detected from shape to fit min side. |
viewBox | View box for the path data. If not defined, it is detected as path bounds via svg-path-bounds. |
stroke | Whether to stroke shape. Positive number will stroke outside the amount of pixels, negative number will stroke inside, 0-ish will disable stroke. |
License
(c) 2017 Dima Yv. MIT License
Development supported by plot.ly.
