Swagger-express-decorators NPM

swagger-express-decorators

Automatically generate and serve swagger.json v2.0. Based on and forked from olivierlsc/swagger-express-ts.

What's new from swagger-express-ts (v1.1.0)

Added source map for typescript
Added build script
Package is now almost x3 lighter than before
Added support for almost any framework by simply adding swaggerJSON function. See swaggerJSON
Removed almost all dependencies and when not possible, replaced them with up-to-date dependencies
Made it work when using Babel, see more in babel-plugins-proposal-decorators
For more information on the changes, see CHANGELOG.md.

Getting started

First, install swagger-express-decorators.

npm install swagger-express-decorators --save

and init tsconfig.json

The Basics

In the examples below, we use inversify-express-utils. inversify-express-utils is not required to work with swagger-express-decorators.

Step 1: configure express

import * as bodyParser from "body-parser";
import * as express from "express";
import "reflect-metadata";
import { Container } from "inversify";
import { interfaces, InversifyExpressServer, TYPE } from "inversify-express-utils";
import { VersionController } from "./version/version.controller";
import * as swagger from "swagger-express-decorators";
import { SwaggerDefinitionConstant } from "swagger-express-decorators";
const config = require ( "../config.json" );

// set up container
const container = new Container ();

// note that you *must* bind your controllers to Controller
container.bind<interfaces.Controller> ( TYPE.Controller )
    .to( VersionController ).inSingletonScope().whenTargetNamed( VersionController.TARGET_NAME );

// create server
const server = new InversifyExpressServer ( container );

server.setConfig( ( app : any ) => {
    app.use( '/api-docs/swagger' , express.static( 'swagger' ) );
    app.use( '/api-docs/swagger/assets' , express.static( 'node_modules/swagger-ui-dist' ) );
    app.use( bodyParser.json() );
    app.use( swagger.express(
        {
            definition : {
                info : {
                    title : "My api" ,
                    version : "1.0"
                } ,
                externalDocs : {
                    url : "My url"
                }
                // Models can be defined here
            }
        }
    ) );
} );

server.setErrorConfig( ( app : any ) => {
    app.use( ( err : Error , request : express.Request , response : express.Response , next : express.NextFunction ) => {
        console.error( err.stack );
        response.status( 500 ).send( "Something broke!" );
    } );
} );

const app = server.build();

app.listen( config.port );
console.info( "Server is listening on port : " + config.port );

Step 2: Decorate your models

@ApiModel( {
    description : "Version description" ,
    name : "Version"
} )
export class VersionModel {

    @ApiModelProperty( {
        description : "Id of version" ,
        required : true,
        example: ['123456789']
    } )
    id : number;

    @ApiModelProperty( {
        description : "" ,
        required : true
    } )
    name : string;

    @ApiModelProperty( {
        description : "Description of version" ,
        required : true
    } )
    description : string;
}

Step 3: Decorate your controllers

@ApiPath({
    path: "/versions",
    name: "Version",
    security: { basicAuth: [] }
})
@controller("/versions")
@injectable()
export class VersionController implements interfaces.Controller {
    public static TARGET_NAME: string = "VersionController";

    private data = [{
            id: "1",
            name: "Version 1",
            description: "Description Version 1",
            version: "1.0.0"
        },
        {
            id: "2",
            name: "Version 2",
            description: "Description Version 2",
            version: "2.0.0"
        }];

    @ApiOperationGet({
        description: "Get versions objects list",
        summary: "Get versions list",
        responses: {
            200: { description: "Success", type: SwaggerDefinitionConstant.Response.Type.ARRAY, model: "Version" }
        },
        security: {
            apiKeyHeader: []
        }
    })
    @httpGet("/")
    public getVersions(request: express.Request, response: express.Response, next: express.NextFunction): void {
        response.json(this.data);
    }

    @ApiOperationPost({
        description: "Post version object",
        summary: "Post new version",
        parameters: {
            body: { description: "New version", required: true, model: "Version" }
        },
        responses: {
            200: { description: "Success" },
            400: { description: "Parameters fail" }
        }
    })
    @httpPost("/")
    public postVersion(request: express.Request, response: express.Response, next: express.NextFunction): void {
        if (!request.body) {
            return response.status(400).end();
        }
        this.data.push(request.body);
        response.json(request.body);
    }

}

Step 4: Test

Start your server and test on url : /api-docs/swagger.json

Extra

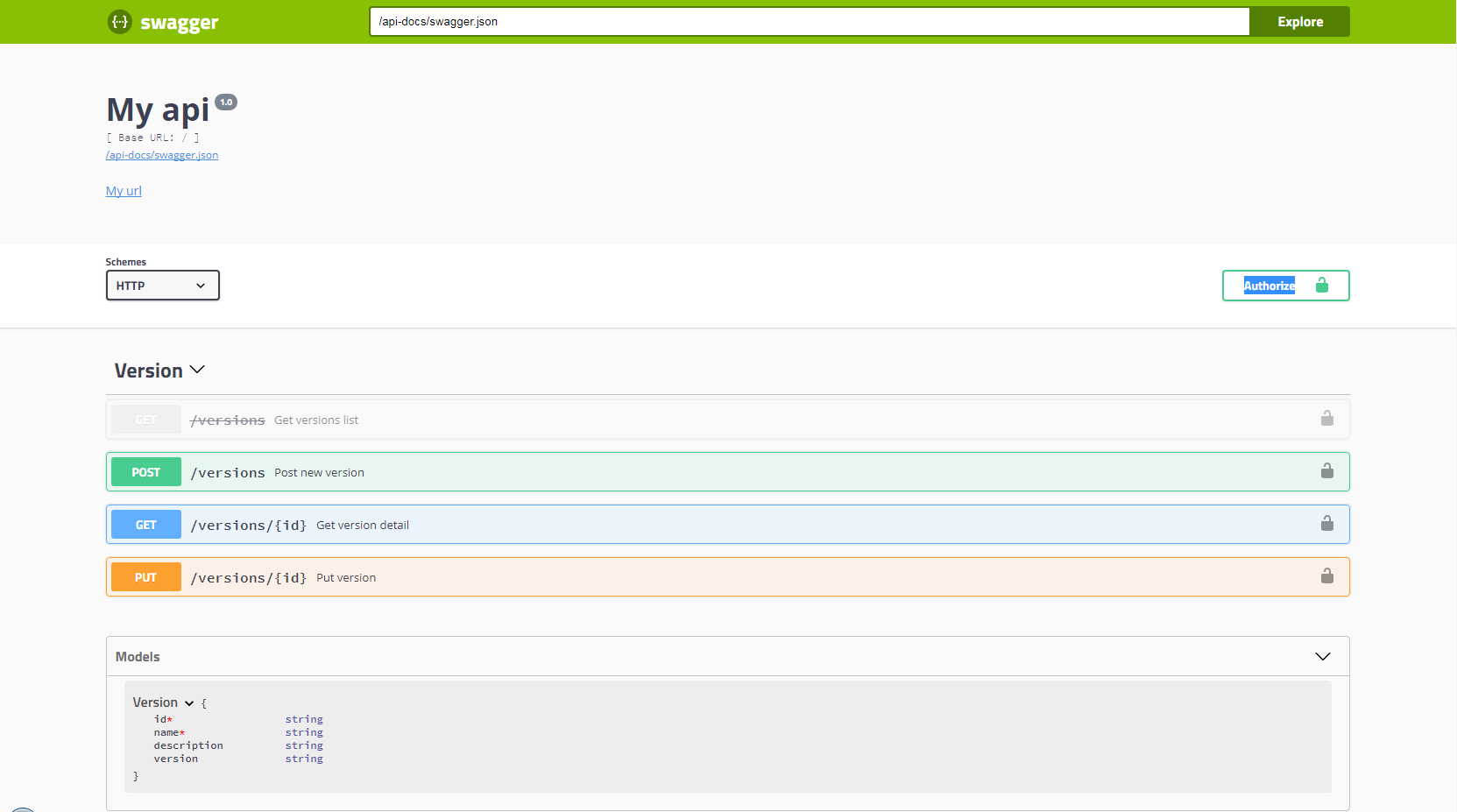

Serve swagger-ui in your API

You can serve swagger.json and swagger-ui in your API.

npm install swagger-ui-dist --save

Create index.html in new directory "swagger".

<!-- HTML for static distribution bundle build -->
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <title>Swagger UI</title>
    <link href="https://fonts.googleapis.com/css?family=Open+Sans:400,700|Source+Code+Pro:300,600|Titillium+Web:400,600,700"
          rel="stylesheet">
    <link rel="stylesheet" type="text/css" href="/api-docs/swagger/assets/swagger-ui.css">
    <link rel="icon" type="image/png" href="/api-docs/swagger/assets/favicon-32x32.png" sizes="32x32"/>
    <link rel="icon" type="image/png" href="/api-docs/swagger/assets/favicon-16x16.png" sizes="16x16"/>
    <style>
        html {
            box-sizing: border-box;
            overflow: -moz-scrollbars-vertical;
            overflow-y: scroll;
        }

        *,
        *:before,
        *:after {
            box-sizing: inherit;
        }

        body {
            margin: 0;
            background: #fafafa;
        }
    </style>
</head>

<body>

<svg xmlns="http://www.w3.org/2000/svg" xmlns:xlink="http://www.w3.org/1999/xlink"
     style="position:absolute;width:0;height:0">
    <defs>
        <symbol viewBox="0 0 20 20" id="unlocked">
            <path d="M15.8 8H14V5.6C14 2.703 12.665 1 10 1 7.334 1 6 2.703 6 5.6V6h2v-.801C8 3.754 8.797 3 10 3c1.203 0 2 .754 2 2.199V8H4c-.553 0-1 .646-1 1.199V17c0 .549.428 1.139.951 1.307l1.197.387C5.672 18.861 6.55 19 7.1 19h5.8c.549 0 1.428-.139 1.951-.307l1.196-.387c.524-.167.953-.757.953-1.306V9.199C17 8.646 16.352 8 15.8 8z"></path>
        </symbol>

        <symbol viewBox="0 0 20 20" id="locked">
            <path d="M15.8 8H14V5.6C14 2.703 12.665 1 10 1 7.334 1 6 2.703 6 5.6V8H4c-.553 0-1 .646-1 1.199V17c0 .549.428 1.139.951 1.307l1.197.387C5.672 18.861 6.55 19 7.1 19h5.8c.549 0 1.428-.139 1.951-.307l1.196-.387c.524-.167.953-.757.953-1.306V9.199C17 8.646 16.352 8 15.8 8zM12 8H8V5.199C8 3.754 8.797 3 10 3c1.203 0 2 .754 2 2.199V8z"/>
        </symbol>

        <symbol viewBox="0 0 20 20" id="close">
            <path d="M14.348 14.849c-.469.469-1.229.469-1.697 0L10 11.819l-2.651 3.029c-.469.469-1.229.469-1.697 0-.469-.469-.469-1.229 0-1.697l2.758-3.15-2.759-3.152c-.469-.469-.469-1.228 0-1.697.469-.469 1.228-.469 1.697 0L10 8.183l2.651-3.031c.469-.469 1.228-.469 1.697 0 .469.469.469 1.229 0 1.697l-2.758 3.152 2.758 3.15c.469.469.469 1.229 0 1.698z"/>
        </symbol>

        <symbol viewBox="0 0 20 20" id="large-arrow">
            <path d="M13.25 10L6.109 2.58c-.268-.27-.268-.707 0-.979.268-.27.701-.27.969 0l7.83 7.908c.268.271.268.709 0 .979l-7.83 7.908c-.268.271-.701.27-.969 0-.268-.269-.268-.707 0-.979L13.25 10z"/>
        </symbol>

        <symbol viewBox="0 0 20 20" id="large-arrow-down">
            <path d="M17.418 6.109c.272-.268.709-.268.979 0s.271.701 0 .969l-7.908 7.83c-.27.268-.707.268-.979 0l-7.908-7.83c-.27-.268-.27-.701 0-.969.271-.268.709-.268.979 0L10 13.25l7.418-7.141z"/>
        </symbol>


        <symbol viewBox="0 0 24 24" id="jump-to">
            <path d="M19 7v4H5.83l3.58-3.59L8 6l-6 6 6 6 1.41-1.41L5.83 13H21V7z"/>
        </symbol>

        <symbol viewBox="0 0 24 24" id="expand">
            <path d="M10 18h4v-2h-4v2zM3 6v2h18V6H3zm3 7h12v-2H6v2z"/>
        </symbol>

    </defs>
</svg>

<div id="swagger-ui"></div>

<script src="/api-docs/swagger/assets/swagger-ui-bundle.js"></script>
<script src="/api-docs/swagger/assets/swagger-ui-standalone-preset.js"></script>
<script>
    window.onload = function () {

        // Build a system
        const ui = SwaggerUIBundle ({
            url: "/api-docs/swagger.json",
            dom_id: '#swagger-ui',
            deepLinking: true,
            presets: [
                SwaggerUIBundle.presets.apis,
                SwaggerUIStandalonePreset
            ],
            plugins: [
                SwaggerUIBundle.plugins.DownloadUrl
            ],
            layout: "StandaloneLayout",
            validatorUrl: null
        });

        window.ui = ui
    }
</script>
</body>

</html>

Configure your server like that.

app.use( '/api-docs/swagger', express.static( 'swagger' ) );
app.use( '/api-docs/swagger/assets', express.static( 'node_modules/swagger-ui-dist' ) );

Test it on url "/api-docs/swagger".

npm.io

Project example

You can quickly test swagger-express-decorators with the project example example-swagger-express-decorators.

Features and API

For any questions, suggestions, or feature requests

Please file an issue!
