Tree-visualization NPM

About

A Reactive Binary tree visualizer that can visualize a Binary search tree, the library has the Binary search tree data structure out of the box, it can be used and the binaryTreeDrawer function can draw it via d3. The library supports a lot of options such as animation and styling via CSS classes, click nodes, as well as zoom the tree in and out, and many more ...

You are welcome to report bugs, Features or create pull requests.

Documentation

Installation

# npm
npm i tree-visualization

Qiuck Usage

The HTML where the Binary Search tree will be rendered

<!DOCTYPE html>
<html lang="en">
  <body>
    <div id="binarySearchTree"></div>
    // Import the Typescript/Javascript code. For this example, it is located in the index.ts file.
    <script type="module" src="./index.ts"></script>
  </body>
</html>

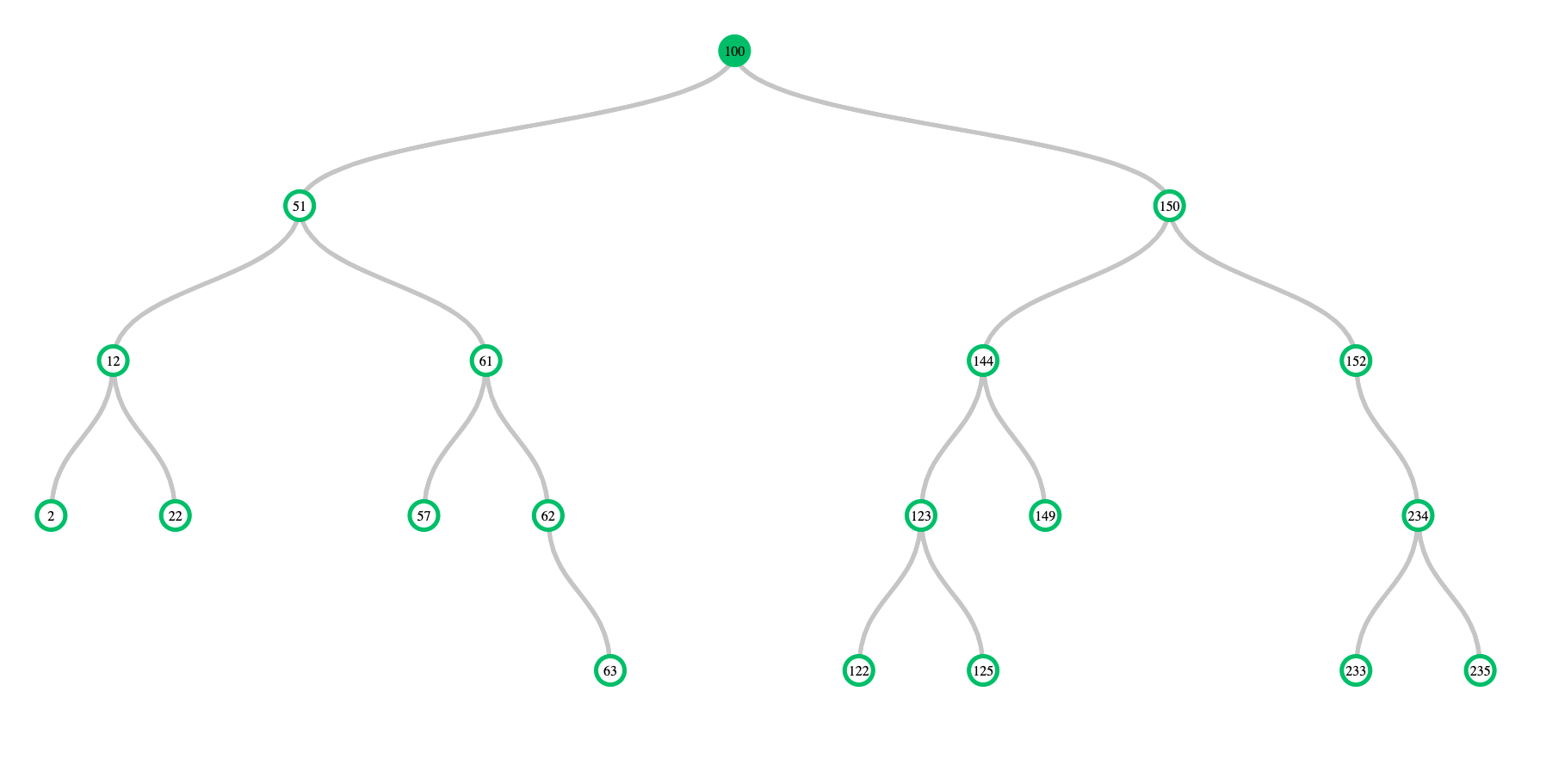

Create BinarySearchTree data Structure and then draw it via draw() function.

import { BinaryTree, binaryTreeDrawer } from "tree-visualization";

const bst: BinaryTree<number> = new BinaryTree<number>(100);
bst.addNode(51);
bst.addNode(150);
bst.addNode(12);
bst.addNode(152);
bst.addNode(2);
bst.addNode(144);
bst.addNode(12);
bst.addNode(61);
bst.addNode(62);
bst.addNode(63);
bst.addNode(234);
bst.addNode(22);
bst.addNode(123);
bst.addNode(122);
bst.addNode(125);
bst.addNode(57);
bst.addNode(233);
bst.addNode(235);
bst.addNode(149);
// Draw the Binary Search Tree by giving the draw function the Element Id where
// the Binary Search tree will render and then the created Binary Search data structure.
binaryTreeDrawer().draw("#binarySearchTree", bst);

Usage With More Options

// Example for testing
import { BinaryTree, binaryTreeDrawer } from "tree-visualization";

const bst: BinaryTree<number> = new BinaryTree<number>(100);
bst.addNode(51);
bst.addNode(150);
bst.addNode(12);
bst.addNode(152);

const treeOptions = {
  height: window.innerHeight - 135,
  linkStyleOptions: {
    strokeWidth: "5px",
  },
  nodeStyleOptions: {
    strokeWidth: "5px",
  },
};

binaryTreeDrawer().draw("#binarySearchTree", bst, treeOptions);
binaryTreeDrawer().selectNode(bst.root);
// onNodeClick with callback
binaryTreeDrawer().onNodeClick((node: any) => {
  console.log("selected Node: ", node);
})

Functions for Binary Tree (binaryTreeDrawer)

Function	Description
draw()	The Function will draw the Binary Tree that is Created, the Function accepts 3 Parameters. The First one: "HTML element where the Binary Tree should be drawn, this can be a Tag, Class, or Id". Second one: The Created Binary Tree. Third one: the options for the Binary Tree
onNodeClick()	Event listener for a Node when it clicks. The function has a Callback function which will be triggered when the Node is clicked and it will return the current selected Node
animateNode()	This Function will animate a Node. Just give a Function the Node Value you want to Animate and for animation options the function accepts also a parameter for that
animatePath()	This Function will animate a Connection. Just give a Function the Node Value that the Path is from Top to down connected to and the Function has also a parameter for animation options
resetTree()	Resetting the Binary Tree to the created a state
removeTree()	Remove the Binary Tree from DOM
selectNode()	The function for selecting any Node after Binary Tree is Created accepts the Node object. To use just give a function the Node you want to be selected
setFreeze()	This function will freeze the Binary Tree and Nothing can be changed until you set it back to false. Note: the function will not stop the animation if it is already running

Binary Tree Options

Name	Type	value	Description
width	`number`	Default: `window.innerWidth`	A width for the Binary Tree
height	`number`	Default: `window.innerHeight`	A height for the Binary Tree
transformTreeFromTop	`number`	Default: `0`	Move the Binary Tree itself from the Top, this property will move just the Binary tree and not the Tree Container
transformTreeFromLeft	`number`	Default: `0`	Move the Binary Tree itself from the Left, this property will move just the Binary tree and not the Tree Container
zoom	`boolean`	Default: `true`.	Zoom the Binary Tree in and out
autoFitText	`boolean`	Default: `true`.	This property will auto-expand the Nodes Radius based on the node value length, so that the value of the node can fit inside the Node
drawNodes	`boolean`	Default: `true`.	Draw the Nodes, if it is set to the `false` the Nodes will not be drawn
drawNodevalue	`boolean`	Default: `true`.	Draw Node value, if it is set to the `false` the Node will display without its value
drawConnections	`boolean`	Default: `true`.	Draw the Connections between the Nodes, if it is set to the `false` the Nodes will display without Connections
sizeBetweenNodes	`number`	Default: `180`.	The size between the Nodes in the Binary Tree
autoExpandTreeSize	`boolean`	Default: `false`.	This property will auto-expand the tree, based on how many nodes are in the Binary Tree and the screen size
addMouseHoverToNodes	`boolean`	Default: `true`.	While moving the mouse to the Node it will be a pointer
animation	`boolean`	Default: `false`.	Animate the Binary Tree while building it
duration	`number`	Default: `false`.	The animation duration to build the Binary Tree
nodeStyleOptions	`Object`	Default: `new NodeStyleOptions()`.	The style options for the Nodes
linkStyleOptions	`Object`	Default: `new LinkStyleOptions()`.	The style options for the Connections

Node Style Options

Name	Type	value	Description
radius	`number`	Default: `10`	The radius of the Node or the size of the Node
fillCollor	`string`	Default: `#fff`	The Color of the Node
onMouseHoverColor	`string`	Default: `undefined`	Change the Node Color while Mouse is over a Node
selectedNodeColor	`string`	Default: `#09c372` Which is Green	The current selected Node Color
strokeColor	`string`	Default: `#09c372` Which is Green	The Border radius or Stroke Color of the Nodes
strokeWidth	`string`	Default: `3px`	The width of the Node Border
styleClass	`string`	Default: `undefined`	Add your own CSS class for the Node, NOTE: this will maybe disable some other default options for the Nodes
addAnimationNodes	`boolean`	Default: `false`	Duplicate the Nodes on Top of the default Nodes for Animation. Note: The Id for those Nodes will be the `animationNode` and the `Node Value` Example: `animationsNode7`

Connection/Link Style Options

Name	Type	value	Description
strokeColor	`string`	Default: `#ccc`	The Color of the Connection
strokeWidth	`string`	Default: `3px`	The width of the Connection
styleClass	`string`	Default: `undefined`	Add your own CSS class for the Connection, NOTE: this will maybe disable some other default options for the Connections
addAnimationNodes	`boolean`	Default: `false`	Duplicate the Connections on Top of the default Connections for Animation. Note: The Id for those Connections will be the `animationPath` and the `Node Value` Example: `animationsPath10`
