uni-module-common v1.1.8-6.18

uni-module-common

uni-module-common is a private library.

Installation

Use the package manager npm to install uni-module-common.

npm install uni-module-common

Example usage

import { MultilineTextField } from 'uni-module-common'

render() {
  return (
    <MultilineTextField label="MyMultiLine" value="Lorem Ipsum">
    </MultilineTextField>
  );
}

Components

• Action
• ActionBookmark
• ActionCell
• ActionDetail
• ActionFileInput
• ActionMenu
• ActionSelect
• ActionSeparator
• AlertBox
• AppLink
• BodyCell
• CheckBox
• ClearableInput
• CollapseCell
• Color
• ColorSelect
• ColumnFilter
• ColumnFilterDate
• ColumnFilterEnum
• ColumnFilterNumber
• ColumnFilterText
• ConfirmBox
• DataGrid
• DateCell
• DateField
• DateInput
• Dropdown
• DropdownExtended
• DropdownTab
• EditRelationControl
• ExtendedCheckBox
• Field
• FileImage
• FileInput
• FulltextInput
• FurtherDetailList
• GridFulltextSearch
• HeaderActions
• HeaderCell
• HierarchicalSelectField
• Icon
• Image
• MultilineTextField
• MultilineTextFieldCountIndicator
• NavIcon
• NumberCell
• NumberField
• ObjectCard
• OrderableList
• Overlay
• Paginator
• ProgressBar
• Property
• PropertyAppLink
• RadioButton
• RelationControl
• RoundSwitch
• RowToolsCell
• SearchField
• searchFieldSelect
• SearchSelect
• SelectField
• SelectorCell
• SelectorHeaderCell
• Spinner
• TextCell
• TextField
• TextHighlight
• ToolsButton
• TriconField

Action

Description: Action icon with a hover effect based on application theme. Can be used either by itself or as a child of an action menu (three dots menu).

Props:

Action.propTypes = {
  selected: PropTypes.bool,
  disabled: PropTypes.bool,
  label: PropTypes.bool,
  icon: PropTypes.string,
  onClick: PropTypes.func,
  children: PropTypes.any,
  condition: PropTypes.any,
  toolTip: PropTypes.string,
  className: PropTypes.string,
  title: PropTypes.string,
  style: PropTypes.object
}

• selected - if true, an icon is colored all the time (and not just if hovered), which can be useful for toggle-like effect
• disabled - if true, action is visible, but grayed-out and unable to be clicked
• label - if true, a text of the action will be showed
• icon - name of the icon, see Icon for possible choices
• onClick
• children - voluntary collection of html elements to be displayed inside an action
• condition - boolean or function value, that can indicate if the action should be displayed at all
• toolTip
• className - additional class that appends the default "Action" class
• title - text of the action, useful mainly in the action menu ("Edit data" text in the image above)
• style - additional style object to be applied to the "Action" element

Usage:

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                <div className="Panel-toolbarContent">
                    <Action onClick={this.handleShowItemMediaClick.bind(this)}
                        disabled={false}
                        title="Media"
                        icon="folder" />
                </div>
                <div className="Panel-toolbarActions">
                    <ActionMenu hybridMenu={false}
                        anchor="right"
                        translator={this.props.appInterface.tree.select('workspace', 'localization', 'root').get()}>
                        <Action title="Edit"
                            condition={canUserEditItem}
                            onClick={this.handleEditItemClick.bind(this)}
                            icon="edit" />
                    </ActionMenu>
                </div>
            </div>
            <div className="Panel-content">
                ...
            </div>
        </div>
    )
}

Back

ActionBookmark

Description: Specialized kind of action for bookmarking certain objects.

Props:

ActionBookmark.propTypes = {
  type: PropTypes.number.isRequired,
  data: PropTypes.object.isRequired,
  bookmarks: PropTypes.any,
  localization: PropTypes.object.isRequired,
  bookmarkActions: PropTypes.shape({
    bookmarked: PropTypes.func.isRequired,
    removeBookmark: PropTypes.func.isRequired,
    addBookmark: PropTypes.func.isRequired
  }).isRequired,
  refreshFunc: PropTypes.func
}

• type - one of numeric values representing type of bookmarked object: FULLTEXT: 1, PARCEL: 2, ADDRESS: 3, SELECTION: 4, COORDINATES: 5, DRAWING: 6, GRID: 7, MODULE: 8. Recommended value is 1 (FULLTEXT) in most cases
• data - object to be bookmarked. It should have a unique id propery to be identified by
• bookmarks - object representing the bookmark cache
• localization - object with localized strings. At least localization.bookmarks.tooltip should be accessible
• bookmarkActions - functions to process the bookmark requests
• refreshFunc - function to be called after operations with bookmarks are finished

Usage:

render() {
    let localization = this.props.appInterface.tree.select('workspace', 'localization').get();
    let bookmarks = this.props.appInterface.tree.select('bookmarks').get();
    return (
        <div>
            <div className="Panel-toolbar">
                <div className="Panel-toolbarContent">
                    <ActionBookmark
                            data={this.state.currentItem}
                            type={1}
                            bookmarks={bookmarks}
                            localization={localization}
                            bookmarkActions={this.props.appInterface.actions}
                            refreshFunc={this.refreshFunction.bind(this)}
                        />
                </div>
                <div className="Panel-toolbarActions">
                    ...
                </div>
            </div>
            <div className="Panel-content">
                ...
            </div>
        </div>
    )
}

Back

ActionCell

Description: Table cell for hyperlinks.

Props:

ActionCell.propTypes = {
  data: PropTypes.object,
  column: PropTypes.string,
  router: PropTypes.object,
  grid: PropTypes.object,
  localization: PropTypes.object,
  onClick: PropTypes.func,
  relation: PropTypes.object,
  isActionCellDisabled: PropTypes.bool,
  getEntityNameFunction: PropTypes.func.isRequired,
  fetchEntityDescriptionFunction: PropTypes.func.isRequired,
  getAliasesFunction: PropTypes.func.isRequired,
  resolveActionFunction: PropTypes.func.isRequired,
  replaceParamsFunction: PropTypes.func.isRequired,
  gridFetchSpecsForEntityFunction: PropTypes.func.isRequired,
  appLinkTypes: PropTypes.shape({
    EXTERNAL_URI: PropTypes.string.isRequired,
    SHOW_GRID: PropTypes.string.isRequired,
    SHOW_MODULE: PropTypes.string.isRequired,
    SHOW_DETAIL: PropTypes.string.isRequired
  }),
  relationRoles: PropTypes.shape({
    CHILD: PropTypes.string.isRequired,
    PARENT: PropTypes.string.isRequired,
    MULTI: PropTypes.string.isRequired
  }),
  dataTypes: PropTypes.shape({
    BLOB: PropTypes.string.isRequired,
    CLOB: PropTypes.string.isRequired,
    DATE: PropTypes.string.isRequired,
    ENUM: PropTypes.string.isRequired,
    GEOM: PropTypes.string.isRequired,
    NUMBER: PropTypes.string.isRequired,
    UNKNOWN: PropTypes.string.isRequired,
    VARCHAR: PropTypes.string.isRequired,
    ACTION: PropTypes.string.isRequired,
  }),
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  isPhoneCompactView: PropTypes.bool
}

• data - object representing the table row. It must at least have a property corresponding to the column prop
• column - name of the value property of the data object
• router - router object for managing browser navigation. Value passed by the DataGrid parent object
• grid - object representing current grid settings. Value passed by the DataGrid parent object
• localization - object with localized strings. At least localization.actionColumnDefaultText should be accessible
• onClick - function to be called after the hyperlink click
• relation - object representing relation to other entity. Only for specialized usage inside twigis
• isActionCellDisabled - if true, the hyperlink is disabled
• getEntityNameFunction - function for parsing an entity name from a dataendpoint. Value passed by the DataGrid parent object
• fetchEntityDescriptionFunction - function for reading the description of a certain entity. Value passed by the DataGrid parent object
• getAliasesFunction - function for parsing captions for entity properties from entity description. Value passed by the DataGrid parent object
• resolveActionFunction - function for managing the default behavior of the action defined via twigis administration. Value passed by the DataGrid parent object
• replaceParamsFunction - helper function for resolveActionFunction. Value passed by the DataGrid parent object
• gridFetchSpecsForEntityFunction - function for reading the specs of a certain entity. Value passed by the DataGrid parent object
• appLinkTypes
• relationRoles
• dataTypes
• filterTypes
• isPhoneCompactView - if true, the component will be better mobile adapted

Back

ActionDetail

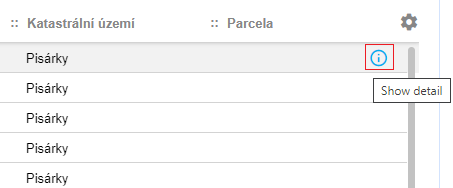

Description: Action icon for opening detail from grid.

Props:

ActionDetail.propTypes = {
  icon: PropTypes.string,
  grid: PropTypes.object,
  router: PropTypes.object,
  data: PropTypes.object,
  onClick: PropTypes.func,
  onOpenEditPanel: PropTypes.func,
  onCloseEditPanel: PropTypes.func,
  localization: PropTypes.shape({
    showDetail: PropTypes.string.isRequired
  }).isRequired,
  openPanelFunction: PropTypes.func.isRequired,
  resolveActionFunction: PropTypes.func.isRequired,
  replaceParamsFunction: PropTypes.func.isRequired
}

• icon - name of the icon, see Icon for possible choices. Default value is 'info'
• grid - object representing current grid settings. Value passed by the DataGrid parent object
• router - router object for managing browser navigation. Value passed by the DataGrid parent object
• data - underlaying object (representation of the grid row)
• onClick - additional function to be called after an icon is clicked, to be performed right before the data detail is shown
• onOpenEditPanel - handler for managing DataGrid workflow. Value passed by the DataGrid parent object
• onCloseEditPanel - handler for managing DataGrid workflow. Value passed by the DataGrid parent object
• localization - object with localized strings
• openPanelFunction - function for opening new twigis panel. Value passed by the DataGrid parent object
• resolveActionFunction - function for managing the default behavior of the action defined via twigis administration. Value passed by the DataGrid parent object
• replaceParamsFunction - helper function for resolveActionFunction. Value passed by the DataGrid parent object

Back

ActionFileInput

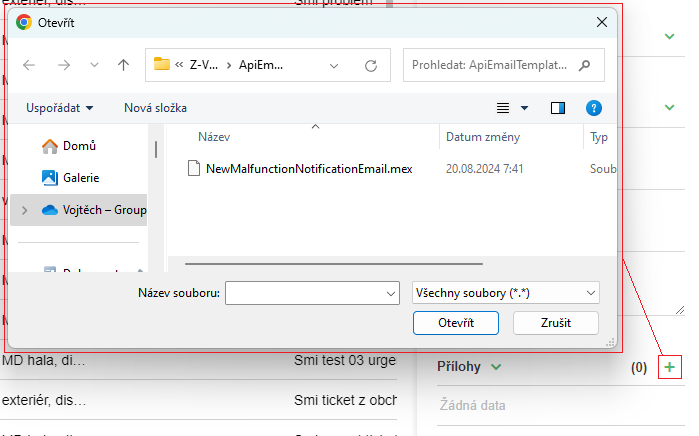

Description: Action icon with a built-in functionality for selecting files from the file system.

Props:

ActionFileInput.propTypes = {
  selected: PropTypes.bool,
  disabled: PropTypes.bool,
  label: PropTypes.bool,
  icon: PropTypes.string,
  onFilesChosen: PropTypes.func,
  children: PropTypes.any,
  condition: PropTypes.any,
  toolTip: PropTypes.string,
  className: PropTypes.string,
  title: PropTypes.string
}

• selected - if true, an icon is colored all the time (and not just if hovered), which can be useful for toggle-like effect
• disabled - if true, action is visible, but grayed-out and unable to be clicked
• label - if true, a text of the action will be showed
• icon - name of the icon, see Icon for possible choices
• onFilesChosen - function to be called when files are chosen
• children - voluntary collection of html elements to be displayed inside an action
• condition - boolean or function value, that can indicate if the action should be displayed at all
• toolTip
• className - additional class that appends the default "Action" class
• title - text of the action, useful mainly in the action menu

Usage:

handleFilesChosenAction(files) {
    // TODO
}

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ActionFileInput
                    title={"Add file"}
                    condition={true}
                    disabled={false}
                    onFilesChosen={this.handleFilesChosenAction.bind(this)}
                    icon="add"
                />
            </div>
        </div>
    )
}

Back

ActionMenu

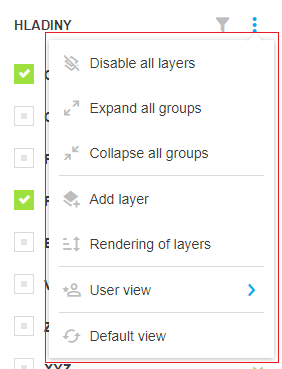

Description: Dropdown three dots list of actions.

Props:

ActionMenu.propTypes = {
  opened: PropTypes.bool,
  onMenuToggle: PropTypes.func,
  children: PropTypes.any,
  anchor: PropTypes.string,
  orientation: PropTypes.string,
  hybridMenu: PropTypes.bool,
  onOpenOutsideWindow: PropTypes.func,
  translator: PropTypes.shape({
    menuToolTip: PropTypes.string.isRequired
  }).isRequired,
  isIconDisabled: PropTypes.bool
}

• opened - opened state can be influenced by this property or internally by user manipulation
• onMenuToggle - function to be called after dropdown menu is toggled
• children - items to be displayed in the dropdown. Action or ActionSeparator are recommended to be used
• anchor - 'right' or 'left' alignment of the menu. Default value is 'left'
• orientation - 'up' or 'down' popup orientation. Default is 'down'
• hybridMenu - if true and there is only one child, menu is displayed as a single Action
• onOpenOutsideWindow - function for handling scrolling if the popup would be opened outside of window view
• translator - object with localized strings
• isIconDisabled - if true, three dots icon is grayed-out and unable to be clicked

Usage:

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                    <div className="Panel-toolbarContent">
                        ...
                    </div>
                    <div className="Panel-toolbarActions">
                        <ActionMenu hybridMenu={false}
                            anchor="right"
                            translator={this.props.appInterface.tree.select('workspace', 'localization', 'root').get()}>
                            <Action title={"Edit"}
                                condition={canUserEdit}
                                onClick={this.handleEditItemClick.bind(this)}
                                icon="edit" />
                            <Action title={"Delete"}
                                condition={canUserDelete}
                                onClick={this.handleDeleteItemClick.bind(this)}
                                icon="delete" />
                            <ActionSeparator/>
                            <Action title={"Add"}
                                condition={canUserAddItem}
                                onClick={this.handleAddItemClick.bind(this)}
                                icon="add" />
                        </ActionMenu>
                    </div>
                </div>
            <div className="Panel-content">
                ...
            </div>
        </div>
    )
}

Back

ActionSelect

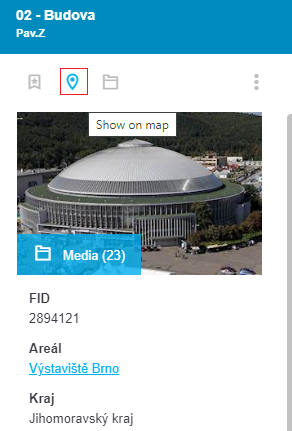

Description: Action icon for showing an item in a map.

Props:

ActionSelect.propTypes = {
  data: PropTypes.any,
  type: PropTypes.any,
  onClick: PropTypes.func,
  localization: PropTypes.shape({
    selectTitle: PropTypes.string.isRequired
  }).isRequired,
  hidePanelsFunction: PropTypes.func.isRequired,
  setFixedPanelsFunction: PropTypes.func.isRequired,
  setClickObjectFunction: PropTypes.func.isRequired
}

+ Action props

• data - underlaying object with at least one non-empty property of the following: geometry, polygonCoordinates or x and y
• type - type of the object (FULLTEXT: 1, PARCEL: 2, ADDRESS: 3, SELECTION: 4, COORDINATES: 5, DRAWING: 6, GRID: 7, MODULE: 8)
• onClick - additional function to be called after an icon is clicked, to be performed right after the geometry is shown in map
• localization - object with localized strings
• hidePanelsFunction - function for hiding twigis panels
• setFixedPanelsFunction - function for manipulation with panels in PanelManager
• setClickObjectFunction - function for showing an object in a map

Usage:

render() {
    let localization = this.props.appInterface.tree.select('workspace', 'localization', 'actionsButtons').get();

    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ActionSelect type={1}
                    data={this.item}
                    icon="point2"
                    localization={localization}
                    hidePanelsFunction={this.props.appInterface.actions.hidePanels}
                    setFixedPanelsFunction={this.props.appInterface.actions.setFixedPanels}
                    setClickObjectFunction={this.props.appInterface.actions.setClickObject}
                />
            </div>
        </div>
    )
}

Back

ActionSeparator

Description: Horizontal line for separating items. Mainly for usage within ActionMenu.

Props:

ActionSeparator.propTypes = {
  className: PropTypes.string,
  condition: PropTypes.oneOfType([
    PropTypes.bool,
    PropTypes.func
  ])
}

• className - additional class that appends the default "Action-separator" class
• condition - boolean or function value, that can indicate if the separator should be displayed at all

Usage:

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                    <div className="Panel-toolbarContent">
                        ...
                    </div>
                    <div className="Panel-toolbarActions">
                        <ActionMenu hybridMenu={false}
                            anchor="right"
                            translator={this.props.appInterface.tree.select('workspace', 'localization', 'root').get()}>
                            <Action title={"Edit"}
                                condition={canUserEdit}
                                onClick={this.handleEditItemClick.bind(this)}
                                icon="edit" />
                            <Action title={"Delete"}
                                condition={canUserDelete}
                                onClick={this.handleDeleteItemClick.bind(this)}
                                icon="delete" />
                            <ActionSeparator/>
                            <Action title={"Add"}
                                condition={canUserAddItem}
                                onClick={this.handleAddItemClick.bind(this)}
                                icon="add" />
                        </ActionMenu>
                    </div>
                </div>
            <div className="Panel-content">
                ...
            </div>
        </div>
    )
}

Back

AlertBox

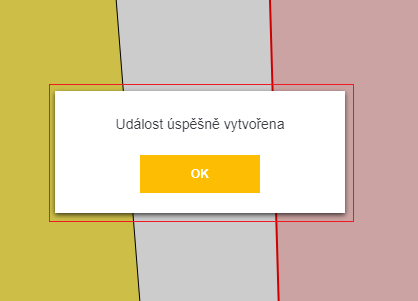

Description: Twigis replacement for modal "alert" dialog.

Props:

AlertBox.propTypes = {
  onClick: PropTypes.func.isRequired,
  text: PropTypes.string,
  btnText: PropTypes.string
}

• onClick - function to be called after the confirmation button is clicked
• text - message of the dialog
• btnText - text of the confirmation button

Usage 1 - standalone:

hideAlertBox() {
    this.setState({
        showAlertBox: false
    });
}

render() {
    return (
        <div>
            {this.state.showAlertBox && <AlertBox
                 onClick={this.hideAlertBox.bind(this)}
                 text={"Item saved succesfully"}
                 btnText={"OK"}
            />}
        </div>
    )
}

Usage 2 - twigis module:

let callback = () => {
  // TODO
};
this.props.appInterface.actions.showAlert("Item saved succesfully", callback, "OK");

or simply

this.props.appInterface.actions.showAlert("Item saved succesfully");

Back

AppLink

Description: Theme-styled hyperlink. Can be configured to perform certain special twigis actions.

Props:

AppLink.propTypes = {
  router: PropTypes.shape({
    push: PropTypes.func.isRequired
  }).isRequired,
  settings: PropTypes.shape({
    action: PropTypes.string.isRequired,
    parameters: PropTypes.object.isRequired
  }).isRequired,
  label: PropTypes.oneOfType([
    PropTypes.string,
    PropTypes.number
  ]).isRequired,
  routerCopy: PropTypes.object,
  gridCopy: PropTypes.object,
  gridSettings: PropTypes.object,
  title: PropTypes.string,
  params: PropTypes.object,
  onClick: PropTypes.func,
  appLinkTypes: PropTypes.shape({
    EXTERNAL_URI: PropTypes.string.isRequired,
    SHOW_GRID: PropTypes.string.isRequired,
    SHOW_MODULE: PropTypes.string.isRequired,
    SHOW_DETAIL: PropTypes.string.isRequired
  }),
  getEntityNameFunction: PropTypes.func.isRequired,
  gridFetchSpecsForEntityFunction: PropTypes.func.isRequired,
  resolveActionFunction: PropTypes.func.isRequired,
  replaceParamsFunction: PropTypes.func.isRequired,
  data:PropTypes.object
}

• router - router object for managing browser navigation. Value passed by the DataGrid parent object
• settings - special object that can define behavior of the hyperlink (corresponds to the settings via twigis administration). It should have action and parameters
• label - hyperlink text
• routerCopy - for internal use only
• gridCopy - for internal use only
• gridSettings - for internal use only
• title - hyperlink tooltip
• params - object with additional information about an action (defined via settings). Should be in form of {panel: string}
• onClick - function to be called after the hyperlink was clicked and after an action (defined via settings) was performed
• appLinkTypes
• getEntityNameFunction - function for parsing an entity name from a dataendpoint
• gridFetchSpecsForEntityFunction - function for reading the specs of a certain entity
• resolveActionFunction - function for managing the default behavior of the action defined via twigis administration
• replaceParamsFunction - helper function for resolveActionFunction
• data - object upon which the action is to be performed

Usage 1 - self handling:

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <AppLink label={"Open contracts"}
                    settings={{action: '', parameters: {}}}
                    onClick={this.handleDisplayContractsClick.bind(this)}
                    getEntityNameFunction={this.props.appInterface.api.getEntityName}
                    gridFetchSpecsForEntityFunction={this.props.appInterface.actions.gridFetchSpecsForEntity}
                    resolveActionFunction={this.props.appInterface.utils.resolveAction}
                    replaceParamsFunction={this.props.appInterface.utils.replaceParams}
                    appLinkTypes={this.props.appInterface.constants.AppLinkTypes} />
            </div>
        </div>
    )
}

Usage 2 - open filtered grid:

render() {
    let openMyOpenedTicketsSettings = {
        action: 'ShowGrid',
        parameters: {
            dataentity: 'DS/TICKETS',
            filter: `@FID_USER eq ${this.myUserId} and @STATE ne 'closed'`
        }
    };

    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <AppLink label={"Open my tickets"}
                    settings={openMyOpenedTicketsSettings}
                    getEntityNameFunction={this.props.appInterface.api.getEntityName}
                    gridFetchSpecsForEntityFunction={this.props.appInterface.actions.gridFetchSpecsForEntity}
                    resolveActionFunction={this.props.appInterface.utils.resolveAction}
                    replaceParamsFunction={this.props.appInterface.utils.replaceParams}
                    appLinkTypes={this.props.appInterface.constants.AppLinkTypes} />
            </div>
        </div>
    )
}

Back

BodyCell

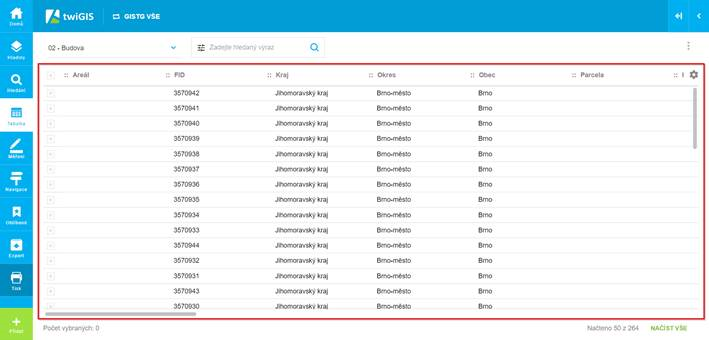

Description: One cell in a DataGrid.

Props:

BodyCell.propTypes = {
  type: PropTypes.string,
  data: PropTypes.array,
  rowIndex: PropTypes.number,
  columnKey: PropTypes.string,
  router: PropTypes.object,
  grid: PropTypes.object,
  localization: PropTypes.object,
  selectionSettings: PropTypes.object,
  onActionClick: PropTypes.func,
  isActionCellDisabled: PropTypes.bool,
  relation: PropTypes.object,
  formatDateTime: PropTypes.func.isRequired,
  getEntityNameFunction: PropTypes.func.isRequired,
  fetchEntityDescriptionFunction: PropTypes.func.isRequired,
  getAliasesFunction: PropTypes.func.isRequired,
  resolveActionFunction: PropTypes.func.isRequired,
  replaceParamsFunction: PropTypes.func.isRequired,
  gridFetchSpecsForEntityFunction: PropTypes.func.isRequired,
  appLinkTypes: PropTypes.shape({
    EXTERNAL_URI: PropTypes.string.isRequired,
    SHOW_GRID: PropTypes.string.isRequired,
    SHOW_MODULE: PropTypes.string.isRequired,
    SHOW_DETAIL: PropTypes.string.isRequired
  }),
  relationRoles: PropTypes.shape({
    CHILD: PropTypes.string.isRequired,
    PARENT: PropTypes.string.isRequired,
    MULTI: PropTypes.string.isRequired
  }),
  dataTypes: PropTypes.shape({
    BLOB: PropTypes.string.isRequired,
    CLOB: PropTypes.string.isRequired,
    DATE: PropTypes.string.isRequired,
    ENUM: PropTypes.string.isRequired,
    GEOM: PropTypes.string.isRequired,
    NUMBER: PropTypes.string.isRequired,
    UNKNOWN: PropTypes.string.isRequired,
    VARCHAR: PropTypes.string.isRequired,
    ACTION: PropTypes.string.isRequired,
  }),
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  columnName: PropTypes.string,
  customCellRendering: PropTypes.object,
  scale: PropTypes.number,
  precision: PropTypes.number,
  customRowToolsCellRenderer: PropTypes.func,
  customRowHighlighted: PropTypes.object,
  customRowClassName: PropTypes.string
}

Usage: As a component designated for DataGrid complex type, it is not described in further detail. In case of need, reach out for Arkance Czech development team for help.

Back

CheckBox

Description: Theme-styled checkbox for twigis.

Props:

CheckBox.propTypes = {
  name: PropTypes.string,
  suffix: PropTypes.any,
  active: PropTypes.bool,
  checked: PropTypes.bool,
  disabled: PropTypes.bool,
  value: PropTypes.any,
  onChange: PropTypes.func,
  title: PropTypes.string
}

• name - voluntary identifier of the input. Unique name is composed as '{name}-{suffix}'
• suffix - voluntary identifier of the input. Unique name is composed as '{name}-{suffix}'
• active - if false, checkbox is visibly grayed-out, however can be checked normally. Purely visual indication
• checked - state of the checkbox
• disabled - if true, checkebox is visible, but grayed-out and unable to be changed
• value - background representation of the checkbox value (important for multiple checkboxes at the same place)
• onChange
• title - tooltip of the checkbox

Usage:

toggleChecked(args) {
    this.setState({
        layerChecked: !this.state.layerChecked
    });
}

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <CheckBox name="layer-checkbox"
                    suffix='online'
                    checked={this.state.layerChecked}
                    active={this.state.layerActive}
                    onChange={this.toggleChecked.bind(this)} />
            </div>
        </div>
    )
}

Back

ClearableInput

Description: Text field with a button for clearing the input text. Quite similar to SearchField

Props:

ClearableInput.propTypes = {
  value: PropTypes.string,
  inputType: PropTypes.string,
  onChange: PropTypes.func.isRequired,
  placeholder: PropTypes.string
}

• value - the input text
• inputType - type of input. Can be 'text' or 'number'. Default value is 'text'
• onChange
• placeholder - placeholder (text for empty value) of the input

Usage:

handleCurrentSearchTextChanged(args) {
    if(!args || !args.length) {
        args = '';
    }
    this.setState({
        currentSearchText: args
    });
}

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ClearableInput value={this.state.currentSearchText}
                    onChange={this.handleCurrentSearchTextChanged.bind(this)}
                    placeholder={"Enter text to be searched"}
                />
            </div>
        </div>
    )
}

Back

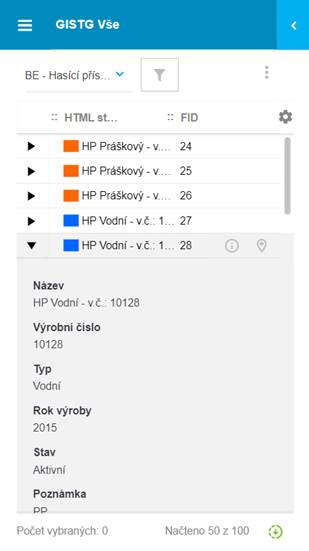

CollapseCell

Description: One cell in a DataGrid designed for collapsing/expanding rows on mobile devices.

Props:

CollapseCell.propTypes = {
  data: PropTypes.array,
  selectionSettings: PropTypes.object,
  rowIndex: PropTypes.number,
  highlightedRow: PropTypes.number,
  expandedSettings: PropTypes.array,
  onClick: PropTypes.func
}

Usage: As a component designated for DataGrid complex type, it is not described in further detail. In case of need, reach out for Arkance Czech development team for help.

Back

Color

Description: Component displaying a single color.

Props:

Color.propTypes = {
  color: PropTypes.string,
  onClick: PropTypes.func,
  selected: PropTypes.bool
}

• color - color (html/css format)
• onClick
• selected - graphical indication of whether color is selected

Usage:

handleColorClick(color) {
    this.setState({
        color: color
    });
}

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <Color
                    key={'red'}
                    color={'red'}
                    selected={this.state.color == 'red'}
                    onClick={this.handleColorClick.bind(this, 'red')}
                />
            </div>
        </div>
    )
}

Back

ColorSelect

Description: Component for choosing a single color of a few.

Props:

ColorSelect.propTypes = {
  colors: PropTypes.arrayOf(PropTypes.string),
  selected: PropTypes.string,
  onChange: PropTypes.func
}

• colors - array of colors (html/css format)
• selected - selected color (html/css format)
• onChange - function to be called when color is selected

Usage:

selectColor(color) {
    this.setState({
        color: color
    });
}

render() {
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ColorSelect
                    selected={this.state.color}
                    colors={['#000000', '#fe0056', '#70ce3b', '#008cf9', '#ffc200', '#ae00b2']}
                    onChange={this.selectColor.bind(this)}
                />
            </div>
        </div>
    )
}

Back

ColumnFilter

Description: Component for defining filter criteria. Based on props can be transformed into ColumnFilterDate, ColumnFilterEnum, ColumnFilterNumber or ColumnFilterText

Props:

ColumnFilter.propTypes = {
  column: PropTypes.object,
  filter: PropTypes.object,
  localization: PropTypes.object,
  onChange: PropTypes.func,
  onScrollToEndItemList: PropTypes.func,
  onChangeFilterValue: PropTypes.func,
  tableHeight: PropTypes.number,
  relationRoles: PropTypes.shape({
    CHILD: PropTypes.string.isRequired,
    PARENT: PropTypes.string.isRequired,
    MULTI: PropTypes.string.isRequired
  }),
  dataTypes: PropTypes.shape({
    BLOB: PropTypes.string.isRequired,
    CLOB: PropTypes.string.isRequired,
    DATE: PropTypes.string.isRequired,
    ENUM: PropTypes.string.isRequired,
    GEOM: PropTypes.string.isRequired,
    NUMBER: PropTypes.string.isRequired,
    UNKNOWN: PropTypes.string.isRequired,
    VARCHAR: PropTypes.string.isRequired,
    ACTION: PropTypes.string.isRequired,
    DATETIME: PropTypes.string.isRequired
  }),
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  enumTypes: PropTypes.shape({
    SIMPLE: PropTypes.string.isRequired,
    HIERARCHICAL: PropTypes.string.isRequired,
    PHYSICAL: PropTypes.string.isRequired,
    VIRTUAL: PropTypes.string.isRequired
  }),
  dateFormats: PropTypes.shape({
    DATE: PropTypes.string.isRequired,
    TIME: PropTypes.string.isRequired,
    DATE_TIME: PropTypes.string.isRequired,
    ISO: PropTypes.string.isRequired,
    ISO_DATE: PropTypes.string.isRequired,
    ISO_TIME: PropTypes.string.isRequired,
    VARIABLE_DATE: PropTypes.string.isRequired
  }),
  devices: PropTypes.object.isRequired,
  viewports: PropTypes.object.isRequired,
  focusSearchSelectFunction: PropTypes.func.isRequired,
  translator: PropTypes.object.isRequired,
  fieldValidator: PropTypes.func.isRequired,
  configLocalization: PropTypes.string.isRequired,
  isMobile: PropTypes.oneOfType([
    PropTypes.bool,
    PropTypes.func
  ]),
  customColumnFilterFunction: PropTypes.func
}

Usage: Since usage of ColumnFilter is not trivial and requires twigis-specific props settings, we recommend using one of these directly: ColumnFilterDate, ColumnFilterNumber or ColumnFilterText

Back

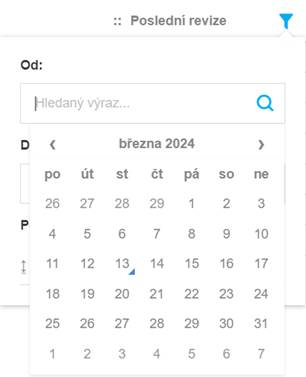

ColumnFilterDate

Description: Component for defining filter criteria of 'DateTime' values

Props:

ColumnFilterDate.propTypes = {
  value: PropTypes.string,
  value2: PropTypes.string,
  type: PropTypes.string,
  onChange: PropTypes.func.isRequired,
  localization: PropTypes.object.isRequired,
  dateFormats: PropTypes.shape({
    DATE: PropTypes.string.isRequired,
    TIME: PropTypes.string.isRequired,
    DATE_TIME: PropTypes.string.isRequired,
    ISO: PropTypes.string.isRequired,
    ISO_DATE: PropTypes.string.isRequired,
    ISO_TIME: PropTypes.string.isRequired,
    VARIABLE_DATE: PropTypes.string.isRequired
  }),
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  devices: PropTypes.object.isRequired,
  viewports: PropTypes.object.isRequired,
  focusSearchSelectFunction: PropTypes.func.isRequired,
  configLocalization: PropTypes.any.isRequired,
  isMobile: PropTypes.oneOfType([
    PropTypes.bool,
    PropTypes.func
  ])
}

• value - first DateTime argument for filtering (being used in most filter types)
• value2 - second DateTime argument for filtering (being used only for 'between' filter type)
• type - current type of filtering - one of values from filterTypes prop - 'between', 'equals', 'notequals', 'greaterthan', 'greaterthanorequals', 'lesserthan', 'lesserthanorequals', 'isnull' or 'isnotnull'. Default value is 'between'
• onChange - function called after any change (type change, value change)
• localization - object with localized strings
• dateFormats
• filterTypes
• devices - collection of available device types ('PC', 'MOBIL', 'TABLET')
• viewports - object defining width thresholds between different device types
• focusSearchSelectFunction - twigis function for focusing combos
• configLocalization - locality identifier ('en', 'cz' ..). Default value is 'cz'
• isMobile - if true, a component is formatted for optimized mobile view

Usage:

state = {
    filterType: null,
    filterValue1: null,
    filterValue2: null
}

const objects = [
    {date: new Date(2024, 0, 1), name: 'January 1st 2024'},
    {date: new Date(2024, 1, 1), name: 'February 1st 2024'},
    {date: new Date(2024, 2, 1), name: 'March 1st 2024'},
    {date: new Date(2024, 3, 1), name: 'April 1st 2024'},
    {date: new Date(2024, 4, 1), name: 'May 1st 2024'},
    {date: new Date(2024, 5, 1), name: 'June 1st 2024'},
    {date: new Date(2024, 6, 1), name: 'July 1st 2024'},
    {date: new Date(2024, 7, 1), name: 'August 1st 2024'},
    {date: new Date(2024, 8, 1), name: 'September 1st 2024'},
    {date: new Date(2024, 9, 1), name: 'October 1st 2024'},
    {date: new Date(2024, 10, 1), name: 'November 1st 2024'},
    {date: new Date(2024, 11, 1), name: 'December 1st 2024'}
];

handleFilterChanged(filter) {
    this.setState({
        filterType: filter.type,
        filterValue1: (filter.param1 && filter.param1.length) ? filter.param1 : null,
        filterValue2: (filter.param2 && filter.param2.length) ? filter.param2 : null
    });
}

render() {
    let filteredObjects = objects.filter(x => {
        if(!this.state.filterType) {
            return true;
        }
        if(this.state.filterType == 'between') {
            if(this.state.filterValue1 && this.state.filterValue2) {
                let dateFrom = new Date(this.state.filterValue1);
                let dateTo = new Date(this.state.filterValue2);
                return x.date >= dateFrom && x.date <= dateTo;
            }
            else {
                if(this.state.filterValue1) {
                    let dateFrom = new Date(this.state.filterValue1);
                    return x.date >= dateFrom;
                }
                else if(this.state.filterValue2) {
                    let dateTo = new Date(this.state.filterValue2);
                    return x.date <= dateTo;
                }
            }
        }
        else if(this.state.filterType == 'equals') {
            // TODO
        }
        else if(this.state.filterType == 'notequals') {
            // TODO
        }
        else if(this.state.filterType == 'greaterthan') {
            // TODO
        }
        else if(this.state.filterType == 'greaterthanorequals') {
            // TODO
        }
        else if(this.state.filterType == 'lesserthan') {
            // TODO
        }
        else if(this.state.filterType == 'lesserthanorequals') {
            // TODO
        }
        else if(this.state.filterType == 'isnull') {
            // TODO
        }
        else if(this.state.filterType == 'isnotnull') {
            // TODO
        }
    });
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ColumnFilterDate type={this.state.filterType}
                    value={this.state.filterValue1}
                    value2={this.state.filterValue2}
                    onChange={this.handleFilterChanged.bind(this)}
                    localization={localization}
                    devices={this.props.appInterface.constants.MapControlTypes.Devices}
                    viewports={this.props.appInterface.constants.MapControlTypes.VIEWPORTS}
                    focusSearchSelectFunction={this.props.appInterface.actions.focusSearchSelect}
                    configLocalization={'en'}
                    isMobile={false}
                />
                <ul>
                    {filteredObjects.map((item, index) => {
                        return (
                            <li key={index} style={{margin: '8px'}}>{item.name}</li>
                        )
                    })}
                </ul>
            </div>
        </div>
    )
}

Back

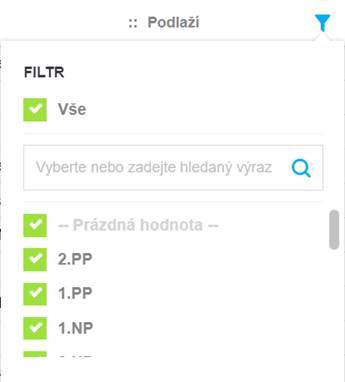

ColumnFilterEnum

Description: Component for defining filter criteria of 'Enum' values.

Props:

ColumnFilterEnum.propTypes = {
  values: PropTypes.object,
  items: PropTypes.array,
  onChange: PropTypes.func.isRequired,
  onScrollToEndItemList: PropTypes.func,
  onChangeFilterValue: PropTypes.func,
  column: PropTypes.object,
  tableHeight: PropTypes.number,
  itemsBeforeFilteringFromInput: PropTypes.array,
  localization: PropTypes.object.isRequired,
  translator: PropTypes.object.isRequired,
  fieldValidator: PropTypes.func.isRequired,
  enumTypes: PropTypes.shape({
    SIMPLE: PropTypes.string.isRequired,
    HIERARCHICAL: PropTypes.string.isRequired,
    PHYSICAL: PropTypes.string.isRequired,
    VIRTUAL: PropTypes.string.isRequired
  }),
  focusSearchSelectFunction: PropTypes.func,
  loadedItems: PropTypes.array
}

Usage: As a component designated for DataGrid complex type, it is not described in further detail. In case of need, reach out for Arkance Czech development team for help.

Back

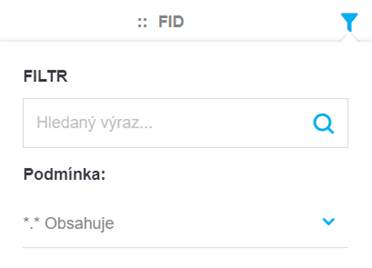

ColumnFilterNumber

Description: Component for defining filter criteria of 'Number' values

Props:

ColumnFilterNumber.propTypes = {
  value: PropTypes.string,
  value2: PropTypes.string,
  type: PropTypes.string,
  onChange: PropTypes.func.isRequired,
  localization: PropTypes.object,
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  devices: PropTypes.object.isRequired,
  viewports: PropTypes.object.isRequired,
  focusSearchSelectFunction: PropTypes.func.isRequired
}

• value - first Number argument for filtering (being used in most filter types)
• value2 - second Number argument for filtering (being used only for 'between' filter type)
• type - current type of filtering - one of values from filterTypes prop - 'between', 'equals', 'notequals', 'greaterthan', 'greaterthanorequals', 'lesserthan', 'lesserthanorequals', 'isnull', 'isnotnull', 'contains' or 'notcontains'. Default value is 'contains'
• onChange - function called after any change (type change, value change)
• localization - object with localized strings
• filterTypes
• devices - collection of available device types ('PC', 'MOBIL', 'TABLET')
• viewports - object defining width thresholds between different device types
• focusSearchSelectFunction - twigis function for focusing combos

state = {
    filterType: null,
    filterValue1: null,
    filterValue2: null
}

const objects = [
    {value: 1, name: '1'},
    {value: 2, name: '2'},
    {value: 3, name: '3'},
    {value: 4, name: '4'},
    {value: 5, name: '5'},
    {value: 6, name: '6'},
    {value: 7, name: '7'},
    {value: 8, name: '8'},
    {value: 9, name: '9'},
    {value: 10, name: '10'}
];

handleFilterChanged(filter) {
    this.setState({
        filterType: filter.type,
        filterValue1: (filter.param1 && filter.param1.length) ? filter.param1 : null,
        filterValue2: (filter.param2 && filter.param2.length) ? filter.param2 : null
    });
}

render() {
    let filteredObjects = objects.filter(x => {
        if(!this.state.filterType) {
            return true;
        }
        if(this.state.filterType == 'between') {
            if(this.state.filterValue1 && this.state.filterValue2) {
                let from = Number(this.state.filterValue1);
                let to = Number(this.state.filterValue2);
                return x.value >= from && x.value <= to;
            }
            else {
                if(this.state.filterValue1) {
                    let from = Number(this.state.filterValue1);
                    return x.value >= from;
                }
                else if(this.state.filterValue2) {
                    let to = Number(this.state.filterValue2);
                    return x.value <= to;
                }
            }
        }
        else if(this.state.filterType == 'equals') {
            // TODO
        }
        else if(this.state.filterType == 'notequals') {
            // TODO
        }
        else if(this.state.filterType == 'greaterthan') {
            // TODO
        }
        else if(this.state.filterType == 'greaterthanorequals') {
            // TODO
        }
        else if(this.state.filterType == 'lesserthan') {
            // TODO
        }
        else if(this.state.filterType == 'lesserthanorequals') {
            // TODO
        }
        else if(this.state.filterType == 'isnull') {
            // TODO
        }
        else if(this.state.filterType == 'isnotnull') {
            // TODO
        }
        else if(this.state.filterType == 'contains') {
            // TODO
        }
        else if(this.state.filterType == 'notcontains') {
            // TODO
        }
    });
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ColumnFilterNumber type={this.state.filterType}
                    value={this.state.filterValue1}
                    value2={this.state.filterValue2}
                    onChange={this.handleFilterChanged.bind(this)}
                    localization={localization}
                    devices={this.props.appInterface.constants.MapControlTypes.Devices}
                    viewports={this.props.appInterface.constants.MapControlTypes.VIEWPORTS}
                    focusSearchSelectFunction={this.props.appInterface.actions.focusSearchSelect}
                />
                <ul>
                    {filteredObjects.map((item, index) => {
                        return (
                            <li key={index} style={{margin: '8px'}}>{item.name}</li>
                        )
                    })}
                </ul>
            </div>
        </div>
    )
}

Back

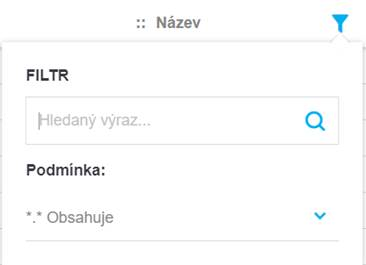

ColumnFilterText

Description: Component for defining filter criteria of 'String' values

Props:

ColumnFilterText.propTypes = {
  value: PropTypes.string,
  type: PropTypes.string,
  onChange: PropTypes.func.isRequired,
  localization: PropTypes.object,
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  devices: PropTypes.object.isRequired,
  viewports: PropTypes.object.isRequired,
  focusSearchSelectFunction: PropTypes.func.isRequired
}

• value - String argument for filtering
• type - current type of filtering - one of values from filterTypes prop - 'equals', 'notequals', 'contains', 'notcontains', 'startswith', 'endswith', 'isnull' or 'isnotnull'. Default value is 'contains'
• onChange - function called after any change (type change, value change)
• localization - object with localized strings
• filterTypes
• devices - collection of available device types ('PC', 'MOBIL', 'TABLET')
• viewports - object defining width thresholds between different device types
• focusSearchSelectFunction - twigis function for focusing combos

Usage:

state = {
    filterType: null,
    filterValue1: ''
}

const objects = [
    {value: 1, name: 'Text1'},
    {value: 2, name: 'Text2'},
    {value: 3, name: 'Text3'},
    {value: 4, name: 'Text4'},
    {value: 5, name: 'Text5'},
    {value: 6, name: 'Txt6'},
    {value: 7, name: 'Texxt7'},
    {value: 8,  name: 'Txt8'},
    {value: 9, name: 'Teext9'},
    {value: 10, name: 'String10'}
];

handleFilterChanged(filter) {
    this.setState({
        filterType: filter.type,
        filterValue1: (filter.param1 && filter.param1.length) ? filter.param1 : ''
    });
}

render() {
    let filteredObjects = objects.filter(x => {
        if(!this.state.filterType) {
            return true;
        }
        if(this.state.filterType == 'contains') {
            if(this.state.filterValue1 && this.state.filterValue1.length) {
                return x.name.toLowerCase().indexOf(this.state.filterValue1.toLowerCase()) >= 0;
            }
            else {
                return true;
            }
        }
        else if(this.state.filterType == 'notcontains') {
            // TODO
        }
        else if(this.state.filterType == 'equals') {
            // TODO
        }
        else if(this.state.filterType == 'notequals') {
            // TODO
        }
        else if(this.state.filterType == 'startswith') {
            // TODO
        }
        else if(this.state.filterType == 'endswith') {
            // TODO
        }
        else if(this.state.filterType == 'isnull') {
            // TODO
        }
        else if(this.state.filterType == 'isnotnull') {
            // TODO
        }
    });
    return (
        <div>
            <div className="Panel-toolbar">
                ...
            </div>
            <div className="Panel-content">
                <ColumnFilterText type={this.state.filterType}
                    value={this.state.filterValue1}
                    onChange={this.handleFilterChanged.bind(this)}
                    localization={localization}
                    devices={this.props.appInterface.constants.MapControlTypes.Devices}
                    viewports={this.props.appInterface.constants.MapControlTypes.VIEWPORTS}
                    focusSearchSelectFunction={this.props.appInterface.actions.focusSearchSelect}
                />
                <ul>
                    {filteredObjects.map((item, index) => {
                        return (
                            <li key={index} style={{margin: '8px'}}>{item.name}</li>
                        )
                    })}
                </ul>
            </div>
        </div>
    )
}

Back

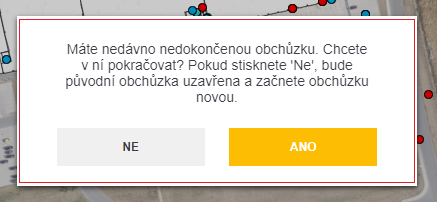

ConfirmBox

Description: Twigis replacement for modal "confirm" dialog.

Props:

ConfirmBox.propTypes = {
  onClick: PropTypes.func.isRequired,
  text: PropTypes.string,
  confirmText: PropTypes.string,
  cancelText: PropTypes.string,
  isDelete: PropTypes.bool
}

• onClick - function to be called after the confirmation button is clicked
• text - message of the dialog
• confirmText - text of the confirmation button
• cancelText - text of the cancellation button
• isDelete - if true, the dialog is highlighted by red color

Usage 1 - standalone:

hideConfirmBox(callback, result) {
    if(result) {
        // TODO
    }
    this.setState({
        showConfirmBox: false
    });
}

render() {
    return (
        <div>
            {this.state.showConfirmBox && <ConfirmBox
                 onClick={this.hideConfirmBox.bind(this)}
                 text={"Edit the item manually?"}
                 confirmText={"Yes"}
                 cancelText={"No"}
            />}
        </div>
    )
}

Usage 2 - twigis module:

let proceed = (result) => {
    if(result) {
        // TODO
    }
};
this.props.appInterface.actions.showConfirm("Edit the item manually?", proceed, "Yes", "No");

Back

DataGrid

Description: Component for displaying data in a grid with immense configuration possibilities.

Props:

DataGrid.propTypes = {
  width: PropTypes.number,
  height: PropTypes.number,
  data: PropTypes.arrayOf(PropTypes.object),
  columns: PropTypes.object,
  columnOrder: PropTypes.array,
  defaultColumnOrder: PropTypes.array,
  columnVisibility: PropTypes.object,
  defaultColumnVisibility: PropTypes.object,
  rowHeight: PropTypes.number,
  headerHeight: PropTypes.number,
  sortKey: PropTypes.string,
  defaultSortKey: PropTypes.string,
  sortDir: PropTypes.string,
  defaultSortDir: PropTypes.string,
  onSortChange: PropTypes.func,
  onColumnOrderChange: PropTypes.func,
  onToggleColumnVisibility: PropTypes.func,
  onJumpToEnd: PropTypes.func,
  onScrollBottom: PropTypes.func,
  onInit: PropTypes.func,
  onDestroy: PropTypes.func,
  grid: PropTypes.object,
  router: PropTypes.object,
  useColumnOrderFromState: PropTypes.bool,
  total: PropTypes.number,
  onFilterChange: PropTypes.func,
  rowsLocked: PropTypes.bool,
  onSelectionChanged: PropTypes.func,
  fetchAllDataFunc: PropTypes.func,
  fetchAllDataFuncParams: PropTypes.array,
  onScrollToEndItemList: PropTypes.func,
  onChangeFilterValue: PropTypes.func,
  relation: PropTypes.object,
  updateGridHandler: PropTypes.func,
  onCloseEditPanel: PropTypes.func,
  onOpenEditPanel: PropTypes.func,
  hideSelectAllCheckBox: PropTypes.bool,
  isActionCellDisabled: PropTypes.bool,
  sortTypes: PropTypes.shape({
    ASC: PropTypes.string.isRequired,
    DESC: PropTypes.string.isRequired,
    UNDEF: PropTypes.string,
  }),
  appLinkTypes: PropTypes.shape({
    EXTERNAL_URI: PropTypes.string.isRequired,
    SHOW_GRID: PropTypes.string.isRequired,
    SHOW_MODULE: PropTypes.string.isRequired,
    SHOW_DETAIL: PropTypes.string.isRequired
  }),
  relationRoles: PropTypes.shape({
    CHILD: PropTypes.string.isRequired,
    PARENT: PropTypes.string.isRequired,
    MULTI: PropTypes.string.isRequired
  }),
  dataTypes: PropTypes.shape({
    BLOB: PropTypes.string.isRequired,
    CLOB: PropTypes.string.isRequired,
    DATE: PropTypes.string.isRequired,
    ENUM: PropTypes.string.isRequired,
    GEOM: PropTypes.string.isRequired,
    NUMBER: PropTypes.string.isRequired,
    UNKNOWN: PropTypes.string.isRequired,
    VARCHAR: PropTypes.string.isRequired,
    ACTION: PropTypes.string.isRequired,
  }),
  filterTypes: PropTypes.shape({
    EQUALS: PropTypes.string.isRequired,
    NOTEQUALS: PropTypes.string.isRequired,
    CONTAINS: PropTypes.string.isRequired,
    NOTCONTAINS: PropTypes.string.isRequired,
    GREATERTHAN: PropTypes.string.isRequired,
    GREATERTHANOREQUALS: PropTypes.string.isRequired,
    LESSERTHAN: PropTypes.string.isRequired,
    LESSERTHANOREQUALS: PropTypes.string.isRequired,
    BETWEEN: PropTypes.string.isRequired,
    ISNULL: PropTypes.string.isRequired,
    ISNOTNULL: PropTypes.string.isRequired,
    STARTSWITH: PropTypes.string.isRequired,
    ENDSWITH: PropTypes.string.isRequired,
    UNSPECIFIED: PropTypes.string.isRequired,
    IN: PropTypes.string.isRequired,
    NOTIN: PropTypes.string.isRequired
  }),
  enumTypes: PropTypes.shape({
    SIMPLE: PropTypes.string.isRequired,
    HIERARCHICAL: PropTypes.string.isRequired,
    PHYSICAL: PropTypes.string.isRequired,
    VIRTUAL: PropTypes.string.isRequired
  }),
  dateFormats: PropTypes.shape({
    DATE: PropTypes.string.isRequired,
    TIME: PropTypes.string.isRequired,
    DATE_TIME: PropTypes.string.isRequired,
    ISO: PropTypes.string.isRequired,
    ISO_DATE: PropTypes.string.isRequired,
    ISO_TIME: PropTypes.string.isRequired,
    VARIABLE_DATE: PropTypes.string.isRequired
  }),
  localization: PropTypes.object.isRequired,
  formatDateTime: PropTypes.func.isRequired,
  getEntityNameFunction: PropTypes.func.isRequired,
  fetchEntityDescriptionFunction: PropTypes.func.isRequired,
  getAliasesFunction: PropTypes.func.isRequired,
  resolveActionFunction: PropTypes.func.isRequired,
  replaceParamsFunction: PropTypes.func.isRequired,
  gridFetchSpecsForEntityFunction: PropTypes.func.isRequired,
  selectionTypes: PropTypes.object.isRequired,
  closePanelFunction: PropTypes.func.isRequired,
  closeAllPanelsFunction: PropTypes.func.isRequired,
  hidePanelsFunction: PropTypes.func.isRequired,
  setFixedPanelsFunction: PropTypes.func.isRequired,
  setClickObjectFunction: PropTypes.func.isRequired,
  openPanelFunction: PropTypes.func.isRequired,
  devices: PropTypes.object.isRequired,
  viewports: PropTypes.object.isRequired,
  focusSearchSelectFunction: PropTypes.func.isRequired,
  fieldValidator: PropTypes.func.isRequired,
  triangleSrc: PropTypes.any.isRequired,
  setHoverObjectFunction: PropTypes.func.isRequired,
  isMobile: PropTypes.oneOfType([
    PropTypes.bool,
    PropTypes.func
  ]),
  substituteFunction: PropTypes.func.isRequired,
  getSelectionFromRelationFunction: PropTypes.func.isRequired,
  configMaxFeatureLimit: PropTypes.number.isRequired,
  configLocalization: PropTypes.string.isRequired,
  customCellRendering: PropTypes.object,
  columnWidths: PropTypes.object,
  allowColumnResizing: PropTypes.bool,
  onColumnResized: PropTypes.func,
