1.0.0 • Published 4 years ago
univariate-infographics v1.0.0
univariate-infographics
React component library of SVG info-graphics for displaying uni-variate data
Install
npm install --save univariate-infographics
Components
<PieChart data={data} />
<PieSlice data={data} />
<BarChart data={data} />
<HorizontalBar data={data} />
<VerticalBar data={data} />
Usage
import React from 'react'
import { PieChart, BarChart, PieSlice, HorizontalBar, VerticalBar } from 'univariate-infographics'
Data Config
Each component takes in an array of objects called data. Each object must have a value property that represents the value of the item in the data set. You can also include other properties if you want to use them in a component's legend or as an overlay on some of the components.
// this is all that's required for the components to work
const data = [
{
value: 1
},
{
value: 2
}
]
/*
=== BUT ===
*/
// you can also add more fields
const data = [
{
value: 3,
label: 'Plot A',
unit: 'acres',
...
},
{
value: 5,
label: 'Plot B',
unit: 'acres',
...
}
]
PieChart
How to use
const data = [
{
value: 1
},
{
value: 2
}
]
const Example = () => (
<PieChart
data={data}
/>
)
Props
Property | Type | Default | Description |
---|---|---|---|
data (required) | array | - | Data to be represented by component |
width | number | 200 | Pixel width of component |
height | number | 200 | Pixel height of component |
baseColor | string | '#4095bf' | Starting color for component's gradient. Accepts rgb, hsl, and hex color formats |
title | string | null | Title of component |
titleColor | string | '#1d3940' | Text color of title. Accepts any color format |
highlightColor | string | '#884ca1' | Hover color of component. Accepts any color format |
donut | boolean | false | Turns the pie chart into a donut chart |
donutColor | string | 'white' | Color of inner donut circle. Accepts any color format |
legend | boolean | false | Includes a legend for the component. |
legendColor | string | '#1d3940' | Text color of legend. Accepts any color format |
legendDataType | string | 'value' | Selects the property of the objects in the data array to display in the legend |
orientation | number (0-1) | 0 | Where the start of the piechart is on the circle. eg, 0, 1, 0.25, 0.5, etc |
circleArea | number (0-1) | 1 | What percentage of the circle should the pie chart fill |
gradientDirection | string | null | Set to 'reverse' to reverse the gradient in the component |
style | obj | null | Style object passed to the component |
className | string | null | Class names to be added to the component |
Examples
PieSlice
How to use
const data = [
{
value: 1
},
{
value: 2
}
]
const Example = () => (
<PieSlice
data={data}
/>
)
Props
Property | Type | Default | Description |
---|---|---|---|
data (required) | array | - | Data to be represented by component |
slice | number | 0 | Index of data array that is going to displayed |
width | number | 200 | Pixel width of component |
height | number | 200 | Pixel height of component |
baseColor | string | '#4095bf' | Color of slice |
secondaryColor | string | '#e9ecef' | Background color of pie chart |
title | string | null | Title of component |
titleColor | string | '#1d3940' | Text color of title. Accepts any color format |
donut | boolean | false | Turns the pie chart into a donut chart |
donutColor | string | 'white' | Color of inner donut circle. Accepts any color format |
legend | boolean | false | Includes a legend for the component. |
legendColor | string | '#1d3940' | Text color of legend. Accepts any color format |
legendDataType | string | 'value' | Selects the property of the objects in the data array to display in the legend |
orientation | number (0-1) | 0 | Where the start of the piechart is on the circle. eg, 0, 1, 0.25, 0.5, etc |
circleArea | number (0-1) | 1 | What percentage of the circle should the pie chart fill |
gradientDirection | string | null | Set to 'reverse' to reverse the gradient in the component |
style | obj | null | Style object passed to the component |
className | string | null | Class names to be added to the component |
Examples

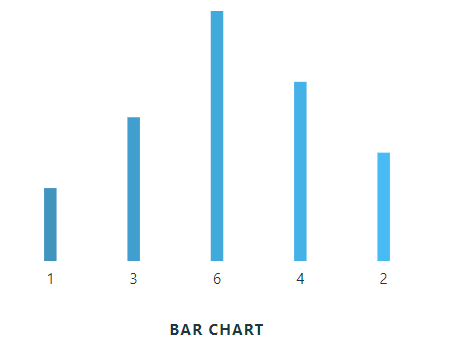

BarChart
How to use
const data = [
{
value: 1
},
{
value: 4
},
{
value: 2
}
]
const Example = () => (
<BarChart
data={data}
/>
)
Props
Property | Type | Default | Description |
---|---|---|---|
data (required) | array | - | Data to be represented by component |
width | number | 200 | Pixel width of component |
height | number | 200 | Pixel height of component |
barWidth | number | 20 | Pixel width of individual bars |
baseColor | string | '#4095bf' | Starting color for component's gradient. Accepts rgb, hsl, and hex color formats |
title | string | null | Title of component |
titleColor | string | '#1d3940' | Text color of title. Accepts any color format |
highlightColor | string | '#884ca1' | Hover color of component. Accepts any color format |
legend | boolean | false | Includes a legend for the component. |
legendColor | string | '#1d3940' | Text color of legend. Accepts any color format |
legendDataType | string | 'value' | Selects the property of the objects in the data array to display in the legend |
overlay | boolean | false | Include an overlay value on the bars of the component |
overlayColor | string | '#1d3940' | Text color of overlay. Accepts any color format |
overlayDataType | string | 'value' | Selects the property of the objects in the data array to display in the overlay |
gradientDirection | string | null | Set to 'reverse' to reverse the gradient in the component |
style | obj | null | Style object passed to the component |
className | string | null | Class names to be added to the component |
Examples

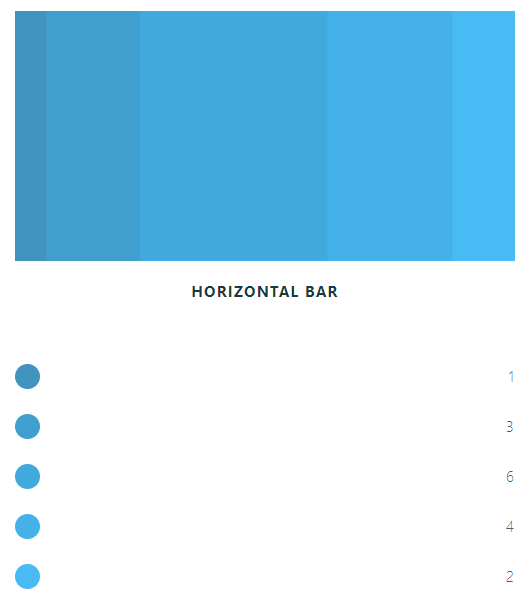

HorizontalBar
How to use
const data = [
{
value: 1
},
{
value: 4
},
{
value: 2
}
]
const Example = () => (
<HorizontalBar
width={400}
height={50}
data={data}
/>
)
Props
Property | Type | Default | Description |
---|---|---|---|
data (required) | array | - | Data to be represented by component |
width | number | 200 | Pixel width of component |
height | number | 200 | Pixel height of component |
baseColor | string | '#4095bf' | Starting color for component's gradient. Accepts rgb, hsl, and hex color formats |
title | string | null | Title of component |
titleColor | string | '#1d3940' | Text color of title. Accepts any color format |
highlightColor | string | '#884ca1' | Hover color of component. Accepts any color format |
legend | boolean | false | Includes a legend for the component. |
legendColor | string | '#1d3940' | Text color of legend. Accepts any color format |
legendDataType | string | 'value' | Selects the property of the objects in the data array to display in the legend |
overlay | boolean | false | Include an overlay value on the bars of the component |
overlayColor | string | '#1d3940' | Text color of overlay. Accepts any color format |
overlayDataType | string | 'value' | Selects the property of the objects in the data array to display in the overlay |
gradientDirection | string | null | Set to 'reverse' to reverse the gradient in the component |
style | obj | null | Style object passed to the component |
className | string | null | Class names to be added to the component |
Examples

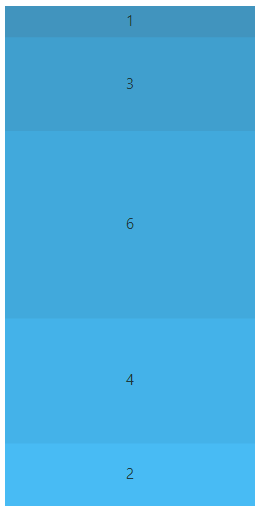

VerticalBar
const data = [
{
value: 1
},
{
value: 4
},
{
value: 2
}
]
const Example = () => (
<VerticalBar
width={50}
height={200}
data={data}
/>
)
Props
Property | Type | Default | Description |
---|---|---|---|
data (required) | array | - | Data to be represented by component |
width | number | 200 | Pixel width of component |
height | number | 200 | Pixel height of component |
baseColor | string | '#4095bf' | Starting color for component's gradient. Accepts rgb, hsl, and hex color formats |
title | string | null | Title of component |
titleColor | string | '#1d3940' | Text color of title. Accepts any color format |
highlightColor | string | '#884ca1' | Hover color of component. Accepts any color format |
legend | boolean | false | Includes a legend for the component. |
legendColor | string | '#1d3940' | Text color of legend. Accepts any color format |
legendDataType | string | 'value' | Selects the property of the objects in the data array to display in the legend |
overlay | boolean | false | Include an overlay value on the bars of the component |
overlayColor | string | '#1d3940' | Text color of overlay. Accepts any color format |
overlayDataType | string | 'value' | Selects the property of the objects in the data array to display in the overlay |
gradientDirection | string | null | Set to 'reverse' to reverse the gradient in the component |
style | obj | null | Style object passed to the component |
className | string | null | Class names to be added to the component |
Examples
License
MIT © hackersupreme
