virtual-scroll-component v1.0.4

Virtual Scroll Component

Virtual and infinite scrolling for a list of elements. A wrapper component to be used in the React framework.

• Motivation
• Installation
• Usage
• Pitfalls
• Development
• Acknowledgement

Motivation

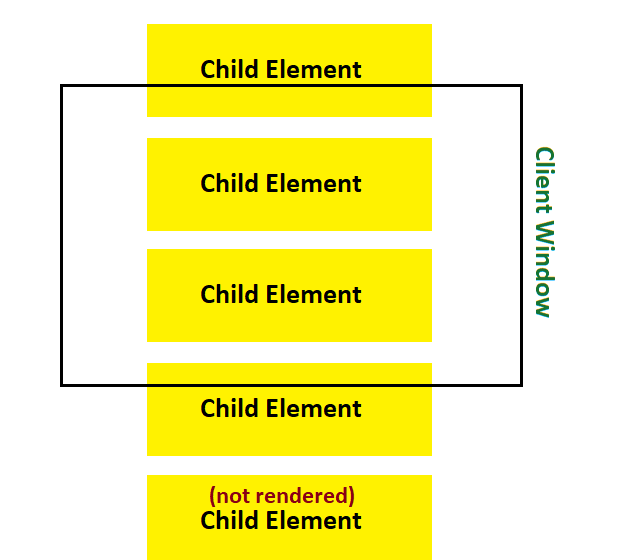

Rendering hundreds of elements in DOM can be slow, especially if your elements are non-trivial. Instead, we can simply render elements as necessary when they are scrolled into view. This is called virtual scrolling.

As you can imagine, rendering only view-able elements can cause unnecessary document scrolling as the position of HTML elements are usually relative. We can fix this by wrapping a container with fixed height around every element, and only render the child element when necessary.

Installation

Install through npm or yarn.

npm install virtual-scroll-component

yarn add virtual-scroll-component

Usage

import VirtualScroll from 'virtual-scroll-component';

Props

rows

Use rows to pass an array of component instances to be placed in a virtualized scroll container. This can also be done with props.children, but do note that any arguments passed to props.children takes precedence over rows.

<VirtualScroll rows={[<div/>, <div/>]}/>

<VirtualScroll rows={[<span/>]}>
    <div/> // div will be used, and not span
</VirtualScroll>

rowHeight

Use rowHeight to set the height of each row. Accepts an integer and is interpreted in CSS pixels.

<VirtualScroll rowHeight={100}/>

onLastRow

Use onLastRow to set a function to be called every time the last row is in view. You can pass a function which increases the number of component instances, thereby creating an infinite scroll.

const [rows, setRows] = useState([<Child/>]);
const handleLastRow = () => {
    setRows([...rows, <Child/>])
}

return (<VirtualScroll rows={rows} onLastRow={handleLastRow}/>);

className

Use className to add a CSS class onto the VirtualScroll component. By default, elements are rendered vertically. Use className to override default styles.

<VirtualScroll className={"custom-class-name"}/>

props.children

Use props.children to pass a list of component instances to be placed in a virtualized scroll container. This can also be done with rows, but do note that any arguments passed to props.children takes precedence over rows.

<VirtualScroll>
    <div/>
    <div/>
</VirtualScroll>

Pitfalls

This package does not support elements with varying heights.

Development

There are some scripts available in package.json.

• yarn start - to watch for file changes and update automatically with webpack
• yarn build - to build the package and store in ./dist/index.js
• yarn jest - to run unit tests

I welcome any from of participation, so feel free to submit an issue or make a pull request.

Acknowledgement

Big thanks to BP mishra for his guidance throughout this project!
