vue-hexagon v0.0.5

vue-hexagon

A Hexagon component for vue.js applications

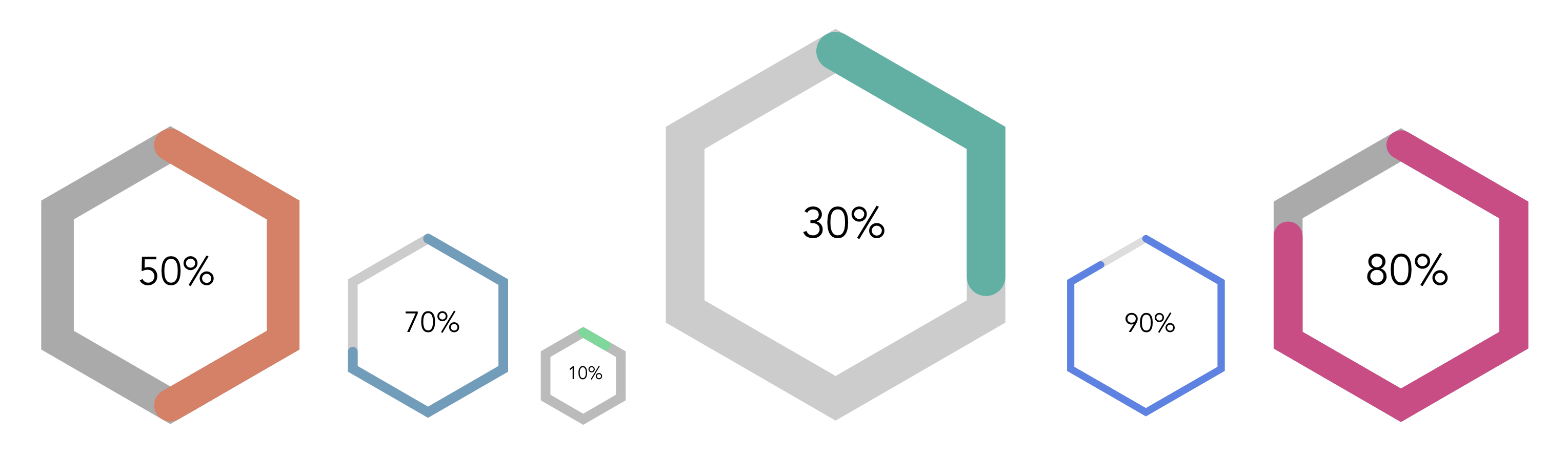

Demo

You can see the demo here

How to use

Installation

npm install vue-hexagon --save

Usage

• In main.js add the below two lines of code

import Vue from 'vue';
import VueHexagon from 'vue-hexagon';

Vue.use(VueHexagon);

• In any component where you would like to use vue hexagon, you can create an options object with the below fields

const options = {
  width: 200,
  height: 200,
  primaryColor: '#45ad9a',
  secondaryColor: '#aaa',
  labelColor: '#000',
  label: '50%',
  value: 50,
  className: 'vue-hexagon-custom-class',
  thickness: 90,
  fontSize: 120,
};

• Then in the html code you can use as mentioned below

<VueHexagon :options="options">

• All the options are optional. If you don't pass any specific options, then the default options are as below

{
  width: 200,
  height: 200,
  primaryColor: '#45ad9a',
  secondaryColor: '#aaa',
  labelColor: '#000',
  label: '50%',
  value: 50,
  className: 'vue-hexagon-custom-class',
  thickness: 90,
  fontSize: 120,
}

Note: If you are looping through an array to have multiple hexagons, please give unique class names for each of them.

License

MIT
