vue2-d3-horizon-chart v0.1.2

vue2-d3-horizon-chart

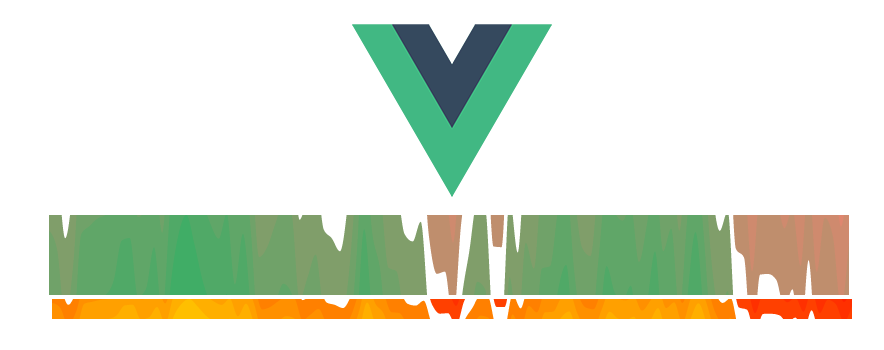

A horizon chart for Vue2, built using D3 v4.

This works, but I'm no expert in either Vue2 or on D3, so if you can contribute, please do. Have a look at the issues.

There's a blog post and a demo app and code to show it working with live streaming data.

Installation

npm install vue2-d3-horizon-chart

or

yarn add vue2-d3-horizon-chart

Use

<template>
  <div class="horizon">
    <HorizonChart :data="data" />
  </div>
</template>

A data value is required and should contain a single array of values.

There are also a couple of options:

<template>
  <div class="horizon">
    <HorizonChart startColor="blue" endColor="yellow" :height="80" :width="600" :data="data" />
  </div>
</template>

startColor and endColor

You can use standard color names or RGB hexes such as #ff0044 etc. The defaults are '#ff7e71' and '#00bd62',

width and height

The defaults are 800 by 40. If you want to override the defaults then you need to use v-bind: or the shorthand : as shown in the example above.
