vue3-animated-carousel v1.1.0

vue3-animated-carousel

TABLE OF CONTENTS

• Introduction
• Getting Started
• v-models
• v-models Initial Mount Precedence
• Props
• Methods and Slot Props
  • Before/After Slots
  • Component Refs/Slot Props
  • Methods
• Events
• Animations
• Use Cases
• "scroll-snap-align" Animation Issue
• Examples
  • Animations Example
  • Navigation And Slots Example

Getting Started

  # npm
  npm install vue3-animated-carousel

  # yarn
  yarn add vue3-animated-carousel

Then you can use on your component:

...
import Vue3AnimatedCarousel from "vue3-animated-carousel"
...
components: {
  Vue3AnimatedCarousel,
}
...

or

...
import { plugin } from "vue3-animated-carousel"
...
Vue.use(plugin)
...

Introduction

This module aims to provide the tools for creating carousels with Vue 3 Composition API, this module does not provide the animations, the CSS themes for the navigation, or the items themselves, since they highly depend on your implementation, it will be a good idea to wrap this component on your own component with your styles and use it throughout the site.

This module uses mostly modern solutions, if you need to support super old browsers you might need to use something else.

v-models

v-models Initial Mount Precedence

The initial mount precedence from higher to lower is "modelValue", "activeItemIndex", "activeItem" and "position", that means if the initial activeItemIndex value is 3, the carousel would focus on the fourth item, however, if the initial value of modelValue is also 2, then the carousel will "ignore" activeItemIndex and go to the second page instead because modelValue has higher precedence.

Props

Methods and Slot Props

You can access all of the methods/refs below using a component ref or using slot props. See Examples.

  <Carousel v-slot="{nextItem, previousItem}">
    // items
  </Carousel>

or

...
  <Carousel ref="carousel">
    // items
  </Carousel>
...

// Options API
this.$refts.carousel.nextItem()
this.$refts.carousel.previousItem()

// Composition API
carousel.value.nextItem()
carousel.value.previousItem()

Before/After Slots

You can use the before, after slots to add the carousel navigation, and still be able to use the default slot props.

Component Refs/Slot Props

Methods

Events

Animations

By setting the animate prop to true, you will be able to use the animationValues to do animations, it's a list of numbers where each of them goes from -1 to 1. The closest the element is to the left side of the screen, the closer to -1 is its value, the closest the element is to the right side of the screen, the closer to 1 is its value. Then all you have to do is interpolate the values in your animations.

The list will update on the scroll event and will use getBoundingClientRect with requestAnimationFrame for EVERY single element of the list, which means your list will update A LOT, so don't forget to always use "transforms, opacity" and other properties that only cause a repaint, and to set the will-change CSS property to get a smooth effect. Also, the highest the number of childNodes, the less performant it will be, so be mindful when using these animations.

This module provides the interpolate function to make your life easier, but you can still create your own interpolations.

See Animations Example.

Use Cases

Multiple Items At Once

On some carousels, especially on desktop ones, you might want to show multiples items at once, on those situations, the carousel "pages" aren't dependent on the items themselves but on the available size and on the scroll size, for example, a horizontal carousel with a 2400px of scroll width and with an available width of 800px will be divided into 3 "pages", going to the second page sets the scrollWidth to 1600px. Examples:

In this use case, you'll want to use the page related methods/refs: "modelValue", "nextPage", "previousPage", "numberOfPages", "moveToPage". You can still use all the other methods though.

One Item At a Time/Item At The Center

Common on mobile devices and on image carousels, here you just want to show one item at a time or centralize the images item, this means the number of "pages" might not be equal to the number of items. Those items many times have margins and paddings, which may cause the numberOfPages to be different than the actual number of items, if that happens, the "page" like behavior carousel will simply not look good, if the image width/height is the same as the carousel offsetWidth/offsetHeight, you probably don't have to worry about this.

To prevent these problems, always use the item related methods/refs on these situations: "activeItem"(v-model:activeItem), "nextItem", "items", "previousItem", "moveToItem", "moveToItemAtIndex", "focusOnClick". Those methods will go to the items themselves instead of calculating the page using using scrollSize(scrollWidth/scrollHeight) and clientSize(offsetWidth/offsetHeight).

Responsive Carousel

Sometimes you want to show multiple items on desktop and one item at a time on smaller devices, you can then use the scrollSize and change the event handlers functions on the template.

"scroll-snap-align" Animation Issue

If you're planning to use the CSS native scroll-snap-align property to snap your elements together with the animate for animations, you'll encounter some problems, the carousel lags a lot and just doesn't work, for now, use the snap prop to activate the javascript snapping feature.

If you won't use the animations, then you might as well just use the native implementation and disable the javascript snapping.

Examples

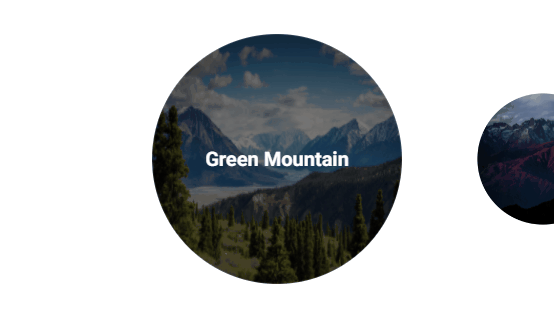

Animations Example

• Examples
  • Animations Example
  • Navigation And Slots Example

<template>
  <Carousel class="Carousel"
    :snap="true"
    :animate="true"

    v-slot="{
      animationValues,
      interpolate,
      activeItem,
    }"
  >
    <div v-for="(img, i) in images"
      class="image"
      :class="{active: activeItem && activeItem.dataset.imgtitle === img.title}"

      :data-imgtitle="img.title"

      :style="{
        transform: `scale(${
          interpolate(animationValues[i], 1, .5)
        })`
      }"
    >
      <img
        width="250px"
        height="250px"
        :src="img.src"
        :alt="img.title"
      >
      <h6>{{ img.title }}</h6>
    </div>
  </Carousel>
</template>

....

<style>

.image {
  position: relative;
  margin: 50px 1px;
  width: 250px;
  height: 250px;
  border-radius: 50000px;
  overflow: hidden;
  will-change: transform;
}

.image:first-child {
  margin-left: 175px;
}

.image:last-child {
  margin-right: 175px;
}

img, h6 {
  position: absolute;
  left: 50%;
  top: 50%;
  transform: translate(-50%, -50%);
}

img {
  width: 100%;
  height: 100%;
  z-index: -1;
  filter: brightness(1);
}

h6 {
  margin: auto;
  transition-duration: .2s;
  opacity: 0;
  white-space: nowrap;
  font-family: Roboto;
  font-size: 20px;
  color: white;
}

.active h6 {
  opacity: 1;
}

.active img {
  filter: brightness(.5);
}

.image + .image {
  margin-left: 15px;
}

</style>

Navigation And Slots Example

  <div class="carousel">
    <Carousel>
      <template v-slot:default>
        <div v-for="img in images"
          :key="img.title"
          class="item"
        >
          <img :src="img.src" :alt="img.title">
        </div>
      </template>

      <template v-slot:after="{activeItemIndex, moveToItemAtIndex, items, nextItem, previousItem}">
        <span class="dot left" @click="previousItem">
          <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 20 20" fill="currentColor">
          <path fill-rule="evenodd" d="M12.707 5.293a1 1 0 010 1.414L9.414 10l3.293 3.293a1 1 0 01-1.414 1.414l-4-4a1 1 0 010-1.414l4-4a1 1 0 011.414 0z" clip-rule="evenodd" />
          </svg>
        </span>
        <span class="dot right" @click="nextItem">
          <svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 20 20" fill="currentColor">
          <path fill-rule="evenodd" d="M7.293 14.707a1 1 0 010-1.414L10.586 10 7.293 6.707a1 1 0 011.414-1.414l4 4a1 1 0 010 1.414l-4 4a1 1 0 01-1.414 0z" clip-rule="evenodd" />
        </svg>
        </span>

        <span class="dot-wrapper">
          <span v-for="num in items.length"
            class="dot"
            :class="{active: activeItemIndex === (num - 1)}"
            :key="num"

            @click="moveToItemAtIndex(num - 1)"
          >{{ num }}</span>
        </span>
      </template>
    </Carousel>
  </div>

  <style scoped>

  body {
    font-family: Roboto;
  }

  .carousel {
    position: relative;
  }

  .dot-wrapper {
    z-index: 2;
    position: absolute;
    bottom: 30px;
    width: 100%;
    pointer-events: none;
    display: flex;
  }

  .dot, .dot-wrapper {
    justify-content: center;
    align-items: center;
  }

  .dot {
    pointer-events: all;
    color: white;
    border-radius: 10000px;
    background-color: rgba(0,0,0,.3);
    border: 2px solid white;
    width: 30px;
    font-size: 16px;
    height: 30px;
    font-family: Roboto;
    display: inline-flex;
    transition-duration: .15s;
  }

  .left, .right {
    position: absolute;
    display: block;
    top: 50%;
    left: 8px;
    transform: translateY(-50%);
  }

  .right {
    left: unset;
    right: 8px;
  }

  .dot:active, .active {
    background-color: white;
    color: black;
  }

  .dot + .dot {
    margin-left: 10px;
  }

  .item {
    position: relative;
    height: 400px;
    width: 100vw;
    scroll-snap-align: center;
  }

  img {
    width: 100%;
    object-fit: cover;
    height: 100%;
  }

  </style>
