vue3-teatree v1.0.3

🍵 Vue Teatree

A simple treeview component for Vue3 with no added dependencies.

update vue-teatree(https://github.com/sarimabbas/vue-teatree) to vue3.

• 🍵 Vue Teatree
  • Install
  • Example
  • More details
    • NodeType
    • NodeToggle
    • NodeName
  • Styling
    • Teatree
    • NodeToggle
    • NodeName
  • Common use cases
    • Toggle everything shut
    • Hide leaves
    • Show a right-click menu

Install

npm i vue3-teatree

https://www.npmjs.com/package/vue3-teatree

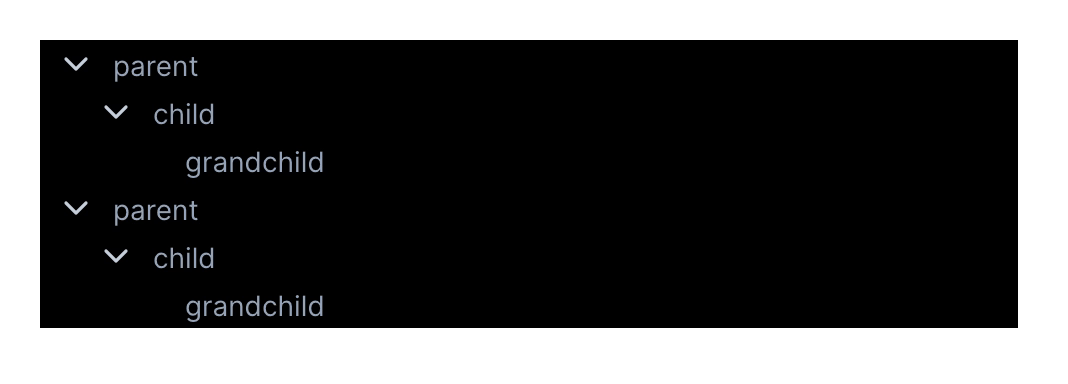

Example

1. Import your components:

import { Teatree, NodeType, NodeName, NodeToggle } from "vue3-teatree";

• Teatree is the main component you will pass your data to (below).
• NodeType contains the Typescript interface that defines each node type.
• NodeName is a pre-built component you will pass into a slot.
• NodeToggle is a pre-built component you will pass into a slot.

NodeName and NodeToggle are provided as a convenience. Feel free to write your own.

1. Prepare your data

import { ref } from "vue";
const data: NodeType[] = ref([
  {
    name: "parent",
    show: true,
    showChildren: true,
    selected: false,
    children: [
      {
        name: "child",
        show: true,
        showChildren: true,
        selected: false,
        children: [
          {
            name: "grandchild",
            show: true,
            showChildren: true,
            selected: false,
            children: [],
          },
        ],
      },
    ],
  },
]);

3. Pass it into Teatree

<Teatree :roots="data">
  <template #node-toggle="{ node }">
    <NodeToggle :node="node" />
  </template>
  <template #node-name="{ node }">
    <NodeName
      :node="node"
      :handleNodeLeftClick="() => {}"
      :handleNodeRightClick="() => {}"
    />
  </template>
</Teatree>

More details

1. The Teatree treeview is purely a function of your data. If you want to make changes to the treeview (e.g. toggling children, hiding nodes etc.) you should modify the data object.
2. NodeToggle and NodeName can be replaced with your own components and passed into the node-toggle and node-name slots respectively.

NodeType

Teatree accepts an array of NodeType as its roots prop. This means you can render multiple roots in the treeview.

interface NodeType {
  // show: toggling this will show/hide the node and its children
  show: boolean;
  // showChildren: toggling this will toggle its children
  showChildren: boolean;
  // selected: toggling this will apply the "selected" CSS style
  selected: boolean;
  // children: the children must also conform to the node specification
  children: Array<NodeType>;
  // name: the name of the node
  name: string;
  // icon: base64 encoded icon (optional)
  icon?: string;
  // data: payload by the user of the library (optional)
  data?: object;
}

NodeToggle

It is a pre-built component to render the node's toggle. If you want to implement your own, take a look at the source code!

Props:

NodeName

It is a pre-built component to render the node's name. If you want to implement your own, take a look at the source code!

It has a number of props that can be wired up to provide additional functionality (track clicks etc.):

Styling

Import default styles using: import "vue3-teatree/dist/style.css";

Here are all the default styles. Override them to your liking:

Teatree

.teatree {
  cursor: pointer;
  height: 100%;
  overflow: hidden;
}

.teatree-node {
  padding-right: 0.25rem;
}

.teatree-node-item {
  display: flex;
  align-items: center;
  height: 1.5rem;
  background: transparent;

  /* hack to make hover the full width of parent */
  padding-left: 100%;
  margin-left: -100%;
  padding-right: 100%;
  margin-right: -100%;
}

.teatree-node-item:hover {
  background-color: #718096;
}

.teatree-node-item-selected {
  background-color: #718096;
}

.teatree-node-item-name-padded-leaf {
  padding-left: 1.25rem;
}

NodeToggle

.teatree-node-item-icon {
  display: flex;
  align-items: center;
  margin-left: 0.5rem;
  color: #cbd5e0;
}

NodeName

.teatree-node-item-name {
  display: inline-block;
  font-size: 0.875rem;
  color: #a0aec0;
  margin-left: 0.5rem;
  user-select: none;

  /* truncate */
  overflow: hidden;
  text-overflow: ellipsis;
  white-space: nowrap;
}

.teatree-node-item-name-padded {
  padding-left: 1.5rem;
}

Common use cases

The following code/advice is not well tested. Apologies for any errors.

Toggle everything shut

You can achieve an effect similar to VSCode where you can toggle/collapse all nodes closed. You need to write a simple tree-traversal:

const toggleTreeClosed = (rootNode: NodeType) => {
  rootNode.showChildren = false;
  rootNode.children.forEach((child) => toggleTreeClosed(child));
};

Hide leaves

If you're using the treeview for a file explorer, it might be useful to hide the leaves, and only show the parent directories. You can use the show node property to hide the leaf nodes.

const isLeaf = (node: NodeType) => {
  return !node.children.length;
};

const hideTreeLeaves = (rootNode: NodeType) => {
  if (isLeaf(rootNode)) {
    rootNode.show = false;
  } else {
    rootNode.children.forEach((child) => hideTreeLeaves(child));
  }
};
