vurif v0.2.1

Vurif

Component dependency Analyzer for Vue.js 2.

"Vue verifier" : CLI tool to visualize dependencies by graph.

💡 Epic Features:

• Analyze dependency from a page(pages) through directory
• Visualize dependency by graph

!CAUTION Works only Vue.js 2 (Not guarantee to work on Vue 3)

📒 Key Concepts:

• Vue/Nuxt projects often have view files in views, pages and components in components.
• Vurif loads starting from view files and resolves dependencies in components recursively.

!NOTE Vurif assumes that component names in vue files match components file name. In the future, maybe able to parse much dynamic.

❗ This project is under development. Please pay attention to use this tool.

Usage

Install

# npm
npm i -g vurif

# yarn
yarn add -g vurif

Analysis and Visualization

Analyze dependencies of one view file:

vurif load <vue-file> <components-dir>
# vurif load example/pages/index.vue example/components

Analyze dependencies of source root file:

vurif load-all <source-dir> <components-dir>
# vurif load-all example/pages/ example/components

See also vurif --help

Options

--format / -f

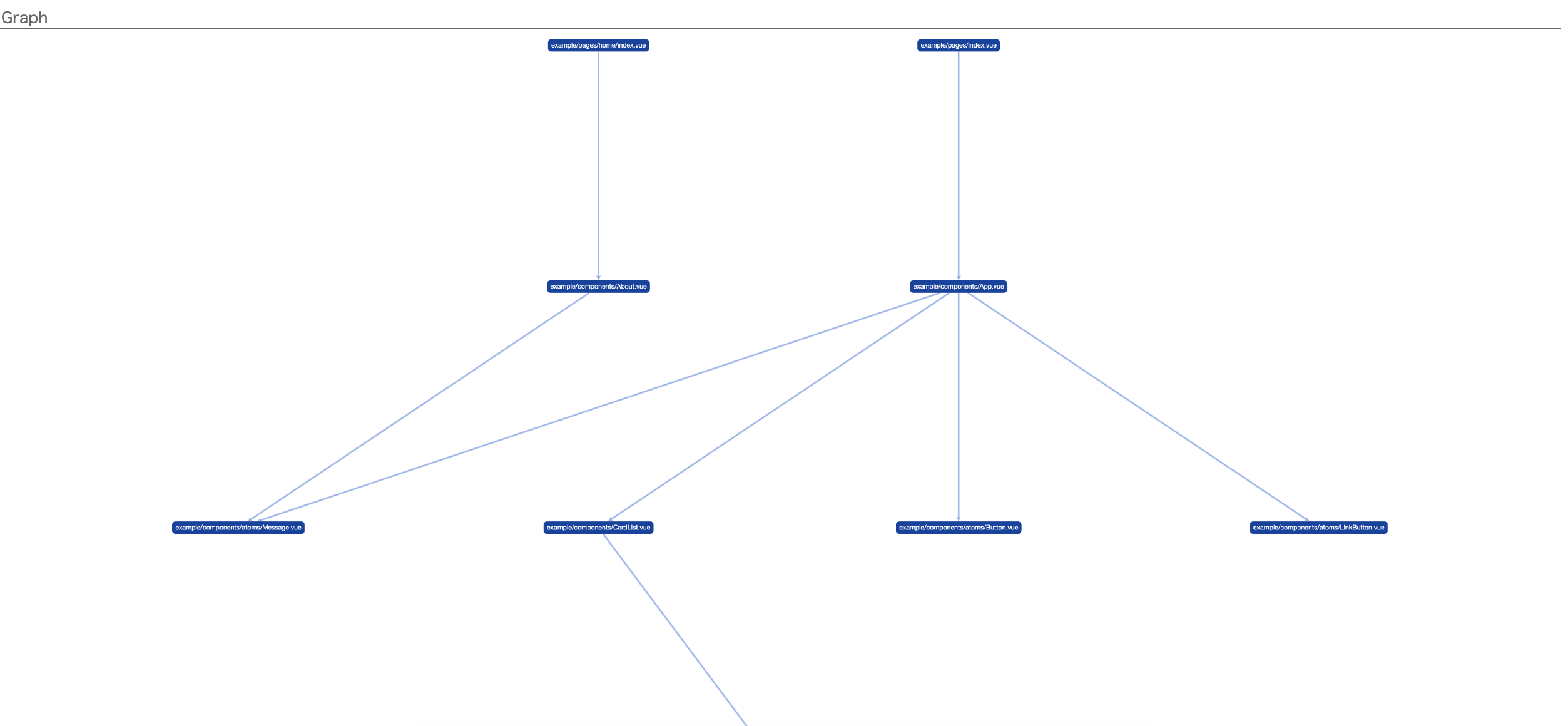

graph (default)

Visualize dependencies graph, served on a local server.

stdout

Print graph to stdout by tree format.

  example/pages/home/index.vue
    └── example/components/About.vue
      └── example/components/atoms/Message.vue
  example/pages/index.vue
    └── example/components/App.vue
      └── example/components/atoms/Message.vue
      └── example/components/atoms/Button.vue
      └── example/components/atoms/LinkButton.vue
      └── example/components/CardList.vue
        └── example/components/Card.vue

report

Report degrees of graph elements and summary.

Node degrees:

  ----------------------------------------------------------------------
  | # | name                                    | indegree | outdegree |
  ----------------------------------------------------------------------
  |1  |example/components/atoms/Message.vue     |         2|          0|
  |2  |example/components/About.vue             |         1|          1|
  |3  |example/components/App.vue               |         1|          4|
  |4  |example/components/atoms/Button.vue      |         1|          0|
  |5  |example/components/atoms/LinkButton.vue  |         1|          0|
  |6  |example/components/CardList.vue          |         1|          1|
  |7  |example/components/Card.vue              |         1|          0|
  |8  |example/pages/home/index.vue             |         0|          1|
  |9  |example/pages/index.vue                  |         0|          1|
  ----------------------------------------------------------------------

------------------------------------------------------------------------
Summary:

  🔸 Total nodes: 9
  ➣  Total edges: 8

Development

Requirements: Node.js >=18

• Enable corepack: corepack enable
• Install dependencies: pnpm install
• Execute locally: pnpm dev load example/App.vue example/
