Waitcondition-hook-for-aws-fargate-task NPM

Waitcondition Hook for AWS Fargate task

WaitCondition hook for AWS Fargate tasks is a AWS CDK Construct that helps builders to run a AWS Fargate task with one or multiple container embedded into a CloudFormation lifecycle. You can use this construct add dependency between resources and the AWS Fargate task execution result (eg. Database migration, image build and packing, invoking third party/on-prem API). waitcondition-hook-for-aws-fargate-task construct will also handle the failure of the task, and rollback the CloudFormation stack after.

Prerequisites

An AWS account
AWS Cloud Development Kit (CDK). For more information about this, see AWS CDK Toolkit (cdk command) in the AWS CDK documentation.
Node package manager (npm), installed and configured for CDK Typescript. For more information about this, see Downloading and installing Node.js and npm in the npm documentation.

Target architecture

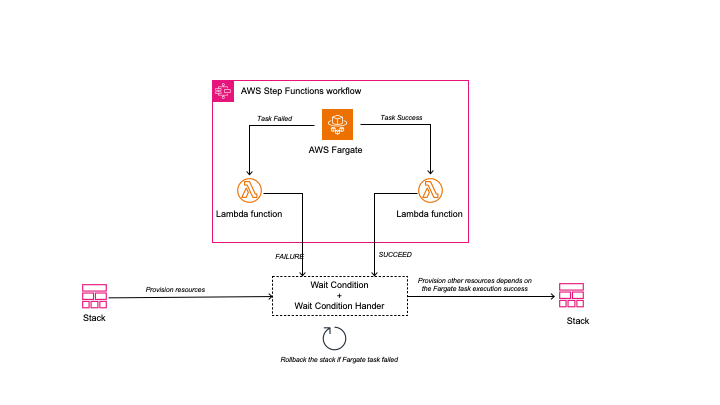

Workflow

Deployment steps

Install the package:

yarn add aitcondition-hook-for-aws-fargate-task

Usage:

import * as cdk from 'aws-cdk-lib';
import { RemovalPolicy } from 'aws-cdk-lib';
import { Vpc } from 'aws-cdk-lib/aws-ec2';
import * as ecr from 'aws-cdk-lib/aws-ecr';
import * as ecs from 'aws-cdk-lib/aws-ecs';
import { LogGroup } from 'aws-cdk-lib/aws-logs';
import { Construct } from 'constructs';
import { FargateRunner } from 'waitcondition-hook-for-aws-fargate-task';
import { Queue } from 'aws-cdk-lib/aws-sqs';

export class FargateRunnerTestStack extends cdk.Stack {
    constructor(scope: Construct, id: string, props?: cdk.StackProps) {
        super(scope, id, props);
        // Define the VPC
        const vpc = new Vpc(this, 'MyVpc')
        // Define the Fargate Task
        const taskDefinition = new ecs.FargateTaskDefinition(this, 'MyTask', {});
        // Import exiting ecr repo
        const repo = ecr.Repository.fromRepositoryName(this, 'MyRepo', 'RepoName');
        // Add a container to the task
        taskDefinition.addContainer('MyContainer', {
            image: ecs.ContainerImage.fromEcrRepository(repo),
        });
        // Create the Fargate runner
        const myFargateRunner = new FargateRunner(this, 'MyRunner', {
            fargateTaskDef: taskDefinition,
            timeout: `${60 * 5}`,
            vpc: vpc,
        });
        // Create the SQS queue
        const myQueue = new Queue(this, 'MyQueue', {});
        // Add dependency
        myQueue.node.addDependency(myFargateRunner);
    }
}
const app = new cdk.App();

const env = {
    account: process.env.CDK_DEFAULT_ACCOUNT,
    region: process.env.CDK_DEFAULT_REGION,
};
new FargateRunnerTestStack(app, 'FargateRunnerTestStack', { env: env });
