wm-is-client v1.0.17

Introduction

wm-is-client is a NodeJS package for accessing Software AG's wm Integration Server services natively from node JS using pure Javascript.

GET invocation example

Revision history

Supported Platforms

npm package installation enforces these platforms via the 'os' element.

"os": [
    "linux",
    "win32",
    "!darwin"
  ],

Installation

Globally install the wm-is-client node package.

 npm install -g wm-is-client

No errors? You're ready to use the package's IS demo client or skip to API documentation

CLI Demo Tool

Invoke Requests Against a Running Server

This section uses the is-client demo utility.

First, start an Integration Server.
Note: This readme may refer to 'Integration Server' as "IS".

$ cd /pathToInstallation/profiles/IS_default/bin
$ ./console.sh
.
.
.

Fetch a list of IS packages from the server.

$ is-client -s localhost:5555 -u Administrator -p manage list
{
    "packages": [
        {
            "name": "Default",
            "enabled": "true",
            "loadok": "0",
            "pkgType": "1",
            "loaderr": "0",
            "loadwarning": "0",
            "subsystem": false
        },
        {
            "name": "NodeBench",
            "enabled": "true",
            "loadok": "1",
            "pkgType": "1",
            "loaderr": "0",
            "loadwarning": "0",
            "subsystem": false,
            "zipLastModified": "Mon Mar 19 10:02:11 EDT 2018"
        },

. . .

> Or if the server is running locally rely on the default settings
```js
$ is-client list
.
.
.

Refer to help for more details.

$ is-client -h

Usage: is-client options

node lib/cli-test.js get | list | post

Options:

-v, --version                    output the version number
-s --serverport <serverport>     hostname:port
-c --console                     Send log messages to stdout
-d, --debug                      Additional trace messages
-u --user <username>             e.g. Administrator
-r --request-file <requestFile>  Path to requestFile
-o --output-file <responseFile>  Path to responseFile
-p --password <password>         e.g. manage
-x, --x-stream                   eXecute using serviceStream
-t, --tls                        Use TLS encryption
-n, --notrust                    server trust verification disabled
-h, --help                       output usage information

$

### POST invocation example

This POST example sends a request to the Integration Server to execute an operating system command.

---
#### About executing OS commands from IS <a id="is-os-exec"></a>
> This example requires an additional step for granting permission to run an OS command on the Integration Server.

$ cd ~/dev/installs/102apr2018/IntegrationServer/instances/default/packages/WmPublic/config/

$ cat OSCommands.cnf allowedOSCommands=ls;uptime;ps allowedWorkingDirectories= $

> After editing the configuration file, you must either reload the WmPublic package or restart the IS server. The server is now authorized to execute these OS commands.
---

![alt text](docs/images/ss-2.png "POST execute")


#### You can also redirect from stdin

$ is-client post pub.utils:executeOSCommand < $testdir/requests/uptime.req

#### Or pass a request on the command line argument

$ is-client post pub.utils:executeOSCommand "{ \"command\" : \"uptime\" }"

#### Windows Example
This example is invoking an OS command on an IS server running on a Windows platform.

$ is-client -s my-windows-vm:5555 post pub.utils:executeOSCommand "{ \"command\" : \"cmd /c ver\" }"

With IS returning this response.

{ "command": "cmd /c ver", "status": "0", "outputMessage": "\r\nMicrosoft Windows Version 6.3.9600\r\n", "errorMessage": "" }$

## CLI Demo Tool Documentation <a id="is-client"></a>
Complete details for the 'is-client' command line tool for invoking Integration Server services. Since the pacakge was globally installed, it will be on your path.

e.g.

$ is-client --version 1.0.8

Three actions are supported: list, get and post.

| functions          | example            | When  |
| ------------- |:-------------| -----:|
| list IS packages    | is-client list | 102apr2018 |
| list IS services in a package  |  is-client list WmPublic | 102apr2018    |
| list IS service details | is-client wm.server:ping | 102apr2018 |
| Execute GET service  | node lib/cli-test.js get wm.serve:ping  | 102apr2018  |
| Execute POST service | node lib/cli-test.js post pub.utils:executeOSCommand -r /home/user/test/fixtures/requests/uptime.req  | 102apr2018    |



## Examples

#### List packages
```js
is-client list

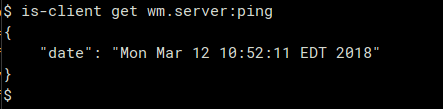

Execute GET

is-client get wm.server:ping

Execute POST

This example assumes a relative path to a 'ps.req' file containing the following request:

{ "command": "ps", "arguments": "-ef" }

is-client post pub.utils:executeOSCommand -r test/fixtures/requests/ps.req

Note, if you receive an error response containing 'Specified command ps -ef is not on the allowed...' See this section if you have not already added 'ps' to the list of whitelisted OS commands in IntegrationServer/instances/default/packages/WmPublic/config/OSCommands.cnf.

Stress Test

Install the included sample IS NodeBench package and use the is-client tool to generate load on the server by performing these two steps:

1. Install NodeBench IS package
2. Invoke the package's IS service

Install NodeBench IS package

• Copy the 'test/IS/NodeBench.zip' zip archive from the wm-is-client's installation package to the /IntegrationServer/instances/default/replicated/inbound/ directory.

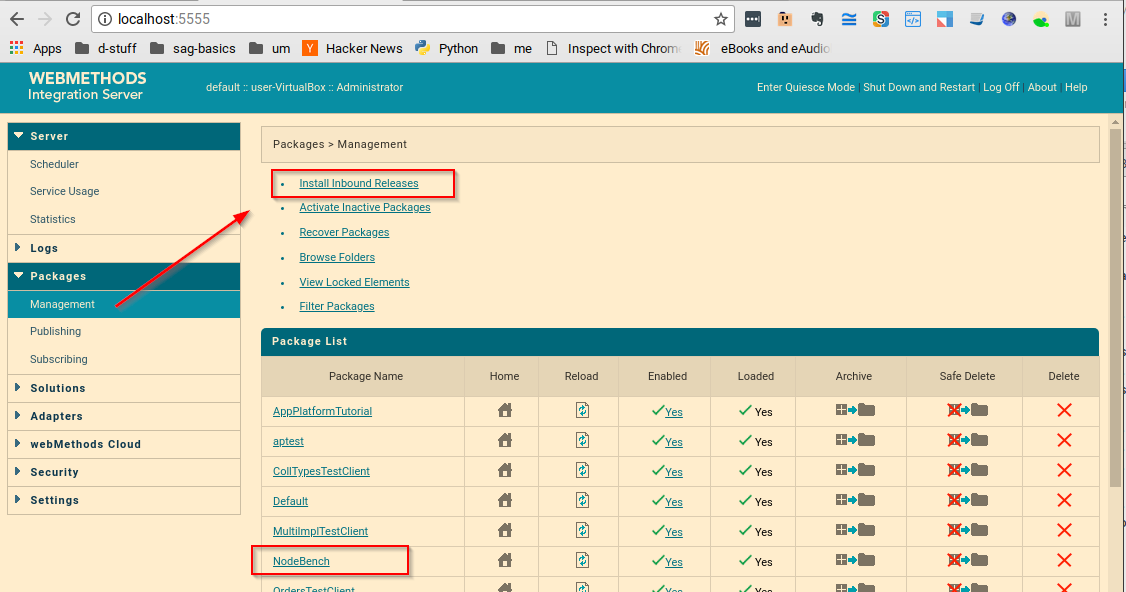

• Use the IS Administrator web portal to install the package.
• Verify the package has loaded without any errors.

Invoke service with the is-client tool

$ is-client post pub:DataPump -x "{ \"rowCount\": 3, \"chunkCount\" : 3 }"

{ "rows" : [
  { "0": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" },
  { "1": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" },
  { "2": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" }
  ]
}
$

Send the content to an output file when generating lots of data.

This example sets the 'debug' switch to illustrate the streaming functionality.

$ is-client post pub:DataPump -d -x -o test.json "{ \"rowCount\": 10000, \"chunkCount\" : 1000 }"
Writing response to test.json
Trusted server verification disabled? undefined
Override checking server certificate? false
Using key path: /home/user/dev/git/njs/wm-is-client/test/fixtures/pem/ssos-key.pem
Using key passphrase: manage
Using certificate authority: /home/user/dev/git/njs/wm-is-client/test/fixtures/pem/ssos-ca.pem
Using trust store: /home/user/dev/git/njs/wm-is-client/test/fixtures/pem/ssos-trust.pem
### Connection success! ssnid: 07b79ad715a9478ba14b82937db35e82
### Invoking app.stream()
### Received chunk event: (200) data length: 16128
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 65536
### Received chunk event: (200) data length: 64028
### Received LAST chunk: (200) data length: 0
(200) Response headers: {"content-type":"application/json","content-length":"538908"}
$

Confirming 10,000 rows were created and the json response data is parseable.

$ cat test.json | jq '.[]' | jq length
10000
$

wm-is-client API

The API is very simple. There are two functions for connecting and disconnecting to/from an Integration Server, and two functions for invoking an IS service. One function sends and receives String objects containing the entire request and response content. The other function is optimized for very large request or response objects, so it uses Streams to send/receive chunks of data as to avoid excessive memory consumption.

connect

connect() is used to create an authenticated session on the Integration Server. Connection details are defined in the config parameter included with the function.

NOTE: Only basic auth is supported at this time.

Please refer to the wm-is-client/lib/config.js source file for more details regarding valid configuration options.

This method returns a Promise

Request

Response

The format for the Promise's data object.

There will always be an error object, a reason string, or both.

See the 'execute' or 'stream' examples for a complete connect() example.

disconnect

disconnect() ends the session.

This method returns a Promise

Request

Response

The format for the Promise's data object.

There will always be an error object, a reason string, or both.

See the 'execute' or 'stream' examples for a complete disconnect() example.

execute

execute() is the simplest method for interacting with an IS service.

It returns a Promise ( containing a json object with keys defined in API)

NOTE: IS services that contain request and response elements which do not support the 'application/json' content are unsupported. In this case, additional steps are required such as writing it an IS service which calls the unsupported service.

The data value returned for a succesful invocation ( i.e. resolve ) or failed invocation (i.e. reject ) are shown below. In both cases, the object returned by the Promise is a Javascript Map containing key-value pairs. The key names are a fixed part of the API; therefore, they are defined and exported from index.js.

Request

Response

The format for the Promise's data object.

NOTE: An object containing buffer data may be converted to a string using

const StringDecoder = require('string_decoder').StringDecoder;
var decoder = new StringDecoder('utf8');
.
.
.
if ( Buffer.isBuffer(data)) {

var myString = decoder.write(data)); }

| failure   | contents | example |
| ------   | -------- | -------- |
| data[app.ERROR]  | Optional javascript [Error](https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Error) object | -
| data[app.REASON]  | Optional reason string  | -
> There will always be an error object, a reason string, or both.

GET example ( docs/get.js )
```js
var app = require('wm-is-client');

function getMe(ssnid) {
    console.log(`Session connected: (${ssnid})... Executing ping`);
    var promise = app.execute( 'wm.server:ping', 'GET');
    return promise;

}
function dumpResponse(data) {
    console.log( `Response: ${data[app.RESPONSE]}`);
}

app.connect(app.config)
    .then( (ssnid) => getMe())
    .then( (data) => dumpResponse(data))
    .then( () => app.disconnect())
    .then( (ssnid) => {
        console.log('Session disconnected... ${ssnid}');
    }).catch( (err) => {
        console.log(err);
    });

$ node docs/get.js
Session connected: (59fccd53de6245be9bf8dce7d71bc40b)... Executing ping
Response: {"date":"Mon Mar 26 11:14:40 EDT 2018"}
Session disconnected...
$

POST example ( docs/post.js )

var app = require('wm-is-client');
var stream = require('stream');
const StringDecoder = require('string_decoder').StringDecoder;
const decoder = new StringDecoder('utf8');

function postMe() {
    let sRequest = "{\"rowCount\": 4, \"chunkCount\": 2}";
    let reqStream = new stream.PassThrough();
    reqStream.write(sRequest);
    reqStream.end();
    var listener = app.stream( 'pub:DataPump', 'POST', reqStream);

    listener.on(app.CHUNK, (data) => {

        let statusCode = data[app.STATUS_CODE];
        let myBuffer = data[app.RESPONSE];
        if ( myBuffer != null) {
                sResponse = decoder.write( myBuffer);
        }

        console.log(`Chunk of response received: ${sResponse}`);
    });

    listener.on(app.END, (data) => {

        let statusCode = data[app.STATUS_CODE];
        console.log(`Response completed. (${statusCode})`);
    });

    listener.on(app.ERROR, (data) => {

        console.log('Error received');
        let e = data[app.ERROR];
        let reason = data[app.REASON];
    });
}

app.connect(app.config).then( () => {
    try {
        postMe();
    } finally {
        app.disconnect();
    }

}).catch( (err) => {
    console.log(err);
});

$ node docs/post.js
Chunk of response received: { "rows" : [
  { "0": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" },
  { "1": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" },
  { "2": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" },
  { "3": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" }
  ]
}

Response completed. (200)
$

stream

Use the stream() function if the size of the request or response is so large that too much memory would be consumed if all the data exists in memory.

It returns a Node.js event emitter which may be used to receive events containing data (or error) as it becomes available.

IS services that contain request and response elements which do not support the 'application/json' content are unsupported. In this case, additional steps are required such as writing it an IS service which calls the unsupported service.

var listener = app.stream( service, 'POST', reqStream);
listener.on(app.CHUNK, (data) => {
    let statusCode = data[app.STATUS_CODE];
    let myBuffer = data[app.RESPONSE]);
    .
    .
    .
});
listener.on(app.END, (data) => {
    let statusCode = data[app.STATUS_CODE];
    let myBuffer = data[app.RESPONSE]);
    .
    .
    .
});
listener.on(app.ERROR, (data) => {

    let e = data[app.ERROR];
    let reason = data[app.REASON];
});

Request

Response

The format for the promise's data object.

POST example

POST example
```js
var app = require('wm-is-client');
var stream = require('stream');
  .
  .
  .

let sRequest = "{\"row\": 2000000, \"chunk\": 100}";
let reqStream = new stream.PassThrough();
reqStream.write(sRequest);
reqStream.end();
var listener = app.stream( 'pub:DataPump', 'POST', reqStream);
listener.on(app.CHUNK, (data) => {
    console.log('Chunk of response received');
    let statusCode = data[app.STATUS_CODE];
    let myBuffer = data[app.RESPONSE]);
    .
    .
    .
});
listener.on(app.END, (data) => {
    console.log('Response received');
    let statusCode = data[app.STATUS_CODE];
    let myBuffer = data[app.RESPONSE]);
    .
    .
    .
});
listener.on(app.ERROR, (data) => {

    let e = data[app.ERROR];
    let reason = data[app.REASON];
});

        var jResponse = JSON.parse( data[app.RESPONSE] );

}).catch(function(err) {
    console.log(`Execute err: ${err[app.ERROR]}`);
    console.log(`Reason? ${err[app.REASON]}`);
});

Refer to the bin/cli-test.js source for a more complete example that writes the chunks of data to a text file.

TroubleShooting

Questions may be submitted via email to npm-cirrus@softwareag.com.

Logging

wm-is-client supports two loggers in its configuration.

1. console
2. file path

By default, nothing is written to the console log and information is written to a 'log.json' file in a .wm-is-client folder in the user's home directory.

  'logger' : {
      'level' : 'info',  // info, debug
      // skipped if null, or set to process.stdout or process.stderr
      'console' : null,
      // if null, the default is to ~/.wm-is-client/log.json when logger is created
      'path' : null
  },

(Windows example)

 C:\>dir %USERPROFILE%\.wm-is-client\log.json
 Volume in drive C is SYS
 Volume Serial Number is 7431-F125

Directory of C:\Users\usawco.wm-is-client

03/24/2018 04:51 PM 372 log.json 1 File(s) 372 bytes

## Node.js trace facility
The node tracing functionality is supported. The following example demonstrates trace logging for this package as well as Node's core HTTP module.

Note: wm-is-client does not display the password included with the config object passed to its connect function.

$ NODE_DEBUG=http,wm-is-client is-client post pub:DataPump -x "{ \"rowCount\": 3, \"chunkCount\" : 3 }"

WM-IS-CLIENT 28754: wm-is-client client.js Config: { "logger": { "level": "info", "path": "/home/user/dev/git/njs/wm-is-client/logs/wm-is-client.log" }, "timeout": { "connect": 30000, "read": 30000 }, "auth": { "basic": { "user": "Administrator", "pass": "xxxxxxx" } }, "tls": { "ca": "/home/user/dev/git/njs/wm-is-client/test/fixtures/pem/ssos-ca.pem", "trust": "/home/user/dev/git/njs/wm-is-client/test/fixtures/pem/ssos-trust.pem", "key": "/home/user/dev/git/njs/wm-is-client/test/fixtures/pem/ssos-key.pem", "passphrase": "manage" }, "http": { "agent": { "keepAlive": true, "keepAliveMsecs": 1000, "maxSockets": 256, "maxFreeSockets": 256 }, "protocol": "http:", "hostname": "localhost", "headers": { "Accept": "application/json" }, "port": "5555" } } WM-IS-CLIENT 28754: Creating connect Promise: WM-IS-CLIENT 28754: Connecting to: http://localhost:5555 with user: Administrator. Password provided? true WM-IS-CLIENT 28754: connect() options: { "protocol": "http:", "hostname": "localhost", "port": "5555", "headers": { "Authorization": "Basic QWRtaW5pc3RyYXRvcjptYW5hZ2U=", "Content-Type": "application/x-www-form-urlencoded" }, "timeout": 30000, "method": "GET", "path": "/" } HTTP 28754: call onSocket 0 0 HTTP 28754: createConnection localhost:5555: { servername: 'localhost', passphrase: 'manage', key: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 52 53 41 20 50 52 49 56 41 54 45 20 4b 45 59 2d 2d 2d 2d 2d 0d 0a 50 72 6f 63 2d 54 79 70 65 3a 20 34 2c 45 4e 43 52 ... >, cert: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... >, maxFreeSockets: 256, maxSockets: 256, keepAliveMsecs: 1000, keepAlive: true, ca: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... > , agent: Agent { domain: null, _events: { free: Function }, _eventsCount: 1, _maxListeners: undefined, defaultPort: 80, protocol: 'http:', options: { passphrase: 'manage', key: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 52 53 41 20 50 52 49 56 41 54 45 20 4b 45 59 2d 2d 2d 2d 2d 0d 0a 50 72 6f 63 2d 54 79 70 65 3a 20 34 2c 45 4e 43 52 ... >, ca: Array, cert: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... >, port: '5555', host: 'localhost', maxFreeSockets: 256, maxSockets: 256, keepAliveMsecs: 1000, keepAlive: true, path: null }, requests: {}, sockets: { 'localhost:5555:': [] }, freeSockets: {}, keepAliveMsecs: 1000, keepAlive: true, maxSockets: 256, maxFreeSockets: 256 }, path: null, method: 'GET', timeout: 30000, headers: { Authorization: 'Basic QWRtaW5pc3RyYXRvcjptYW5hZ2U=', 'Content-Type': 'application/x-www-form-urlencoded' }, port: '5555', hostname: 'localhost', protocol: 'http:', host: 'localhost', _agentKey: 'localhost:5555:' } HTTP 28754: sockets localhost:5555: 1 WM-IS-CLIENT 28754: msConnTimeout set to 30000 milliseconds HTTP 28754: outgoing message end. WM-IS-CLIENT 28754: Request sent. HTTP 28754: AGENT incoming response! HTTP 28754: AGENT isHeadResponse false WM-IS-CLIENT 28754: Response arriving... (200) WM-IS-CLIENT 28754: cookie: ssnid=4b22108c1daf41afa2d4fd8d1acc7607; path=/; HttpOnly WM-IS-CLIENT 28754: Executing serviceStream: pub:DataPump on localhost:5555 WM-IS-CLIENT 28754: Executing serviceExecute: /invoke/pub:DataPump on localhost:5555 WM-IS-CLIENT 28754: (inPromise)serviceExecute: { "protocol": "http:", "hostname": "localhost", "port": "5555", "headers": { "Authorization": "Basic QWRtaW5pc3RyYXRvcjptYW5hZ2U=", "Content-Type": "application/json", "Transfer-Encoding": "chunked", "Accept": "application/json", "Cookie": "ssnid=4b22108c1daf41afa2d4fd8d1acc7607; path=/; HttpOnly" }, "timeout": 30000, "method": "POST", "path": "/invoke/pub:DataPump" } HTTP 28754: call onSocket 1 0 HTTP 28754: createConnection localhost:5555: { servername: 'localhost', passphrase: 'manage', key: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 52 53 41 20 50 52 49 56 41 54 45 20 4b 45 59 2d 2d 2d 2d 2d 0d 0a 50 72 6f 63 2d 54 79 70 65 3a 20 34 2c 45 4e 43 52 ... >, ca: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... > , cert: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... >, maxFreeSockets: 256, maxSockets: 256, keepAliveMsecs: 1000, keepAlive: true, agent: Agent { domain: null, _events: { free: Function }, _eventsCount: 1, _maxListeners: undefined, defaultPort: 80, protocol: 'http:', options: { passphrase: 'manage', key: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 52 53 41 20 50 52 49 56 41 54 45 20 4b 45 59 2d 2d 2d 2d 2d 0d 0a 50 72 6f 63 2d 54 79 70 65 3a 20 34 2c 45 4e 43 52 ... >, ca: Array, cert: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... >, port: '5555', host: 'localhost', maxFreeSockets: 256, maxSockets: 256, keepAliveMsecs: 1000, keepAlive: true, path: null }, requests: {}, sockets: { 'localhost:5555:': Array }, freeSockets: {}, keepAliveMsecs: 1000, keepAlive: true, maxSockets: 256, maxFreeSockets: 256 }, path: null, method: 'POST', timeout: 30000, headers: { Authorization: 'Basic QWRtaW5pc3RyYXRvcjptYW5hZ2U=', 'Content-Type': 'application/json', 'Transfer-Encoding': 'chunked', Accept: 'application/json', Cookie: 'ssnid=4b22108c1daf41afa2d4fd8d1acc7607; path=/; HttpOnly' }, port: '5555', hostname: 'localhost', protocol: 'http:', host: 'localhost', _agentKey: 'localhost:5555:' } HTTP 28754: sockets localhost:5555: 2 WM-IS-CLIENT 28754: msReadTimeout set to 30000 milliseconds WM-IS-CLIENT 28754: Creating disconnect Promise chain to gracefully ask server to shutdown this session WM-IS-CLIENT 28754: Executing serviceExecute: /invoke/wm.server:disconnect on localhost:5555 WM-IS-CLIENT 28754: (inPromise)serviceExecute: { "protocol": "http:", "hostname": "localhost", "port": "5555", "headers": { "0": "a", "1": "p", "2": "p", "3": "l", "4": "i", "5": "c", "6": "a", "7": "t", "8": "i", "9": "o", "10": "n", "11": "/", "12": "j", "13": "s", "14": "o", "15": "n", "Authorization": "Basic QWRtaW5pc3RyYXRvcjptYW5hZ2U=", "Content-Type": "application/json", "Transfer-Encoding": "chunked", "Accept": "application/json", "Cookie": "ssnid=4b22108c1daf41afa2d4fd8d1acc7607; path=/; HttpOnly" }, "timeout": 30000, "method": "GET", "path": "/invoke/wm.server:disconnect" } HTTP 28754: call onSocket 2 0 HTTP 28754: createConnection localhost:5555: { servername: 'localhost', passphrase: 'manage', key: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 52 53 41 20 50 52 49 56 41 54 45 20 4b 45 59 2d 2d 2d 2d 2d 0d 0a 50 72 6f 63 2d 54 79 70 65 3a 20 34 2c 45 4e 43 52 ... >, ca: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... > , cert: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... >, maxFreeSockets: 256, maxSockets: 256, keepAliveMsecs: 1000, keepAlive: true, agent: Agent { domain: null, _events: { free: Function }, _eventsCount: 1, _maxListeners: undefined, defaultPort: 80, protocol: 'http:', options: { passphrase: 'manage', key: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 52 53 41 20 50 52 49 56 41 54 45 20 4b 45 59 2d 2d 2d 2d 2d 0d 0a 50 72 6f 63 2d 54 79 70 65 3a 20 34 2c 45 4e 43 52 ... >, ca: Array, cert: <Buffer 2d 2d 2d 2d 2d 42 45 47 49 4e 20 43 45 52 54 49 46 49 43 41 54 45 2d 2d 2d 2d 2d 0d 0a 4d 49 49 44 62 7a 43 43 41 6c 65 67 41 77 49 42 41 67 49 45 42 ... >, port: '5555', host: 'localhost', maxFreeSockets: 256, maxSockets: 256, keepAliveMsecs: 1000, keepAlive: true, path: null }, requests: {}, sockets: { 'localhost:5555:': Array }, freeSockets: {}, keepAliveMsecs: 1000, keepAlive: true, maxSockets: 256, maxFreeSockets: 256 }, path: null, method: 'GET', timeout: 30000, headers: { '0': 'a', '1': 'p', '2': 'p', '3': 'l', '4': 'i', '5': 'c', '6': 'a', '7': 't', '8': 'i', '9': 'o', '10': 'n', '11': '/', '12': 'j', '13': 's', '14': 'o', '15': 'n', Authorization: 'Basic QWRtaW5pc3RyYXRvcjptYW5hZ2U=', 'Content-Type': 'application/json', 'Transfer-Encoding': 'chunked', Accept: 'application/json', Cookie: 'ssnid=4b22108c1daf41afa2d4fd8d1acc7607; path=/; HttpOnly' }, port: '5555', hostname: 'localhost', protocol: 'http:', host: 'localhost', _agentKey: 'localhost:5555:' } HTTP 28754: sockets localhost:5555: 3 WM-IS-CLIENT 28754: msReadTimeout set to 30000 milliseconds WM-IS-CLIENT 28754: Flushing request... Now transition wm-is-client state to shutdown HTTP 28754: outgoing message end. WM-IS-CLIENT 28754: ### stream() sending request chunks HTTP 28754: write ret = false WM-IS-CLIENT 28754: ##### Drain event fired from stream() WM-IS-CLIENT 28754: ### stream() completed sending request HTTP 28754: outgoing message end. HTTP 28754: AGENT incoming response! HTTP 28754: AGENT isHeadResponse false WM-IS-CLIENT 28754: Receiving response... status code: 200 WM-IS-CLIENT 28754: on data event. data.length = 16 HTTP 28754: AGENT socket keep-alive WM-IS-CLIENT 28754: Response received... status code: (200) Pending request count? 1 Shutdown? true HTTP 28754: CLIENT socket onFree HTTP 28754: agent.on(free) localhost:5555: HTTP 28754: removeSocket localhost:5555: writable: true HTTP 28754: AGENT incoming response! HTTP 28754: AGENT isHeadResponse false WM-IS-CLIENT 28754: Response status code:200 WM-IS-CLIENT 28754: Received 'on' data event. data.length = 171 { "rows" : { "0": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" }, { "1": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" }, { "2": "1234567890ABCDEFGHIJKLMNOPQRSTUVWXYZ" } } HTTP 28754: AGENT socket keep-alive WM-IS-CLIENT 28754: Received 'end' data event. Pending requests count: 0 WM-IS-CLIENT 28754: shutdownAgent() cleanup to close agent: localhost:5555: HTTP 28754: CLIENT socket onFree HTTP 28754: agent.on(free) localhost:5555: HTTP 28754: CLIENT socket onClose HTTP 28754: removeSocket localhost:5555: writable: false HTTP 28754: CLIENT socket onClose HTTP 28754: removeSocket localhost:5555: writable: false HTTP 28754: HTTP socket close HTTP 28754: CLIENT socket onClose HTTP 28754: removeSocket localhost:5555: writable: false $

## Configuration
A configuration object is included in the API and is defined by config.js contents. This object should only hold static content that will not change while a connection is made to an Integration Server.
> Modifying a connected configuration will lead to unpredictable results.




# License
Apache-2.0
https://www.apache.org/licenses/LICENSE-2.0


# Miscellaneous

## Authentication
Only Basic Auth is supported at this time.

## i18n
Basic message translation is supported using 'i18n' and 'os-locale' packages.

## logging
Using the 'bunyan' package, but this is not exposed in the API.


## Error Response <a id="error_resp"/>

The API functions return a json object containing two elements

* error - optional Javascript [Error object](https://developer.mozilla.org/en-US/docs/Web/JavaScript/Reference/Global_Objects/Error "JS Reference")
* reason - optional string object


  data[app.ERR] - exception object if available
  data[app.REASON] - reason if available
