@allmaps/transform v1.0.0-beta.37

@allmaps/transform

This module serves to transform Points, LineStrings, Polygons and other spatial features from a cartesian (x, y) source plane to a destination plane. It does this using a set of Control Points, who's coordinates are known in both planes, and a specific transformation algorithm.

It is used in @allmaps/render and @allmaps/tileserver, two packages where we produce a georeferenced image by triangulating a IIIF image and drawing these triangles on a map in a specific new location, with the triangle's new vertex location computed by the transformer of this package. The transformer is constructed from Control Points in the annotation and transforms Points from the resource coordinate space of a IIIF Resource to the geo coordinate space of an interactive map.

Care was taken to make this module usable and useful outside of the Allmaps context as well! Feel free to incorporate it in your project.

How it works

This package exports the GcpTransformer class. Its instances (called 'transformers') are built from a set of Ground Control Points (GCPs) and a specified transformation type. Using these, a forward and backward transformation can be built that maps arbitrary Points in one plane to the corresponding Points in the other plane. The transformer has dedicated functions that use this transformation to transform Points and more complex geometries like LineStrings and Polygons.

Installation

This is an ESM-only module that works in browsers and in Node.js.

Install with npm:

npm install @allmaps/transform

Usage

Point

import { GcpTransformer } from '@allmaps/transform'

const transformGcps3 = [
  {
    source: [518, 991],
    destination: [4.9516614, 52.4633102]
  },
  {
    source: [4345, 2357],
    destination: [5.0480391, 52.5123762]
  },
  {
    source: [2647, 475],
    destination: [4.9702906, 52.5035815]
  }
]

const transformer = new GcpTransformer(transformGcps3, 'helmert')

const transformedPoint = transformer.transformForward([100, 100])
// transformedPoint = [4.9385700843392435, 52.46580484503631]

const transformedPoint = transformer.transformBackward([
  4.9385700843392435, 52.46580484503631
])
// transformedPoint = [100, 100]

LineString

In this example we transform backward, and from a GeoJSON Geometry.

export const transformGcps7 = [
  {
    source: [0, 0],
    destination: [0, 0]
  },
  {
    source: [100, 0],
    destination: [20, 0]
  },
  {
    source: [200, 100],
    destination: [40, 20]
  },
  {
    source: [200, 200],
    destination: [40, 40]
  },
  {
    source: [150, 250],
    destination: [40, 100]
  },
  {
    source: [100, 200],
    destination: [20, 40]
  },
  {
    source: [0, 100],
    destination: [0, 20]
  }
]

const transformOptions = {
  maxOffsetRatio: 0.001,
  maxDepth: 2
}
// We transform backward (from destination to source) and have GeoJSON input.
// Hence `destinationIsGeographic: true` will be set automatically

const transformer = new GcpTransformer(transformGcps7, 'polynomial')

const lineStringGeoJSON = {
  type: 'LineString',
  coordinates: [
    [10, 50],
    [50, 50]
  ]
}

const transformedLineString = transformer.transformBackward(
  lineStringGeoJSON,
  transformOptions
)
// transformedLineString = [
//   [31.06060606060611, 155.30303030303048],
//   [80.91200458875993, 165.7903106766409],
//   [133.1658635549907, 174.5511756850417],
//   [185.89024742146262, 181.22828756380306],
//   [237.12121212121218, 185.60606060606085]
// ]

// Notice how the result has two layers of midpoints!
// In a first step the Point [133.16, 174.55] is added between the start and end Point
// Then [80.91, 165.79] and [185.89, 181.22] are added in between.

Polygon

In this example we transform to a GeoJSON Geometry.

export const transformGcps6 = [
  {
    source: [1344, 4098],
    destination: [4.4091165, 51.9017125]
  },
  {
    source: [4440, 3441],
    destination: [4.5029222, 51.9164451]
  },
  {
    source: [3549, 4403],
    destination: [4.4764224, 51.897309]
  },
  {
    source: [1794, 2130],
    destination: [4.4199066, 51.9391509]
  },
  {
    source: [3656, 2558],
    destination: [4.4775683, 51.9324358]
  },
  {
    source: [2656, 3558],
    destination: [4.4572643, 51.9143043]
  }
]

const transformOptions = {
  maxOffsetRatio: 0.00001,
  maxDepth: 1
}

const transformer = new GcpTransformer(transformGcps6, 'thinPlateSpline')

const polygon = [
  [
    [1000, 1000],
    [1000, 2000],
    [2000, 2000],
    [2000, 1000]
  ]
]

const transformedPolygonGeoJSON = transformer.transformForwardAsGeojson(
  polygon,
  transformOptions
)
// const transformedPolygonGeoJSON = {
//   type: 'Polygon',
//   coordinates: [
//     [
//       [4.388957777030093, 51.959084191571606],
//       [4.390889520773774, 51.94984430356657],
//       [4.392938913951547, 51.94062947962427],
//       [4.409493277493718, 51.94119110133424],
//       [4.425874493300959, 51.94172557475595],
//       [4.4230497784967655, 51.950815146974556],
//       [4.420666790347598, 51.959985351835975],
//       [4.404906205946158, 51.959549039424715],
//       [4.388957777030093, 51.959084191571606]
//     ]
//   ]
// }

MultiPoint

In this example we transform a MultiPoint to a MultiPoint.

export const transformGcps7 = [
  {
    source: [0, 0],
    destination: [0, 0]
  },
  {
    source: [100, 0],
    destination: [20, 0]
  },
  {
    source: [200, 100],
    destination: [40, 20]
  },
  {
    source: [200, 200],
    destination: [40, 40]
  },
  {
    source: [150, 250],
    destination: [40, 100]
  },
  {
    source: [100, 200],
    destination: [20, 40]
  },
  {
    source: [0, 100],
    destination: [0, 20]
  }
]

const transformOptions = {
  inputIsMultiGeometry: true // this assures the transform method recognises the input as a multiPoint, not a LineString
}

const transformer = new GcpTransformer(transformGcps7, 'polynomial')

const multiPoint = [
  [10, 50],
  [50, 50]
]

const transformedMultiPoint = transformer.transformForward(
  multiPoint,
  transformOptions
)
// const transformedMultiPoint = [
//   [31.06060606060611, 155.30303030303048],
//   [237.12121212121218, 185.60606060606085]
// ]

Transformation types

A transformer is build from a set of GCPs and a transformation type. The following transformation types are supported.

Transformer methods

Once a transformer is built, it can be used to transform geometries forward and backward.

All transformer methods accepts Points, LineStrings as well as Polygons (and MultiPoints, MultiLineStrings and MultiPolygons), both as simple geometries or GeoJSON geometries. There are, however, separate methods for transforming to simple geometries or to GeoJSON geometries. There are also separate methods for transforming forward or backward.

Hence, the main methods are: transformForward(), transformForwardAsGeojson(), transformBackward() and transformBackwardAsGeojson()

Alternatively the same four methods are available with more expressive term for the Allmaps use case: replacing Forward by ToGeo and Backward by ToResource. E.g.: transformToGeoAsGeojson().

Transform options

Some options are available to improve transformations, e.g. to transform LineStrings or Polygons by recursively adding midpoints, or to correctly deal with a possible different handedness of source and destination coordinates.

These options can be specified when using a transformer's method to transform geometries, or earlier upon the creation of the transformer. Options specified in a transformer's method override options specified during the transformer's creation, which in term override the options derived from the data format (e.g. setting 'true' when source is GeoJSON), which in term override the default options.

The differentHandedness option is used both when a transformer and when a geometry is transformed, and should not be altered between these two actions.

Here's an overview of the available options:

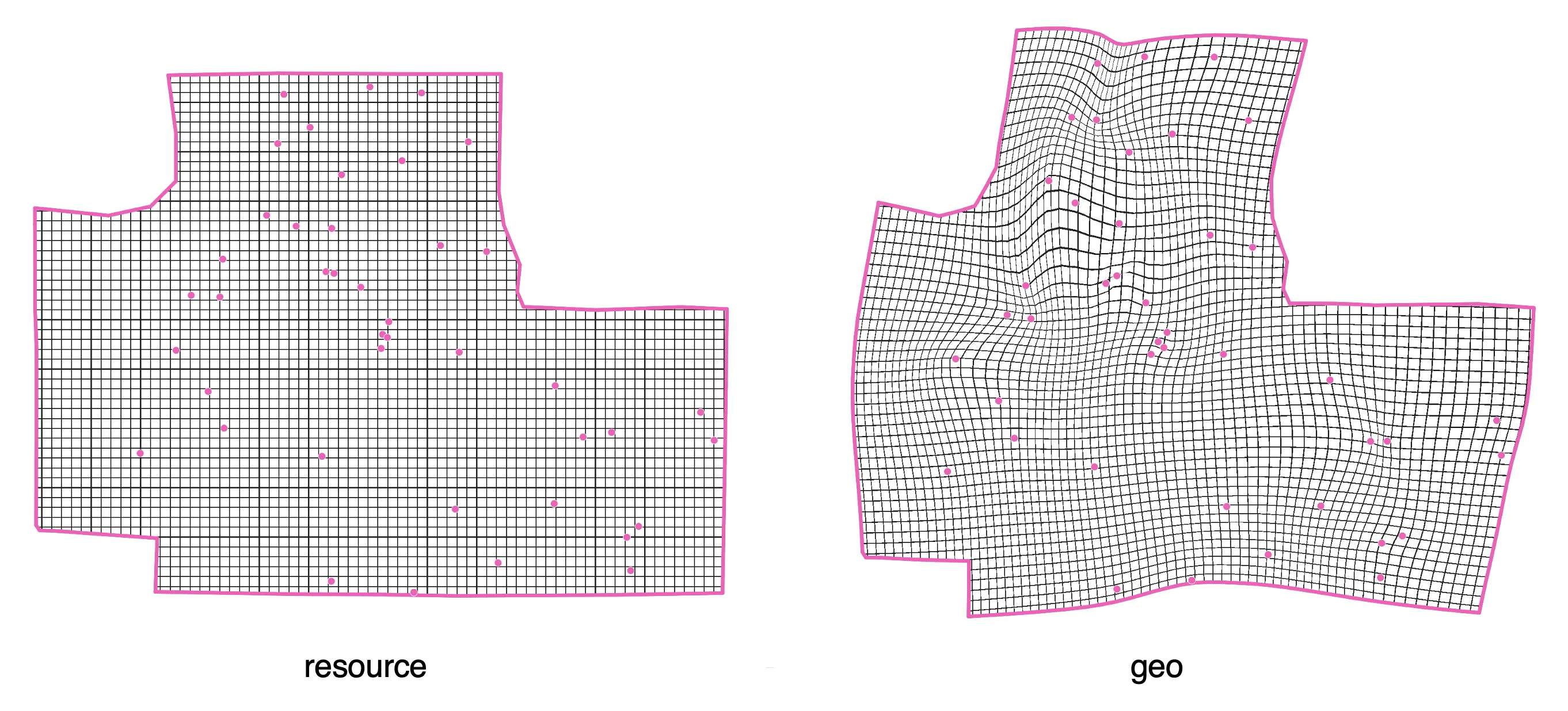

Recursively adding midpoints

When transforming LineStrings and Polygons, it can happen that simply transforming every Point is not sufficient.

Two factors are at play which may require a more granular transformation: the transformation (which can be non-shape preserving, as is the case with all transformation in this package except for Helmert and 1st degree polynomial) or the geographic nature of the coordinates (where lines are generally meant as 'great arcs' but could be interpreted as lon-lat cartesian lines).

An algorithm will therefore recursively add midpoints in each segment (i.e. between two Points) to make the line more granular. A midpoint is added at the transformed middle Point of the original segment on the condition that the ratio of (the distance between the middle Point of the transformed segment and the transformed middle Point of the original segment) to the length of the transformed segment, is larger then the specified maxOffsetRatio. This process is repeated until this condition isn't valid anymore, or until maxDepth is reached.

The computation of the midpoints and distances in the source and destination domains during this process uses geometric algorithms, unless sourceIsGeographic or destinationIsGeographic are set to true, in which case geographic algorithms (such as 'Great-circle distance') are used.

Handedness

For some transformations, it is important that the source and destination planes have the same handedness.

When we consider 2D Cartesian planes, there are two types of 'handedness'. A Cartesian plane with the positive x-axis pointing right and the positive y-axis pointing up (and the x-axis being the "first" and the y-axis the "second" axis) is said to have right-handed orientation (also called standard, positive or counter-clockwise). This is for example the case in the equirectangular projection - at least if the coordinate order is (lon, lat). Alternatively, if the y-axis points downwards, we say the orientation is left-handed (or negative or clock-wise). This is for example the case for typical pixel coordinates, which have their origin in the top left corner.

The handedness of the source and destination can differ, for example if the source are pixels of an image and the destination are (lon, lat) coordinates (which is the typical case for Allmaps). For many transformations a separate transformation is computed for both axes and hence it does not matter whether the source and destination have the same handedness. For some transformations, like the Helmert transformation, the transformation of X and Y coordinates are computed jointly (they are said to be 'coupled') and the difference matters. The algorithms won't produce the desired results unless action is taken to align the handedness.

Therefore, in case the handedness differs one can set the differentHandedness parameter to true. This will internally flip the y-axis of the source so as to align the handedness of both during computation.

Notes

Typing

GCPs

GCPs can be supplied as an array of objects containing source and destination coordinates:

type TransformGcp = {
  source: [number, number]
  destination: [number, number]
}

Or you can supply an array of objects containing resource and geo coordinates. This is the format used in Georeference Annotations:

type Gcp = {
  resource: [number, number]
  geo: [number, number]
}

Geometries

This uses the same geometry types as used in other packages. The simple geometries are:

type Point = [number, number]

type LineString = Point[]

type Polygon = Point[][]
// A Polygon is an array of rings of at least three points
// Rings are not closed: the first point is not repeated at the end.
// There is no requirement on winding order.

export type MultiPoint = Point[]
// Notice that this is equivalent to the LineString type, hence the `inputIsMultiGeometry` option

export type MultiLineString = Point[][]

export type MultiPolygon = Point[][][]

export type Geometry =
  | Point
  | LineString
  | Polygon
  | MultiPoint
  | MultiLineString
  | MultiPolygon

GeoJSON geometries follow the GeoJSON specification.

Transform vs. GDAL

The transformation algorithms of this package correspond to those of GDAL and the results are (nearly) identical. See the tests for details.

For a little history: this library started out as a JavaScript port of gdaltransform (as described in this notebook) and initially only implemented polynomial transformations of order 1. Later Thin Plate Spline transformations were added (see this notebook) amongst other transformations, which lead to a refactoring using the ml-matrix library. This library is used for creating and solving the linear systems of equations that are at the heart of each of each of these transformations.

API

Table of Contents

• allmaps/transform
• GcpTransformer
  • Parameters
  • transformForward
  • transformForwardAsGeojson
  • transformBackward
  • transformBackwardAsGeojson
  • transformToGeo
  • transformToGeoAsGeojson
  • transformToResource
  • transformToResourceAsGeojson
  • transformSvgToGeojson
  • transformGeojsonToSvg

allmaps/transform

GcpTransformer

A Ground Control Point Transformer, containing a forward and backward transformation and specifying functions to transform geometries using these transformations.

Parameters

• gcps (Array\ | Array\) An array of Ground Control Points (GCPs)
• type TransformationType The transformation type (optional, default 'polynomial')
• options

transformForward

Transforms a Geometry or a GeoJSON geometry forward to a Geometry

Parameters

• input (Geometry | GeojsonGeometry) Geometry or GeoJSON geometry to transform
• options PartialTransformOptions? Transform options

Returns Geometry Forward transform of input as Geometry

transformForwardAsGeojson

Transforms a Geometry or a GeoJSON geometry forward to a GeoJSON geometry

Parameters

• input (Geometry | GeojsonGeometry) Geometry or GeoJSON geometry to transform
• options PartialTransformOptions? Transform options

Returns GeojsonGeometry Forward transform of input, as GeoJSON geometry

transformBackward

Transforms a geometry or a GeoJSON geometry backward to a Geometry

Parameters

• input (Geometry | GeojsonGeometry) Geometry or GeoJSON geometry to transform
• options PartialTransformOptions? Transform options

Returns Geometry backward transform of input, as geometry

transformBackwardAsGeojson

Transforms a Geometry or a GeoJSON geometry backward to a GeoJSON geometry

Parameters

• input (Geometry | GeojsonGeometry) Geometry or GeoJSON geometry to transform
• options PartialTransformOptions? Transform options

Returns GeojsonGeometry backward transform of input, as GeoJSON geometry

transformToGeo

Transforms Geometry or GeoJSON geometry forward, as Geometry

Parameters

• input (Geometry | GeojsonGeometry) Input to transform
• options

Returns Geometry Forward transform of input, as Geometry

transformToGeoAsGeojson

Transforms a Geometry or a GeoJSON geometry forward, to a GeoJSON geometry

Parameters

• input (Geometry | GeojsonGeometry) Input to transform
• options

Returns Geometry Forward transform of input, as GeoJSON geometry

transformToResource

Transforms a Geometry or a GeoJSON geometry backward, to a Geometry

Parameters

• input (Geometry | GeojsonGeometry) Input to transform
• options

Returns Geometry Backward transform of input, as a Geometry

transformToResourceAsGeojson

Transforms a Geometry or a GeoJSON geometry backward, to a GeoJSON geometry

Parameters

• input (Geometry | GeojsonGeometry) Input to transform
• options

Returns GeojsonGeometry Backward transform of input, as a GeoJSON geometry

transformSvgToGeojson

Transforms a SVG geometry forward to a GeoJSON geometry

Note: Multi-geometries are not supported

Parameters

• geometry SvgGeometry SVG geometry to transform
• transformOptions

Returns GeojsonGeometry Forward transform of input, as a GeoJSON geometry

transformGeojsonToSvg

Transforms a GeoJSON geometry backward to a SVG geometry

Note: Multi-geometries are not supported

Parameters

• geometry GeojsonGeometry GeoJSON geometry to transform
• transformOptions

Returns SvgGeometry Backward transform of input, as SVG geometry

Notes

• Only linearly independent control points should be considered when checking if the criterion for the minimum number of control points is met. For example, three control points that are collinear (one the same line) only count as two linearly independent points. The current implementation doesn't check such linear (in)dependance, but building a transformer with insufficient linearly independent control points will result in a badly conditioned matrix (no error but diverging results) or non-invertible matrix (error when inverting matrix).
• The transform functions are map-projection agnostic: they describe a transformation for one cartesian (x, y) plane to another. Using control points with (longitude, latitude) coordinates will produce a transformation from or to the cartesian plane of an equirectangular projection. (The only semi-exception to this is when using the destinationIsGeographic and sourceIsGeographic parameters - although these consider coordinates as lying on a sphere more than as projection coordinates.)

CLI

The @allmaps/cli package creates and interface for four specific use cases:

• Transforming points to points.
• Transforming SVG geometries from the resource coordinates space of a IIIF resource to GeoJSON objects in the geo coordinate space of an interactive map.
• Transforming GeoJSON objects from the geo coordinate space of an interactive map to SVG objects in the resource coordinates space of a IIIF resource, given (the GCPs and transformation type from) a Georeference Annotation
• Vice versa: transforming SVG objects from the resource coordinates to GeoJSON objects in the geo coordinate space.
• Transforming the SVG resource mask included in a Georeference Annotation to a GeoJSON Polygon.

Benchmark

Here are some benchmarks on building and using a transformer, as computed on a 2023 MacBook Air M2.

Creating a transformer (with 10 points) (and transform 1 point)

Using a transformer (with 10 points) to transform 1 point

See ./bench/index.js.

The benchmark can be run with pnpm run bench.
