@calcit/editor v0.9.3

Calcit Editor

Intuitive S-expressions editing for Calcit.

• Auto Layout: expressions in blocks and inline-blocks, styled with CSS
• Tree Editing: intuitive way of structural editing as nested expressions
• Call Stack Navigation: more fine-grained functions navigation
• Collaboration: changes real-time synced among multiple clients via WebSockets

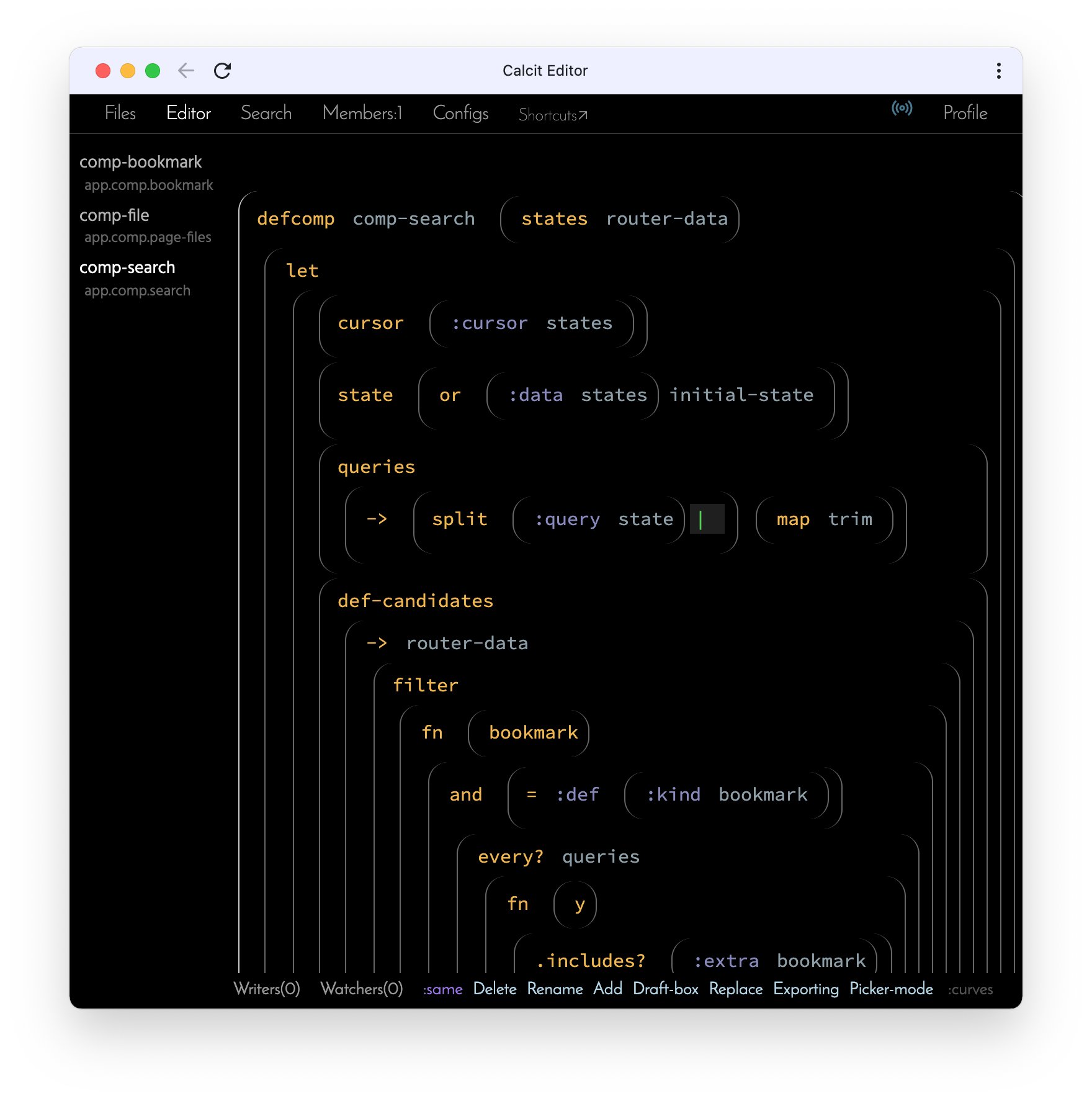

One function/definition in a screen, Command d to open called function at next tab, Command j Command k Command i to switch. Screenshots from Chrome App:

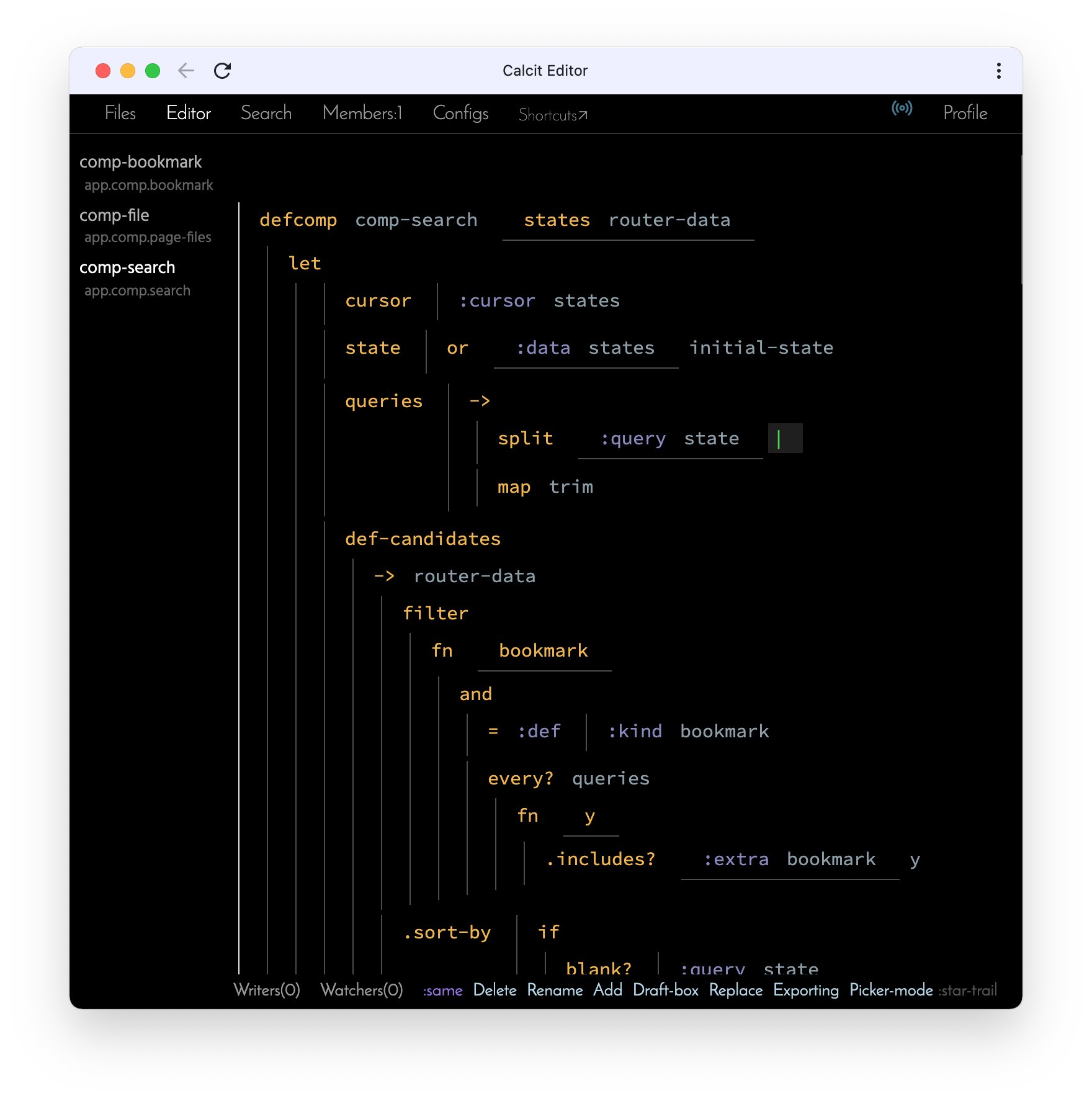

Based on DOM/CSS, easy for another theme:

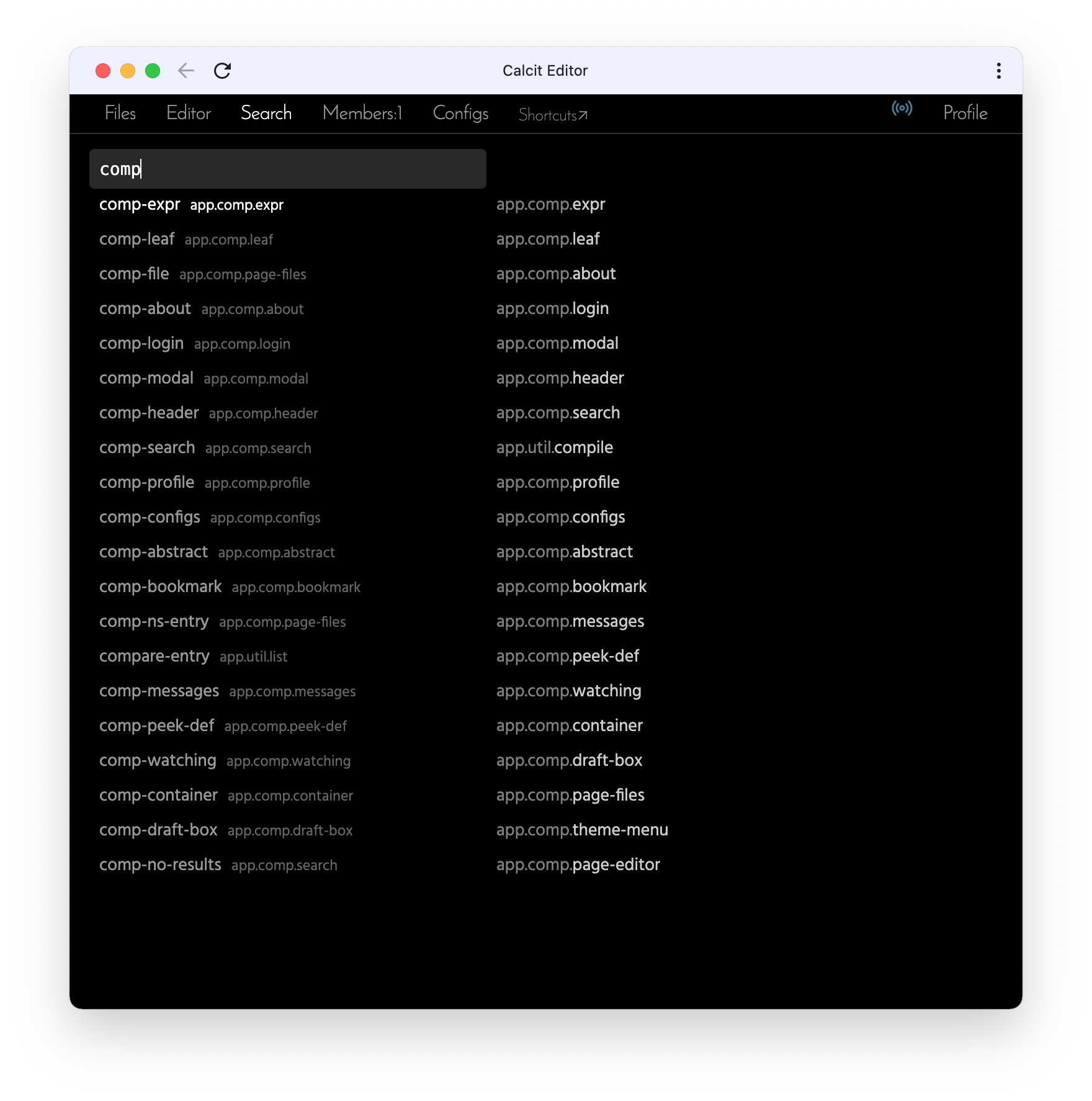

Command p to search and jump inspired by Sublime Text :

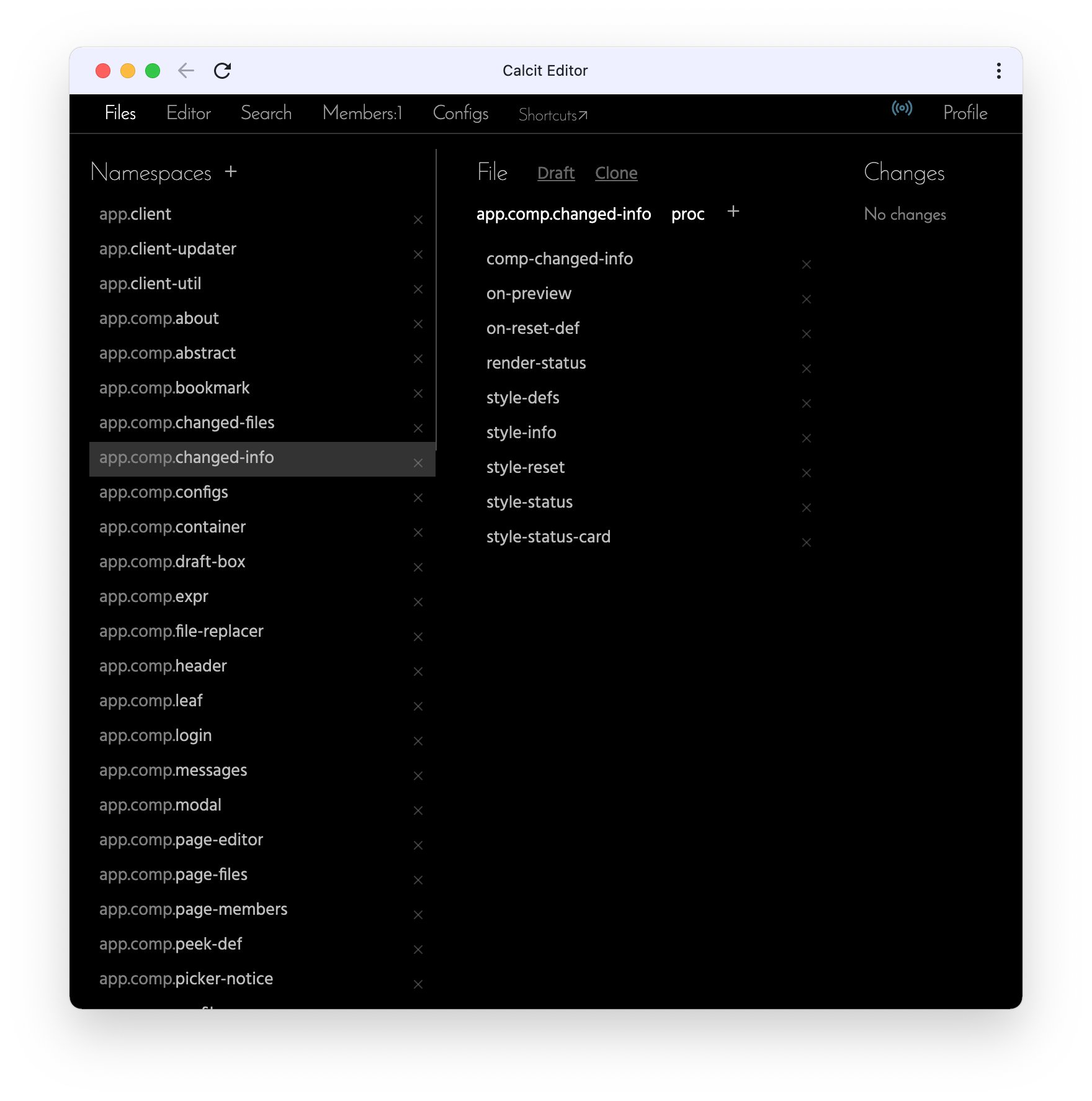

Browse namespaces and functions/variables:

Usages

Install CLI and start a local WebSocket server, it uses calcit.cirru as a snapshot file:

npm i -g @calcit/editor
ct

UI of the editor is a webapp on http://editor.calcit-lang.org/?port=6001

You may try with my project templates:

• simple virtual DOM playground calcit-workflow
• a toy Node.js script calcit-nodejs-workflow

or even clone current repo for trying out.

Don't forget to check out keyboard shortcuts. My old introduction videos can be found on YouTube.

Options

CLI variables for compiling code directly from calcit.cirru:

op=compile ct

The web UI takes several query options:

http://editor.calcit-lang.org/?host=localhost&port=6001

• port, defaults to 6001
• host, defaults to localhost, connects via WebSocket

Code is emitted in compact.cirru by pressing Command s. Two extra files will be emitted:

• compact.cirru contains a compact version of data tree of the program.
• .compact-inc.cirru contains diff information from latest modification of per definition.

It would be used in calcit-runner.

When server is stopped with Control c, calcit.cirru is also updated.

There are also several options in :configs field in calcit.cirru:

• port, defaults to 6001

Editor UI is decoupled with WebSocket server, so it's okay to connect remote server from multiple pages with all expressions synced in real-time.

file-transform operation

Special mode file-transform added for transforming compact.cirru back to calcit.cirru.

op=file-transform ct

Workflow

Previously it's https://github.com/Cirru/calcit-editor which is for ClojureScript. And this repo is for Calcit-js only.

License

MIT
