@iladiro/angular-material-table-library v0.0.8
MaterialTableFilter Documentation
This library is compatible with Angular versions >=16.0.0.0
Note: Please use version from 0.0.6, which is compatible with Angular versions >=16.0.0, older versions are only compatible with Angular version ^16.2.7. It was my mistake! Thank you

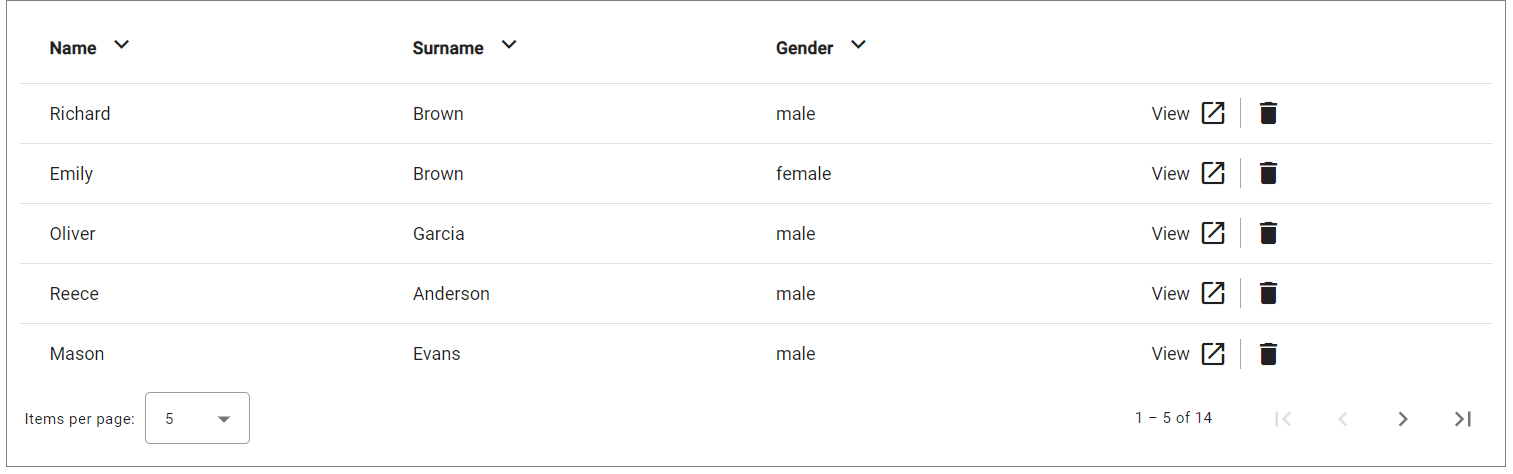

It is an Angular library based on Material to filter tabular data by columns. Here is an example:
Before start
- Make sure to install
@angular/material
and@angular/cdk
- Import a material theme on your preference. Ex:
@import '../node_modules/@angular/material/prebuilt-themes/indigo-pink.css';
. May not works as expected without it. - Add in your project index.html
<link href="https://fonts.googleapis.com/icon?family=Material+Icons" rel="stylesheet">
. It could be impossible to see the material's icons without it. - Import in your module
import { BrowserAnimationsModule } from '@angular/platform-browser/animations';
- npm i @iladiro/angular-material-table-library
- Import a Material theme, on your preference from
import { IladiroAngularMaterialTableLibraryModule } from '@iladiro/angular-material-table-library';
.
Getting Setup
Use <iladiro-angular-material-table></iladiro-angular-material-table>
selector to show table
Interface
Your data is an array of object of your custom interface type. The object's properties must match table columns (es. First Name
column is first_name
property of your object interface)
For example, this is my custom interface
interface TableList {
name: string;
surname: string;
gender: string;
buttons?: IladiroAMTButton[];
}
Note: buttons property is optional. If you use it, it must be an array of type IladiroAMTButton interface.
Import it from import { IladiroAMTButton } from '@iladiro/angular-material-table-library';
Each button's properties are required. If you don't need some property set it as empty string.
If we need to use icons, please use material icons.
Example
Default: example with only mandatory data!
<iladiro-angular-material-table [list]="list" [displayedColumns]="['name', 'surname', 'gender', 'buttons']"></iladiro-angular-material-table>
Custom
<iladiro-angular-material-table [inputPlaceholder]="'Filter on'" [filterValues]="filterValues" [customClass]="'myapp'" (callToActionEvent)="callToActionEvent($event)" (appliedFilterEvent)="whatFilter($event)" (paginatorEvent)="paginator($event)" [noResultLabel]="'No results found'" [displayedColumns]="['name', 'surname', 'gender', 'buttons']" [list]="list"></iladiro-angular-material-table>
Options
Property | Type | Required | Default | Notes |
---|---|---|---|---|
list | Array | yes | undefined | This widget expect a list to show it. |
displayedColumns | Array<string> | yes | undefined | To show columns in the table you have to pass an array of string where each value match with the properties of the custom interface. Ex: displayedColumns="'name', 'surname', 'gender', 'buttons'". |
inputPlaceholder | String | no | Find by | You can also pass a placeholder to show into filter input field |
customClass | String | no | undefined | You can also pass a class or a list of classes to add to the parent |
noResultLabel | String | no | No results | You can also pass a custom text to show when no result returned |
filterValues | Filter<any>[] | no | [] | If you use store like Ngrx or others, you can save it into store don't lose filters in the case user leave the component to go to another route. |
pageIndex | number | no | 0 | If you use store like Ngrx or others, you can save it into store don't lose last pageindex in the case user leave the component to go to another route.. |
showPageSizeOptions | boolean | no | true | You can choose to show or not the page size option |
pageSizeOptions | number[] | no | [5, 10, 15] | If you set showPageSizeOptions to true you can pass yuour custom page size options |
showFirstLastButtons | boolean | no | true | You can choose to show or not first and last paginator's arrow |
pageSize | number | no | 5 | On your preferences, You can set how many records show for each page |
hidePageSize | boolean | no | false | You can choose to show or not page size per page element |
Events
Event name | Return | Description | Example |
---|---|---|---|
paginatorEvent | {length: 14, pageIndex: 1, pageSize: 5, previousPageIndex: 0} | Allows you to capture the event when the paginator is used | <iladiro-angular-material-table (paginatorEvent)="console.log($event)"></iladiro-angular-material-table> |
callToActionEvent | { icon: "delete", label: "", action: "delete", link: "", title: "Delete"} | Allows you to capture the event when click on row's button | <iladiro-angular-material-table (callToActionEvent)="console.log($event)"></iladiro-angular-material-table> |
appliedFilterEvent | { "filterValues": [ { "value": "ma", "col": "name" } ], "filteredData": [ { "name": "Mario", "surname": "Rossi", "gender": "Maschio", "buttons": [ { "icon": "open_in_new", "label": "Visualizza", "action": "view", "link": "", "title": "View" }, { "icon": "delete", "label": "", "action": "delete", "link": "", "title": "Delete" } ] } ], "length": 1 } | Allows you to capture the event when the user use the filter. What return is filters list, filtered data and the array lenght | <iladiro-angular-material-table (appliedFilterEvent)="console.log($event)"></iladiro-angular-material-table> |
