React Native Audiowave

A high-performance React Native audio waveform component with built-in playback controls, seek functionality, and real-time visualization. Built with Turbo Native Modules for optimal performance.

Features

  • Real-time Audio Visualization - Dynamic waveform rendering with customizable appearance
  • Built-in Playback Controls - Play, pause, stop, and seek functionality
  • Cross-platform Support - Works seamlessly on both iOS and Android
  • Turbo Native Module - High-performance native implementation
  • Customizable UI - Flexible styling and theming options
  • Audio Asset Resolution - Support for both local and remote audio files

Screenshots

Note: Add your sample UI screenshots here to showcase the component in action.

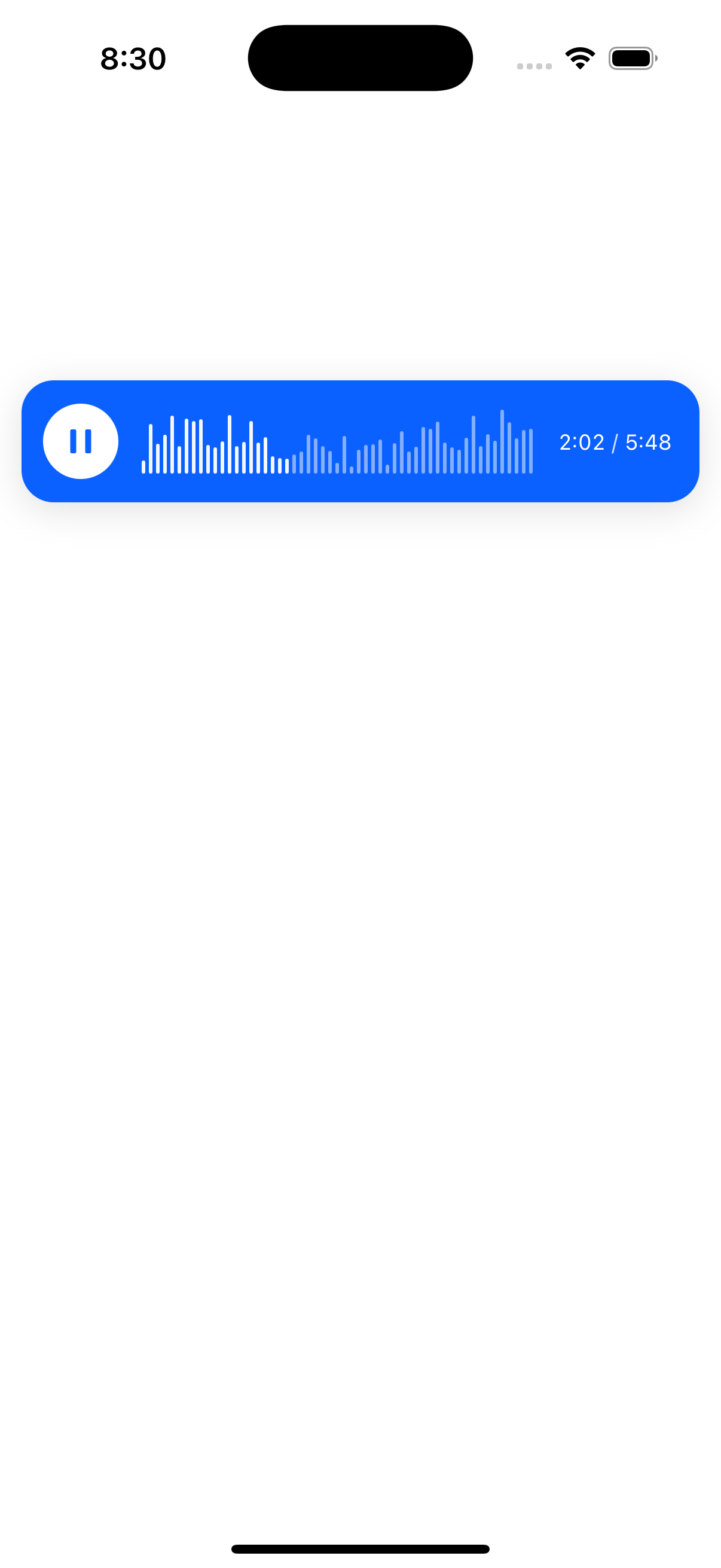

iOS Screenshot

iOS Screenshot

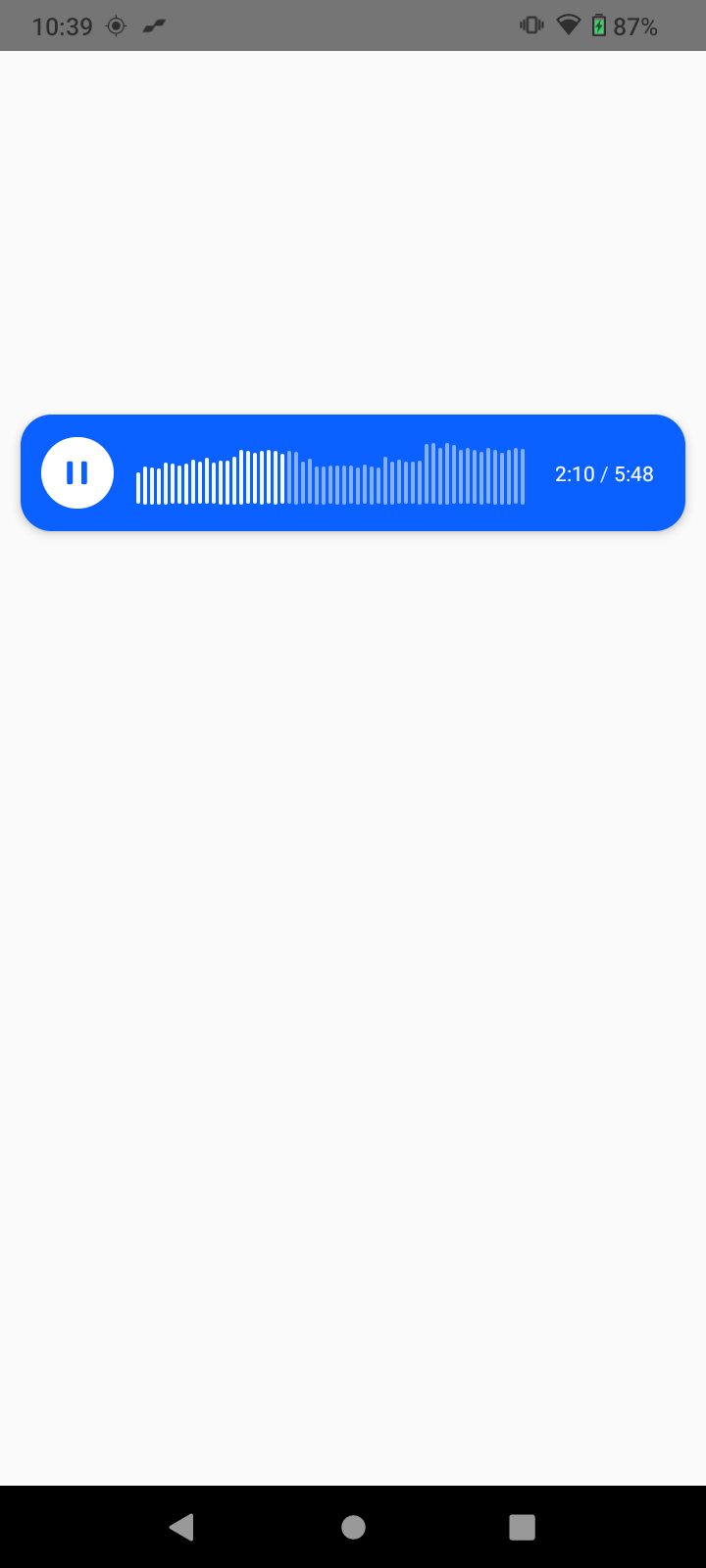

Android Screenshot

Android Screenshot

Installation

Prerequisites
  • React Native 0.71+
  • iOS 12.0+ / Android API 21+
  • For iOS: Xcode 14.0+
Install the package
yarn add @moeez12/react-native-audiowave
# or
npm install @moeez12/react-native-audiowave
iOS Setup

The following iOS frameworks need to be manually linked in Xcode:

  • CoreMedia.framework - Core media functionality
  • Accelerate.framework - High-performance vector and matrix operations
  • AudioToolbox.framework - Audio processing and playback
  • AVFoundation.framework - Audio/visual media handling
Manual Linking Steps:

  1. Open your iOS project in Xcode

    cd ios && open YourProject.xcworkspace

  2. Select your project target in the left sidebar

  3. Go to "General" tab → "Frameworks, Libraries, and Embedded Content"

  4. Click the "+" button and add each framework:

    • CoreMedia.framework
    • Accelerate.framework
    • AudioToolbox.framework
    • AVFoundation.framework

  5. Ensure "Embed & Sign" is selected for each framework

  6. Clean and rebuild your project

Android Setup

No additional configuration required for Android.

Usage

Basic Implementation
import React, { useState } from 'react';
import { View, StyleSheet } from 'react-native';
import AudioWaveform from '@moeez12/react-native-audiowave';

const App = () => {
  const [audioUrl, setAudioUrl] = useState('path/to/your/audio.mp3');

  return (
    <View style={styles.container}>
      <AudioWaveform
        audioUri={audioUrl}
        style={styles.waveform}
        onPlayStateChange={(state) => console.log('Playback:', state)}
      />
    </View>
  );
};

const styles = StyleSheet.create({
  container: {
    flex: 1,
    justifyContent: 'center',
    alignItems: 'center',
    backgroundColor: '#f5f5f5',
  },
  waveform: {
    width: '100%',
    height: 200,
  },
});
Advanced Configuration
<AudioWaveform
  audioUri="https://example.com/audio.mp3"
  style={styles.waveform}
  waveformColor="#007AFF"
  backgroundColor="#FFFFFF"
  progressColor="#34C759"
  onPlayStateChange={(state) => console.log('Playback:', state)}
  onError={(error) => {
    console.error('Audio error:', error);
  }}
/>

API Reference

Props
Prop Type Default Description
audioUri string Required URL or path to the audio file
style ViewStyle {} Custom styling for the waveform container
waveformColor string #007AFF Color of the waveform bars
backgroundColor string #FFFFFF Background color of the waveform
progressColor string #34C759 Color of the playback progress
onPlayStateChange function - Callback when playback state changes
onPositionChange function - Callback when position changes
onError function - Callback when audio errors occur

Performance

This library is built with Turbo Native Modules, providing:

  • Faster startup times compared to legacy bridge architecture
  • Reduced memory usage through efficient native communication
  • Better performance for audio processing and visualization
  • Synchronous method calls where possible
  • Optimized native code generation

Troubleshooting

Common Issues

  1. Audio not playing on iOS

    • Check that audio files are in supported formats (MP3, WAV, M4A)

  2. Waveform not rendering

    • Verify audio file path/URL is correct
    • Check console for error messages
    • Ensure audio file is accessible

  3. Build errors on iOS

    • Clean build folder: cd ios && rm -rf build && cd ..
    • Reinstall pods: cd ios && pod install && cd ..

License

This project is licensed under the MIT License - see the LICENSE file for details.

Support

Made with by Moeez Ahmad
