Skia Canvas is an implementation of the HTML Canvas drawing API that runs in Node.js on Mac, Linux, and Windows systems. Depending on your needs, you can use it as:
- A spec-compliant offscreen canvas: it accepts the same drawing code you'd write for a browser but can run on servers and in other ‘headless’ contexts to generate image files and buffers.
- A windowing toolkit: it can open native windows on macOS, Windows, and Linux with display-synced drawing and browser-inspired event handling.
- A JavaScript interface for the Skia graphics library: it uses familiar web APIs as a front-end to Google’s sophisticated imaging engine, rendering with high-performance native code (and optional GPU acceleration).
A More Capable Canvas
In addition to being a faithful emulation of the canvas standard, Skia Canvas includes a raft of extensions, adding 2D capabilities that reach well beyond what the browser’s <canvas> can do.
In particular, Skia Canvas can:
- generate images in vector (PDF & SVG) as well as bitmap (JPEG, PNG, WEBP, & RAW) formats
- save images to files, encode to dataURL strings, and return Buffers or Sharp objects
- create multiple ‘pages’ on a given canvas and output them as a multi-page PDF or an image-sequence saved to multiple files
- load PDFs & SVGs as scalable vector images or open a multi-page PDF as an editable canvas
- render in wide-gamut Display P3 color with CSS Color 4 syntax support
- slice & sample Path2D objects, combine them with boolean operators, and decompose them into contours, verbs, or points
- transform coordinates using 3D perspective in addition to scaling, rotation, and translation
- fill paths with vector-based Textures or bitmap Patterns and draw strokes with custom markers
- apply the full set of CSS filter image processing operators
- provide rich typographic control including:
- multi-line, word-wrapped text
- line-by-line text metrics
- small-caps, ligatures, and other opentype features accessible using standard font-variant syntax
- proportional letter-spacing, word-spacing, and leading
- support for variable fonts and automatic use of weight, width, and optical-sizing axes
- use of non-system fonts loaded from local files
- use native threads in a user-configurable worker pool for asynchronous rendering and file I/O
- render images server-side on standard Linux hosts and ‘serverless’ platforms like Vercel, Cloudflare Containers, and AWS Lambda
Installing Skia Canvas
If you’re running on a supported platform, installation should be as simple as:
npm install skia-canvasFor detailed installation instructions and runtime configuration options, take a look at the Getting Started page.
Example Usage
Skia Canvas's classes and extensions to the standard are extensively covered in the API Documentation. But to give you a sense of some of things you can achieve with it, here are some real-world examples:

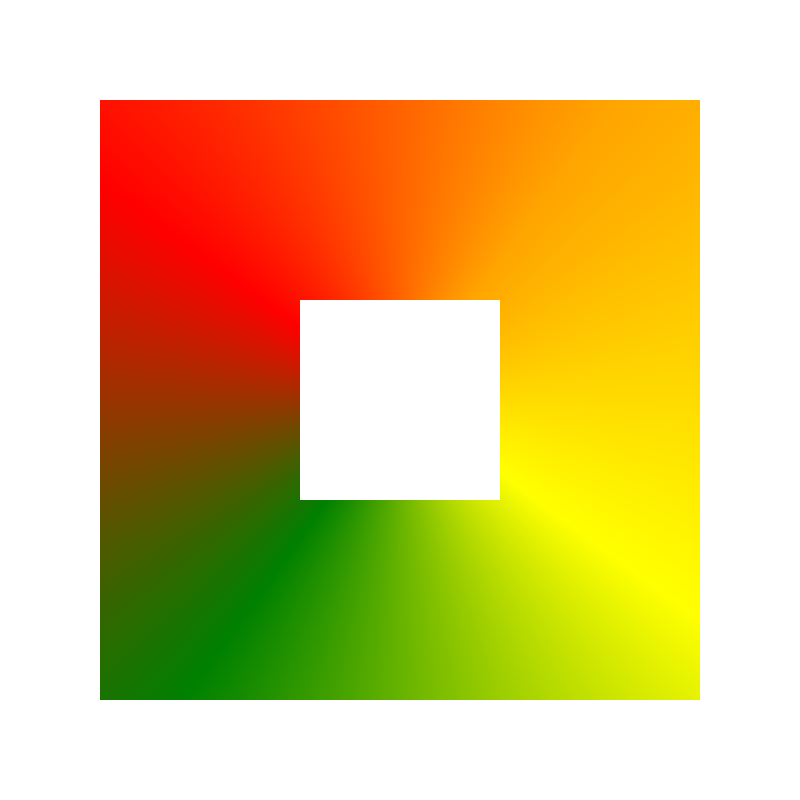

Generating image files
import {Canvas} from 'skia-canvas'
let canvas = new Canvas(400, 400),
ctx = canvas.getContext("2d"),
{width, height} = canvas;
// draw an empty box with a gradient at its edges
let sweep = ctx.createConicGradient(Math.PI * 1.2, width/2, height/2)
sweep.addColorStop(0, "red")
sweep.addColorStop(0.25, "orange")
sweep.addColorStop(0.5, "yellow")
sweep.addColorStop(0.75, "green")
sweep.addColorStop(1, "red")
ctx.strokeStyle = sweep
ctx.lineWidth = 100
ctx.strokeRect(100,100, 200,200)
// render to multiple destinations using a background thread...
await canvas.toFile("rainbox.png", {density:2}) // save a ‘retina’ image
let pngData = await canvas.png // use a shorthand for canvas.toBuffer("png")
let pngEmbed = `<img src="${await canvas.toURL("png")}">` // embed it in a string
// ...or save the file synchronously from the main thread
canvas.toFileSync("rainbox.pdf")Multi-page sequences
import {Canvas, loadCanvas} from 'skia-canvas'
let canvas = new Canvas(400, 400),
ctx = canvas.getContext("2d"), // leave first page blank
{width, height} = canvas
for (const color of ['orange', 'yellow', 'green', 'skyblue', 'purple']){
ctx = canvas.newPage() // add pages 2–6
ctx.fillStyle = color
ctx.fillRect(0,0, width, height)
ctx.fillStyle = 'white'
ctx.arc(width/2, height/2, 40, 0, 2 * Math.PI)
ctx.fill()
}
await canvas.toFile("page-{2}.png") // save to files named `page-01.png`, `page-02.png`, etc.
await canvas.toFile("all-pages.pdf") // save to a single multi-page PDF file
// the multi-page PDF can be read back in and even drawn upon
let multipage = await loadCanvas("all-pages.pdf")
for (let [i, pg] of multipage.pages.entries()){
pg.font = 'italic 12px serif'
pg.textAlign = 'center'
pg.textBaseline = 'middle'
pg.fillText(`p. ${i+1}`, multipage.width/2, multipage.height/2)
}
await multipage.toFile("all-pages-labeled.pdf")Rendering to a window

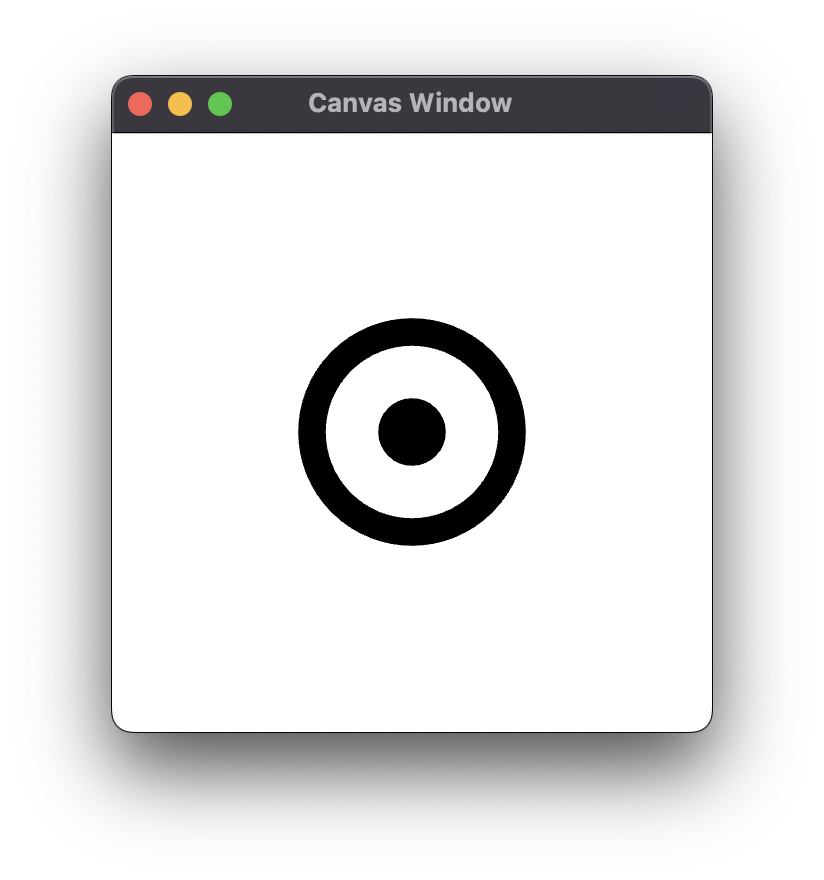

import {Window} from 'skia-canvas'
let win = new Window(300, 300)
win.title = "Canvas Window"
win.on("draw", e => {
let ctx = e.target.canvas.getContext("2d")
ctx.lineWidth = 25 + 25 * Math.cos(e.frame / 10)
ctx.beginPath()
ctx.arc(150, 150, 50, 0, 2 * Math.PI)
ctx.stroke()
ctx.beginPath()
ctx.arc(150, 150, 10, 0, 2 * Math.PI)
ctx.stroke()
ctx.fill()
})Wide-gamut colors
import {Canvas} from 'skia-canvas'
let pad = 16, size = 64, width = 4*size + 3*pad,
canvas = new Canvas(336, 240),
ctx = canvas.getContext("2d", {colorSpace:"display-p3"})
// CSS Color 4 syntax is supported everywhere (and colors can exceed the sRGB gamut)
for (let [p3, srgb] of [
["color(display-p3 1 0 0)", "#ff0000"], ["lch(75% 100 150)", "#00dc51"],
["lch(85% 80 170)", "#00f8b6"], ["color(display-p3 0 1 1)", "#00ffff"]
]){
ctx.fillStyle = p3 // wide gamut color
ctx.fillRect(pad, pad, size, size/2)
ctx.fillStyle = srgb // nearest sRGB equivalent
ctx.fillRect(pad, pad + size/2, size, size/2)
ctx.translate(size + pad, 0)
}
ctx.translate(-width, pad + size)
// gradients can select the color space used for interpolation
for (let {space, from, to, hue} of [
{space:"srgb", from:"navy", to:"gold"}, // perceptual midpoint is off-center
{space:"oklab", from:"navy", to:"gold"}, // Oklab stays perceptually uniform
{space:"oklch", from:"red", to:"red", hue:"longer"}, // full 360° from a single hue
]){
let ramp = ctx.createLinearGradient(0, pad, width, pad)
if (hue) ramp.hueInterpolationMethod = hue // only applies to angle-based spaces
ramp.colorInterpolationMethod = space
ramp.addColorStop(0, from)
ramp.addColorStop(1, to)
ctx.fillStyle = ramp
ctx.fillRect(0, pad, width, size/2)
ctx.translate(0, pad + size/2)
}
await canvas.toFile("test-pattern.png")Integrating with Sharp.js

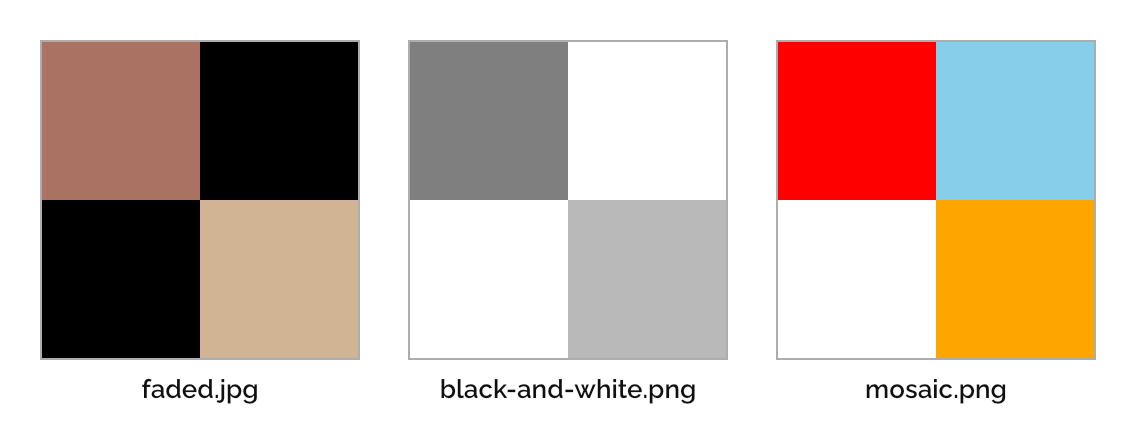

import sharp from 'sharp'
import {Canvas, loadImage} from 'skia-canvas'
let canvas = new Canvas(400, 400),
ctx = canvas.getContext("2d"),
{width, height} = canvas,
[x, y] = [width/2, height/2]
ctx.fillStyle = 'red'
ctx.fillRect(0, 0, x, y)
ctx.fillStyle = 'orange'
ctx.fillRect(x, y, x, y)
// Render the canvas to a Sharp object on a background thread then desaturate
await canvas.toSharp().modulate({saturation:.25}).jpeg().toFile("faded.jpg")
// Convert an ImageData to a Sharp object and save a grayscale version
let imgData = ctx.getImageData(0, 0, width, height, {matte:'white', density:2})
await imgData.toSharp().grayscale().png().toFile("black-and-white.png")
// Create an image using Sharp then draw it to the canvas as an Image object
let sharpImage = sharp({create:{ width:x, height:y, channels:4, background:"skyblue" }})
let canvasImage = await loadImage(sharpImage)
ctx.drawImage(canvasImage, x, 0)
await canvas.toFile('mosaic.png')Benchmarks
In these benchmarks, Skia Canvas is tested running in two modes: serial and async. When running serially, each rendering operation is awaited before continuing to the next test iteration. When running asynchronously, all the test iterations are begun at once and are executed in parallel using the library’s multi-threading support.
Startup latency
| Library | Per Run | Total Time (100 iterations) |
|---|---|---|
| canvaskit-wasm | 25 ms |
2.47 s  |
| canvas | 88 ms |
8.77 s  |
| @napi-rs/canvas | 69 ms |
6.87 s  |
| skia-canvas | <1 ms |
33 ms  |
Bezier curves
| Library | Per Run | Total Time (20 iterations) |
|---|---|---|
| canvaskit-wasm | 790 ms |
15.81 s  |
| canvas | 486 ms |
9.72 s  |
| @napi-rs/canvas | 230 ms |
4.60 s  |
| skia-canvas (serial) | 137 ms |
2.74 s  |
| skia-canvas (async) | 28 ms |
558 ms  |
SVG to PNG
Scale/rotate images
| Library | Per Run | Total Time (50 iterations) |
|---|---|---|
| canvaskit-wasm | 274 ms |
13.72 s  |
| canvas | 283 ms |
14.13 s  |
| @napi-rs/canvas | 112 ms |
5.60 s  |
| skia-canvas (serial) | 100 ms |
5.00 s  |
| skia-canvas (async) | 19 ms |
935 ms  |
Basic text
| Library | Per Run | Total Time (200 iterations) |
|---|---|---|
| canvaskit-wasm | 24 ms |
4.75 s  |
| canvas | 24 ms |
4.88 s  |
| @napi-rs/canvas | 19 ms |
3.83 s  |
| skia-canvas (serial) | 21 ms |
4.26 s  |
| skia-canvas (async) | 4 ms |
819 ms  |
Acknowledgements
This project is deeply indebted to the work of the Rust Skia project whose Skia bindings provide a safe and idiomatic interface to the mess of C++ that lies underneath. Many thanks to the developers of node-canvas for their terrific set of unit tests. In the absence of an Acid Test for canvas, these routines were invaluable.
Notable contributors
- @mpaparno contributed support for SVG rendering, raw image-buffer handling, WEBP import/export and numerous bug fixes
- @Salmondx developed the initial Raw image loading & rendering routines
- @lucasmerlin helped get GPU rendering working on Vulkan
- @cprecioso & @saantonandre corrected and expanded upon the TypeScript type definitions
- @meihuanyu contributed filter & path rendering fixes
