Frappe Gantt

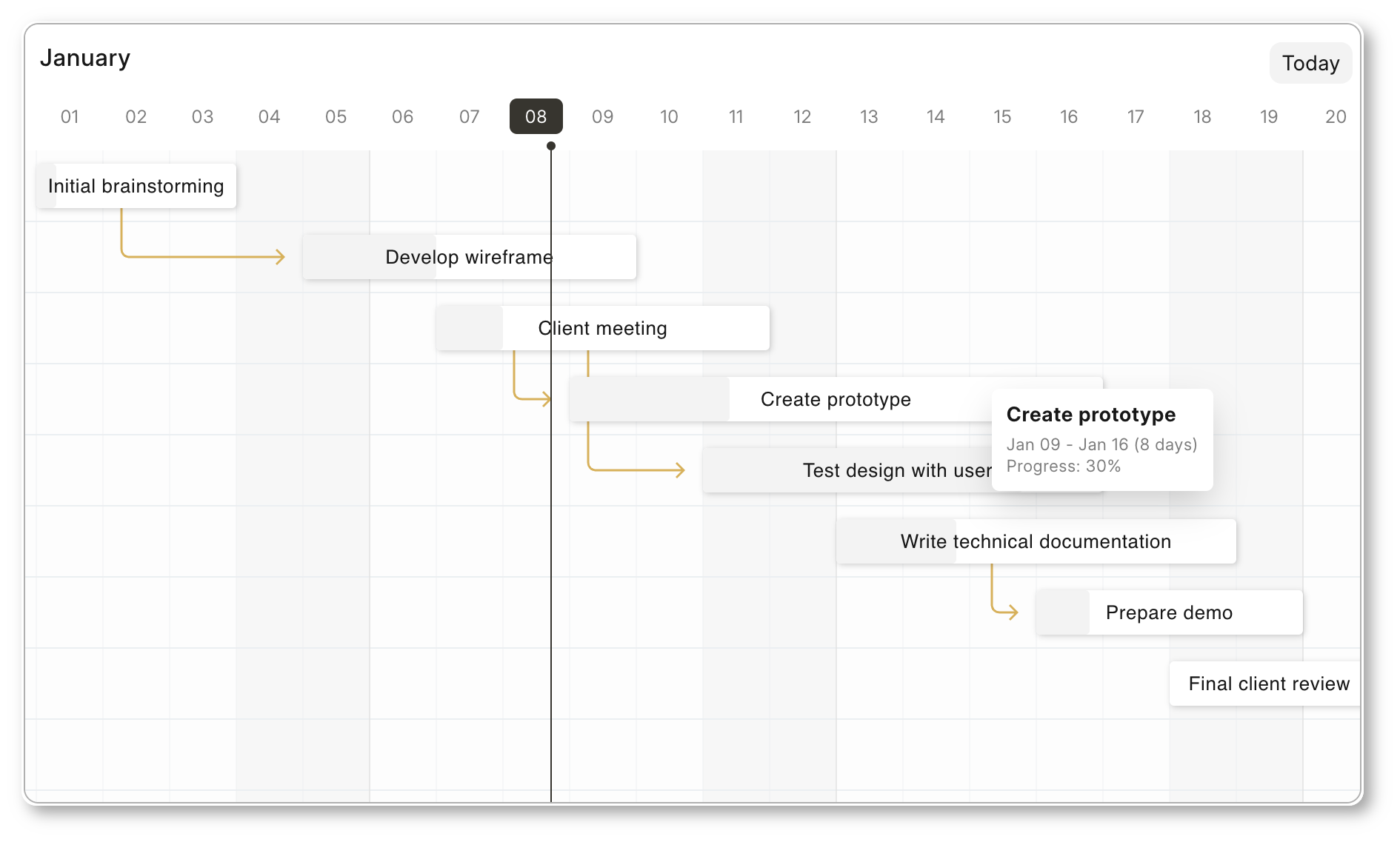

Gantt charts are bar charts that visually illustrate a project's tasks, schedule, and dependencies. With Frappe Gantt, you can build beautiful, customizable, Gantt charts with ease.

You can use it anywhere from hobby projects to tracking the goals of your team at the worksplace.

ERPNext uses Frappe Gantt.

Motivation

We needed a Gantt View for ERPNext. Surprisingly, we couldn't find a visually appealing Gantt library that was open source - so we decided to build it. Initially, the design was heavily inspired by Google Gantt and DHTMLX.

Key Features

• Customizable Views: customize the timeline based on various time periods - day, hour, or year, you have it. You can also create your own views.
• Ignore Periods: exclude weekends and other holidays from your tasks' progress calculation.
• Configure Anything: spacing, edit access, labels, you can control it all. Change both the style and functionality to meet your needs.
• Multi-lingual Support: suitable for companies with an international base.

Usage

Install with:

npm install frappe-gantt

Include it in your HTML:

<script src="frappe-gantt.umd.js"></script>
<link rel="stylesheet" href="frappe-gantt.css" />

Or from the CDN:

<script src="https://cdn.jsdelivr.net/npm/frappe-gantt/dist/frappe-gantt.umd.js"></script>
<link
    rel="stylesheet"
    href="https://cdn.jsdelivr.net/npm/frappe-gantt/dist/frappe-gantt.css"
/>

Start using Gantt:

let tasks = [
  {
    id: '1',
    name: 'Redesign website',
    start: '2016-12-28',
    end: '2016-12-31',
    progress: 20
  },
  ...
]
let gantt = new Gantt("#gantt", tasks);

// Use .refresh to update the chart
gantt.tasks.append(...)
gantt.tasks.refresh()

Each task object accepts an optional bar_label string. When defined (including an empty string) and the global show_bar_label option is true, the bar renders bar_label instead of name. Only null or undefined falls back to name. To hide bar labels entirely, set the show_bar_label option to false.

Configuration

Frappe Gantt offers a wide range of options to customize your chart.

v1.0.25 note: Bar labels are now controlled by the show_bar_label option (default true) rather than by task_column.enabled. To preserve the previous behaviour of hiding bar labels when the task column is enabled, pass show_bar_label: false explicitly.

Option	Description	Possible Values	Default
allow_dependency_creation	Enables interactive dependency creation by dragging between connector circles on task bars. When enabled, hovering a bar reveals circles at its start and end; drag from one circle to another to create a typed dependency.	true, false	true
arrow_curve	Curve radius of arrows connecting dependencies.	Any positive integer.	5
auto_move_label	Move task labels when user scrolls horizontally.	true, false	false
bar_corner_radius	Radius of the task bar corners (in pixels).	Any positive integer.	3
bar_height	Height of task bars (in pixels).	Any positive integer.	30
container_height	Height of the container.	auto - dynamic container height to fit all tasks - or any positive integer (for pixels).	auto
column_width	Width of each column in the timeline.	Any positive integer.	45
critical_path	Automatically calculate and highlight the critical path.	true, false	false
date_format	Format for displaying dates.	Any valid JS date format string.	YYYY-MM-DD
dependencies_type	Sets the default relationship type used to validate each arrow (turns it red on violation). Dragging is always free.	finish-to-start, start-to-start, finish-to-finish, start-to-finish	finish-to-start
dependency_shifting	Controls how dependent tasks shift after a bar is dropped. See Dependency Shifting section below.	none, maintain_buffer_all, maintain_buffer_downstream, consume_buffer	none
upper_header_height	Height of the upper header in the timeline (in pixels).	Any positive integer.	45
lower_header_height	Height of the lower header in the timeline (in pixels).	Any positive integer.	30
snap_at	Snap tasks at particular intervel while resizing or dragging.	Any interval (see below)	1d
infinite_padding	Whether to extend timeline infinitely when user scrolls.	true, false	true
holidays	Highlighted holidays on the timeline.	Object mapping CSS colors to holiday types. Types can either be a) 'weekend', or b) array of strings or date objects or objects in the format {date: ..., label: ...}	{ 'var(--g-weekend-highlight-color)': 'weekend' }
is_weekend	Determines whether a day is a weekend	Function	(d) => d.getDay() === 0 || d.getDay() === 6
ignore	Ignored areas in the rendering	weekend or Array of strings or date objects (weekend can be present to the array also).	[]
language	Language for localization.	ISO 639-1 codes like en, fr, es.	en
lines	Determines which grid lines to display.	none for no lines, vertical for only vertical lines, horizontal for only horizontal lines, both for complete grid.	both
padding	Padding around task bars (in pixels).	Any positive integer.	18
popup_on	Event to trigger the popup display.	click or hover	click
readonly_progress	Disables editing task progress.	true, false	false
readonly_dates	Disables editing task dates.	true, false	false
readonly	Disables all editing features.	true, false	false
scroll_to	Determines the starting point when chart is rendered.	today, start, end, or a date string.	today
show_bar_label	Whether to render the text label inside each task bar. When true, label text comes from task.bar_label when defined (including empty string), otherwise from task.name.	true, false	true
show_expected_progress	Shows expected progress for tasks.	true, false	false
task_add_icon_position	Position of the add task icon relative to task bar.	null (hidden), 'before', 'after'	null
today_button	Adds a button to navigate to today's date.	true, false	true
view_mode	The initial view mode of the Gantt chart.	Day, Week, Month, Year.	Day
view_mode_select	Allows selecting the view mode from a dropdown.	true, false	false

Apart from these ones, two options - popup and view_modes (plural, not singular) - have additional details and are listed separately below. dependencies_type is also described in more detail in the Dependencies Type section below.

Dependencies Type Configuration

The dependencies_type option controls how dependent tasks behave when their parent tasks are moved. This is set globally and can be overridden per dependency entry (see the task dependencies format below).

Available Types:

• finish-to-start (default): Most common in project management. The dependent task can only start after the parent finishes.

  • Constraint: Dependent start date ≥ Parent end date
  • Example: Development can only start after Design finishes

• start-to-start: The dependent task can only start after the parent starts.

  • Constraint: Dependent start date ≥ Parent start date
  • Example: Testing can start after Development starts (parallel work)

• finish-to-finish: The dependent task can only finish after the parent finishes.

  • Constraint: Dependent end date ≥ Parent end date
  • Example: Documentation must finish after Development finishes

• start-to-finish: The dependent task can only finish after the parent starts (rare).

  • Constraint: Dependent end date ≥ Parent start date
  • Example: Legacy system runs until new system starts

Usage:

// Global configuration (fallback for all dependencies)
let gantt = new Gantt("#gantt", tasks, {
    dependencies_type: 'finish-to-start'
});

// Per-dependency override via the dependencies array
let tasks = [
    {
        id: 'design',
        name: 'Design',
        start: '2023-01-01',
        end: '2023-01-05'
    },
    {
        id: 'dev',
        name: 'Development',
        start: '2023-01-05',
        end: '2023-01-15',
        dependencies: [
            { id: 'design', type: 'finish-to-start' } // Overrides global setting
        ]
    }
];

Behavior:

• Dragging is always free — tasks can be moved to any position
• When a dependency constraint is violated, the arrow turns red
• Each arrow is validated independently based on its own type
• Constraints respect ignored dates/weekends

Dependency Shifting Configuration

The dependency_shifting option controls how dependent tasks respond when a bar is dragged or resized.

Available Modes:

• none (default): No shifting. Dependency arrows may visually overlap — no correction is applied.

• maintain_buffer_all: Shifts tasks by the same delta to preserve all gaps. Direction depends on the interaction:

  • Drag: both upstream and downstream tasks shift
  • Right-resize (end date changes): downstream tasks shift
  • Left-resize (start date changes): upstream tasks shift

• maintain_buffer_downstream: Only downstream (child) tasks ever shift — regardless of whether the bar was dragged or resized. Left-resize does nothing.

• consume_buffer: Dependency-type-aware shifting. A shift only happens when a real conflict exists — remaining buffer is consumed silently. When buffer is exhausted, the minimum required shift is applied. Direction follows the same rules as maintain_buffer_all (drag → both, right-resize → downstream, left-resize → upstream).

  Conflict conditions per dependency type:

  Type	Conflict when
  finish-to-start	predecessor end > successor start
  start-to-start	predecessor start > successor start
  finish-to-finish	predecessor end > successor end
  start-to-finish	predecessor start > successor end

Usage:

let gantt = new Gantt("#gantt", tasks, {
    dependency_shifting: 'consume_buffer'
});

Behavior notes:

• Shifting fires after release (mouseup), not during live dragging or resizing
• When a task has multiple predecessors, the maximum required shift is applied (ensures all constraints are satisfied)
• Cycles in the dependency graph are safely skipped

View Mode Configuration

The view_modes option determines all the available view modes for the chart. It should be an array of objects.

Each object can have the following properties:

• name (string) - the name of view mode.
• padding (interval) - the time above.
• step - the interval of each column
• lower_text (date format string or function) - the format for text in lower header. Blank string for none. The function takes in currentDate, previousDate, and lang, and should return a string.
• upper_text (date format string or function) - the format for text in upper header. Blank string for none. The function takes in currentDate, previousDate, and lang, and should return a string.
• upper_text_frequency (number) - how often the upper text has a value. Utilized in internal calculation to improve performance.
• thick_line (function) - takes in currentDate, returns Boolean determining whether the line for that date should be thicker than the others.

Three other options allow you to override general configuration for this view mode alone:

• date_format
• column_width
• snap_at For details, see the above table.

Popup Configuration

popup is a function. If it returns

• false, there will be no popup.
• undefined, the popup will be rendered based on manipulation within the function
• a HTML string, the popup will be that string.

The function receives one object as an argument, containing:

• task - the task as an object
• chart - the entire Gantt chart
• get_title, get_subtitle, get_details (functions) - get the relevant section as a HTML node.
• set_title, set_subtitle, set_details (functions) - take in the HTML of the relevant section
• add_action (function) - accepts two parameters, html and func - respectively determining the HTML of the action and the callback when the action is pressed.

Events

Frappe Gantt provides event callbacks to respond to user interactions:

Event	Description	Parameters
on_click	Triggered when a task bar is clicked.	task - the task object
on_double_click	Triggered when a task bar is double-clicked.	task - the task object
on_date_change	Triggered while dragging a task (called multiple times during drag).	task, start (Date), end (Date)
on_after_date_change	Triggered after dropping a task, for parent and all affected children.	task, start (Date), end (Date)
on_progress_change	Triggered when task progress is changed.	task, progress (number)
on_view_change	Triggered when the view mode changes.	mode (string)
on_hover	Triggered when hovering over a task.	task, screenX, screenY, event
on_task_add	Triggered when the add task icon is clicked.	task - the parent task object
on_arrow_click	Triggered when a dependency arrow is clicked (activated). Clicking the same arrow again or clicking outside deselects it — deselection does not re-fire this event.	from_task, to_task — the connected task objects
on_dependency_create	Triggered when a new dependency is created via interactive linking (no prior connection between the two tasks).	from_task, to_task, type — the dependency type string (e.g. 'finish-to-start')
on_dependency_changed	Triggered when an existing dependency between two tasks is replaced with a different type.	from_task, to_task, old_type, new_type
on_dependency_delete	Triggered when a dependency is removed — either by pressing Delete/Backspace while an arrow is active, or by re-connecting the same two tasks with the same type (toggle off).	from_task, to_task, type

Arrow Active State

Hovering over a dependency arrow highlights it and its connected bars, and shows a small badge near the destination bar indicating the dependency type (FS, SS, FF, or SF).

Clicking an arrow puts it into an active state — the highlight and badge persist even after the mouse moves away.

• Hover → highlights arrow and connected bars, shows dependency type badge
• Click an arrow or its badge → activates it, fires on_arrow_click, badge stays visible
• Click the same arrow again → deactivates (toggle off), no callback
• Click a different arrow → deactivates the previous, activates the new one
• Click anywhere outside (including outside the SVG) → deactivates

Example:

let gantt = new Gantt("#gantt", tasks, {
    on_arrow_click: (from_task, to_task) => {
        console.log(`Dependency: ${from_task.id} → ${to_task.id}`);
    }
});

Interactive Dependency Linking

When allow_dependency_creation is true (the default), hovering over any task bar reveals connector circles at its start (green) and end (orange). Drag from one circle to a circle on a different bar to create a dependency between them.

The dependency type is determined automatically by which circles are connected:

From endpoint	To endpoint	Type created
End	Start	finish-to-start
Start	Start	start-to-start
End	End	finish-to-finish
Start	End	start-to-finish

Behaviors:

• Only one dependency between any two tasks is stored at a time. If the two tasks are already linked, dragging replaces the old type with the new one.
• Dragging from one task to itself is ignored.
• If you re-connect the same two tasks with the same type, the dependency is toggled off (removed).
• Dependency creation is disabled when readonly: true.

Deleting a dependency:

1. Click a dependency arrow to activate it (it stays highlighted).
2. Press Delete or Backspace — the arrow and its underlying dependency are removed.

let gantt = new Gantt("#gantt", tasks, {
    allow_dependency_creation: true,
    on_dependency_create: (from_task, to_task, type) => {
        console.log(`Created: ${from_task.id} → ${to_task.id} (${type})`);
    },
    on_dependency_changed: (from_task, to_task, old_type, new_type) => {
        console.log(`Changed: ${from_task.id} → ${to_task.id} (${old_type} → ${new_type})`);
    },
    on_dependency_delete: (from_task, to_task, type) => {
        console.log(`Deleted: ${from_task.id} → ${to_task.id} (${type})`);
    }
});

Example:

let gantt = new Gantt("#gantt", tasks, {
    on_date_change: (task, start, end) => {
        console.log('Task is being dragged:', task.name);
    },
    on_after_date_change: (task, start, end) => {
        console.log('Task dropped:', task.name, 'New dates:', start, end);
        // Perfect place to save changes to your backend
        // This event fires for the dragged task and all dependents that moved
    },
    on_task_add: (task) => {
        console.log('Add task button clicked for:', task.name);
        // Handle adding a new task relative to this task
        // You can use the task parameter to determine where to add the new task
    },
    task_add_icon_position: 'after' // Show plus icon after each task bar
});

API

Frappe Gantt exposes a few helpful methods for you to interact with the chart:

Name	Description	Parameters
.update_options	Re-renders the chart after updating specific options.	new_options - object containing new options.
.change_view_mode	Updates the view mode.	view_mode - Name of view mode or view mode object (see above) and maintain_pos - whether to go back to current scroll position after rerendering, defaults to false.
.scroll_current	Scrolls to the current date	No parameters.
.update_task	Re-renders a specific task bar alone	task_id - id of task and new_details - object containing the task properties to be updated.

Development Setup

If you want to contribute enhancements or fixes:

1. Clone this repo.
2. cd into project directory.
3. Run pnpm i to install dependencies.
4. pnpm run build to build files - or pnpm run build-dev to build and watch for changes.
5. Open index.html in your browser.
6. Make your code changes and test them.
