AI Gauge

Real-time usage monitor for Claude Code, OpenCode and OpenAI Codex. Tracks rate limits with countdown timers and desktop notifications.
Runs on Linux (Waybar) and macOS (native menubar app).

✦ 44% 2h31m · 15%w

Features

• Waybar module (Linux) — live 5-hour %, weekly %, reset countdown in your status bar
• Native menubar app (macOS) — Swift MenuBarExtra, same data in your menu bar
• Desktop notifications — alert at 80% usage, auto-clear below 50%
• Right-click menu — refresh, copy stats, change plan / token source with checkmarks (macOS), open settings
• StreamDock plugin — usage stats on a physical key (Fifine AmpliGame D6)
• Multiple token sources — Claude Code CLI, OpenCode, or OpenAI Codex CLI
• OpenCode tri-mode — when OpenCode has Anthropic, OpenAI, and/or GitHub Copilot OAuth logins, the tooltip shows all three providers' usage side-by-side in a single view
• Codex JSONL fallback — if chatgpt.com/wham/usage is unreachable, parses ~/.codex/sessions/*.jsonl for the latest rate-limit snapshot
• WebSocket architecture — one server broadcasts to all clients in real time
• systemd / launchd service — starts on login, auto-restarts on failure
• Zero dependencies — runs on Bun, no npm packages

Why ai-gauge?

A few other tools do similar things. Which one fits depends on what you actually need, so here's an honest side-by-side.

Where ai-gauge is unique

• The only tool with a native macOS menubar app (Swift, no Electron, no browser window)
• Multi-provider unified view: Claude and Codex usage in a single tooltip when using OpenCode
• StreamDock plugin for physical hardware key display
• Provider registry covers Z.ai, MiniMax, OpenRouter, Komilion and others beyond the big two

Where competitors are stronger

• NihilDigit/waybar-ai-usage is the right pick if you want browser-cookie auth (no credential files to manage, works with Chrome/Firefox sessions out of the box)
• komagata/ai-quota-waybar is the right pick if you use Gemini CLI and want a zero-dependency pure Bash solution with no Bun requirement
• andresreibel/ClaudeBar has a clean click-to-toggle UX between Claude and Codex and handles 429 backoff gracefully with cached payloads

LLM Agent Install

Read and follow the installation guide:
https://raw.githubusercontent.com/merely04/ai-gauge/master/docs/LLM_INSTALL.md

Install

bun add -g ai-gauge
ai-gauge setup

To uninstall:

ai-gauge uninstall
bun remove -g ai-gauge

Linux: requires Bun and a desktop with Waybar (Hyprland, Sway, or any wlroots compositor).

macOS: requires Bun and macOS 13+. ai-gauge setup installs a native Swift menubar app and a launchd LaunchAgent instead of Waybar and systemd.

Note: GitHub Releases do not ship a standalone .app download. The macOS menubar app is a UI client only — it requires the ai-gauge-server daemon which lives inside the npm package and is configured by ai-gauge setup. Always install via bun add -g ai-gauge.

macOS Gatekeeper — if the menubar icon doesn't appear

The .app bundle is ad-hoc signed (not notarized with an Apple Developer ID). ai-gauge setup automatically runs xattr -dr com.apple.quarantine to let macOS launch it, but a few edge cases may still trigger "cannot verify developer":

xattr -dr com.apple.quarantine "$(bun pm -g bin)/../lib/node_modules/ai-gauge/bin/AIGauge.app"
launchctl bootout gui/$(id -u)/com.ai-gauge.menubar 2>/dev/null
launchctl bootstrap gui/$(id -u) ~/Library/LaunchAgents/com.ai-gauge.menubar.plist

xattr -l "$(bun pm -g bin)/../lib/node_modules/ai-gauge/bin/AIGauge.app/Contents/MacOS/AIGauge"

What it shows

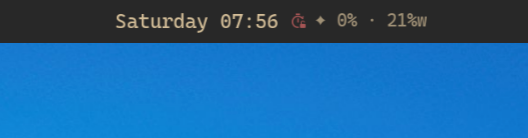

Bar: ✦ <5h%> <countdown> · <weekly%>w

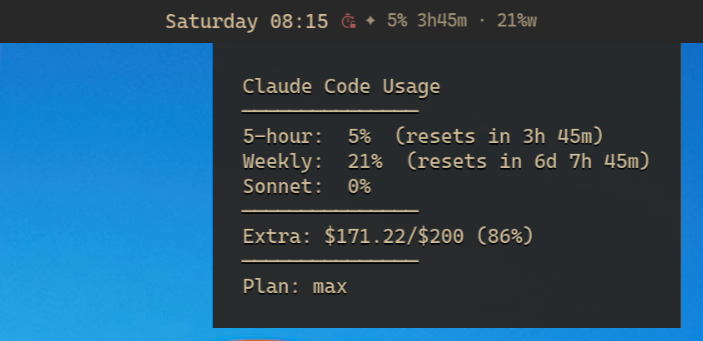

Tooltip (hover):

Claude Code Usage
───────────────
5-hour:  44%  (resets in 2h 31m)
Weekly:  15%  (resets in 6d 17h 54m)
Sonnet:  0%
───────────────
Extra: $171.22/$200 (86%)

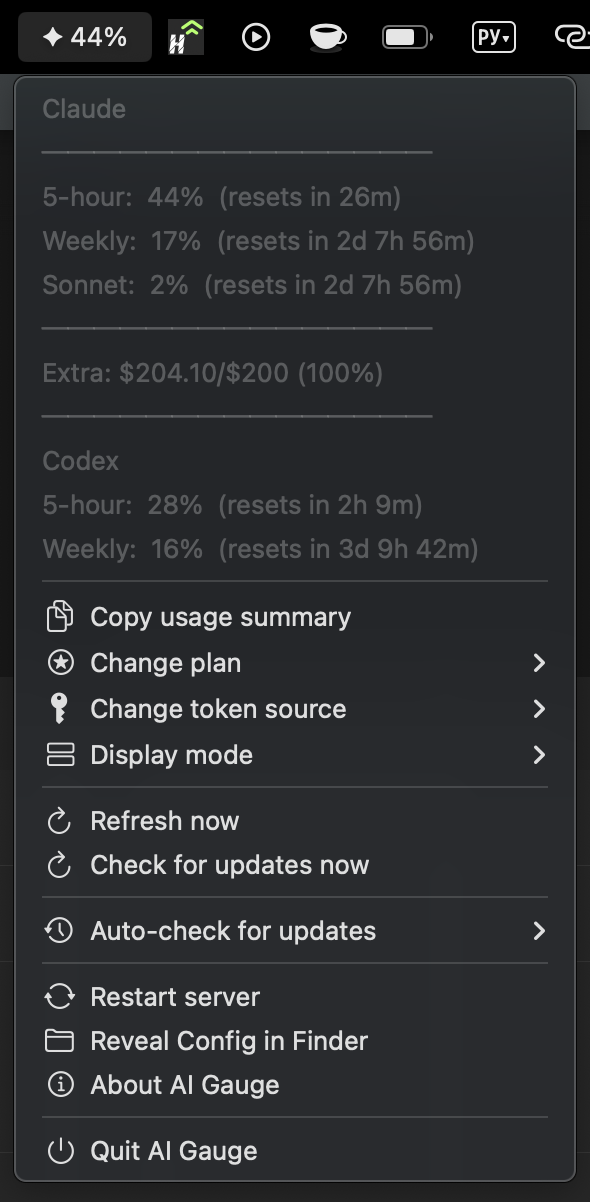

When tokenSource: opencode and your OpenCode auth file carries any combination of Anthropic, OpenAI, and GitHub Copilot OAuth logins, the tooltip shows all of them side-by-side in a single view:

Claude
───────────────
5-hour:  31%  (resets in 2h 29m)
Weekly:  16%  (resets in 2d 9h 59m)
Sonnet:   2%  (resets in 2d 9h 59m)
───────────────
Extra: $204.10/$200 (100%)
───────────────
Codex
5-hour:  24%  (resets in 4h 12m)
Weekly:  15%  (resets in 3d 11h 44m)
───────────────
GitHub Copilot
Plan:    pro
Premium: 50%  (150/300)
Resets:  in 3d 12h

OpenCode logs into Copilot via Device Flow OAuth (opencode auth login github-copilot), storing the gho_* token in ~/.local/share/opencode/auth.json. ai-gauge picks it up automatically — no extra configuration needed when tokenSource: opencode.

The current plan and token source are reflected as checkmarks in the submenu (macOS) and in the Linux tooltip footer.

States:

macOS — Native Menu Bar

Same data, native Mac UI. Lives in the menu bar (no Dock icon thanks to LSUIElement).

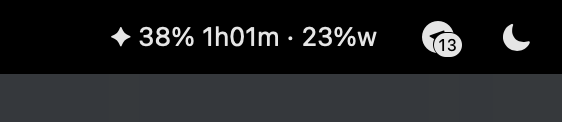

In the menu bar:

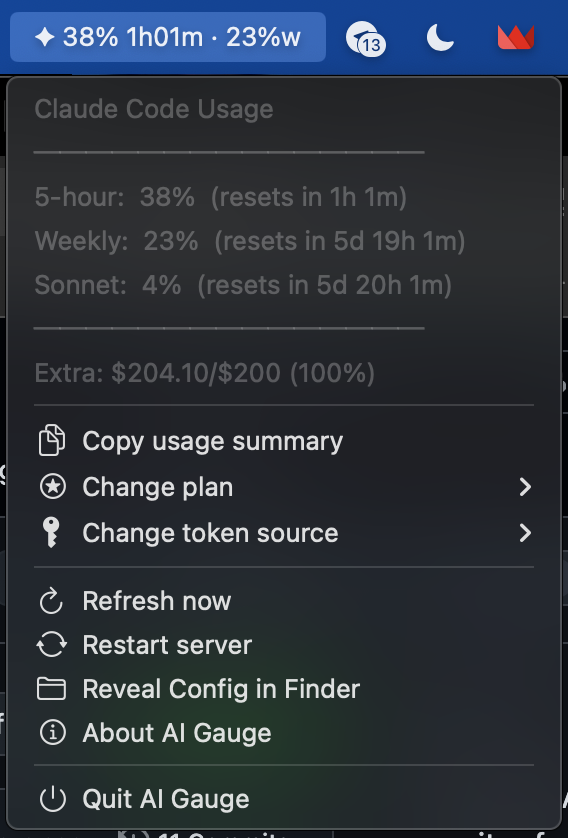

Click to open the full menu — usage breakdown on top, actions below:

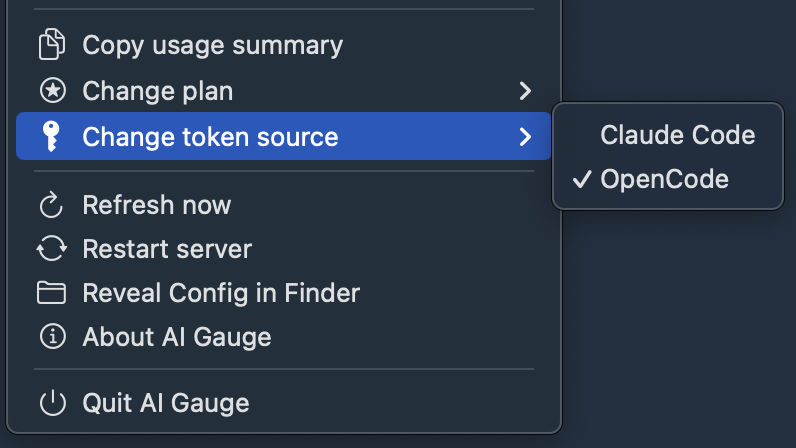

Submenus show current selection with a checkmark — change plan or token source on the fly:

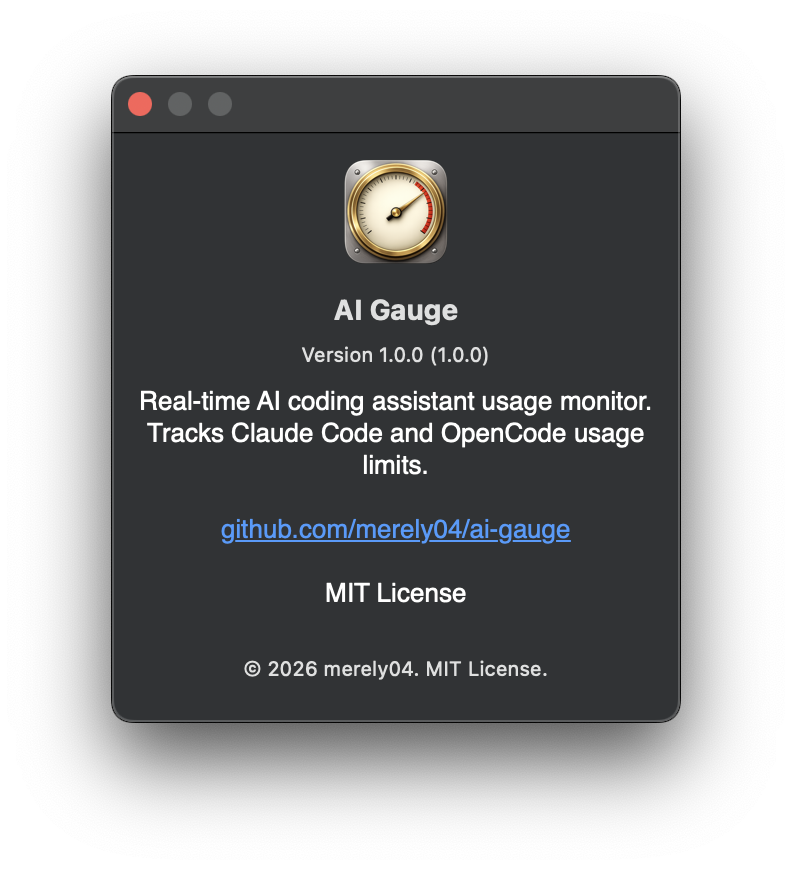

About panel — standard macOS About with version, license, GitHub link:

Menu (right-click on Linux, click on macOS):

• Copy usage summary (clipboard)
• Raw data (clipboard)
• Token source: <current> ▸ (Linux: direct one-click to source selection with checkmarks)
• Plan: <current> ▸ (Linux: direct one-click to plan selection with checkmarks)
• Display mode: <current> ▸ (inline submenu)
• Change plan ▸ (macOS submenu — current marked with ✓)
• Change token source ▸ (macOS submenu — current marked with ✓)
• Settings (advanced configuration)
• ↻ Refresh now
• Restart server
• Reveal Config in Finder (macOS) / Open settings (Linux)
• About AI Gauge (macOS — shows version, license, GitHub link)
• Quit

Configuration

Config file: ~/.config/ai-gauge/config.json

{"tokenSource": "claude-code", "plan": "max"}

On first install, ai-gauge setup auto-detects which token source to use by checking which credential files exist:

1. OpenCode (~/.local/share/opencode/auth.json on Linux, ~/Library/Application Support/opencode/auth.json on macOS)
2. Pi (~/.pi/agent/auth.json)
3. OpenAI Codex (~/.codex/auth.json or $CODEX_HOME/auth.json)
4. Claude Code (Keychain on macOS, ~/.claude/.credentials.json on Linux)

If multiple sources exist, the most recently modified one wins (with fixed priority opencode > pi > codex > claude-code as a tiebreaker). Auto-detect runs only on first install — subsequent ai-gauge setup runs preserve your existing choice.

To switch later, use the menu (macOS submenu / Linux right-click → " Token source") or CLI:

ai-gauge-config set tokenSource opencode

Change settings via menu (macOS submenu / Linux walker UI) or CLI (works on both):

ai-gauge-config set tokenSource opencode
ai-gauge-config set plan max
ai-gauge-config get

GitHub Copilot

ai-gauge can monitor your Copilot monthly premium-request quota for Individual plans (Free, Pro, Pro+).

# Works with default gh storage (Keychain on macOS, Secret Service on Linux, or --insecure-storage plaintext)
gh auth login
ai-gauge-config set tokenSource github
systemctl --user restart ai-gauge-server   # Linux
# macOS: launchctl kickstart -k gui/$(id -u)/com.ai-gauge.server

ai-gauge calls gh auth token --hostname github.com at each poll, so any gh storage backend (Keychain on macOS, Secret Service on Linux, or --insecure-storage plaintext) works out of the box.

Headless / CI mode: If gh binary is unavailable, copy a gho_* OAuth token (obtained via gh auth token --hostname github.com on a workstation) into ~/.config/ai-gauge/copilot-token (single-line plain text file). The daemon falls back to this file when both Tier 1 (shell-out) and Tier 2 (hosts.yml plaintext) fail.

Important — PAT compatibility: Classic Personal Access Tokens (ghp_*) and fine-grained PATs (github_pat_*) do not work for Copilot quota monitoring — the /copilot_internal/v2/token endpoint requires the OAuth token (gho_*) issued by gh auth login. ai-gauge will reject any other token format with a clear error log.

Limitations: v1 supports Individual plans only (Free/Pro/Pro+). Business/Enterprise quotas deferred to v1.1. GitHub Enterprise Server not supported. Multi-account gh CLI uses first github.com: block only.

Note: ai-gauge mirrors official VS Code Copilot extension headers to authenticate the internal API. If GitHub changes their internal API contract, ai-gauge may break temporarily — please file an issue.

OpenAI Codex (ChatGPT subscription)

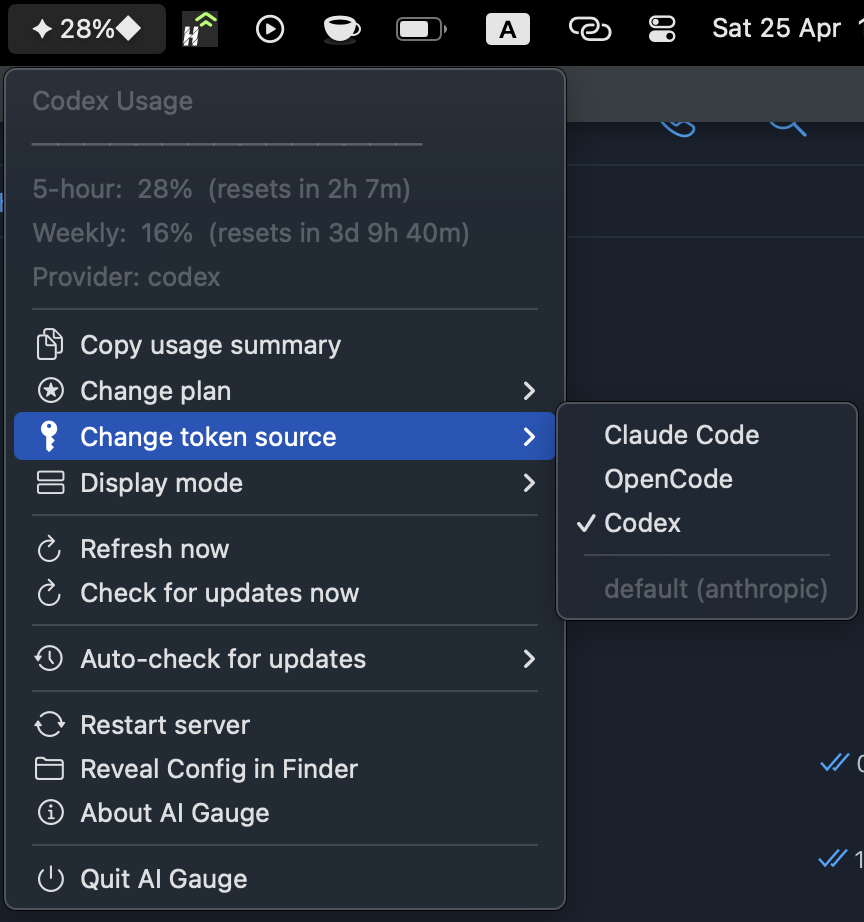

ai-gauge can monitor Codex CLI usage from a ChatGPT Plus / Pro / Business / Enterprise / Edu subscription.

# Make sure Codex CLI is logged in (if you haven't already):
codex auth login

# Tell ai-gauge to read from ~/.codex/auth.json:
ai-gauge-config set tokenSource codex

The daemon will fetch https://chatgpt.com/backend-api/wham/usage (the same endpoint Codex CLI itself uses) once a minute. The tooltip then shows 5-hour and weekly windows, plus the code-review window and credit balance when present.

Note: /wham/usage is an undocumented internal endpoint. We mirror Codex CLI's headers (Authorization: Bearer ..., ChatGPT-Account-Id: ..., User-Agent: codex_cli_rs/...). If the endpoint changes upstream, ai-gauge falls back to parsing ~/.codex/sessions/YYYY/MM/DD/rollout-*.jsonl for the latest token_count event so you still see something.

codex requirements

• Codex CLI installed and logged in (codex will create ~/.codex/auth.json on first login)
• Credentials stored in file mode — the default. If you set cli_auth_credentials_store: "macOS_keychain" in ~/.codex/config.toml, ai-gauge cannot read your tokens (background launchd agents can't show interactive Keychain prompts) and will degrade to JSONL session parsing.
• Plain OpenAI API keys (sk-...) are not supported — the /wham/usage endpoint requires the OAuth access_token from codex auth login.

Pi Coding Agent

ai-gauge can monitor usage from Pi (badlogic/pi-mono), a multi-provider coding agent that stores credentials in ~/.pi/agent/auth.json.

# Make sure Pi is logged in (pi auth login or equivalent)
ai-gauge-config set tokenSource pi

Pi's auth.json is a provider-keyed object. ai-gauge maps each supported block to an existing provider adapter:

Unsupported blocks (e.g. ollama-cloud, synthetic) are skipped gracefully.

Primary provider selection is hybrid: if ~/.pi/agent/settings.json has a defaultProvider that maps to a supported block with usable credentials, that provider is used. Otherwise the daemon falls back to fixed priority [anthropic, codex, zai, openrouter]. (defaultModel is not used for routing.)

The broadcast uses the same 3-slot layout as OpenCode: primary usage in rateLimits/balance, the next-highest supported provider in secondary, and Copilot quota in copilot. Expired OAuth tokens are reported and skipped — no automatic refresh.

Ollama Cloud

ai-gauge can monitor your Ollama Cloud session and weekly usage. Ollama Cloud has no usage API — ai-gauge scrapes the authenticated web dashboard instead.

Credential: a browser session cookie stored in ~/.config/ai-gauge/ollama-cookie (single line, full Cookie: header value).

How to get the cookie:

1. Log in at https://ollama.com/settings
2. Open DevTools → Network tab → reload the page
3. Click the settings document request → Request Headers → copy the entire Cookie: value

Alternatively: DevTools → Application → Cookies → ollama.com → copy __Secure-session (required) and cf_clearance (may be needed to pass Cloudflare).

# Paste the cookie value into the file (single line, no trailing newline needed)
echo 'aid=…; cf_clearance=…; __Secure-session=…' > ~/.config/ai-gauge/ollama-cookie

ai-gauge-config set tokenSource ollama-cloud
systemctl --user restart ai-gauge-server   # Linux
# macOS: launchctl kickstart -k gui/$(id -u)/com.ai-gauge.server

The daemon fetches https://ollama.com/settings with your cookie and a browser User-Agent, parses the HTML for session and weekly usage percentages, and maps them to five_hour and seven_day — so waybar and the menubar render Ollama Cloud exactly like any other provider.

Caveats:

• The session cookie expires periodically. When it does, ollama.com returns a 302 redirect, which the daemon rejects gracefully — you'll see an empty/cached broadcast rather than a crash. Re-extract the cookie to restore data.
• The HTML parser is pinned to the current ollama.com DOM. If the page structure changes, usage data degrades to empty rather than crashing.
• ollama-cloud is not auto-detected at setup — you must place the cookie file manually before switching to this token source.
• No OAuth or automatic token refresh.

Using a Different Claude Provider

You can monitor usage from alternative Claude API providers by creating a settings file in ~/.claude/:

# Create a settings file for your provider
cat > ~/.claude/settings.myprovider.json << 'EOF'
{
  "env": {
    "ANTHROPIC_BASE_URL": "https://api.yourprovider.com/anthropic",
    "ANTHROPIC_AUTH_TOKEN": "your-token-here"
  }
}
EOF

# Set it as your token source
ai-gauge-config set tokenSource claude-settings:myprovider

Then restart the server: systemctl --user restart ai-gauge-server (Linux) or launchctl kickstart -k gui/$(id -u)/com.ai-gauge.server (macOS).

Supported Providers

Notes

• Anthropic API keys (sk-ant-*) cannot fetch usage via this tool. The usage endpoint requires OAuth tokens (from Claude Code CLI or OpenCode). Settings files with a plain Anthropic API key will show the source as unknown with no quota data.
• Packy has no public balance API. Selecting it will show the provider name but no usage data.
• File names must match [a-zA-Z0-9_][a-zA-Z0-9_.-]* (e.g. settings.z.json, settings.mywork.json).
• settings.local.json is excluded from discovery (reserved for local overrides).

Update Notifications

ai-gauge automatically checks for updates every 24 hours (with a 30-second initial delay after startup) and notifies you via the menubar/waybar.

What you'll see

macOS: An orange dot appears in the menu bar icon. Click to open the menu — an "Update to vX.Y.Z" item appears at the top. Click it to update. You'll also get a native notification.

Linux (Waybar): The waybar text gains a suffix and turns yellow (update-available CSS class). Use the right-click menu → " Update to vX.Y.Z" to trigger the update.

If the automatic update fails (e.g., due to permissions), the install command is copied to your clipboard.

Manual check

• macOS: Menu → "Check for updates now"
• Linux: Right-click menu → " Check for updates"
• CLI: echo '{"type":"checkUpdate"}' | bun lib/send-ws.js

Disable update checks

Permanently (per-machine):

ai-gauge-config set autoCheckUpdates false

Session: Set NO_UPDATE_NOTIFIER=1 in the environment before starting the daemon.

CI environments: Update checks are automatically skipped when any of these env vars are set: CI, CONTINUOUS_INTEGRATION, GITHUB_ACTIONS, GITLAB_CI, CIRCLECI, JENKINS_HOME, BUILDKITE, DRONE, TRAVIS.

Testing / development env vars (not for production use):

Dismiss a specific version

To silence a specific version without disabling checks entirely:

echo '{"type":"dismissUpdate","version":"2.0.0"}' | bun lib/send-ws.js

The notification is suppressed until a newer version appears or you run:

echo '{"type":"undismissUpdate"}' | bun lib/send-ws.js

Running without a service manager (Docker, minimal Linux)

ai-gauge is designed around systemd (Linux) and launchd (macOS). After a successful update, the daemon calls process.exit(0) and relies on the service manager to restart it.

If you run the daemon in an environment without a service manager — e.g. a Docker container, tmux session, or PID 1 of a minimal Linux install — the process will terminate on update and not come back automatically. Either:

• Disable auto-update: ai-gauge-config set autoCheckUpdates false
• Wrap the daemon in your own restart loop (supervisord, runit, while true; do ai-gauge-server; sleep 1; done)

The update still works in the sense that the new version is installed via npm/bun/pnpm, but the running process is not replaced until you manually start it again.

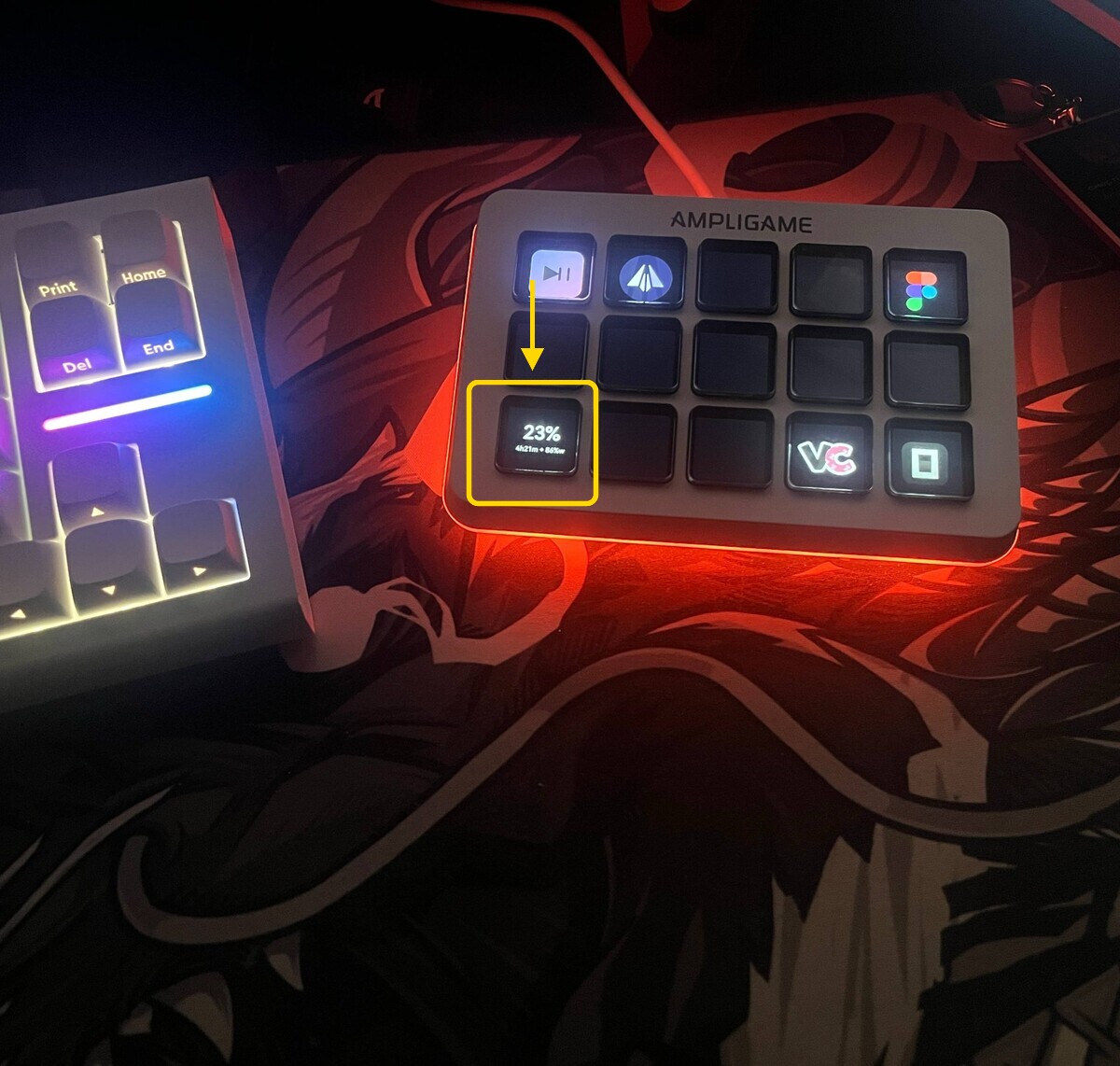

StreamDock (Fifine D6)

The plugin shows usage stats on a physical key of the Fifine AmpliGame D6 stream controller.

Requirements: Fifine D6 + StreamDock app running via Wine on Linux.

Setup: ai-gauge setup copies the plugin automatically. Open StreamDock → find AI Gauge in the action list → drag it onto a key.

The button connects to ai-gauge-server via WebSocket and updates in real time. If the server is not running, the button shows --.

How it works

ai-gauge-server runs as a background daemon (systemd on Linux, launchd on macOS) and polls the relevant provider's usage API every 60 seconds:

• Claude Code / OpenCode (Anthropic OAuth) → https://api.anthropic.com/api/oauth/usage
• OpenAI Codex → https://chatgpt.com/backend-api/wham/usage (with JSONL fallback to ~/.codex/sessions/)
• OpenCode tri-mode → all available endpoints fetched in parallel; broadcast carries a top-level secondary field for Codex/OpenAI and a top-level copilot field for GitHub Copilot, when those OAuth blocks are present in the OpenCode auth file
• GitHub Copilot → https://api.github.com/copilot_internal/v2/token (authenticated via gh auth token shell-out → fallback to ~/.config/gh/hosts.yml → fallback to ~/.config/ai-gauge/copilot-token)
• Custom claude-settings:* providers → whatever ANTHROPIC_BASE_URL you configure (Z.ai, MiniMax, OpenRouter, Komilion, Packy)

Results are broadcast to all connected WebSocket clients on ws://localhost:19876.

On Linux, ai-gauge-waybar is a thin WebSocket client that renders each update as waybar-compatible JSON. On disconnect it shows a waiting state and reconnects automatically.

On macOS, bin/ai-gauge-menubar is a native Swift app using MenuBarExtra. It connects to the same WebSocket server and shows usage in the system menu bar.

The server writes usage.json atomically to $XDG_RUNTIME_DIR/ai-gauge/ on Linux or $TMPDIR/ai-gauge/ on macOS, so other tools can read it too.

Files

Both setup and uninstall are idempotent.

Community & Feedback

ai-gauge is early — first users still arriving. Feedback at any level helps:

• Questions, install issues, "how do I do X" → Discussions / Q&A
• Feature ideas, brainstorming → Discussions / Ideas
• Confirmed bugs with repro steps → Open an Issue
• Request a new AI provider (DeepSeek, Groq, Gemini, Cursor, etc.) → Provider Request
• Show off your setup → Discussions / Show and tell

Read the welcome post for the full triage map.
