Embedded-bpmn-vue NPM

embedded-bpmn-vue

Embedded bpmn modeling distributions based on bpmn-js and camunda-bpmn-js, default bpmn model type is Camunda. It can be applicable to Vue2.x, Vue3.x and Nuxt(ssr framework).

Advantages
✅ There is no need to consider Node versions, Vue versions, and Vue framework compatibility issues
✅ Let the user focus on the process rather than the basic configuration
✅ Support multiple languages (English, Chinese) to meet the needs of more users

Installation

via npm

npm install embedded-bpmn-vue

via yarn

yarn add embedded-bpmn-vue

Online Demo

Mobile/Pad visit recommendation

alt text

Pc visit recommendation

https://lenvonsam.github.io/embedded-bpmn-vue/

Usage

This project is designed to deliver different BPMN modeling distributions. Instead of creating custom Modeler implementations based on bpmn-js, choose one of the existing packages to mirror the modeling experience of Camunda's modeling products.

Global Config

import Vue from 'vue'
import EmbeddedBpmnVue from 'embedded-bpmn-vue'

# options is optional
Vue.use(EmbeddedBpmnVue, {
  // optional
  version: '4.5.0',
  // optional
  locale: 'zh-cn'
})

global options Option|Required|Type|Default|Description| |---|:---:|---|:---:|---| |version| false | string | '4.5.0' | camunda-bpmn-js tag versions | | locale| false | string | 'en' | en/zh-cn|

Global Components

Preview Component Usage

<template>
  <div style="height: 400px; width: 100%; position: relative;">
    <cem-preview :xml-str="xmlStr" />
  </div>
</template>
<script>
export default {
  data() {
    return {
      // camunda bpmn xml
      xmlStr: '',
    }
  },
}
</script>

Preview

alt text

Dashboard Component Usage

<template>
  <div style="height: 600px; width: 100%; position:relative;">
    <cem-dashboard :xml-str="xmlStr" @deploy="dashBoardDeploy"></cem-dashboard>
  </div>
</template>
<script>
export default {
  data() {
    return {
      // camunda bpmn xml, default start event xml
      xmlStr: '',
    }
  },
  methods: {
    // deploy bpmn to server
    dashBoardDeploy({ xml, fileName }) {
      // TODO you need to invoke the server-side deploy API to implement the deployment functionality
      console.log('deploy xml:>>', xml)
      console.log('deploy xml file name:>>', fileName)
    },
  },
}
</script>

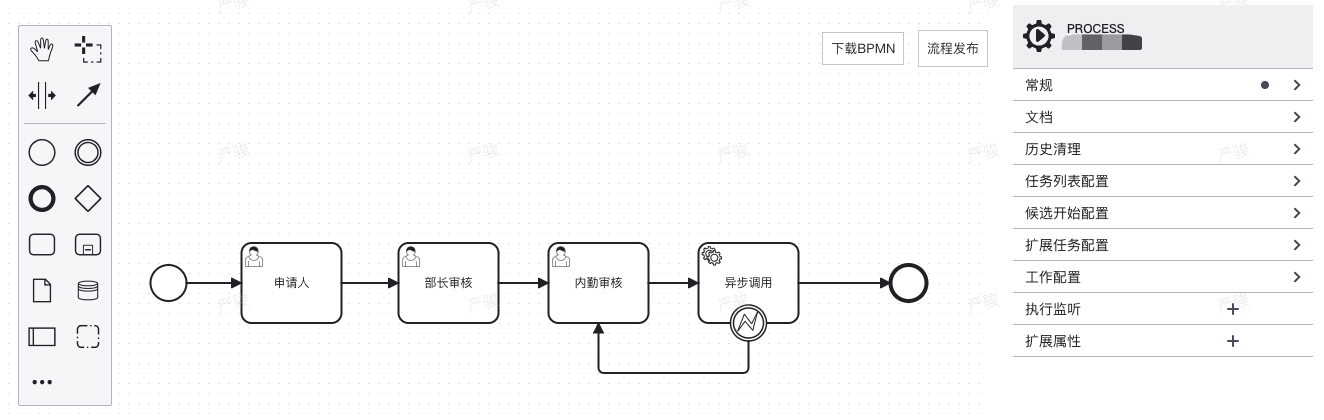

Preview

alt text

Dashboard Component Properties Property|Required|Type|Default|Description| |---|:---:|---|:---:|---| |xmlStr|false|String| '' | bpmn xml| |bpmnFlag|false|Boolean| true | show dowload BPMN button | |svgFlag|false|Boolean|false| show download SVG button| |deployFlag|false|Boolean|false| show deploy button| |minimapFlag|false|Boolean|false| show minimap button|

Dashboard Component Methods Method|Params|Description| |---|:---:|---| |deploy|{xml, fileName, processName}| deploy button callback function for custom deployment to yourself bpmn server-side| |cmdChange|event| make bpmn event - 'commandStack.changed' callback|

camunda-bpmn-js builds on top of a few powerful tools:
