react-canvas-snap v1.0.5

react-canvas-snap

react-canvas-snap is a React library that allows you to easily capture a specific region of a canvas using the mouse cursor. It enables users to draw a selection box on the canvas with their mouse and capture the content within the selected area.

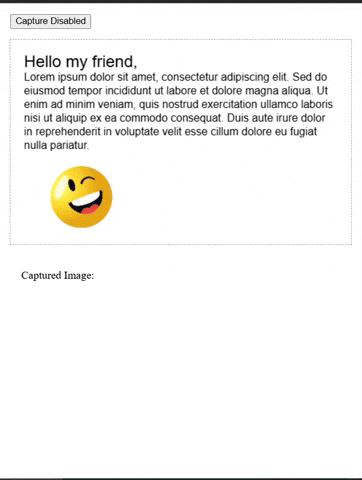

Demo

Features

• Allows users to capture a specific region of a canvas.
• Interactive selection area with the mouse cursor.
• Easy to integrate into React applications.

Installation

To install the library, run:

npm install react-canvas-snap

Usage

After installing the library, you can import the Canvas component and use it to capture a specific region of the canvas.

Import the Component

import { Canvas } from 'react-canvas-snap';

Example Usage

<Canvas
    ref={yourCanvasRef}
    drawingEnabled={true}
    option={{
        rect: {
            borderColor: '#F14236',
            borderStyle: 'dashed',
            borderWidth: 1
        },
        helperText: {
            show: true,
            value: 'Demo Capture (Enter: to capture | Esc: to cancel)',
            padding: 3,
            fontSize: 10,
            backgroundColor: '#F14236',
            textColor: '#ffffff'
        },
        imageQuality: "high",
    }}
    onCaptureCanceled={() => setCapturing(false)}
    onImageCaptured={(img) => setCapturedImage(img)}
    width={500}
    height={300}
    style={{
        border: '1px dashed #989898'
    }}
/>

Using hook

To import the hook, use:

import { useCanvasSnap } from 'react-canvas-snap';

To use the useCanvasSnap hook from react-canvas-snap, you can follow the different usage patterns based on whether you want to pass a ref to it or not.

1. Without Using Ref:

If you don't want to manually handle the ref, you can simply pass null to the hook. It will return a ref that you can assign to your canvas element.

const { canvasRef } = useCanvasSnap(null);

2. Using a Ref Manually:

If you prefer to use your own ref, you can create one using useRef and pass it to useCanvasSnap. This allows you to have more control over the ref.

// Create your own ref with useRef
const canvasRef = useRef(null);

// Pass the ref to useCanvasSnap
useCanvasSnap(canvasRef);

3. Full usage of useCanvasSnap hook

import React from 'react';
import { useCanvasSnap } from 'react-canvas-snap';

const MyComponent = () => {
    const [drawingEnabled, setDrawingEnabled] = useState(true);

    const option = {
        drawingEnabled: drawingEnabled,
        rect: {
            borderColor: '#F14236',
            borderStyle: 'dashed',
            borderWidth: 1
        },
        helperText: {
            show: true,
            value: 'Demo Capture (Enter: to capture | Esc: to cancel)',
            padding: 3,
            fontSize: 10,
            backgroundColor: '#F14236',
            textColor: '#ffffff'
        },
        imageQuality: "high",
    }

    const handleSnapshot = (snapshot) => {

        const { isCanceled, capturedImage, rectCoords } = snapshot;

        // capture is canceled
        if (isCanceled) {
            setDrawingEnabled(false);
            // add your logic
        }

        if (capturedImage && rectCoords) {
            // get image base64
            console.log(capturedImage);
            // you can also get the rect coordinates (x, y, width and height)
            console.log(rectCoords)
        }
    };

    const { canvasRef } = useCanvasSnap(null, handleSnapshot, option);

    return (
        <div style={{ position: 'relative'}}>
            <canvas ref={canvasRef} width={400} height={400} />
        </div>
    )
};

Drawing Functionality with Key Presses

The canvas drawing tool supports key press events to enhance user interaction:

1. Disable Drawing with Escape Key

   • If drawing is enabled and you want to stop the drawing action, you can press the Escape key.
   • This will disable the drawing mode on the canvas, and no further drawing can be done until drawing is re-enabled.

2. Capture Image with Enter Key

   • After completing a drawing (drawing a rectangle), you can press the Enter key.
   • This will trigger the snapshot callback and provide the current image of the canvas as a snapshot.

Example Usage:

• Press Escape: Disables drawing, preventing further changes on the canvas.
• Press Enter: Captures the drawn content and provides the image through the snapshot callback.

You can check out handleSnapshot on Full hook usage.

Canvas Snap Options

The CanvasSnapOptions type allows you to customize the drawing behavior on the canvas. Below is a detailed explanation of each option and its usage.

Rect Options

The rect option has the following customizable properties:

HelperText Options

The helperText option has the following customizable properties:

Acknowledgments

Thanks to the open-source community for their contributions that helped shape this library.

Contact

For any questions or feedback, feel free to reach out on GitHub.

License

This project is licensed under the MIT License - see the LICENSE file for details.
