react-leaflet-curve v2.0.1
react-leaflet-curve
Bezier Curve - a React component build on top of React-Leaflet that integrate leaflet-curve feature.
Getting started
import React from 'react';
import { Map, Circle, TileLayer, LayersControl, FeatureGroup, Marker, Polyline } from 'react-leaflet'
import { Curve } from 'react-leaflet-curve'
const path = ['M', [50.14874640066278, 14.106445312500002],
'Q', [51.67255514839676, 16.303710937500004],
[50.14874640066278, 18.676757812500004],
'T', [49.866316729538674, 25.0927734375]]

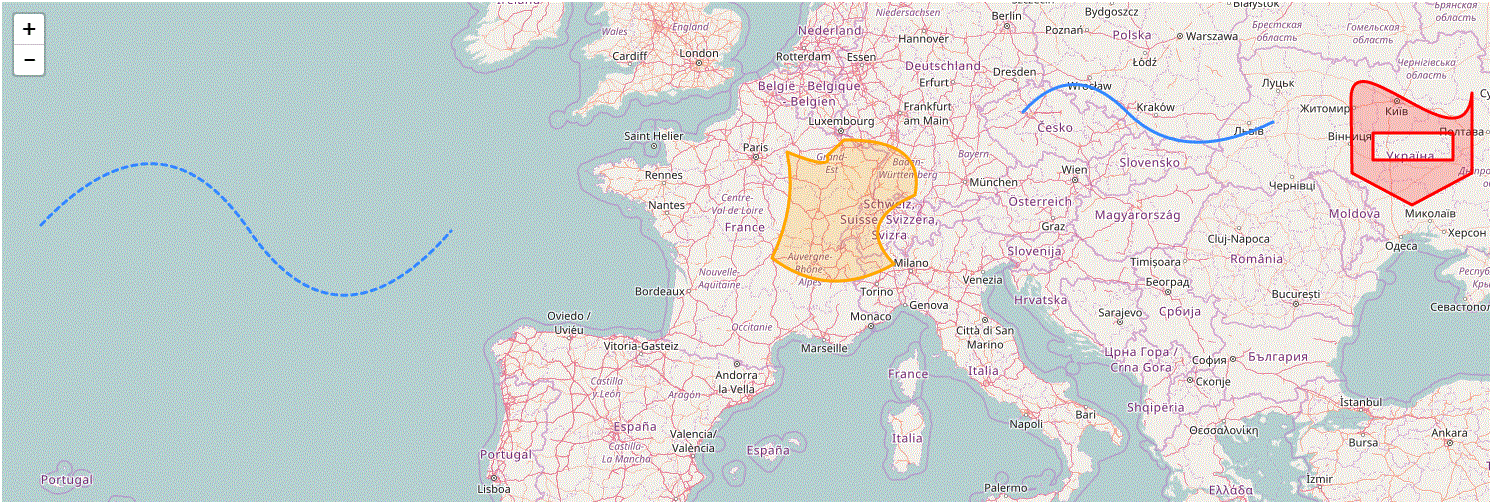

<Curve positions={path} option={{color:'red',fill:true}}/>For more details on how to use this plugin check the example.
API
| Command | Parameters | Description |
|---|---|---|
| M | lat,lng+ | move to lat,lng |
| L | lat,lng+ | line to lat,lng |
| H | lng+ | horizontal line to lng |
| V | lat+ | vertical line to lat |
| C | (lat1,lng1,lat2,lng2,lat,lng)+ | cubic Bézier curve to lat,lng with control points at lat1,lng1 and lat2,lng2 |
| S | (lat2,lng2,lat,lng)+ | cubic bézier curve to lat,lng with control points at reflection of second control point of previous curve lat1,lng1 and lat2,lng2 |
| Q | (lat1,lng1,lat,lng)+ | quadratic Bézier curve to lat,lng with control point at lat1,lng1 |
| T | (lat,lng)+ | quadratic Bézier curve to lat,lng with control point at reflection of control point of previous curve lat1,lng1 |
| Z | close path (line to M) |
Note that only absolute commands (uppercase) are implemented. It's possible to approximate elliptical arcs (command 'A') with Bézier curves (the elliptical-arc branch implements this command if you're interested).
For more details on how to use this plugin check the example.
