react-leaflet-milsymbol v0.1.2
react-leaflet-milsymbol

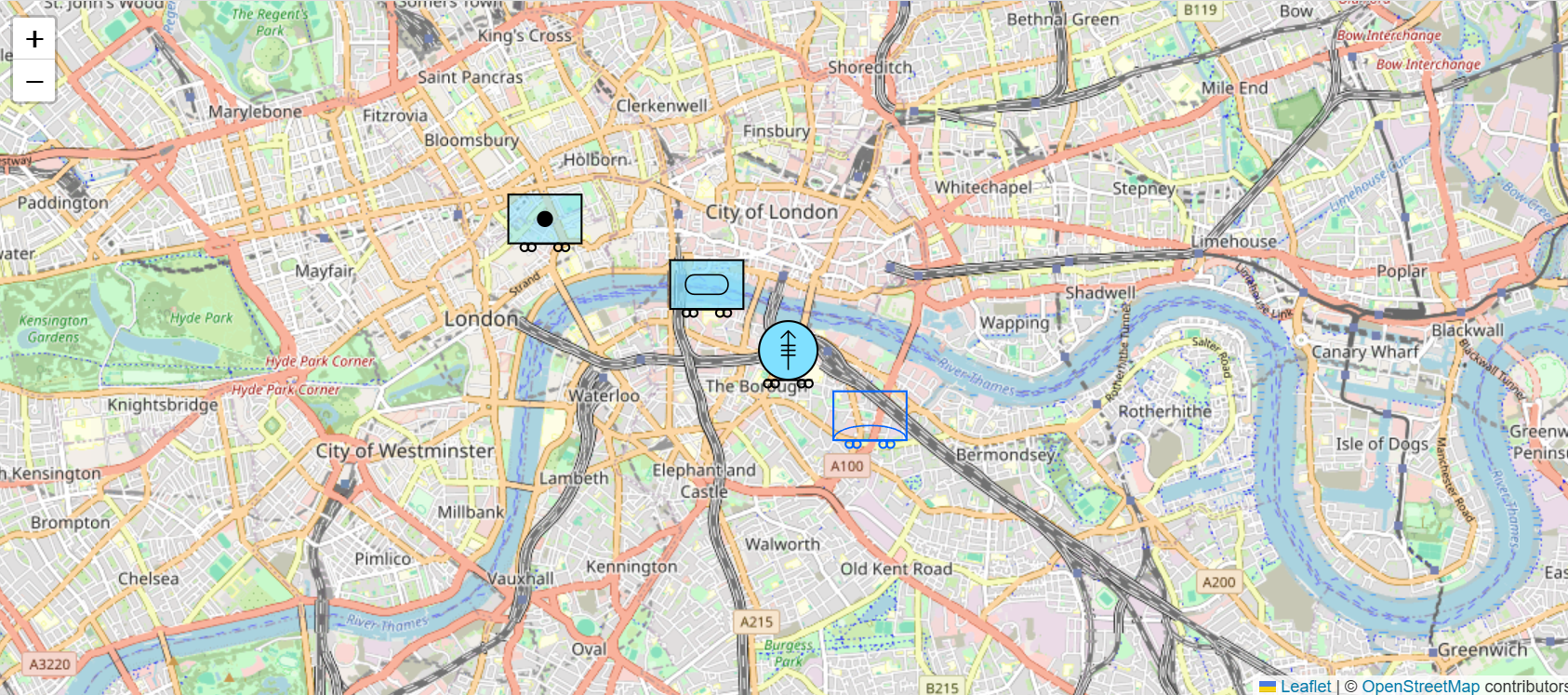

A React Leaflet v4 integration for the milsymbol library, allowing you to easily add military symbols to your React Leaflet maps.
Installation
npm install react-leaflet-milsymbol
# or
yarn add react-leaflet-milsymbol
# or
pnpm add react-leaflet-milsymbol
!IMPORTANT If using React 19, you will need to add the
--legacy-peer-deps
flag, asreact-leaflet
only supports React^18.0.0
Dependencies
This package requires the following peer dependencies:
react
(v18.0.0 or v19.0.0)react-dom
(v18.0.0 or v19.0.0)leaflet
(v1.9.0 or higher)react-leaflet
(v4.0.0 or higher)milsymbol
(v3.0.0 or higher)
Make sure to install these dependencies in your project if you haven't already.
Usage
Basic Example
import React from 'react';
import { MapContainer, TileLayer } from 'react-leaflet';
import { MilSymbol } from 'react-leaflet-milsymbol';
function MyMap() {
return (
<MapContainer center={[51.505, -0.09]} zoom={13} style={{ height: '500px', width: '100%' }}>
<TileLayer
url="https://{s}.tile.openstreetmap.org/{z}/{x}/{y}.png"
attribution='© <a href="https://www.openstreetmap.org/copyright">OpenStreetMap</a> contributors'
/>
{/* Add a military symbol to the map */}
<MilSymbol
position={[51.505, -0.09]}
sidc="SFGPEWRH--MT" // Symbol Identification Code
size={30}
options={{
size: 35,
fill: true,
fillOpacity: 0.5,
strokeWidth: 2,
}}
/>
</MapContainer>
);
}
export default MyMap;
Props
The MilSymbol
component accepts the following props:
Prop | Type | Description |
---|---|---|
position | [number, number] | Latitude and longitude where the symbol should be placed |
sidc | string | Symbol Identification Code (SIDC) |
size | number | Size of the symbol (optional) |
options | object | Additional options to customize the symbol (see below) |
tooltipContent | string or ReactNode | Optional content for tooltip |
popupContent | string or ReactNode | Optional content for popup |
eventHandlers | object | Event handlers for the symbol |
Options Object
The options object can include any properties available in the milsymbol library, such as:
{
size: 35, // Size of the symbol
fill: true, // Fill the symbol with color
fillOpacity: 0.5, // Opacity of the fill
strokeWidth: 2, // Width of the outline stroke
outlineColor: "rgb(0, 0, 0)", // Color of the outline
outlineWidth: 3, // Width of the symbol outline
icon: true, // Show the icon
monoColor: false, // Use monochrome color
civilianColor: false, // Use civilian colors for the symbol
colorMode: "Light", // "Light", "Medium", "Dark"
infoColor: "rgb(70, 70, 70)", // Color for information fields
infoSize: 10, // Size of information fields
alternateMedal: false, // Use alternate medal
}
Advanced Usage
Custom Symbol Styling
<MilSymbol
position={[51.505, -0.09]}
sidc="SFGPEWRH--MT"
options={{
size: 40,
fill: true,
fillOpacity: 0.7,
colorMode: "Dark",
monoColor: "rgb(255, 0, 0)",
infoFields: false,
}}
/>
With Popup and Tooltip
<MilSymbol
position={[51.505, -0.09]}
sidc="SFGPEWRH--MT"
tooltipContent="Infantry Unit"
popupContent={
<div>
<h3>Infantry Unit</h3>
<p>Unit ID: 12345</p>
<p>Status: Active</p>
</div>
}
/>
With Event Handlers
<MilSymbol
position={[51.505, -0.09]}
sidc="SFGPEWRH--MT"
eventHandlers={{
click: () => {
console.log('Symbol clicked!');
},
mouseover: () => {
console.log('Mouse over symbol');
},
}}
/>
API Reference
Components
<MilSymbol />
The main component for adding military symbols to your React Leaflet map.
Hooks
useMilSymbol(sidc, options)
A hook for creating milsymbol instances outside of the component.
import { useMilSymbol } from 'react-leaflet-milsymbol';
function SymbolPreview() {
const symbol = useMilSymbol("SFGPEWRH--MT", { size: 30 });
return (
<div>
<h3>Symbol Preview</h3>
<div dangerouslySetInnerHTML={{ __html: symbol.toSVG() }} />
</div>
);
}
Contributing
Contributions are welcome! Please feel free to submit a Pull Request.
- Fork the repository
- Create your feature branch (
git checkout -b feature/amazing-feature
) - Commit your changes (
git commit -m 'Add some amazing feature'
) - Push to the branch (
git push origin feature/amazing-feature
) - Open a Pull Request
License
This project is licensed under the MIT License - see the LICENSE file for details.
Acknowledgements
- milsymbol - The core library for generating military symbols
- react-leaflet - React components for Leaflet maps
