react-native-curved-bottom-bar

A high performance, beautiful and fully customizable curved bottom navigation bar for React Native. Implemented using react-native-svg and @react-navigation/bottom-tabs.

If you love this library, give us a star, you will be a ray of sunshine in our lives :)

Free React Native Boilerplate

React Native Template with a beautiful UI.

Getting started

npm install react-native-curved-bottom-bar --save

yarn add react-native-curved-bottom-bar

Now we need to install react-native-svg and @react-navigation/bottom-tabs.

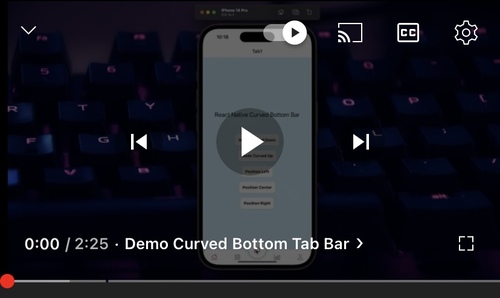

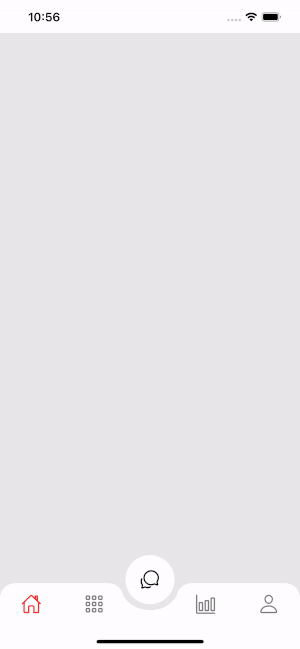

Demo

npm.io

CurvedBottomBar.Navigator

Props	Params	isRequire	Description
type	'DOWN' or 'UP'	Yes	Type of the center tab item, downward curve or upward curve
circlePosition	'CENTER' or 'LEFT' or 'RIGHT'	No	Position of circle button
initialRouteName	String	Yes	The name of the route to render on first load of the navigator
tabBar	({ routeName, selectedTab, navigate }) => JSX.Element	Yes	Function that returns a React element to display as the tab bar
renderCircle	({ routeName, selectedTab, navigate }) => JSX.Element	Yes	Function that returns a React element to display as the center tab item
circleWidth	Number	No	Customize width of the center tab item. Minimum is 50px and Maximum is 60px
style	ViewStyle	No	Styling for container view
shadowStyle	ViewStyle	No	Styling for shadow view.
width	Number	No	Customize width for container view
height	Number	No	Customize height for container view, Minimum is 50px and Maximum is 90px
borderTopLeftRight	Boolean	No	Border radius top left and top right of container view
bgColor	String	No	Background color of container view

CurvedBottomBar.Screen

Props	Params	isRequire	Description
name	String	Yes	Name of the route to jump to
position	'LEFT' or 'RIGHT' or 'CIRCLE'	Yes	Set position of tabbar icon to the left or right of the circle button. Use type "CIRCLE" only when you want the circle button is a tabview
component	(props) => JSX.Element	Yes	Screen params to merge into the destination route

API

Function	Params	Description
setVisible	Boolean	Used to hide/show the tab bar. Ex: ref.current.setVisible(false)

Use in Expo

npm.io

import React from 'react';
import {
  Alert,
  Animated,
  StyleSheet,
  TouchableOpacity,
  View,
} from 'react-native';
import { CurvedBottomBarExpo } from 'react-native-curved-bottom-bar';
import Ionicons from '@expo/vector-icons/Ionicons';
import { NavigationContainer } from '@react-navigation/native';

const Screen1 = () => {
  return <View style={styles.screen1} />;
};

const Screen2 = () => {
  return <View style={styles.screen2} />;
};

export default function App() {
  const _renderIcon = (routeName, selectedTab) => {
    let icon = '';

    switch (routeName) {
      case 'title1':
        icon = 'ios-home-outline';
        break;
      case 'title2':
        icon = 'settings-outline';
        break;
    }

    return (
      <Ionicons
        name={icon}
        size={25}
        color={routeName === selectedTab ? 'black' : 'gray'}
      />
    );
  };
  const renderTabBar = ({ routeName, selectedTab, navigate }) => {
    return (
      <TouchableOpacity
        onPress={() => navigate(routeName)}
        style={styles.tabbarItem}
      >
        {_renderIcon(routeName, selectedTab)}
      </TouchableOpacity>
    );
  };

  return (
    <NavigationContainer>
      <CurvedBottomBarExpo.Navigator
        type="DOWN"
        style={styles.bottomBar}
        shadowStyle={styles.shawdow}
        height={55}
        circleWidth={50}
        bgColor="white"
        initialRouteName="title1"
        borderTopLeftRight
        renderCircle={({ selectedTab, navigate }) => (
          <Animated.View style={styles.btnCircleUp}>
            <TouchableOpacity
              style={styles.button}
              onPress={() => Alert.alert('Click Action')}
            >
              <Ionicons name={'apps-sharp'} color="gray" size={25} />
            </TouchableOpacity>
          </Animated.View>
        )}
        tabBar={renderTabBar}
      >
        <CurvedBottomBarExpo.Screen
          name="title1"
          position="LEFT"
          component={() => <Screen1 />}
        />
        <CurvedBottomBarExpo.Screen
          name="title2"
          component={() => <Screen2 />}
          position="RIGHT"
        />
      </CurvedBottomBarExpo.Navigator>
    </NavigationContainer>
  );
}

export const styles = StyleSheet.create({
  container: {
    flex: 1,
    padding: 20,
  },
  shawdow: {
    shadowColor: '#DDDDDD',
    shadowOffset: {
      width: 0,
      height: 0,
    },
    shadowOpacity: 1,
    shadowRadius: 5,
  },
  button: {
    flex: 1,
    justifyContent: 'center',
  },
  bottomBar: {},
  btnCircleUp: {
    width: 60,
    height: 60,
    borderRadius: 30,
    alignItems: 'center',
    justifyContent: 'center',
    backgroundColor: '#E8E8E8',
    bottom: 30,
    shadowColor: '#000',
    shadowOffset: {
      width: 0,
      height: 1,
    },
    shadowOpacity: 0.2,
    shadowRadius: 1.41,
    elevation: 1,
  },
  imgCircle: {
    width: 30,
    height: 30,
    tintColor: 'gray',
  },
  tabbarItem: {
    flex: 1,
    alignItems: 'center',
    justifyContent: 'center',
  },
  img: {
    width: 30,
    height: 30,
  },
  screen1: {
    flex: 1,
    backgroundColor: '#BFEFFF',
  },
  screen2: {
    flex: 1,
    backgroundColor: '#FFEBCD',
  },
});

Use in RN CLI

npm.io

import React from 'react';
import {
  Alert,
  Animated,
  StyleSheet,
  TouchableOpacity,
  View,
} from 'react-native';
import { CurvedBottomBar } from 'react-native-curved-bottom-bar';
import Ionicons from 'react-native-vector-icons/Ionicons';
import { NavigationContainer } from '@react-navigation/native';

const Screen1 = () => {
  return <View style={styles.screen1} />;
};

const Screen2 = () => {
  return <View style={styles.screen2} />;
};

export default function App() {
  const _renderIcon = (routeName, selectedTab) => {
    let icon = '';

    switch (routeName) {
      case 'title1':
        icon = 'ios-home-outline';
        break;
      case 'title2':
        icon = 'settings-outline';
        break;
    }

    return (
      <Ionicons
        name={icon}
        size={25}
        color={routeName === selectedTab ? 'black' : 'gray'}
      />
    );
  };
  const renderTabBar = ({ routeName, selectedTab, navigate }) => {
    return (
      <TouchableOpacity
        onPress={() => navigate(routeName)}
        style={styles.tabbarItem}
      >
        {_renderIcon(routeName, selectedTab)}
      </TouchableOpacity>
    );
  };

  return (
    <NavigationContainer>
      <CurvedBottomBar.Navigator
        type="UP"
        style={styles.bottomBar}
        shadowStyle={styles.shawdow}
        height={55}
        circleWidth={50}
        bgColor="white"
        initialRouteName="title1"
        borderTopLeftRight
        renderCircle={({ selectedTab, navigate }) => (
          <Animated.View style={styles.btnCircleUp}>
            <TouchableOpacity
              style={styles.button}
              onPress={() => Alert.alert('Click Action')}
            >
              <Ionicons name={'apps-sharp'} color="gray" size={25} />
            </TouchableOpacity>
          </Animated.View>
        )}
        tabBar={renderTabBar}
      >
        <CurvedBottomBar.Screen
          name="title1"
          position="LEFT"
          component={() => <Screen1 />}
        />
        <CurvedBottomBar.Screen
          name="title2"
          component={() => <Screen2 />}
          position="RIGHT"
        />
      </CurvedBottomBar.Navigator>
    </NavigationContainer>
  );
}

export const styles = StyleSheet.create({
  container: {
    flex: 1,
    padding: 20,
  },
  shawdow: {
    shadowColor: '#DDDDDD',
    shadowOffset: {
      width: 0,
      height: 0,
    },
    shadowOpacity: 1,
    shadowRadius: 5,
  },
  button: {
    flex: 1,
    justifyContent: 'center',
  },
  bottomBar: {},
  btnCircleUp: {
    width: 60,
    height: 60,
    borderRadius: 30,
    alignItems: 'center',
    justifyContent: 'center',
    backgroundColor: '#E8E8E8',
    bottom: 18,
    shadowColor: '#000',
    shadowOffset: {
      width: 0,
      height: 1,
    },
    shadowOpacity: 0.2,
    shadowRadius: 1.41,
    elevation: 1,
  },
  imgCircle: {
    width: 30,
    height: 30,
    tintColor: 'gray',
  },
  tabbarItem: {
    flex: 1,
    alignItems: 'center',
    justifyContent: 'center',
  },
  img: {
    width: 30,
    height: 30,
  },
  screen1: {
    flex: 1,
    backgroundColor: '#BFEFFF',
  },
  screen2: {
    flex: 1,
    backgroundColor: '#FFEBCD',
  },
});
