regl-scatter2d

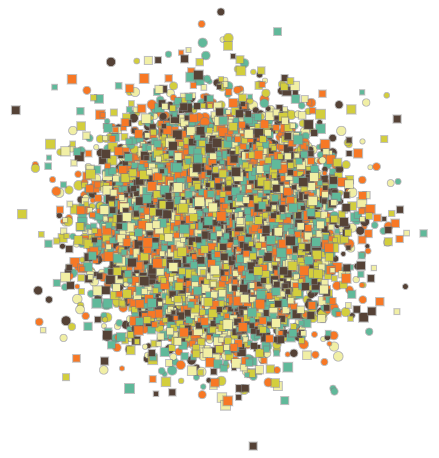

Fast and precise 2d scatter plot for lots of points.

regl-scatter2d

Remake on gl-scatter2d, covering other scatter-related components.

Usage

let regl = require('regl')({extensions: 'oes_element_index_uint'})

let createScatter = require('regl-scatter2d')

let scatter = createScatter(regl)

//draw 5 points
scatter({
  positions: [0,0, 1,0, 2,0, 1,1, 2,1],
  color: 'rgba(0, 100, 200, .75)'
})

`createScatter(regl)`

Create new scatter plot instance from regl. regl instance should have OES_element_index_uint extension enabled.

`scatter(optionsA, optionsB, ...rest)`

Draw scatter points corresponding to options.

// render multiple point groups
scatter(
  { points: [0,0, 1,1], color: 'blue', marker: null },
  { points: [0,1, 1,0], color: 'red', marker: someSdf }
)

Option	Default	Description
`positions`, `points`	`[]`	An array of the unrolled xy coordinates of the points as `[x,y, x,y, ...points]` or array of points `[[x,y], [x,y], ...points]`. Can be an object with `{x: [...xValues], y: [...yValues]}` planar values. For more precise memory control, like in matrix case, `x` or `y` can be an object of the form `{x: {buffer: reglBuffer, offset: value}}`, then the `reglBuffer` will be reused.
`size`, `sizes`	`12`	Number or array with marker sizes in pixels. Array length should correspond to `positions`.
`borderSize`, `borderSizes`	`1`	Number or array with border sizes in pixels. Array length should correspond to `positions`.
`color`, `colors`	`'black'`	Color or array with colors. Each color can be a css color string or an array with float `0..1` values.
`borderColor`, `borderColors`	`'transparent'`	Border color or array with border colors.
`opacity`	`1`	Regulate marker transparency separately from colors.
`marker`, `markers`	`null`	Marker SDF image, should be a rectangular array with `0..1` 1-channel values of signed distance field. Use bitmap-sdf or svg-path-sdf to generate distance array from a canvas, image or svg. `.5` value of distance corresponds to the border line. If `null`, circular marker is used.
`range`, `dataBox`	`null`	Data bounds limiting visible data as `[left, top, right, bottom]`. If `null`, the range is detected as `positions` boundaries.
`viewport`, `viewBox`	`null`	Bounding box limiting visible area within the canvas in pixels, can be an array `[left, top, right, bottom]` or an object `{left, top, right, bottom}` or `{x, y, w, h}`.
`snap`	`null`	A bool, number of points threshold to enable snapping or point-cluster tree instance.

`scatter.update(optionsA, optionsB, ...rest)`

Update options corresponding to passes, not incurring redraw. Passing null will remove previously loaded pass.

// update 3 passes
scatter.update(a, b, c)

// update 1st pass, remove 2nd pass, ignore 3rd pass
scatter.update(a, null)

// update 2nd pass (former 3rd pass)
scatter.update(null, b)

// update n-th pass
scatter.update.apply(scatter, Array.from({length: 10, 9: options}))

`scatter.draw(id1|els1?, id2|els2?, ...)`

Draw groups corresponding to ids, optionally specify marker ids to draw via els:

// create 3 groups of points
scatter.update(
  {points: [0,1, 1,0], color: 'red', marker: squareSdf},
  {points: [1,2, 2,1], color: 'green', marker: triangleSdf},
  {points: [0,0, 1,1], color: 'blue', marker: null}
)

// draw all groups
scatter.draw()

// draw red group
scatter.draw(0)

// draw green and blue group
scatter.draw(1, 2)

// draw the second point of the blue group and the first point of the red group
scatter.draw([1], null, [0])
