ssq-toolbar-block

[TOC]

Installation

npm i ssq-flow-D

npm i mxgraph -D

// webpack.config.js
module.exports = {
  module: {
    rules: [
      ...,
      {
        test: require.resolve("mxgraph/javascript/mxClient"),
        use:
          "exports-loader?" +     "mxClient,mxEditor,mxLog,mxObjectIdentity,mxDictionary,mxResources,mxEffects,mxUtils,mxConstants,mxEvent,mxClipboard,mxUrlConverter,mxVmlCanvas2D,mxStencilRegistry," +        "mxMarker,mxHierarchicalEdgeStyle,mxCell,mxCellPath,mxPerimeter,mxEdgeStyle,mxStyleRegistry,mxCodecRegistry,mxGenericChangeCodec,mxStylesheetCodec,mxDefaultToolbarCodec," +         "mxGraph,mxRubberband,mxHierarchicalLayout,mxFastOrganicLayout,mxGraphModel,mxPanningHandler,mxKeyHandler,mxParallelEdgeLayout,mxLayoutManager,mxCompactTreeLayout," +         "mxPrintPreview,mxToolbar,mxOutline,mxCellTracker,mxCellOverlay,mxImage,mxLoadResources,mxPopupMenu,mxCylinder,mxRectangle,mxCellRenderer,mxVertexHandler,mxPoint," +
"mxHandle,mxRhombus,mxActor,mxArrow,mxArrowConnector,mxCloud,mxConnector,mxConnector,mxEllipse,mxHexagon,mxImageShape,mxLabel,mxLine,mxPolyline,mxMarker,mxRectangleShape," +       "mxShape,mxStencil,mxStencilRegistry,mxSwimlane,mxText,mxTriangle,mxAutoSaveManager,mxDivResizer,mxForm,mxGuide,mxImageBundle,mxImageExport,mxLog,mxMorphing,mxMouseEvent," +         "mxPanningManager,mxSvgCanvas2D,mxUndoableEdit,mxUndoManager,mxUrlConverter,mxWindow,mxXmlCanvas2D,mxXmlRequest,mxCellEditor,mxCellState,mxCellStatePreview,mxConnectionConstraint," +         "mxGraphSelectionModel,mxGraphView,mxMultiplicity,mxSwimlaneManager,mxTemporaryCellStates,mxGeometry,mxStackLayout,mxRadialTreeLayout,mxPartitionLayout,mxGraphLayout," +         "mxEdgeLabelLayout,mxCompositeLayout,mxCircleLayout,mxSwimlaneOrdering,mxMinimumCycleRemover,mxMedianHybridCrossingReduction,mxHierarchicalLayoutStage,mxCoordinateAssignment," +         "mxSwimlaneLayout,mxObjectCodec,mxGenericChangeCodec,mxTooltipHandler,mxSelectionCellsHandler,mxPopupMenuHandler,mxGraphHandler,mxElbowEdgeHandler,mxEdgeHandler," +         "mxConstraintHandler,mxConnectionHandler,mxCellMarker,mxCellHighlight,mxDefaultPopupMenu,mxDefaultKeyHandler,mxCodec,mxGraphHierarchyModel,mxGraphAbstractHierarchyCell," +
"mxGraphHierarchyEdge,mxGraphHierarchyNode,mxSwimlaneModel,mxEdgeSegmentHandler"
      },
    ...
    ]
  }
}

---

Flow Component

FlowController

เป็น function controler สำหรับจัดการการทำงานของ Flow ประกอบไปด้วย

Method

Name	Return	Type	Desc
renderFlowWithXmlStr(graph, xmlStr)	-		เป็น function อ่าน  xml ออกมาเป็น Flow
initialGraphProperties(editor)	-		เป็น function สำหรับกำหนด properties พื้นฐานของ Flow
convertValueToString(graph)	value	String	เป็น function สำหรับแสดงข้อความบน  node
setNodeCounter(graph)	-		เป็น function สำหรับแสดงค่าของจำนวน node บน Flow (ไม่นับเส้นเชื่อม)
initialGraphEvent(editor)	-		เป็น function สำหรับกำหนด event พื้นฐานของ Flow
printFlow(editor)	-		เป็น function preview และ print Flow

---

Flow

Properties

Name	Default	Type	Desc
id	random	String	Id สำหรับอ้างอิง component
editor	null	Object	เป็นตัวแปรสำหรับจัดการ state ของ Flow
graph	null	Object	เป็นตัวแปรสำหรับจัดการค่าของ Flow
height	500	Number	ความสูงของ Flow

Method

Name	Return	Type	Desc
loadGraph(ref)	-		เป็น function สำหรับ load allow

Example

import {
  Flow
} from "ssq-flow";

<Flow height={800} ref={this.flowRef} id={id} />

import React, { Component } from "react";

import _ from "lodash";
import {
  mxClient,
  mxUtils,
  mxEditor,
  mxParallelEdgeLayout,
  mxLayoutManager,
  mxGraph,
  mxKeyHandler,
  mxDefaultKeyHandler
} from "mxgraph/javascript/mxClient";

import { createPopupMenu } from "./popupController";

import {
  Flow,
  Node,
  ActionBar,
  Properties,
  Outline,
  FlowController
} from "ssq-flow";

import KeyHandler from "./resources/keyHandler.txt";

const listNode = [
  {
    nodeId: "start",
    nodeType: "start",
    icon: "https://dl.dropboxusercontent.com/s/rxsb183p5x163ya/start.svg",
    nodeName: "Start",
    style:
      "shape=ellipse;strokeWidth=2;fillColor=#28A745;strokeColor=#218838;noLabel=1",
    height: 40,
    width: 40,
    multiplicities: {
      source: true,
      attr: null,
      value: null,
      min: 0,
      max: 1,
      validNeighbors: {
        allow: ["ALL"],
        block: ["end", "loop"]
      },
      countError: "Only 1 targets allowed",
      typeError: "Can not connect from other nodes.",
      validNeighborsAllowed: ""
    }
  },
  {
    nodeId: "end",
    nodeType: "end",
    icon: "https://dl.dropboxusercontent.com/s/eiywz47egx0u8zx/end.svg",
    nodeName: "End",
    style:
      "shape=ellipse;strokeWidth=2;fillColor=#DB3545;strokeColor=#C82332;noLabel=1",
    height: 40,
    width: 40,
    multiplicities: {
      source: true,
      attr: null,
      value: null,
      min: 1,
      max: 0,
      validNeighbors: {
        allow: ["ALL"],
        block: ["start", "end", "loop", "decision"]
      },
      countError: "Can not connect to other nodes.",
      typeError: "Can not connect to Start node",
      validNeighborsAllowed: ""
    }
  },
  ...
];

export default class flow extends Component {
  constructor(props) {
    super(props);
    this.state = { graph: null, editor: null };

    this.flowRef = React.createRef();
  }

  loadGraph = ref => {
    const container = document.getElementById(`${ref.props.id}Flow`);

    let graph = "";
    let editor = "";
    // Checks if the browser is supported
    if (!mxClient.isBrowserSupported()) {
      // Displays an error message if the browser is not supported.
      mxUtils.error("Browser is not supported!", 200, false);
    } else {
      if (mxClient.IS_QUIRKS) {
        document.body.style.overflow = "hidden";
        new mxDivResizer(container);
      }

      window.mxEditor = mxEditor;
      window.mxGraph = mxGraph;
      window.mxDefaultKeyHandler = mxDefaultKeyHandler;
      window.mxKeyHandler = mxKeyHandler;

      const doc = mxUtils.parseXml(KeyHandler);
      const config = doc.getElementsByTagName("mxEditor")[0];

      editor = new mxEditor(config);
      graph = editor.graph;

      FlowController.initialGraphProperties(editor);
      FlowController.initialGraphEvent(editor);

      // Sets the graph container and configures the editor
      editor.setGraphContainer(container);

      // Automatically handle parallel edges
      const layout = new mxParallelEdgeLayout(graph);
      const layoutMgr = new mxLayoutManager(graph);

      layoutMgr.getLayout = function(cell) {
        if (cell.getChildCount() > 0) {
          return layout;
        }
      };

      FlowController.convertValueToString(graph);

      graph.popupMenuHandler.factoryMethod = (menu, cell, evt) => {
        return createPopupMenu(editor, menu, cell, evt);
      };

      this.setState({
        graph,
        editor
      });
    }
  };

  componentDidMount() {
    this.loadGraph(this.flowRef.current);
  }

  render() {
    const { editor } = this.state;
    const id = "flow";

    return (
      <div className="container-fluid">
        <div className="row">
          <div className="col-md-2 col-sm-3">
            {!_.isEmpty(editor) && (
              <Node data={listNode} editor={editor} id={id} />
            )}
          </div>
          <div className="col-md-7 col-sm-5">
            <div className="row">
              {!_.isEmpty(editor) && (
                <ActionBar flow={this.flowRef.current} editor={editor} />
              )}
            </div>
            <div className="row">
              {!_.isEmpty(editor) && <Outline id={id} editor={editor} />}
              <Flow height={800} ref={this.flowRef} id={id} />
            </div>
          </div>
          <div className="col-md-3 col-sm-4">
            <Properties />
          </div>
        </div>
      </div>
    );
  }
}

---

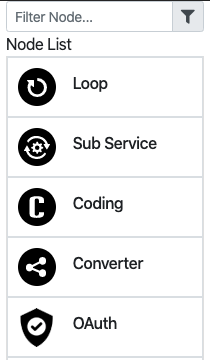

Node

Properties

Name	Default	Type	Desc
id	random	String	Id สำหรับอ้างอิง component
editor	null	Object	เป็นตัวแปรสำหรับจัดการ state ของ Flow
data	[ ]	Array	Json Data สำหรับการแสดง node

Example

import {
  Node
} from "ssq-flow";

const listNode = [
  {
    nodeId: "start",
    nodeType: "start",
    icon: "https://dl.dropboxusercontent.com/s/rxsb183p5x163ya/start.svg",
    nodeName: "Start",
    style:
      "shape=ellipse;strokeWidth=2;fillColor=#28A745;strokeColor=#218838;noLabel=1",
    height: 40,
    width: 40,
    multiplicities: {
      source: true,
      attr: null,
      value: null,
      min: 0,
      max: 1,
      validNeighbors: {
        allow: ["ALL"],
        block: ["end", "loop"]
      },
      countError: "Only 1 targets allowed",
      typeError: "Can not connect from other nodes.",
      validNeighborsAllowed: ""
    }
  },
  {
    nodeId: "end",
    nodeType: "end",
    icon: "https://dl.dropboxusercontent.com/s/eiywz47egx0u8zx/end.svg",
    nodeName: "End",
    style:
      "shape=ellipse;strokeWidth=2;fillColor=#DB3545;strokeColor=#C82332;noLabel=1",
    height: 40,
    width: 40,
    multiplicities: {
      source: true,
      attr: null,
      value: null,
      min: 1,
      max: 0,
      validNeighbors: {
        allow: ["ALL"],
        block: ["start", "end", "loop", "decision"]
      },
      countError: "Can not connect to other nodes.",
      typeError: "Can not connect to Start node",
      validNeighborsAllowed: ""
    }
  },
  ...
];

<Node data={listNode} editor={editor} id={id} />

---

ActionBar

Properties

Name	Default	Type	Desc
flow	Null	Ref	Ref สำหรับอ้างอิง component ของ Flow
editor	null	Object	เป็นตัวแปรสำหรับจัดการ state ของ Flow

Example

import {
  ActionBar
} from "ssq-flow";

this.flowRef = React.createRef();

<Flow height={800} ref={this.flowRef} id={id} />
<ActionBar height={800} flow={this.flowRef.current} />

---

Properties

Properties

Name	Default	Type	Desc

Example

import {
  Properties
} from "ssq-flow";

<Properties />

---

Outline

Properties

Name	Default	Type	Desc
id	random	String	Id สำหรับอ้างอิง component
editor	null	Object	เป็นตัวแปรสำหรับจัดการ state ของ Flow

Example

import {
  Outline
} from "ssq-flow";

 <Outline id={id} editor={editor} />

---
