tracex v1.1.1

tracex

A fast, pluggable utility to extract metric from browser traces.

Features

• Fast: tracex extracts metrics from large numbers of traces in parallel, and handles large traces gracefully through streaming.
• Pluggable: tracex allows you to create your own specific metrics, and tweak their definitions. This allows you to experiment with custom metrics, or create your own.
• Graceful errors: trace handles errors gracefully, allowing you to ignore or fix problems in individual trace files or traces.

✨ Use with wpt-gauntlet for an end-to-end benchmarking solution!

Usage

To get started, you can install tracex locally, or run it using npx:

$ npx tracex --help

tracex can be run on a single profile, or a collection of profiles.

For example, to collect metrics from a collection of traces, we specify the file(s) (via a glob pattern) and the metrics we wish to collect:

$ npx tracex "../wpt-gauntlet/output/react-profile-*" --functions "1"

[traceX] Parsing traces and extracting metrics from 19 files
[traceX] ======= Results =======
fileName,function.1:timeTotal,function.1:samplesPresent,function.1:sampleTotal
../wpt-gauntlet/output/react-profile-0.json,17296,51,70954
../wpt-gauntlet/output/react-profile-10.json,17102,69,68011
../wpt-gauntlet/output/react-profile-11.json,17102,69,68011
../wpt-gauntlet/output/react-profile-12.json,11738,29,66865

...

To see a list of built-in metrics and how they can be configured, run npx tracex --help.

Collecting the traces

To use tracex, you must also have a trace, or a collection of traces. This can be done in several ways:

Using a tool like webpagetest, or wpt-gauntlet

See wpt-gauntlet for more details on how to use wpt-gauntlet to collect a large number of traces in an automated way

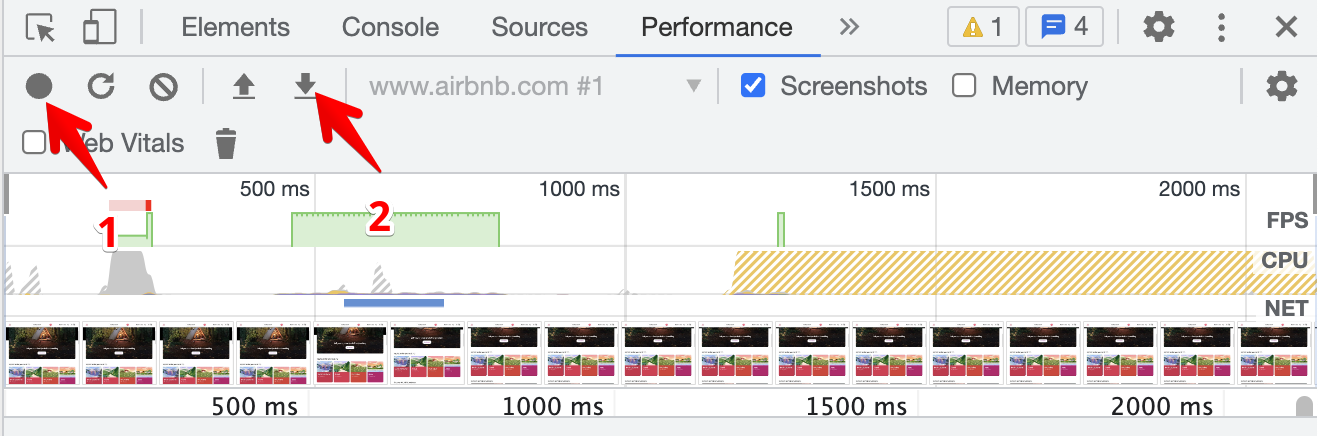

Profiling chrome using the performace devtools

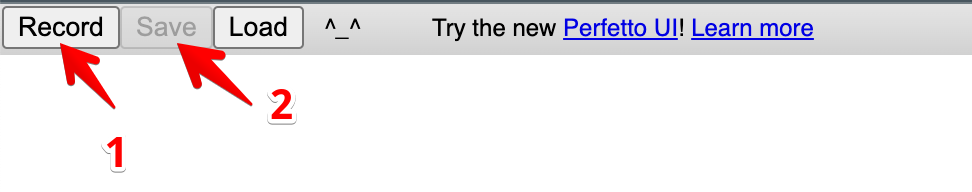

Profiling chrome using chrome://tracing directly

Visiting chrome://tracing in Chrome allows you to customize which categories of metrics are recorded in your trace. This gives you a lot more ability to create and specify custom metrics:

The tracing categories relied upon for the built in metrics are:

• urls, functions: ['disabled-by-default-v8.cpu_profiler']
• framerate: ['cc', 'benchmark']

See here for a list of categories.

Built in metrics

• --functions "foo": count the number of samples, and the duration of time spent inside functions that match the name of the given parameter. Can be used to profile specific functions over a large collection of traces.
• --urls "bar": count the number of samples and total time spent inside functions belonging to a particular URL pattern. For example, if your framework was in a bundle named framework.js, --urls "framework" would count time spent inside this framework.
• --framerate: collect framerate metrics sampled in this profile.

Custom metrics

Custom metrics can be created using plugins. This can be configured with the --plugins argument on the command line:

$ npx tracex ~/Downloads/Profile-20220508T213500.json --plugins ./plugin/example.plugin.js

[traceX] Parsing traces and extracting metrics from 1 files
[traceX] ======= Results =======
fileName,example:events
/Users/josh_nelson/Downloads/Profile-20220508T213500.json,7734

A plugin consists of a module with a default export, with the following fields:

export default {
  // The name of the plugin
  name: "example",
  // A function that creates the plugin
  plugin: function examplePlugin(config, log) {
    const example = {
      events: 0,
    };

    // Returns the plugin itself
    return {
      // `preExtract` runs first over every event in the trace.
      // This can be used for any pre-computation or setup necessary.
      preExtract: (event) => {},
      // `extract` runs afterwards, again over every event in the trace. Most work should be done here.
      extract: () => {
        // See docs.google.com/document/d/1CvAClvFfyA5R-PhYUmn5OOQtYMH4h6I0nSsKchNAySU/edit for documentation on the trace event format.
        example.events++;
      },
      // `report` is used to collect results from the plugin. Metrics have a key:subkey format, so ensure that metrics are namespaced in the object under a specific key.
      report: () => {
        return {
          example,
        };
      },
    };
  },
};

See example.plugin.js for an example plugin.
