wgpu-kit

wgpu-kit

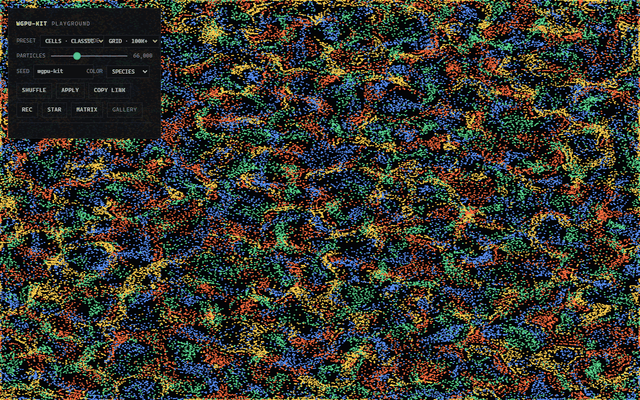

Creative-coding GPU toolkit for the browser. 200,000-particle physics at 120fps — in 5 lines of code. All the WebGPU boilerplate — device, buffers, pipelines, dispatch, double buffering, readbacks, error line-mapping — wrapped into two simple API layers.

API Reference · 中文文档 · LIVE DEMO

Quick start

npm i wgpu-kit

100,000 particles in 5 lines:

import { particles } from 'wgpu-kit';

const sim = await particles({ count: 100_000, forces: 'cells' });
await sim.attach(canvas);
function frame() { sim.tick(); requestAnimationFrame(frame); }
frame();

Custom GPU compute — you only write the per-element function:

import { elementKernel, Buffer } from 'wgpu-kit';

const pos = await Buffer.create('vec2f', 100_000);
const vel = await Buffer.create('vec2f', 100_000);

const integrate = elementKernel({
  state:   { pos: 'vec2f' },
  inputs:  { vel: 'vec2f' },
  uniforms: { dt: 'f32' },
  code: `
    fn userFn(idx: u32, dt: f32) {
      pos[idx] = (pos[idx] + vel[idx] * dt) * 0.99;
    }
  `,
});
await integrate.run({ pos, vel }, { dt: 0.02 });

Device management, buffer sizing, pipeline creation, double buffering, dispatch, readbacks, error line-mapping — all handled by the library.

The same thing, with raw WebGPU

For honesty: here is the heavily condensed native equivalent (full version is ~150 lines; this excerpt omits error handling, resize, double buffering, staging readbacks and the render pipeline):

const adapter = await navigator.gpu.requestAdapter();
const device = await adapter.requestDevice();

// buffers — sizes and usages hand-computed
const pos = device.createBuffer({ size: 100_000 * 8, usage: GPUBufferUsage.STORAGE | GPUBufferUsage.COPY_DST | GPUBufferUsage.COPY_SRC });
const vel = device.createBuffer({ size: 100_000 * 8, usage: GPUBufferUsage.STORAGE | GPUBufferUsage.COPY_DST | GPUBufferUsage.COPY_SRC });

// hand-written WGSL, uniform struct aligned to 16 bytes by hand
const module = device.createShaderModule({ code: `...struct Params {...}...` });

const pipeline = device.createComputePipeline({ layout: 'auto', compute: { module, entryPoint: 'main' } });
const bindGroup = device.createBindGroup({ layout: pipeline.getBindGroupLayout(0), entries: [/* every binding, exact order */] });

function tick(dt) {
  const enc = device.createCommandEncoder();
  const pass = enc.beginComputePass();
  pass.setPipeline(pipeline);
  pass.setBindGroup(0, bindGroup);
  pass.dispatchWorkgroups(Math.ceil(100_000 / 64));
  pass.end();
  device.queue.submit([enc.finish()]);
}
// …plus: staging readbacks, device-lost handling, WGSL compile diagnostics,
// canvas resize — and a render pipeline before anything is visible.

With wgpu-kit, the kernel is the only code you write — and when WGSL fails to compile, the error points at your line.

Entry points

import	purpose
wgpu-kit	elementKernel core + Buffer / PingPong / rawKernel
wgpu-kit/particles	particle life: presets, adaptive world, live updates
wgpu-kit/life	Turing patterns / Physarum / Boids / Tentacles
wgpu-kit/fields	vector-field advection trails
wgpu-kit/image	GPU filter pipeline (blur/sharpen/edge/…)
wgpu-kit/react	<ParticleCanvas />
wgpu-kit/three	three.js snapshot interop
wgpu-kit/media	canvas recording (webm/mp4)
wgpu-kit/observe	GPU timing / device diagnostics / canvas helpers
wgpu-kit/vite	WGSL kernel hot reload

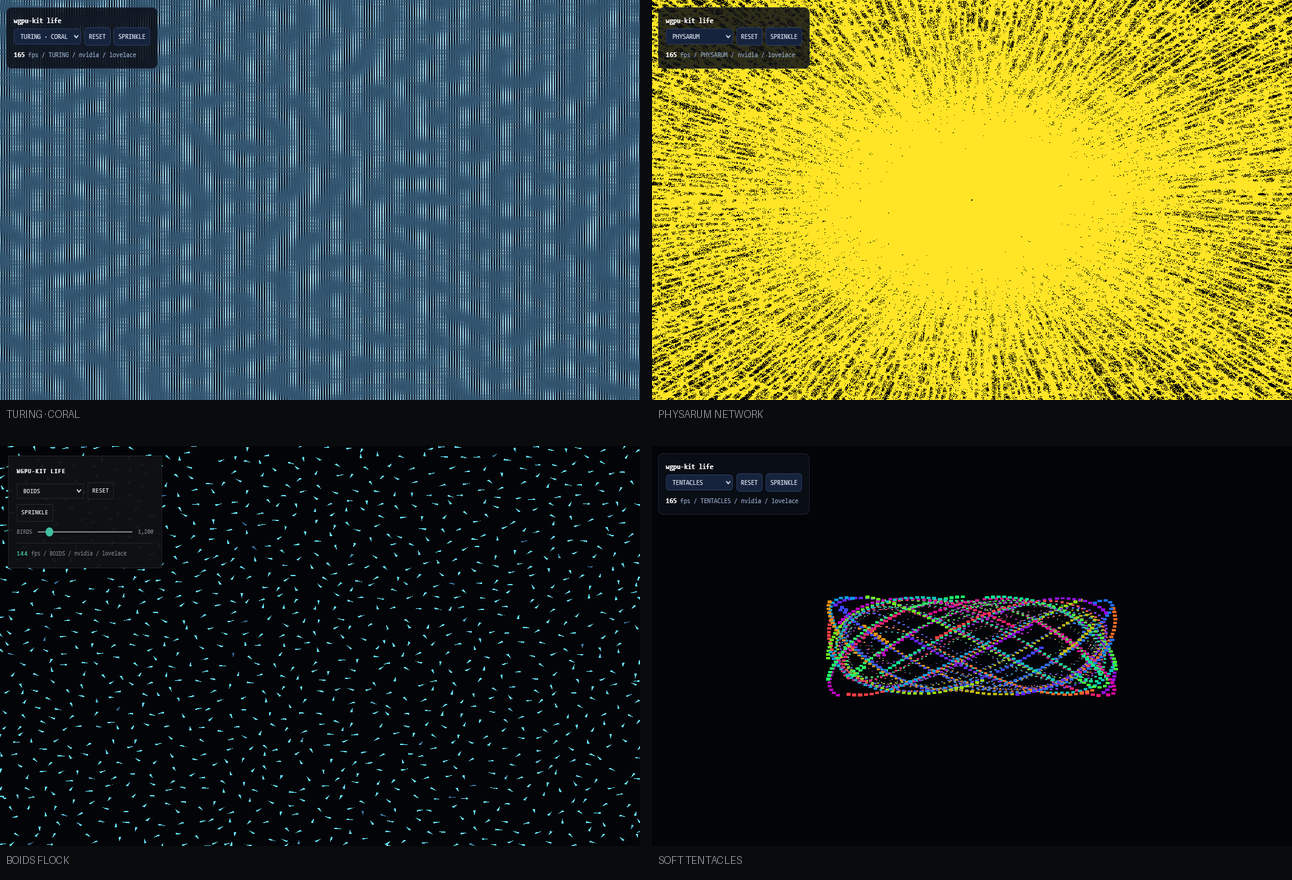

The life pack: Turing patterns / Physarum / Boids / Tentacles — open the demo.

Numbers (reproducible)

All fps numbers are visible frames — every tick() renders fresh state.

metric	value	environment
particles end-to-end	200,000 @ 122fps · 66,000 @ 144fps	RTX 4060 Laptop, playground
particle compute (grid)	16k→262k flat, 3.0→4.4ms/frame	reproducible via npm run bench → docs/BENCHMARK.md
neighborhood algorithms	grid ~O(N), 8.5× faster than brute force at 66k	same-session A/B
bundle size	core gzip ~10kB (all entries share one context)	measured by npm run build

Three design rules

1. Level-2 works in 5 minutes, level-1 has no ceiling — rawKernel and native GPUBuffer escape hatches stay open;
2. Errors speak human — WGSL compile failures map back to your line numbers;
3. Benchmarks are documentation — every published number is reproducible; gzip budgets are enforced by npm run build.

Verification

41+ automated probes run on a real GPU via a headless Chromium harness (included: tests/ + scripts/verify.mjs) — including a physics equivalence regression that fails the build if the neighborhood algorithms (n2 / tiled / grid) ever produce divergent structures.

Support matrix

browser	status
Chrome / Edge 113+ (incl. headless)	all validation runs here (RTX 4060, D3D backend)
Safari 18+ / Firefox	should work with WebGPU enabled; untested — issues welcome
WebGL2 / no WebGPU	no fallback (by design); detect.html can diagnose

License

MIT
